Как да конфигурирате Iskraemeco MT880 в инструмента Iskraemeco SEP2W или Symbiot
Конфигурирайте електромера Iskraemeco MT880 в SEP2W manager или в инструмента Symbiot за Reduxi Controller.
Текстово описание на това изображение
Снимка на електромер Iskraemeco MT880 на бял фон, изглед отпред. Светлосив корпус с монтажна планка за окачване отгоре, LCD дисплей и етикет с баркод в горната част, черен оптичен модул или модул с бутони вляво, прозрачен капак на клемите от лявата страна, ред малки индикаторни светлини и малък син знак на марката вдясно.
1 Техническа документация
Конфигурирайте електромера с основната структура от Reduxi standard telegram structure for Iskraemeco AM550 DLMS push on P1 interface. Използвайте Iskraemeco SEP2W manager или инструмента Symbiot. Нужна е само една телеграма с данните, определени в тази структура.
- Reduxi standard telegram structure – структура на телеграмата за Iskraemeco DLMS push на P1 интерфейса (Reduxi).
- Iskraemeco MT880 product page – страница на производителя за модулния електромер MT880.
- MT880 brochure – брошура за модулния електромер с висока точност. За изтеглянето е нужна форма.
- Iskraemeco Symbiot – платформата Symbiot, включително MeterConfigurator.
- Iskraemeco documentation download center – каталози, брошури и технически листове на производителя.
2 Необходимо оборудване
- Електромер Iskraemeco MT880
- Iskraemeco SEP2W manager или инструмент Symbiot
- Reduxi Controller
- Лаптоп или таблет с достъп до интернет за конфигуриране на устройството в Reduxi
3 IEC local port setup channel 1
Изпълнете следните стъпки в инструмента Iskraemeco SEP2W manager. Започнете със стъпка 1, IEC local port setup channel 1.
Текстово описание на това изображение

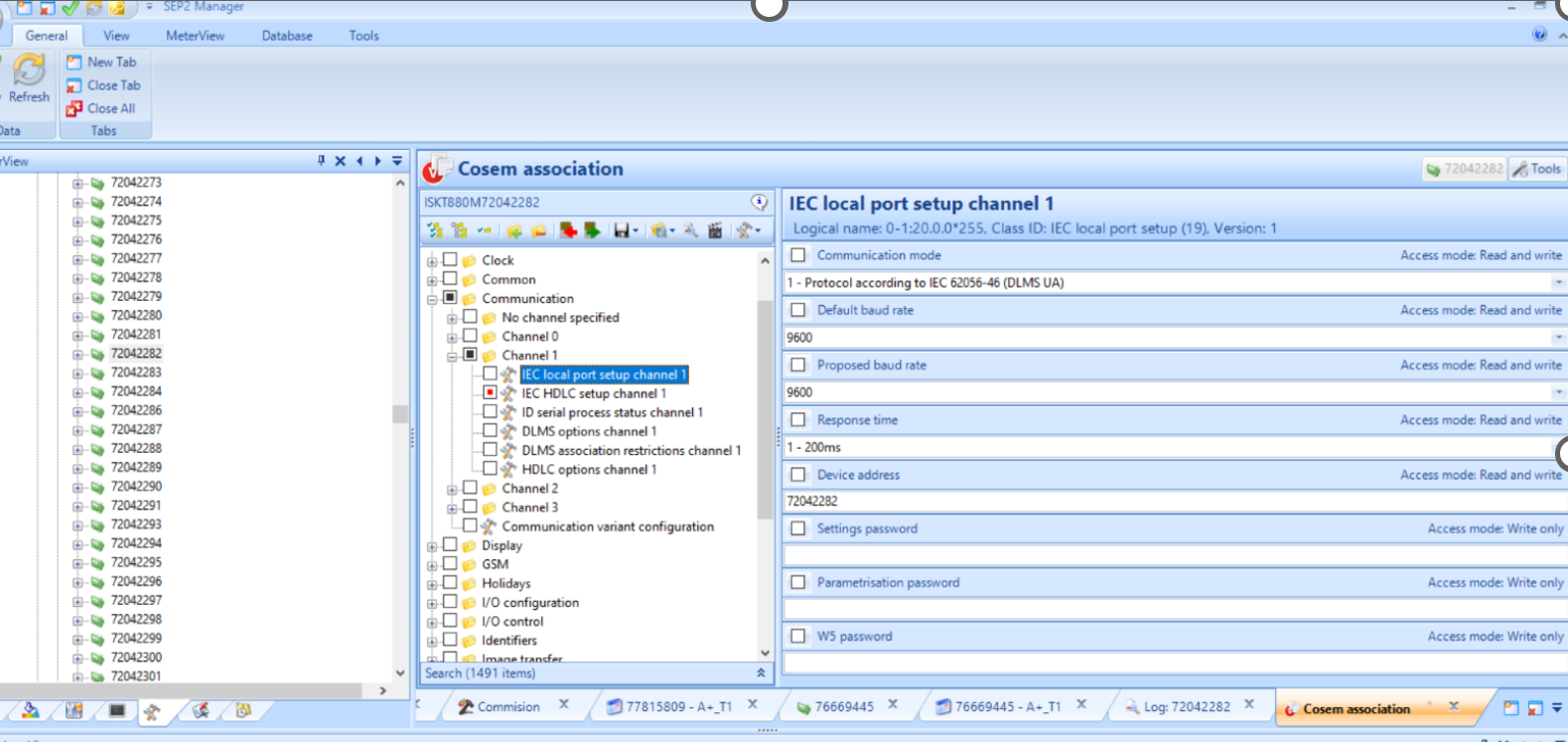

Екранна снимка на софтуера SEP2 Manager (Iskraemeco), изглед Cosem association за електромер ISKT880M72042282, страница IEC local port setup channel 1. Раздели на лентата: General, View, MeterView, Database, Tools; бутони на лентата Refresh, New Tab, Close Tab, Close All. Левият панел съдържа номера на електромери от 72042273 до 72042301 (избран е 72042282). Дърво в средния панел: Clock, Common, Communication, с No channel specified, Channel 0, Channel 1 (IEC local port setup channel 1 е маркиран в синьо, IEC HDLC setup channel 1 с червен квадратен маркер, ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1), Channel 2, Channel 3, Communication variant configuration; след това Display, GSM, Holidays, I/O configuration, I/O control, Identifiers, Image transfer; Search (1491 items). Десен панел: IEC local port setup channel 1; Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Полета (квадратчетата не са отметнати): Communication mode: 1 - Protocol according to IEC 62056-46 (DLMS UA), Read and write; Default baud rate: 9600, Read and write; Proposed baud rate: 9600, Read and write; Response time: 1 - 200ms, Read and write; Device address: 72042282, Read and write; Settings password: празно, Write only; Parametrisation password: празно, Write only; W5 password: празно, Write only. Лента с раздели долу: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (активен).
4 IEC HDLC setup channel 1
Стъпка 2: настройте IEC HDLC channel 1.
Текстово описание на това изображение

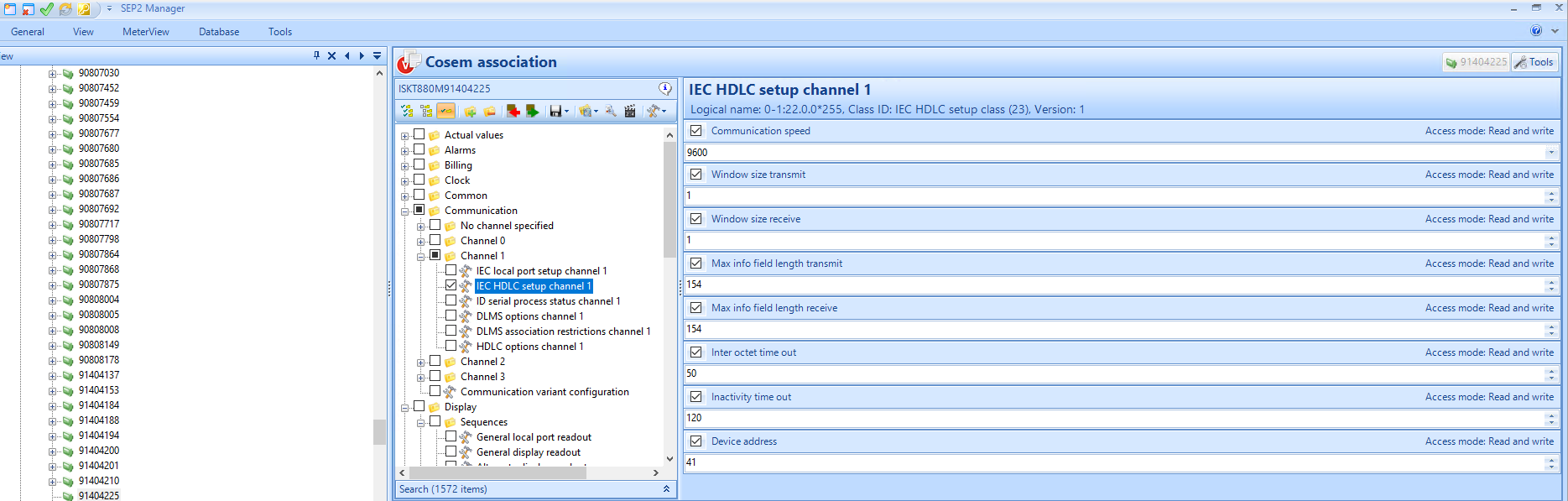

Екранна снимка на софтуера SEP2 Manager (Iskraemeco), показваща страницата IEC HDLC setup channel 1 в изглед Cosem association. Ляв панел MeterView: списък с номера на електромери от 90807030 до 91404225 (същият списък като в другата екранна снимка на SEP2 Manager; избран е последният запис 91404225). Среден панел: електромер ISKT880M91404225 с дърво: Actual values, Alarms, Billing, Clock, Common, Communication (No channel specified, Channel 0, Channel 1, Channel 2, Channel 3, Communication variant configuration), Display (Sequences: General local port readout, General display readout). Под Channel 1: IEC local port setup channel 1, IEC HDLC setup channel 1 (отметнат и маркиран в синьо), ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1. Search (1572 items) долу. Заглавие на десния панел: IEC HDLC setup channel 1. Logical name: 0-1:22.0.0*255, Class ID: IEC HDLC setup class (23), Version: 1. Полета, всички отметнати, достъп Read and write: Communication speed: 9600; Window size transmit: 1; Window size receive: 1; Max info field length transmit: 154; Max info field length receive: 154; Inter octet time out: 50; Inactivity time out: 120; Device address: 41.
Текстово описание на това изображение

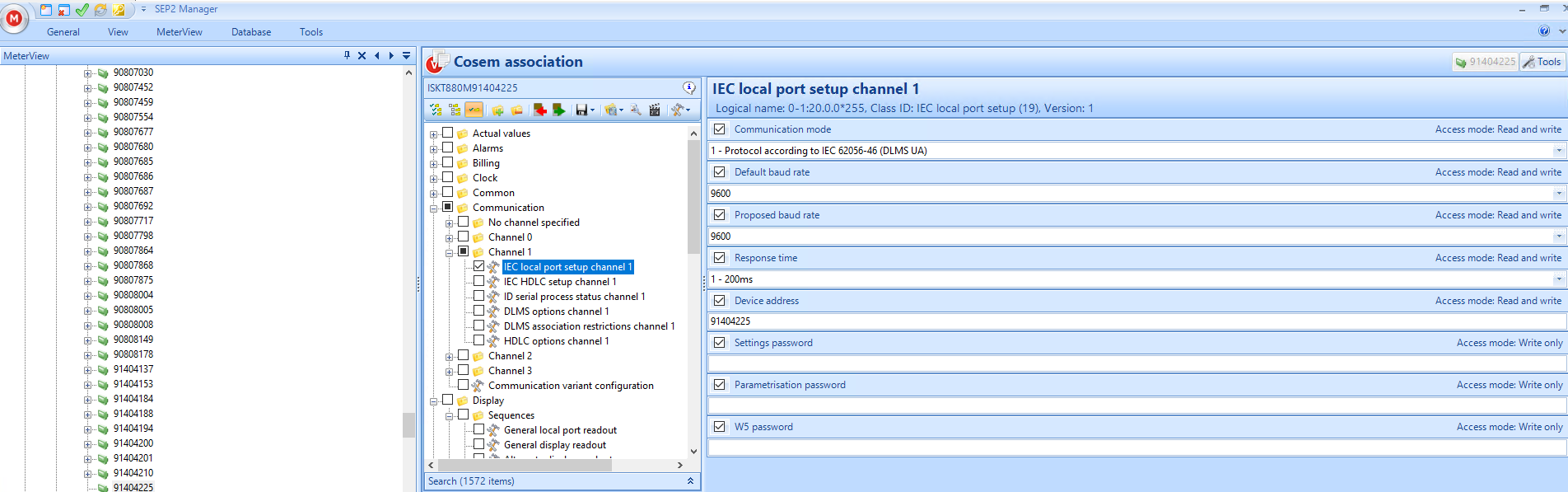

Екранна снимка на софтуера SEP2 Manager (Iskraemeco), показваща страницата IEC local port setup channel 1 в изглед Cosem association. Ляв панел MeterView: списък с номера на електромери 90807030, 90807452, 90807459, 90807554, 90807677, 90807680, 90807685, 90807686, 90807687, 90807692, 90807717, 90807798, 90807864, 90807868, 90807875, 90808004, 90808005, 90808008, 90808149, 90808178, 91404137, 91404153, 91404184, 91404188, 91404194, 91404200, 91404201, 91404210, 91404225 (последният е избраният електромер). Среден панел: електромер ISKT880M91404225 с дърво: Actual values, Alarms, Billing, Clock, Common, Communication (No channel specified, Channel 0, Channel 1, Channel 2, Channel 3, Communication variant configuration), Display (Sequences: General local port readout, General display readout). Под Channel 1 са записите IEC local port setup channel 1 (отметнат и маркиран в синьо), IEC HDLC setup channel 1, ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1. Search (1572 items) долу. Заглавие на десния панел: IEC local port setup channel 1. Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Полета, всички отметнати: Communication mode: 1 - Protocol according to IEC 62056-46 (DLMS UA), достъп Read and write; Default baud rate: 9600, Read and write; Proposed baud rate: 9600, Read and write; Response time: 1 - 200ms, Read and write; Device address: 91404225, Read and write; Settings password: празно, Write only; Parametrisation password: празно, Write only; W5 password: празно, Write only.
5 General local port readout
Стъпка 3: настройте общото четене през локалния порт (general local port readout). Поради големия брой редове екранните снимки са разделени на части. Запишете номера на реда и Logical Name, за да промените правилните настройки.
Текстово описание на това изображение

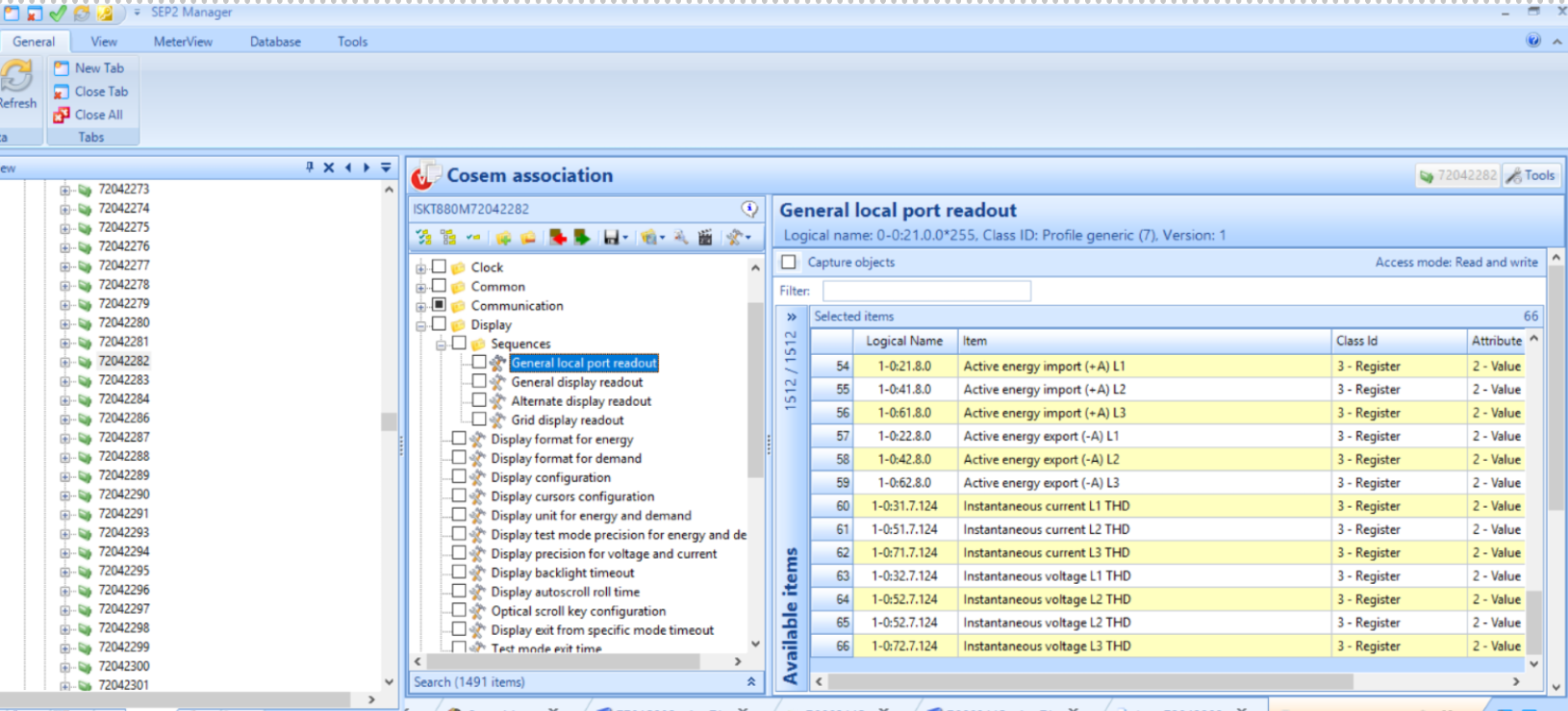

Екранна снимка на софтуера SEP2 Manager (Iskraemeco), изглед Cosem association за електромер ISKT880M72042282, страница General local port readout. Левият панел съдържа номера на електромери от 72042273 до 72042301 (избран е 72042282). Дърво в средния панел: Clock, Common, Communication, Display > Sequences (General local port readout е маркиран в синьо, General display readout, Alternate display readout, Grid display readout), след това Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Десен панел: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects не е отметнато; Access mode: Read and write; Filter е празно; Selected items 66 (1512 / 1512). Колони на таблицата: Logical Name, Item, Class Id, Attribute. Показани редове: 1 0-0:97.97.0 Error register, 1 - Data, 2 - Value (редът е маркиран); 2 1-0:0.0.0 Electricity ID 1, 1 - Data; 3 1-0:0.9.1 Local time, 1 - Data; 4 1-0:0.9.2 Local date, 1 - Data; 5 1-0:0.4.2 Transformer ratio - current (numerator), 1 - Data; 6 1-0:0.4.5 Transformer ratio - current (denominator), 1 - Data; 7 1-0:0.4.3 Transformer ratio - voltage (numerator), 1 - Data; 8 1-0:0.4.6 Transformer ratio - voltage (denominator), 1 - Data; 9 1-0:1.4.0 Demand register - Active energy import (+A), 5 - Demand register, 2 - Curren(t) (отрязано); 10 1-0:2.4.0 Demand register - Active energy export (-A), 5 - Demand register; 11 1-0:1.6.0 Maximum demand register - Active energy import (+A), 4 - Extended register, 2 - Value; 12 1-0:1.6.1 Maximum demand register - Active energy import (+A) Rate 1, 4 - Extended register; 13 1-0:1.6.2 Maximum demand register - Active energy import (+A) Rate 2, 4 - Extended register; 14 1-0:2.6.0 Maximum demand register - Active energy export (-A), 4 - Extended register. Лента с раздели долу: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (активен, оранжев).
Текстово описание на това изображение

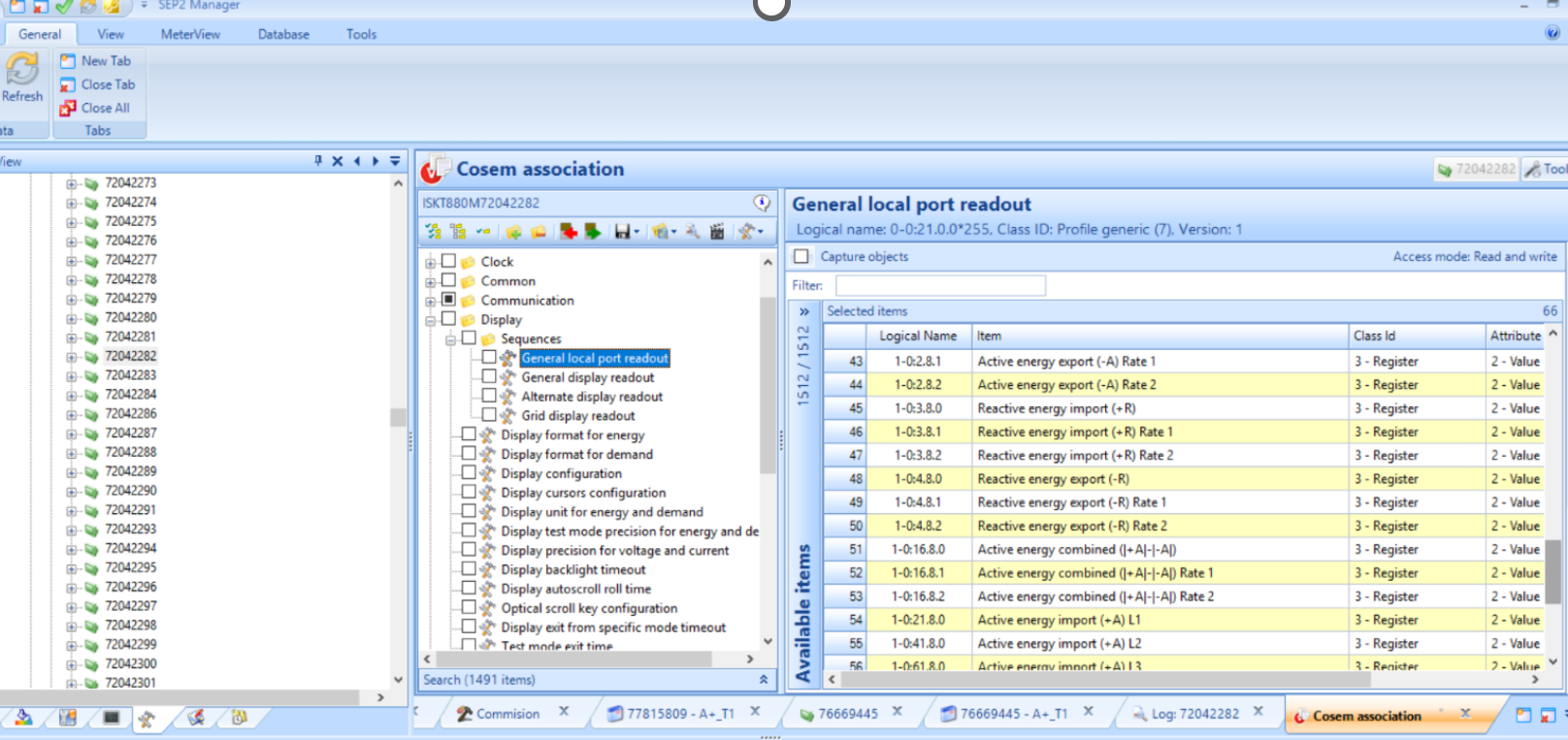

Екранна снимка на софтуера SEP2 Manager (Iskraemeco), изглед Cosem association, страница General local port readout, за електромер ISKT880M72042282. Левият панел съдържа номера на електромери от 72042273 до 72042301 (избран е 72042282). Дърво в средния панел: Clock, Common, Communication, Display > Sequences: General local port readout (маркиран в синьо), General display readout, Alternate display readout, Grid display readout, след това Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time. Search (1491 items). Десен панел: Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects не е отметнато; Access mode: Read and write; Selected items 66, 1512 / 1512. Показани редове на таблицата (колони Logical Name, Item, Class Id, Attribute): 15 1-0:2.6.1 Maximum demand register - Active energy export (-A) Rate 1, 4 - Extended register, 2 - Value; 16 1-0:2.6.2 ... export (-A) Rate 2, 4 - Extended register; 17 1-0:21.6.0 Maximum demand register - Active energy import (+A) L1; 18 1-0:41.6.0 ... import (+A) L2; 19 1-0:61.6.0 ... import (+A) L3; 20 1-0:22.6.0 ... export (-A) L1; 21 1-0:42.6.0 ... export (-A) L2; 22 1-0:62.6.0 ... export (-A) L3 (редове 17 до 22 са 4 - Extended register); 23 1-0:1.7.0 Instantaneous active import power (+A), 3 - Register; 24 1-0:2.7.0 Instantaneous active export power (-A), 3 - Register; 25 1-0:13.7.0 Instantaneous power factor (+A/+VA), 3 - Register; 26 1-0:32.7.0 Instantaneous voltage L1; 27 1-0:52.7.0 Instantaneous voltage L2; 28 1-0:72.7.0 Instantaneous voltage L3 (частично отрязано). Долна част на прозореца: лента с раздели Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282 и активният раздел Cosem association (оранжев). Под нея панел Log Viewer с раздел Manager и празни заглавия на таблица Time, Source, Category, User, Description; брояч 1000.
Текстово описание на това изображение

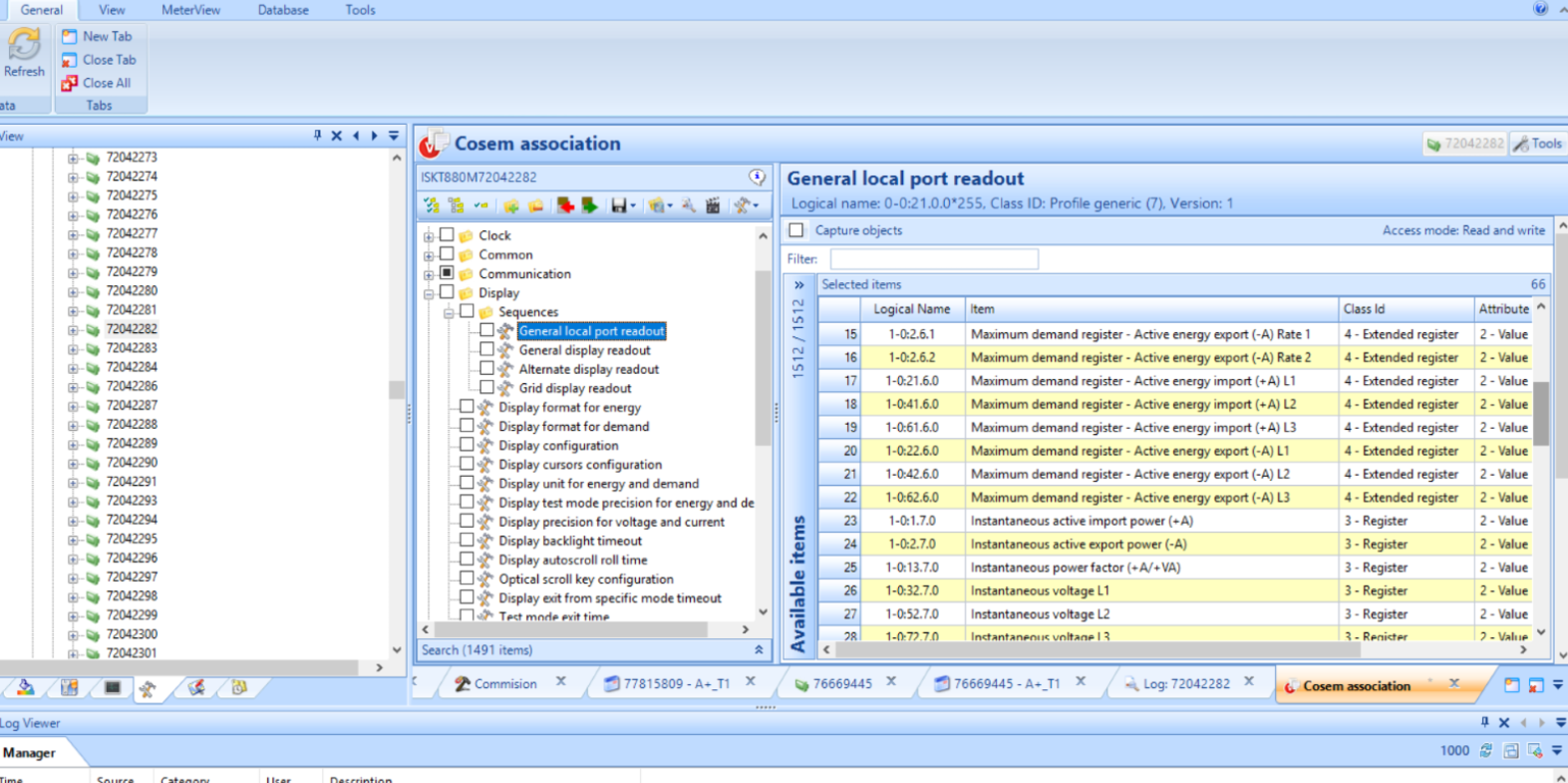

Екранна снимка на софтуера SEP2 Manager (Iskraemeco), изглед Cosem association за електромер ISKT880M72042282, страница General local port readout. Левият панел съдържа номера на електромери от 72042273 до 72042301 (избран е 72042282). Дърво в средния панел: Clock, Common, Communication, Display > Sequences (General local port readout е маркиран в синьо, General display readout, Alternate display readout, Grid display readout), след това Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Десен панел: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects не е отметнато; Access mode: Read and write; Filter е празно; Selected items 66 (1512 / 1512). Колони на таблицата: Logical Name, Item, Class Id, Attribute. Показани редове, всички с Class Id 3 - Register, Attribute 2 - Value: 29 1-0:31.7.0 Instantaneous current L1; 30 1-0:51.7.0 Instantaneous current L2; 31 1-0:71.7.0 Instantaneous current L3; 32 1-0:14.7.0 Instantaneous net frequency: any phase; 33 1-0:81.7.1 Angle U(L2) - U(L1); 34 1-0:81.7.2 Angle U(L3) - U(L1); 35 1-0:81.7.12 Angle U(L3) - U(L2); 36 1-0:81.7.40 Angle U(L1) - I(L1); 37 1-0:81.7.51 Angle U(L2) - I(L2); 38 1-0:81.7.62 Angle U(L3) - I(L3); 39 1-0:1.8.0 Active energy import (+A); 40 1-0:1.8.1 Active energy import (+A) Rate 1; 41 1-0:1.8.2 Active energy import (+A) Rate 2; 42 1-0:2.8.0 Active energy export (-A). Лента с раздели долу: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (активен, оранжев).
Текстово описание на това изображение

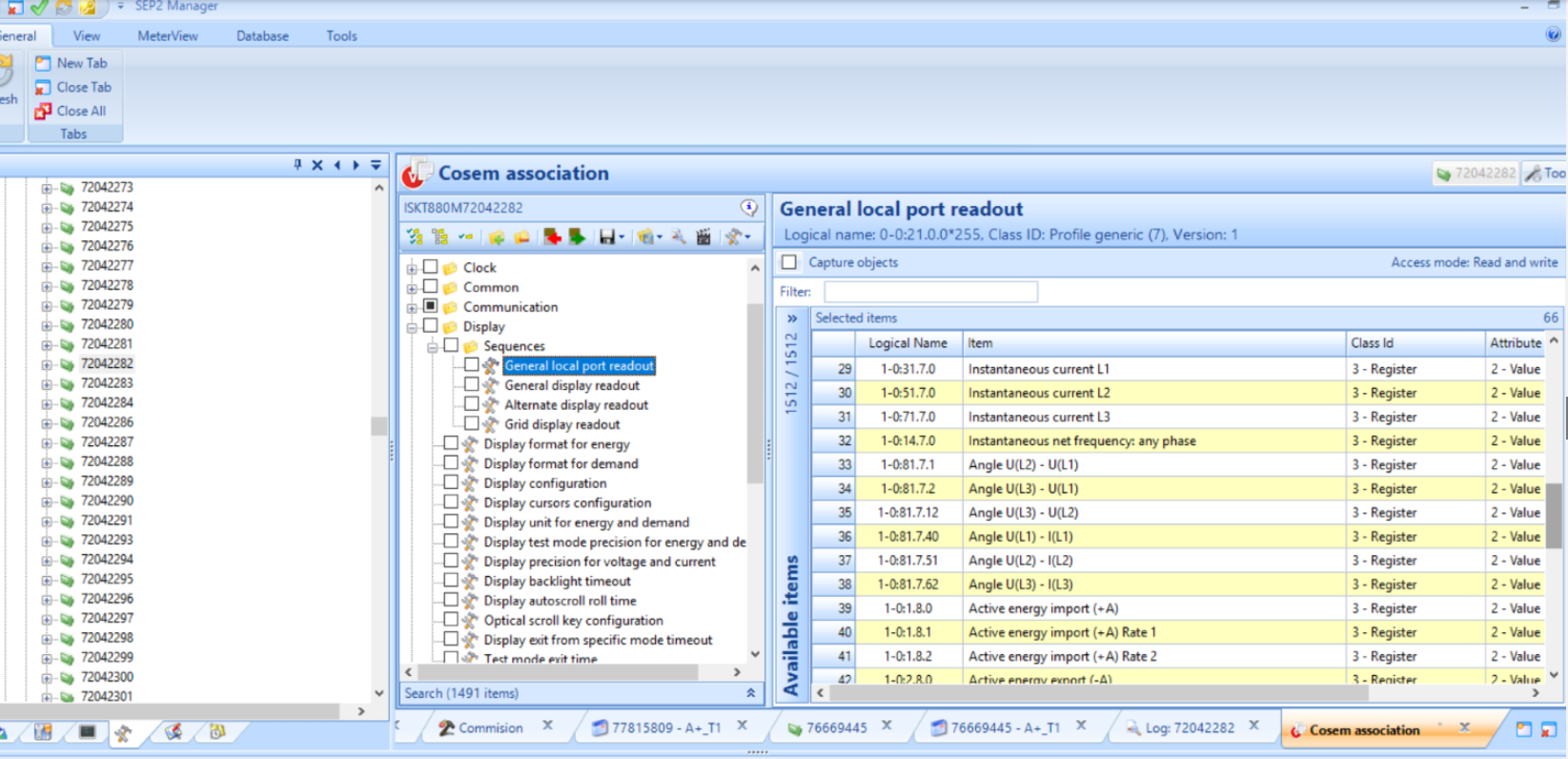

Екранна снимка на софтуера SEP2 Manager (Iskraemeco), изглед Cosem association за електромер ISKT880M72042282, страница General local port readout. Левият панел съдържа номера на електромери от 72042273 до 72042301 (избран е 72042282). Дърво в средния панел: Clock, Common, Communication, Display > Sequences (General local port readout е маркиран в синьо, General display readout, Alternate display readout, Grid display readout), след това Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Десен панел: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects не е отметнато; Access mode: Read and write; Filter е празно; Selected items 66 (1512 / 1512). Колони на таблицата: Logical Name, Item, Class Id, Attribute. Показани редове, всички с Class Id 3 - Register, Attribute 2 - Value: 43 1-0:2.8.1 Active energy export (-A) Rate 1; 44 1-0:2.8.2 Active energy export (-A) Rate 2; 45 1-0:3.8.0 Reactive energy import (+R); 46 1-0:3.8.1 Reactive energy import (+R) Rate 1; 47 1-0:3.8.2 Reactive energy import (+R) Rate 2; 48 1-0:4.8.0 Reactive energy export (-R); 49 1-0:4.8.1 Reactive energy export (-R) Rate 1; 50 1-0:4.8.2 Reactive energy export (-R) Rate 2; 51 1-0:16.8.0 Active energy combined (|+A|-|-A|); 52 1-0:16.8.1 Active energy combined (|+A|-|-A|) Rate 1; 53 1-0:16.8.2 Active energy combined (|+A|-|-A|) Rate 2; 54 1-0:21.8.0 Active energy import (+A) L1; 55 1-0:41.8.0 Active energy import (+A) L2; 56 1-0:61.8.0 Active energy import (+A) L3. Лента с раздели долу: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (активен, оранжев).
Текстово описание на това изображение

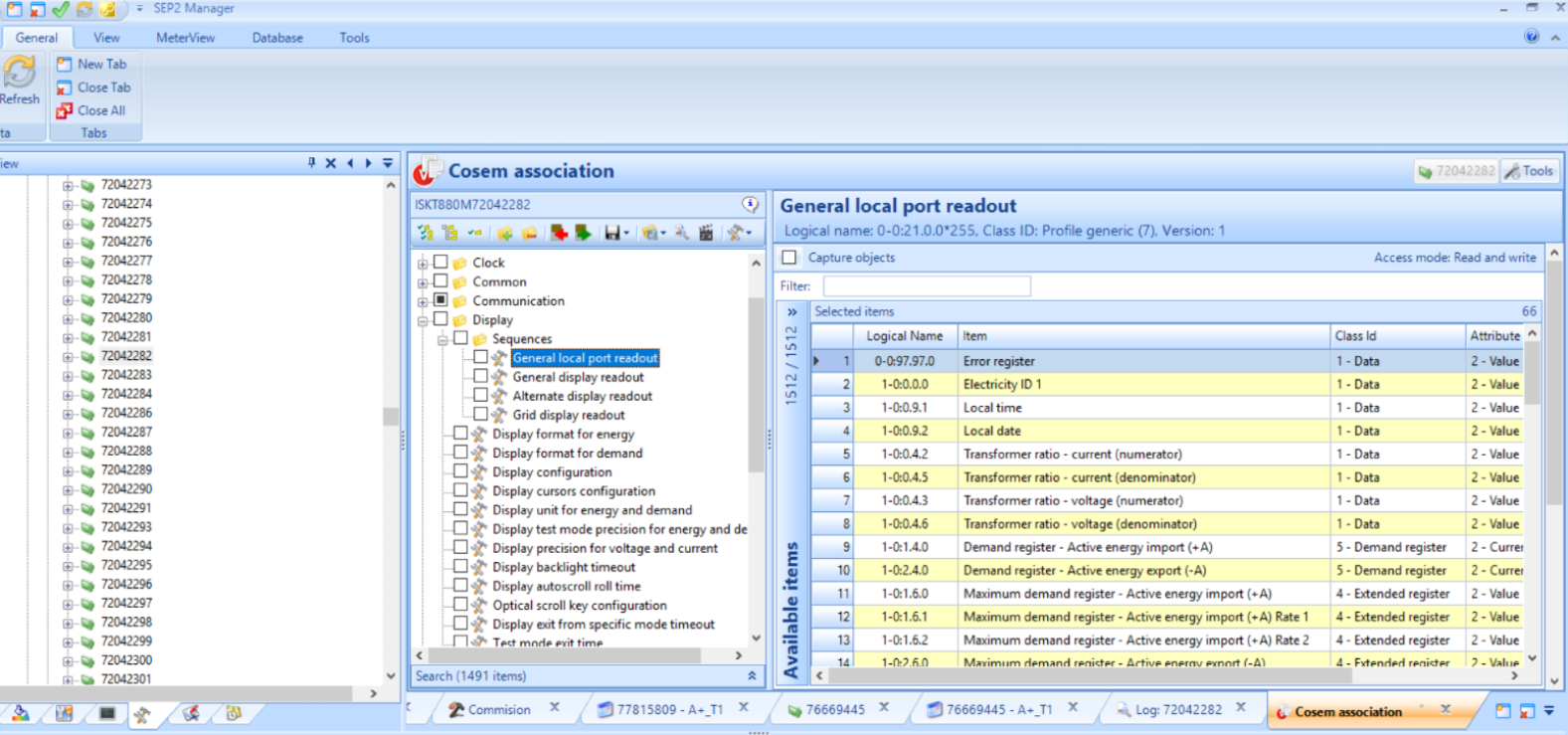

Екранна снимка на софтуера SEP2 Manager (Iskraemeco), изглед Cosem association, страница General local port readout, за електромер ISKT880M72042282. Раздели на лентата: General, View, MeterView, Database, Tools; лентата General показва Refresh, New Tab, Close Tab, Close All. Левият панел съдържа номера на електромери от 72042273 до 72042301 (избран е 72042282). Дърво в средния панел: Clock, Common, Communication, Display > Sequences с General local port readout (маркиран в синьо, квадратчето не е отметнато), General display readout, Alternate display readout, Grid display readout; отдолу: Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time. Search (1491 items). Заглавие на десния панел General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; квадратчето Capture objects не е отметнато; Access mode: Read and write; полето Filter е празно; Selected items 66 (1512 / 1512 available). Колони на таблицата: Logical Name, Item, Class Id, Attribute. Редове: 54 1-0:21.8.0 Active energy import (+A) L1; 55 1-0:41.8.0 Active energy import (+A) L2; 56 1-0:61.8.0 Active energy import (+A) L3; 57 1-0:22.8.0 Active energy export (-A) L1; 58 1-0:42.8.0 Active energy export (-A) L2; 59 1-0:62.8.0 Active energy export (-A) L3; 60 1-0:31.7.124 Instantaneous current L1 THD; 61 1-0:51.7.124 Instantaneous current L2 THD; 62 1-0:71.7.124 Instantaneous current L3 THD; 63 1-0:32.7.124 Instantaneous voltage L1 THD; 64 1-0:52.7.124 Instantaneous voltage L2 THD; 65 1-0:52.7.124 Instantaneous voltage L2 THD; 66 1-0:72.7.124 Instantaneous voltage L3 THD. Всички редове: Class Id 3 - Register, Attribute 2 - Value.
6 Следваща стъпка: добавяне на електромера в Reduxi
След конфигурирането на електромера го добавете към Reduxi Controller. Следвайте Как да добавите електромер Iskraemeco MT880.
✓ Обобщение
Подготовка (точки 1–2): Използвайте стандартната структура на телеграмата на Reduxi. Подгответе електромера MT880 и SEP2W manager или инструмента Symbiot.
Настройки на електромера (точки 3–5): Задайте IEC local port setup channel 1, IEC HDLC setup channel 1 и general local port readout.
Добавяне в Reduxi (точка 6): Добавете електромера към Reduxi Controller според ръководството за MT880.
Пускане в експлоатация (точка 6): След като добавите електромера, проверете показанията в Reduxi Configurator.
→ Често срещани проблеми
| Проблем | Решение |
|---|---|
| Няма данни от електромера | Сверете настройките на телеграмата със стандартната структура на телеграмата на Reduxi. Запишете номера на реда и Logical Name, когато променяте четенето. |
| Open configurator не се отваря или остава празен | Тунелът все още не е активен. Изчакайте около 30 секунди и проверете дали контролерът е онлайн. |
Влизането с admin се отхвърля |
Паролата е променена по време на инсталацията. Попитайте инсталатора. Паролата на профила в Reduxi тук не работи. |
reduxi.local не се зарежда |
Вашето устройство не е в същата мрежа като контролера. Използвайте IP адреса или тунелната връзка. |
| Тестът на комуникацията не успява, устройството е офлайн | Проверете достъпността, IP адреса / порта / unit ID и дали протоколът е включен на устройството. |
