How to access Reduxi Controller?
Open the Reduxi Controller the same way you open your internet modem, step by step.
It is similar to how we connect to an internet modem, which we all know. Let's go ahead and get started.
The first step is to obtain a connection to the local Reduxi controller through an IP connection in the local network. Reduxi controller has a default IP set to 10.100.100.50 or receives dynamic local IP through DHCP protocol. You can find Reduxi dynamic IP using Advanced IP Scanner .

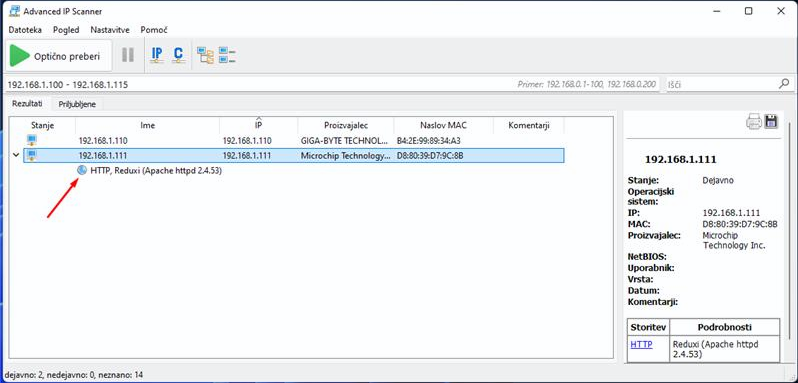

Text description of this image
Screenshot of the Advanced IP Scanner window (Slovenian interface). Menu: Datoteka, Pogled, Nastavitve, Pomoč. Toolbar: green button Optično preberi [Scan], further toolbar icons. IP range field: 192.168.1.100 - 192.168.1.115, example text on the right: Primer: 192.168.0.1-100, 192.168.0.200. Tabs: Rezultati [Results] (selected), Priljubljene [Favourites]. Table columns: Stanje, Ime, IP, Proizvajalec, Naslov MAC, Komentarji. Row 1: Ime 192.168.1.110, IP 192.168.1.110, Proizvajalec GIGA-BYTE TECHNOLO... (cut off), MAC B4:2E:99:69:34:A3. Row 2 (highlighted blue): Ime 192.168.1.111, IP 192.168.1.111, Proizvajalec Microchip Technology..., MAC D8:80:39:07:9C:88. Below row 2 a sub-entry: HTTP, Reduxi (Apache httpd 2.4.53), marked by a red arrow. Right panel for 192.168.1.111: Stanje: Dejavno [Active]; IP: 192.168.1.111; MAC: D8:80:39:07:9C:88; Proizvajalec: Microchip Technology Inc.; Operacijski sistem, NetBIOS, Uporabnik, Vrsta, Datum, Komentarji: empty. Small table: Storitev HTTP, Podrobnosti Reduxi (Apache httpd 2.4.53). Status bar: dejavno: 2, nedejavno: 0, neznano: 14.
Reduxi device found using Advanced IP Scanner software.
