If you would like the Reduxi Controller to send data to Reduxi Cloud, or if you would like to allow remote support connection over VPN or secure connection through Reduxi Cloud application, you must enable internet access to the Reduxi device.

1. Network settings for internet access over a Wired network

You must configure Network settings (DHCP, static IP, Wi-fi connection).

1.1. DHCP Connection

Reduxi Controller uses DHCP as a default network setting.

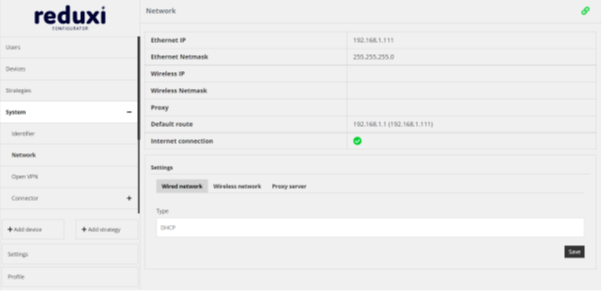

Figure 1: Wired network – DHCP is a default network setting.

1.2. Static Connection

You can enter your network settings based on your network configuration.

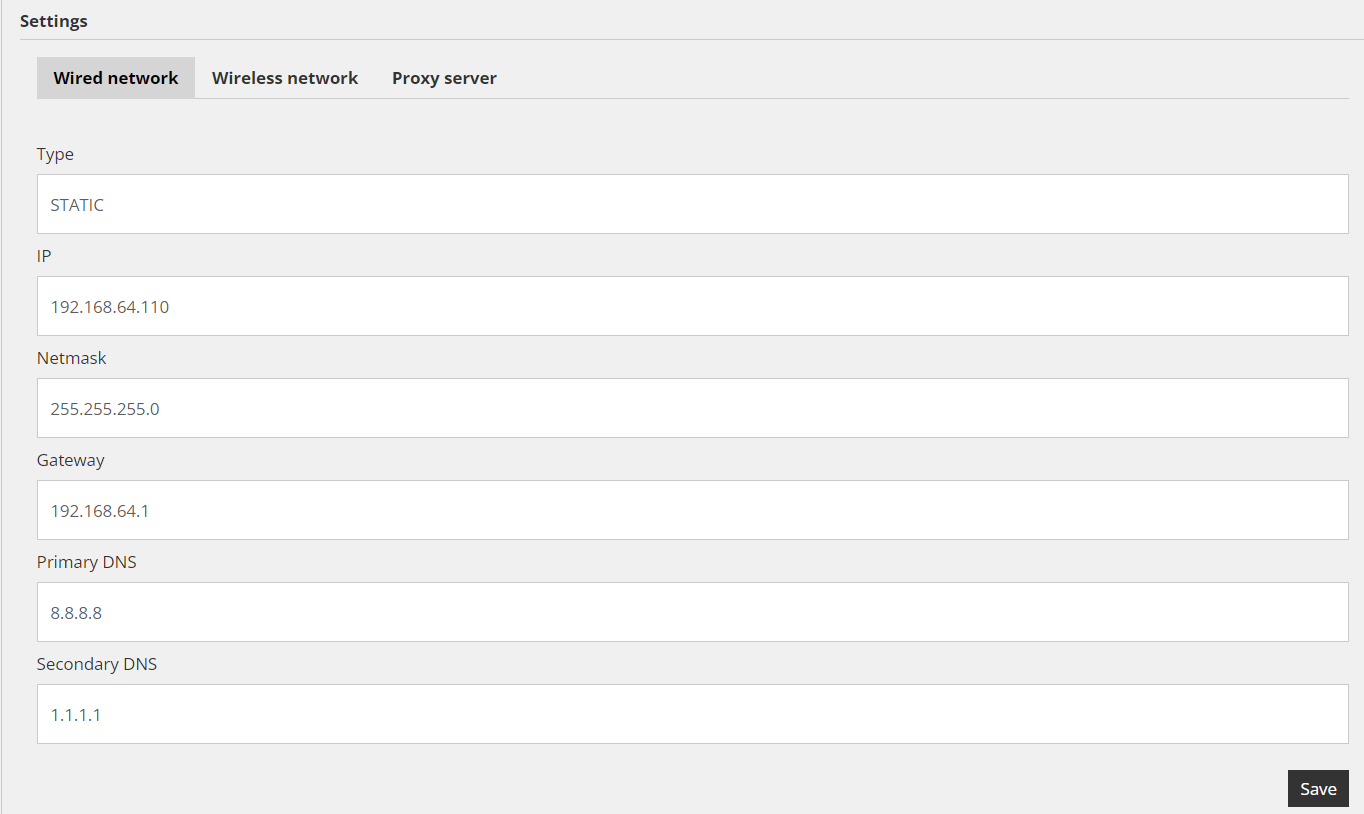

Figure 2: Reduxi Configurator - network settings for static configuration.

1.3. Network settings for internet access over Wireless network

Go to Settings -> System -> Network -> Internet connection and select the Wireless network tab. Click Scan and choose from the available list of Wifi networks.

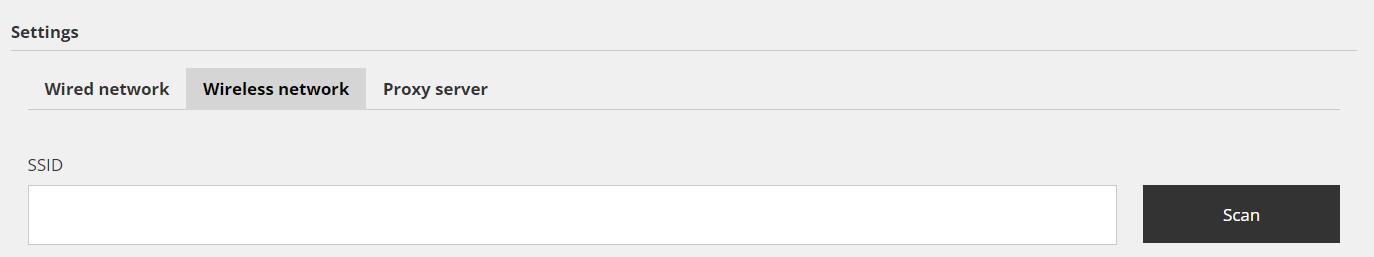

Figure 3: Scan & select the Wireless network.

1.4. Network settings for internet access over Proxy server

This is a bit more advanced, and please know why you are doing it. Although the configuration is straightforward. Enter your HTTP proxy host and port.

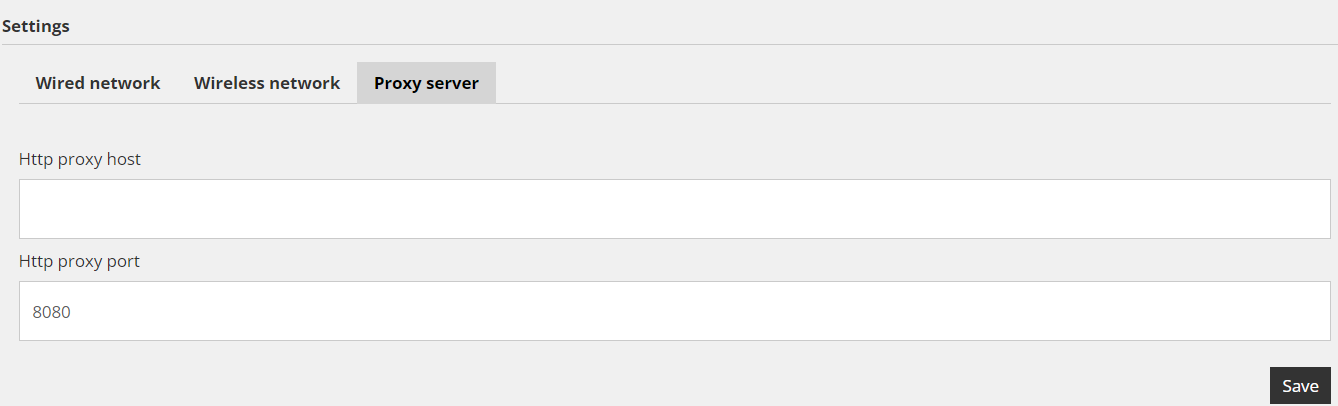

Figure 4: Proxy server configuration.

2. Check the Internet Network Status

You can check if access to the Internet works through the status bar in the top right corner.

Figure 5: Internet connection status icon


The second option is to go under Settings -> System -> Network -> Internet connection (marked with a green check icon).

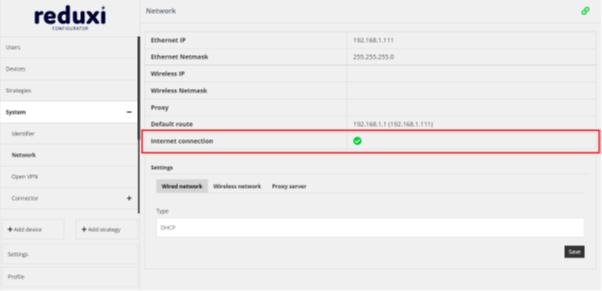

Figure 6: Internet connection status icon.
