How to use strategy in Reduxi configurator to limit total energy consumption or/and prevent fuse blow
Limit total power consumption and prevent fuse blow with a strategy in the Reduxi Configurator.
Text description of this image
Screenshot of a spreadsheet table with columns A to E. Header row 1: Nominal strength [A]; Single phase [A]; Three phase [A]; Single phase [kW]; Three phase [kW]. Rows: 16 | 22 | 22 | 4,0 | 12,0. 20 | 28 | 28 | 5,1 | 15,3. 25 | 35 | 35 | 6,3 | 18,9. 32 | 45 | 45 | 8,1 | 24,3. 35 | 49 | 49 | 8,9 | 26,7. 40 | - | 56 | - | 30,3. 50 | (empty) | 70 | - | 38,1. 63 | (empty) | 88 | - | 47,7. The header row has a light yellow background.
1 Theoretical overview
This overview helps you choose the correct settings in the Reduxi strategy. The calculation below gives the maximum power available on a three-phase connection.
1.1 Calculate the available power
For one phase, use the formula P = U × I × cos φ. P is power, U is voltage and I is current. We set cos φ to the constant 1 (ideal consumer).
Example: 255 V × 20 A × 3 (three phases) = 15,300 W of total power consumption available in the three-phase connection. We usually shorten this to 15.3 kW of total power available.

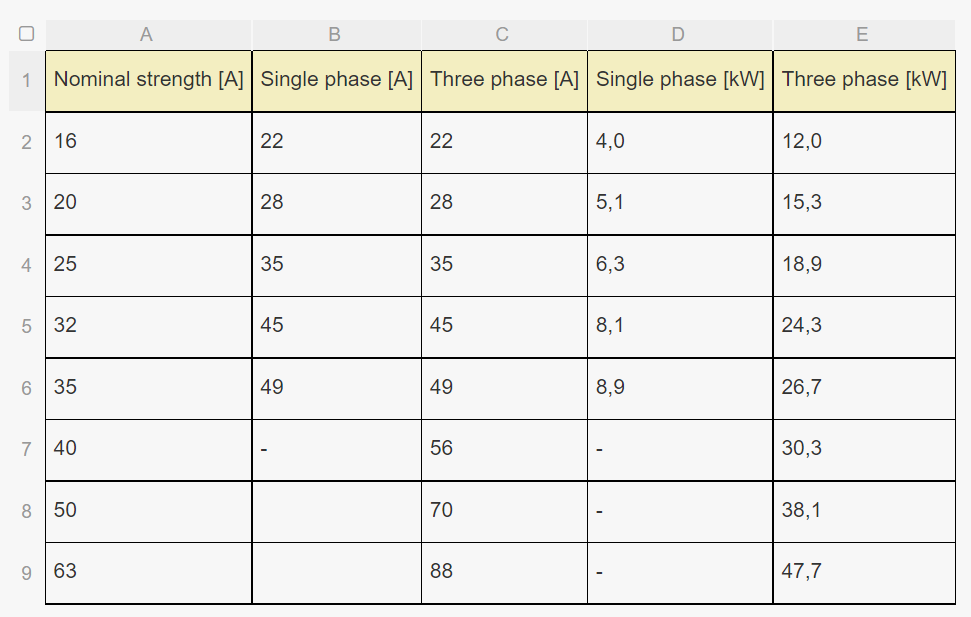

Text description of this image
Screenshot of a spreadsheet table with columns A to E. Header row 1: Nominal strength [A]; Single phase [A]; Three phase [A]; Single phase [kW]; Three phase [kW]. Rows: 16 | 22 | 22 | 4,0 | 12,0. 20 | 28 | 28 | 5,1 | 15,3. 25 | 35 | 35 | 6,3 | 18,9. 32 | 45 | 45 | 8,1 | 24,3. 35 | 49 | 49 | 8,9 | 26,7. 40 | - | 56 | - | 30,3. 50 | (empty) | 70 | - | 38,1. 63 | (empty) | 88 | - | 47,7. The header row has a light yellow background.
1.2 Source
The data is taken from »SONDSEE 2016 Navodilo za uporabo stikalne naprave v kombinaciji s števcem električne energije Potrjena PSMEE«.
2 Add the strategy in the Reduxi Configurator
Use the Reduxi strategy to limit total power consumption and/or to prevent fuse blow.
2.1 Prevent fuse blow

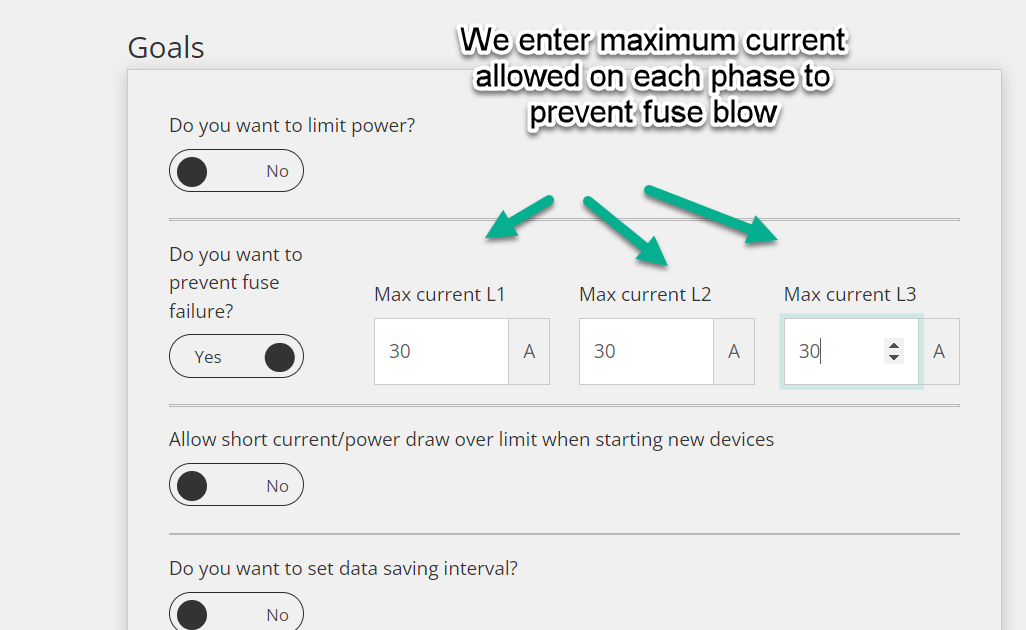

In the picture below, the fuse is protected with a maximum current of 30 A on each phase.
Text description of this image
Screenshot of the Goals step of a strategy in the Reduxi Configurator. Heading: Goals. Row 1: Do you want to limit power? Toggle: No (off). Row 2: Do you want to prevent fuse failure? Toggle: Yes (on). Three input fields: Max current L1: 30 A; Max current L2: 30 A; Max current L3: 30 A (the L3 field is selected, with a spinner). Three green arrows point to the three fields. Row 3: Allow short current/power draw over limit when starting new devices. Toggle: No (off). Row 4: Do you want to set data saving interval? Toggle: No (off). Annotation text: We enter maximum current allowed on each phase to prevent fuse blow.
2.2 Limit total power consumption

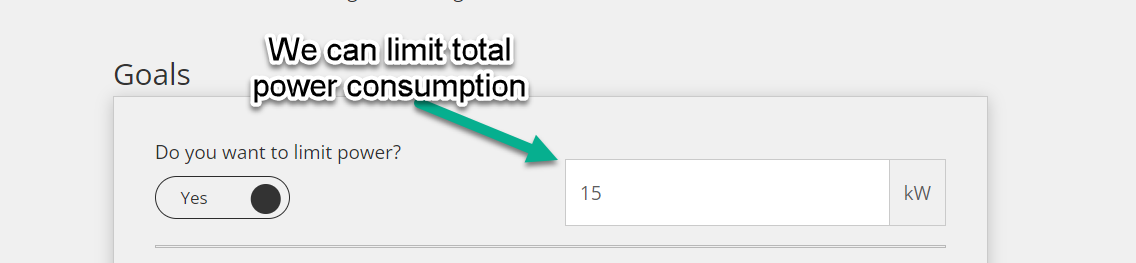

You can also limit the total power consumption.
Text description of this image
Screenshot of the Goals section in the Reduxi Configurator strategy settings. A white card under the heading Goals shows the question: Do you want to limit power? A toggle switch is set to Yes (on). Next to it is a numeric input field with the value 15 and the unit kW. A black callout text reads: We can limit total power consumption. A green arrow points from the callout to the input field. The image is cropped, only the top of the card is visible.
2.3 Limit export of the solar power plant
The Reduxi strategy limits the maximum energy that the solar power plant sends to the grid.
Text description of this image
Screenshot of the Goals step of a strategy in the Reduxi Configurator (cropped). Heading: Goals. Question: How much energy you can send to grid? Toggle: Yes (on, dark knob on the right). Input field next to it: empty, unit kW. A green arrow points to the empty field. Black annotation text with white outline: Limiting how much energy can Solar Power Plant sent to the grid. A thin line below the row suggests further content that is cut off.
2.4 Measurement and regulated devices

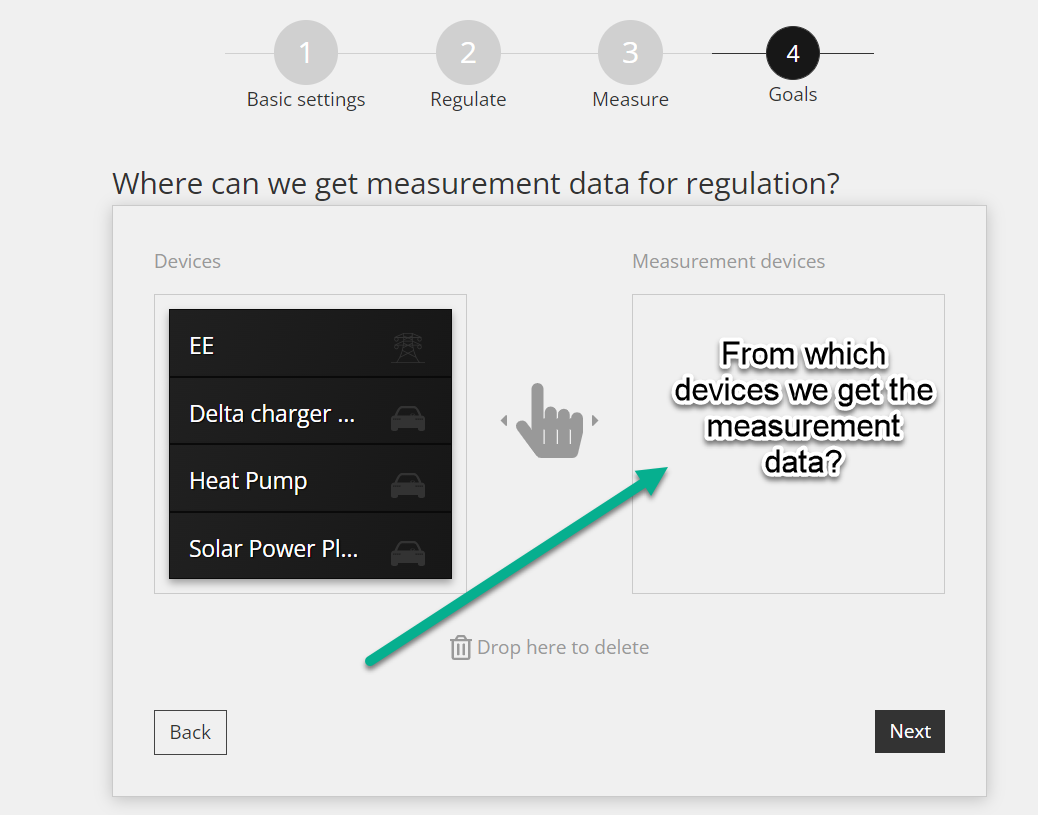

Text description of this image
Screenshot of the strategy wizard in the Reduxi Configurator. Step indicator with four circles: 1 Basic settings, 2 Regulate, 3 Measure (all grey), 4 Goals (black). Heading: Where can we get measurement data for regulation? Left box Devices lists in a dark list: EE (icon), Delta charger ... (car icon, text cut off), Heat Pump (car icon), Solar Power Pl... (car icon, text cut off). Right box Measurement devices: empty. Between the boxes a hand icon with left and right arrows. Under the boxes: trash icon with text Drop here to delete. Buttons: Back (outlined, left), Next (dark, right). Annotation text: From which devices we get the measurement data? A green arrow points from the lower left to the empty Measurement devices box.

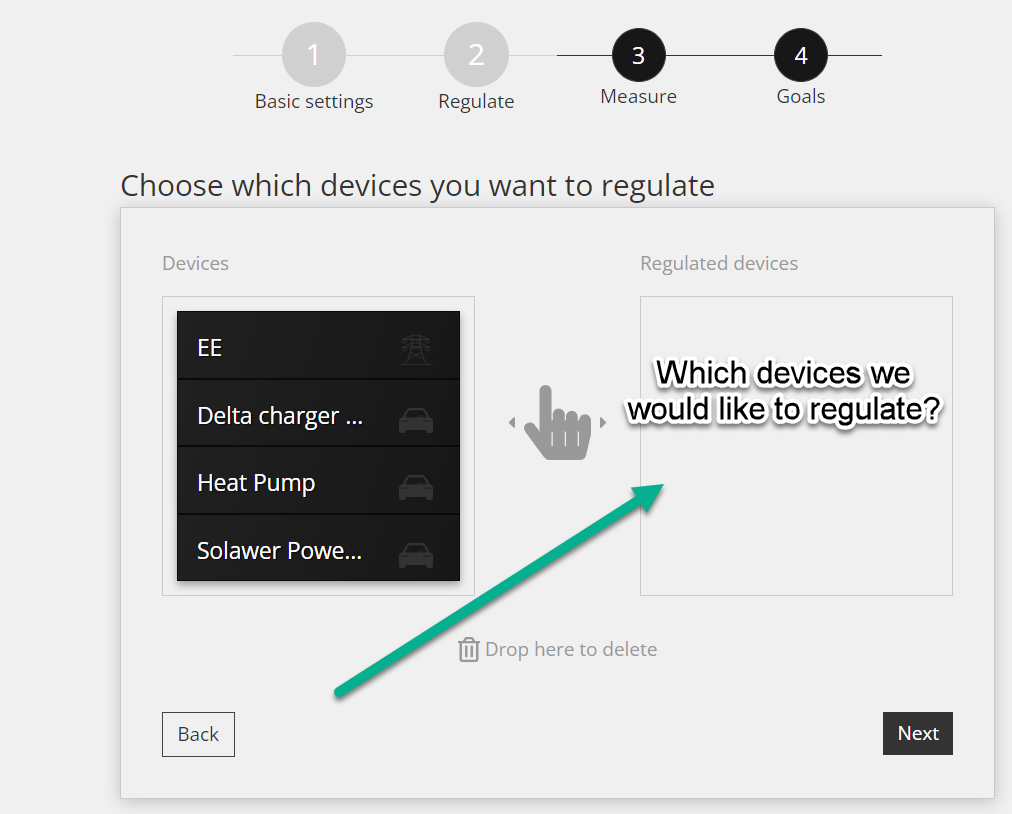

Text description of this image
Screenshot of the strategy wizard in the Reduxi Configurator. Step indicator with four circles: 1 Basic settings (grey), 2 Regulate (grey), 3 Measure (black), 4 Goals (black). Heading: Choose which devices you want to regulate. Left box Devices lists in a dark list: EE (icon of a building or meter), Delta charger ... (car icon, text cut off), Heat Pump (car icon), Solawer Powe... (car icon, text cut off). Right box Regulated devices: empty. Between the boxes a hand icon with left and right arrows. Under the boxes: trash icon with text Drop here to delete. Buttons: Back (outlined, left), Next (dark, right). Annotation text: Which devices we would like to regulate? A green arrow points from the lower left to the empty Regulated devices box.
3 Example of reading and showing data in the Reduxi Configurator
3.1 Heat pump data

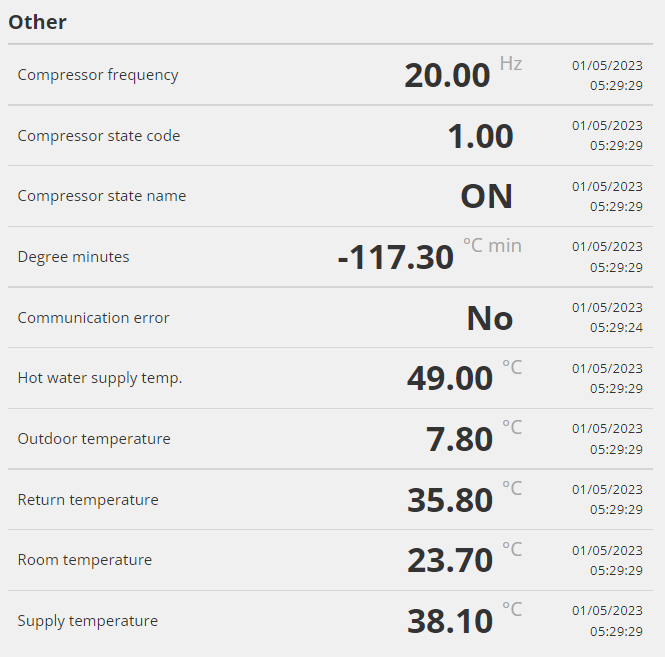

The picture below shows the reading from the heat pump.
Text description of this image
Screenshot of a data panel titled Other, showing heat pump values as a list. Each row has a label, a large value with unit, and a date and time on the right (01/05/2023, 05:29:29; the Communication error row shows 05:29:24). Rows: Compressor frequency: 20.00 Hz; Compressor state code: 1.00; Compressor state name: ON; Degree minutes: -117.30 °C min; Communication error: No; Hot water supply temp.: 49.00 °C; Outdoor temperature: 7.80 °C; Return temperature: 35.80 °C; Room temperature: 23.70 °C; Supply temperature: 38.10 °C.
3.2 Energy meter reading

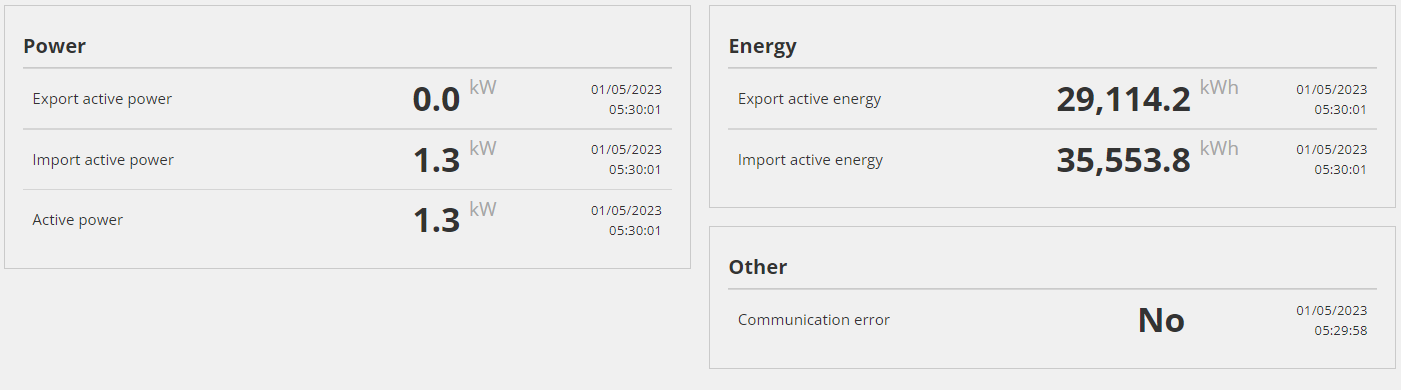

The picture below shows the data read from the main electrical meter.
Text description of this image
Screenshot of a live data view of an energy meter in the Reduxi Configurator. Section Power: Export active power: 0.0 kW; Import active power: 1.3 kW; Active power: 1.3 kW. Section Energy: Export active energy: 29,114.2 kWh; Import active energy: 35,553.8 kWh. Section Other: Communication error: No. Each value has a small date and time stamp to its right.
3.3 The meter does not report data for each phase
The main electrical meter in this example does not report data for each phase. In this case, call your electrical distributor and ask whether they can configure the main electrical meter to measure the data on each phase.
✓ Summary
Theory (Point 1): Calculate the available power per phase with P = U × I × cos φ. Example: 255 V × 20 A × 3 = 15.3 kW.
Set the limits (Points 2.1–2.3): Set the maximum current per phase, the total power consumption limit and the export limit of the solar power plant.
Select devices (Point 2.4): Select the measurement devices and the regulated devices. The strategy needs enough measurement data.
Check the data (Point 3): Check the heat pump and energy meter readings. If the meter reports no data per phase, ask your electrical distributor.
→ Common issues
| Issue | Solution |
|---|---|
| The meter does not report data for each phase | Ask your electrical distributor whether they can configure the main electrical meter to measure the data on each phase (Point 3.3). |
| The strategy cannot regulate the devices | The strategy needs enough measurement devices. Based on the measurement data, it regulates the devices you select (Point 2.4). |
