1. Setting up Schrack charging station

If we want Reduxi controller to be connected to Schrack charging station, it is necessary to adjust certain settings in the charging station itself.

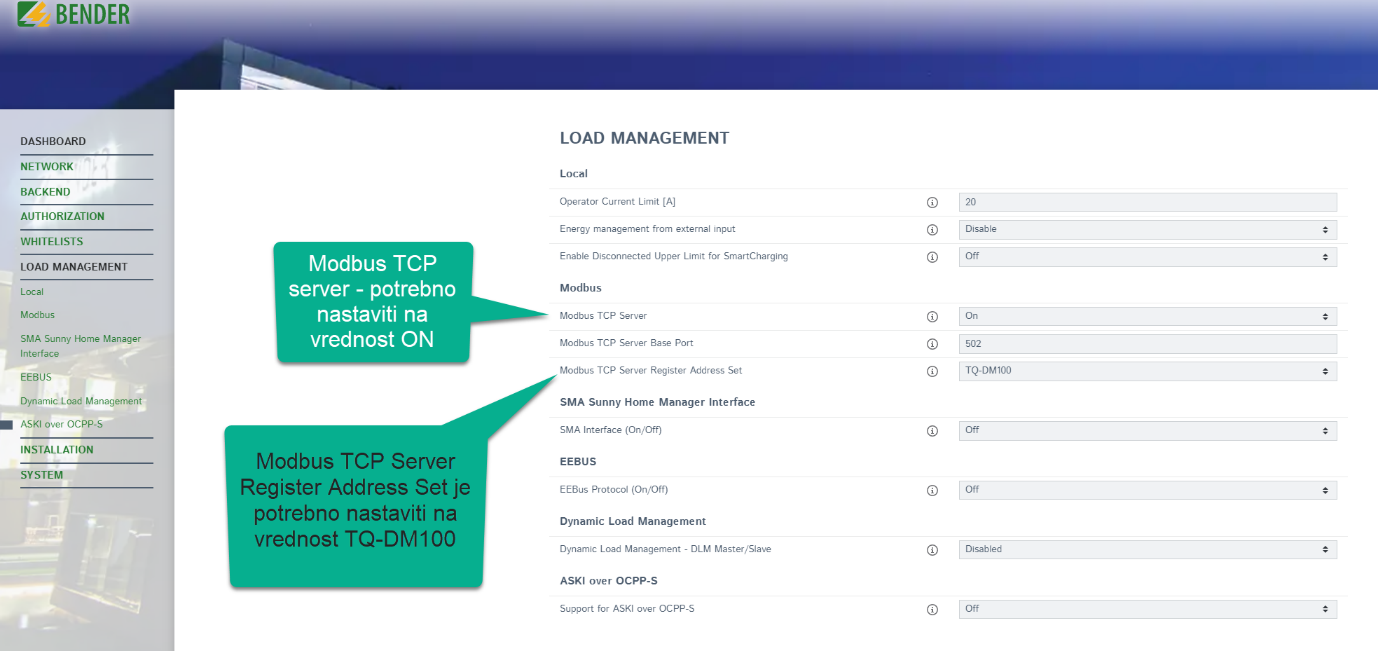

In the device configuration, it is necessary to set Modbus TCP Server -> ON and then Modbus TCP Server Register Address Set -> TQ-DM100.

2. Adding a device to Reduxi

Once Schrack charging station is properly configured, it can be added to Reduxi controller. Instructions for accessing controller are available at the link: instructions for using the controller.

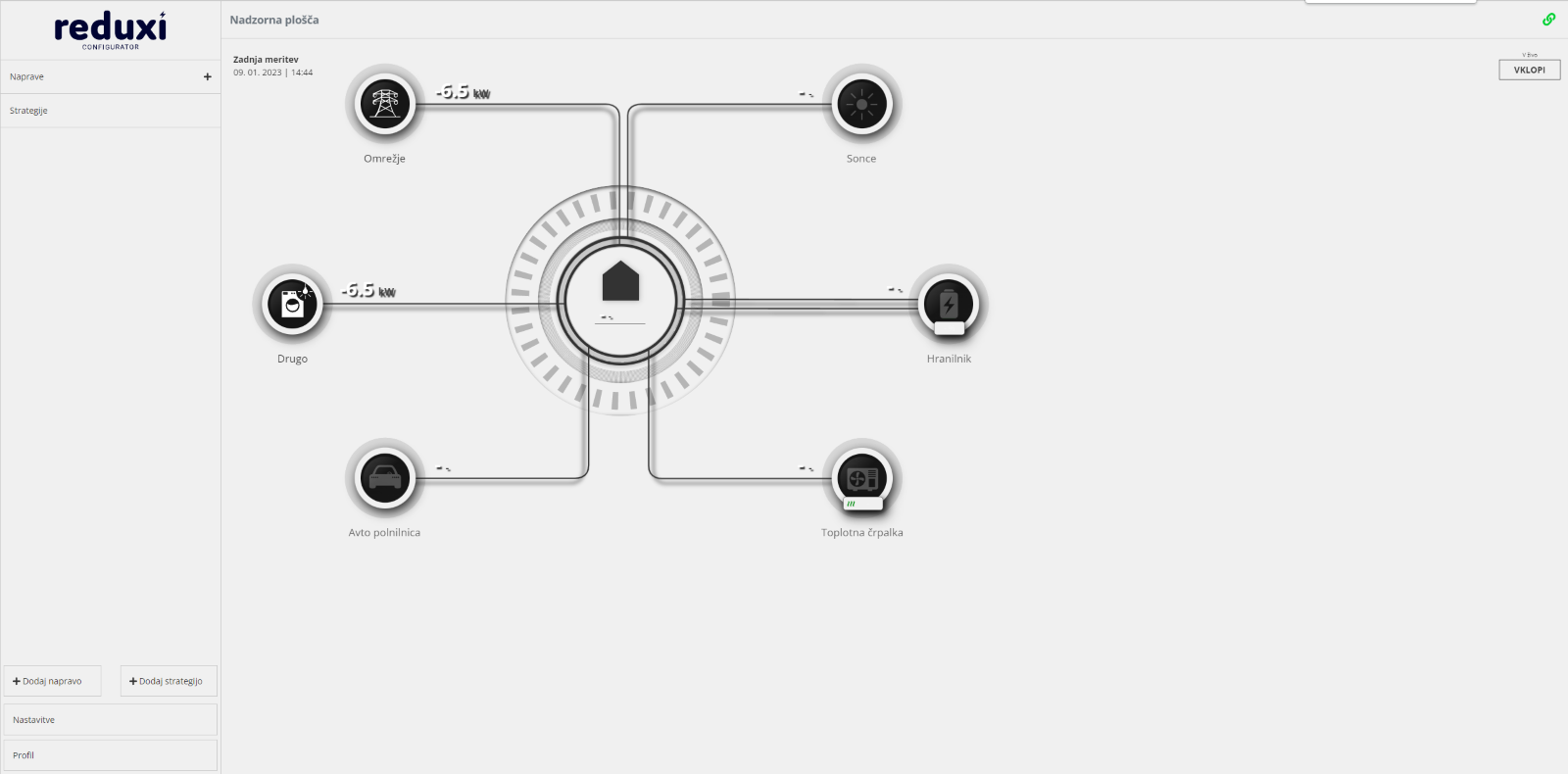

After logging in to the controller, the controller dashboard is displayed. To add devices, select the Add devices option in the lower left window.

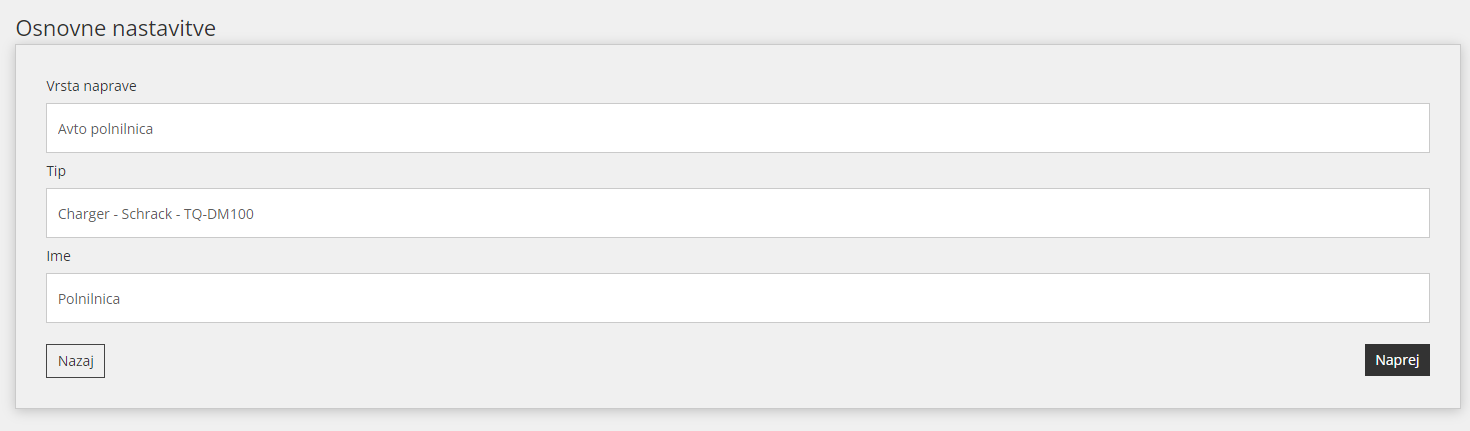

In the next step, select the type of device, type and enter the name of the added device. In our case, when adding Schrack charging station, we select:

• in the device type field: Car charger,
• in box type: Charger – Schrack -TQ-DM100 and
• in the Name field: specify any name (example: Schrack charging station, charging station).

After entering the information, click on the right bottom option Next.

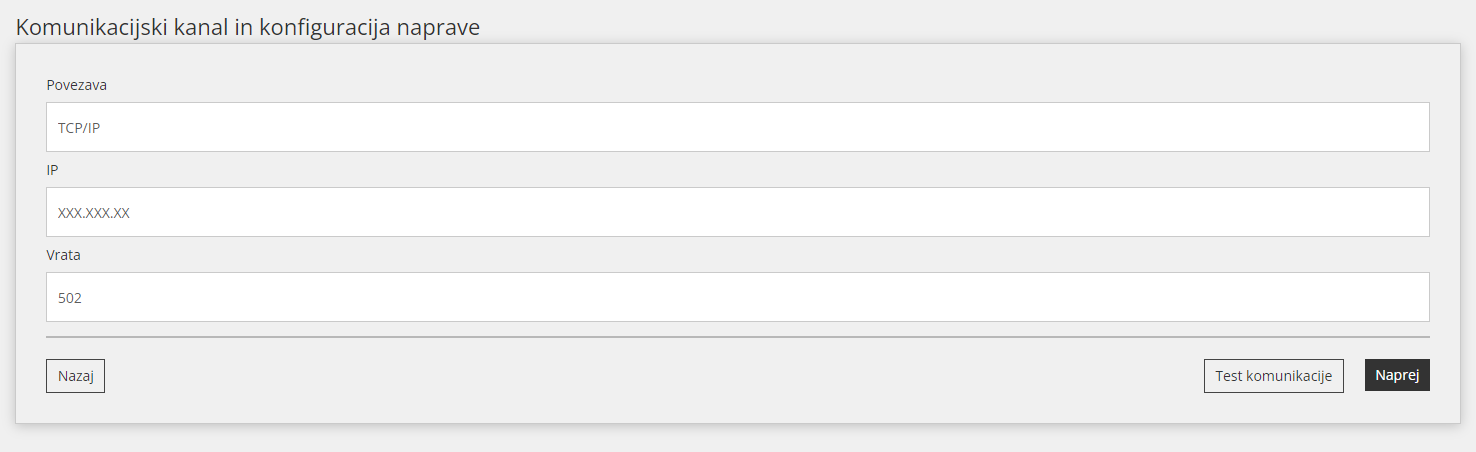

In the next window, we define the communication channel and configure the device.

• In the connection field, select the TCP/IP option,
• enter the IP address of the charging station in
• the IP field and enter: 502 in the Port field (both data can be found in the configuration of the charging station device).

Use the test communication button to check if the communication between the devices is set correctly. When we get the answer that the two devices communicate successfully with each other, we can choose the option Next.

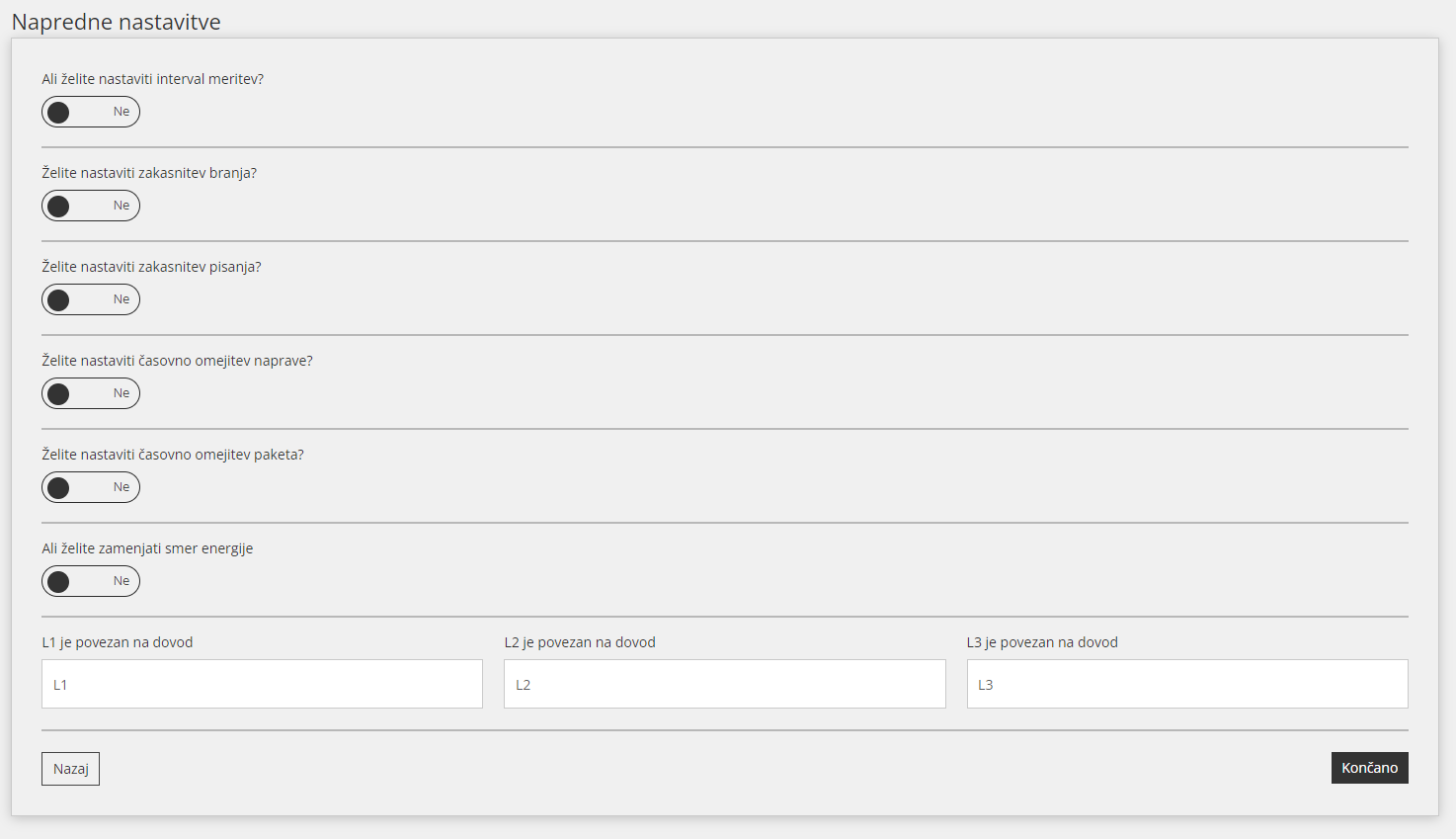

In the last window of adding a Schrack charging station, you can adjust certain settings according to your own needs.

3. Display of data from Schrack electric vehicle charging station

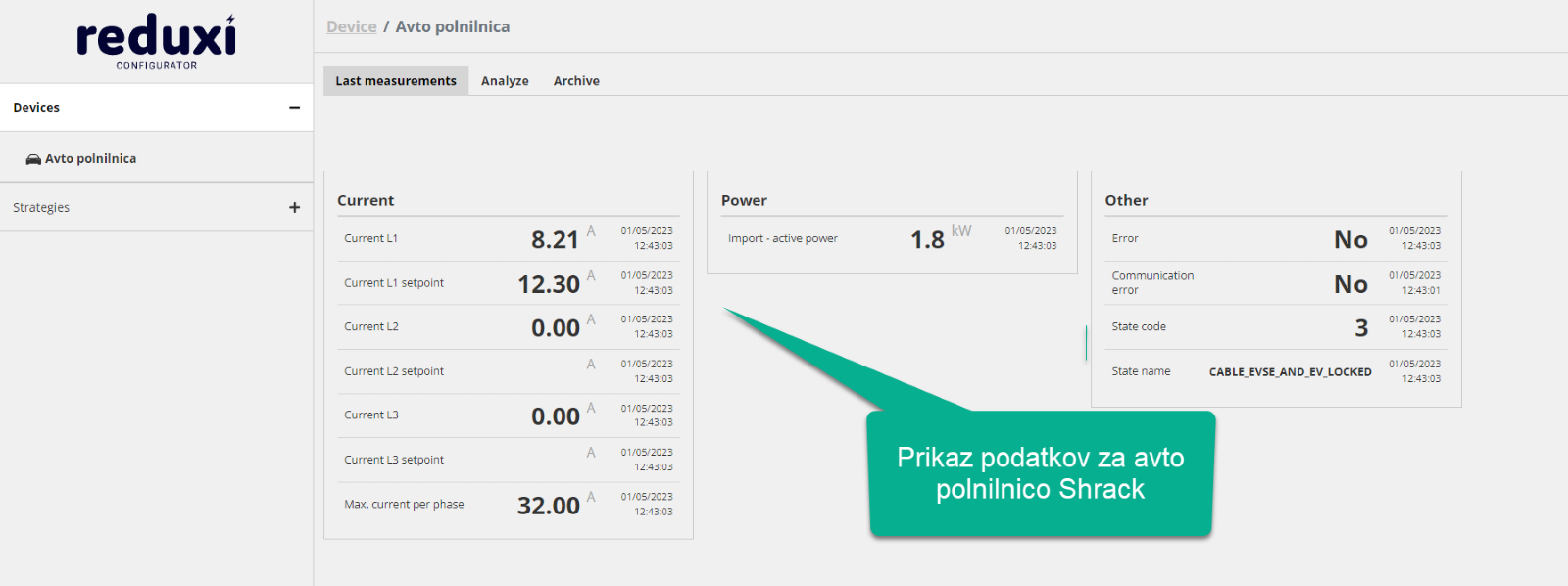

Once Schrack charging station is successfully added, it can be found among the added devices. If we select it, the last measurements from the charging station are displayed.
