REDUXI CONTROLLER
User Manual
Version V2.0 11.2024
1. INTRODUCTION
Welcome to the world of Reduxi which allows you to take control of energy costs and efficient use of electricity for sustainable development. Main features:
- PEAK POWER MANAGEMENT,
- SOLAR POWER PLANT PRODUCTION MANAGEMENT,
- OPTIMISATION OF ELECTRICITY CONSUMPTION.
Energy costs in your household or industry can only be reduced by accurate measurement. For doing so, you need the right technology. Based on advanced algorithms, the innovative system Reduxi measures and analyses electricity consumption for you. With its advanced features, Reduxi reduces consumption costs and increases energy efficiency.

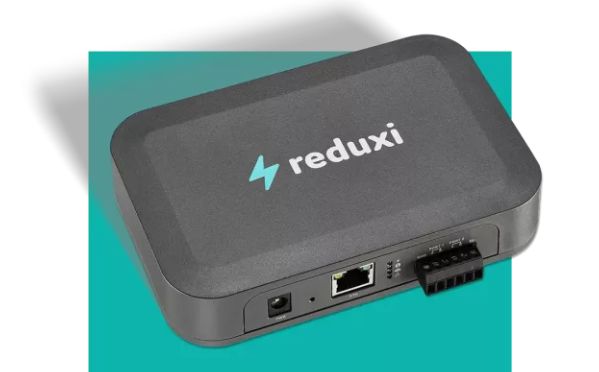

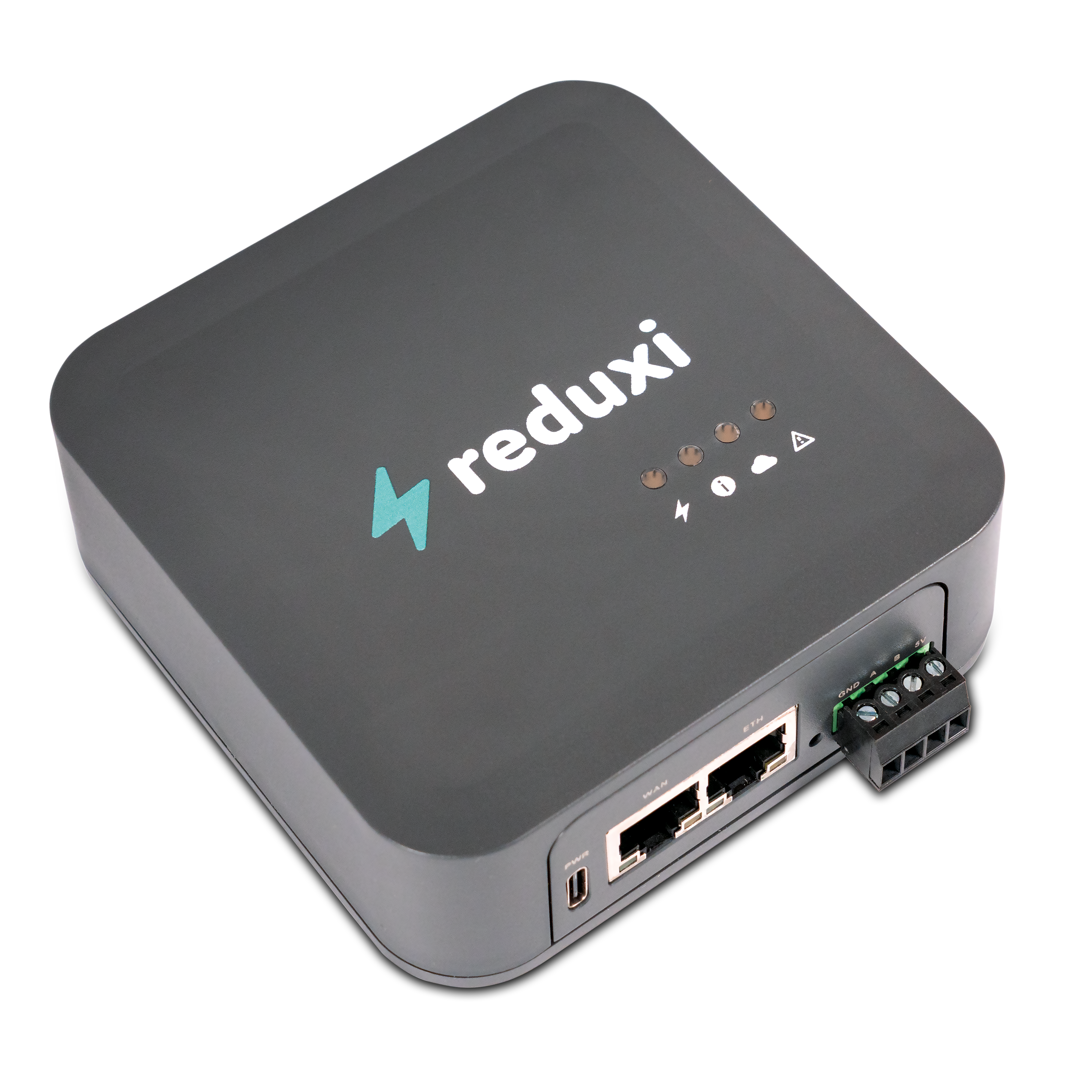

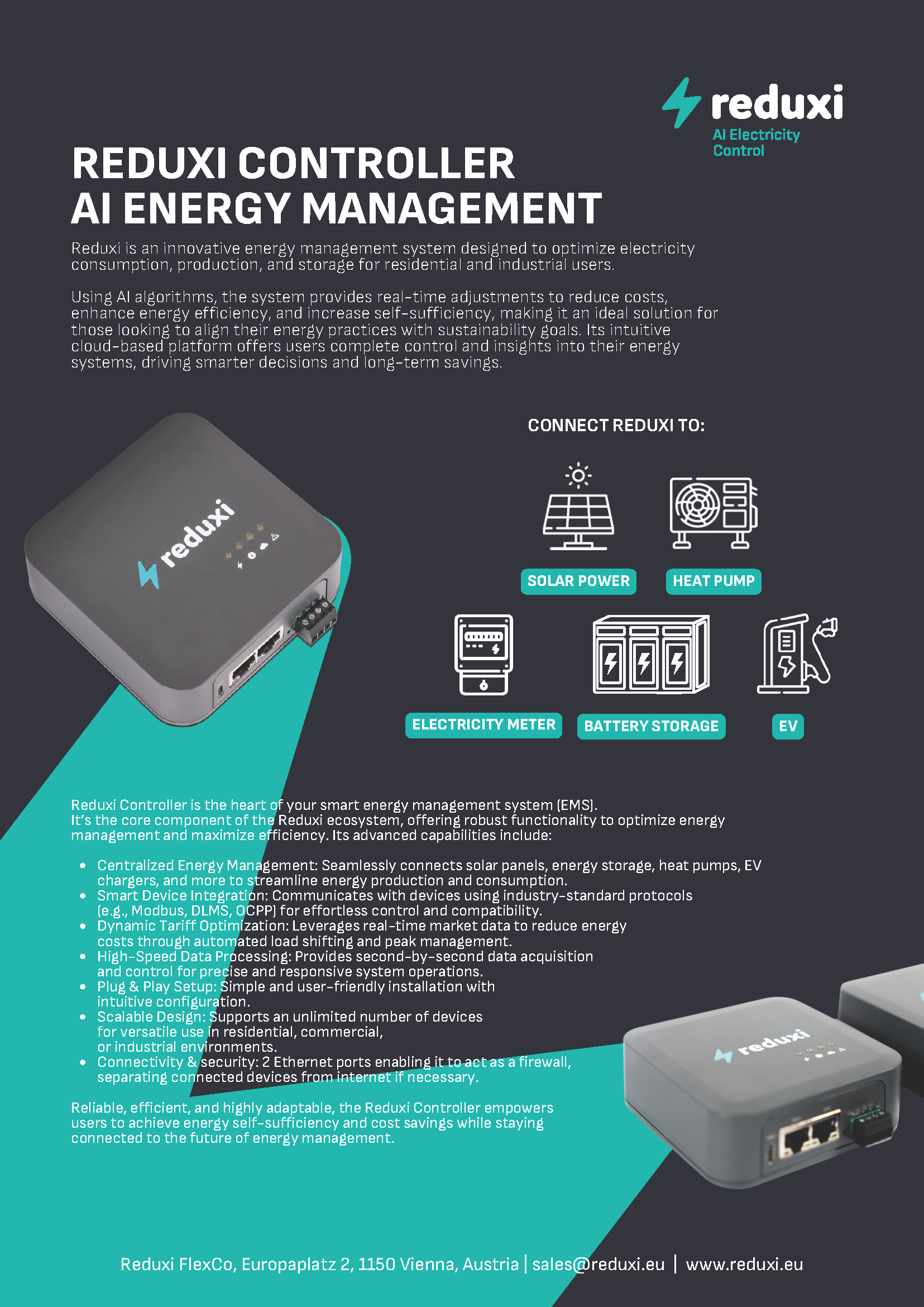

Reduxi controller
Reduxi Controller is the main component of Reduxi system. The controller connects solar power plants, energy storage systems, heat pumps, and electric chargers to the Reduxi System. It manages electricity production and consumption, adjusts power usage from the grid, and uses advanced algorithms to ensure cost-effective energy use and maximum self-sufficiency.
Reduxi Controller is the key and mandatory component of every Reduxi system.
Every Reduxi Controller comes with built-in Configurator software, you will recognize it background and a simple-to-use interface.
2. INSTALLATION AND CONNECTION INFORMATION
- Connect AC-DC adapter to the Reduxi DC jack and plug it to power outlet; First top LED should go ON – Green light.

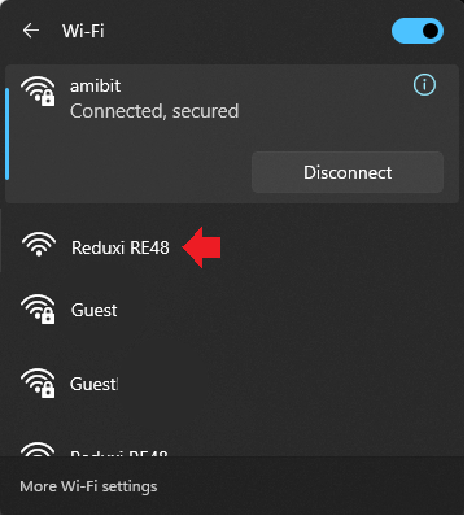

- Go to WiFi networks using your phone or computer, and connect to the WiFi network with name "Reduxi XYXY" where XYXY presents the last 4 digits of Reduxi serial number visible on the sticker at the back of Reduxi.
- Open your browser, and go to the http://reduxi.local
- Troubleshooting steps:
- If you’re using a mobile phone and cannot open http://reduxi.local, disconnect from mobile data and try to reconnect
- Troubleshooting steps:

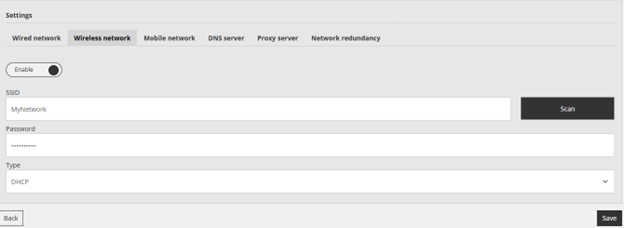

- Configure a wired or wireless network, and connect Reduxi to your local network (we recommend setting the static IP address of Reduxi).
- Configure a wired network if you use an Ethernet cable to connect Reduxi to your local network.
- Configure a wireless network if you use a WiFi network to connect Reduxi to your local network.
-
- Troubleshooting steps:
- In case you mistype the WiFi password, you will need to run factory reset of the controller (see below)
- In Windows, your computer often loses the WiFi connection with the Reduxi controller and automatically connects back to your home network. Please check regularly if you’re still connected to the Reduxi network and if not, please reconnect.
- Troubleshooting steps:
- After everything is configured, click Save to connect Reduxi controller to your home network. Now connect with your mobile phone or computer to the same wired or WiFi local network that you have just connected to with Reduxi.
- Open your browser, and go to http://reduxi.local
- Troubleshooting steps:
- Double-check if the Reduxi controller is connected to the same local network as your computer/phone used to access to it.
- In case you cannot open http://reduxi.local, you can try by opening the IP address that you have configured or was automatically assigned for Reduxi. The IP address can be obtained by following this steps How to find automatically assigned IP address (DHCP protocol) of Reduxi controller?
- Troubleshooting steps:
- You will get to the login page of Reduxi controller. Please use the default username (admin), and password (admin) to login.

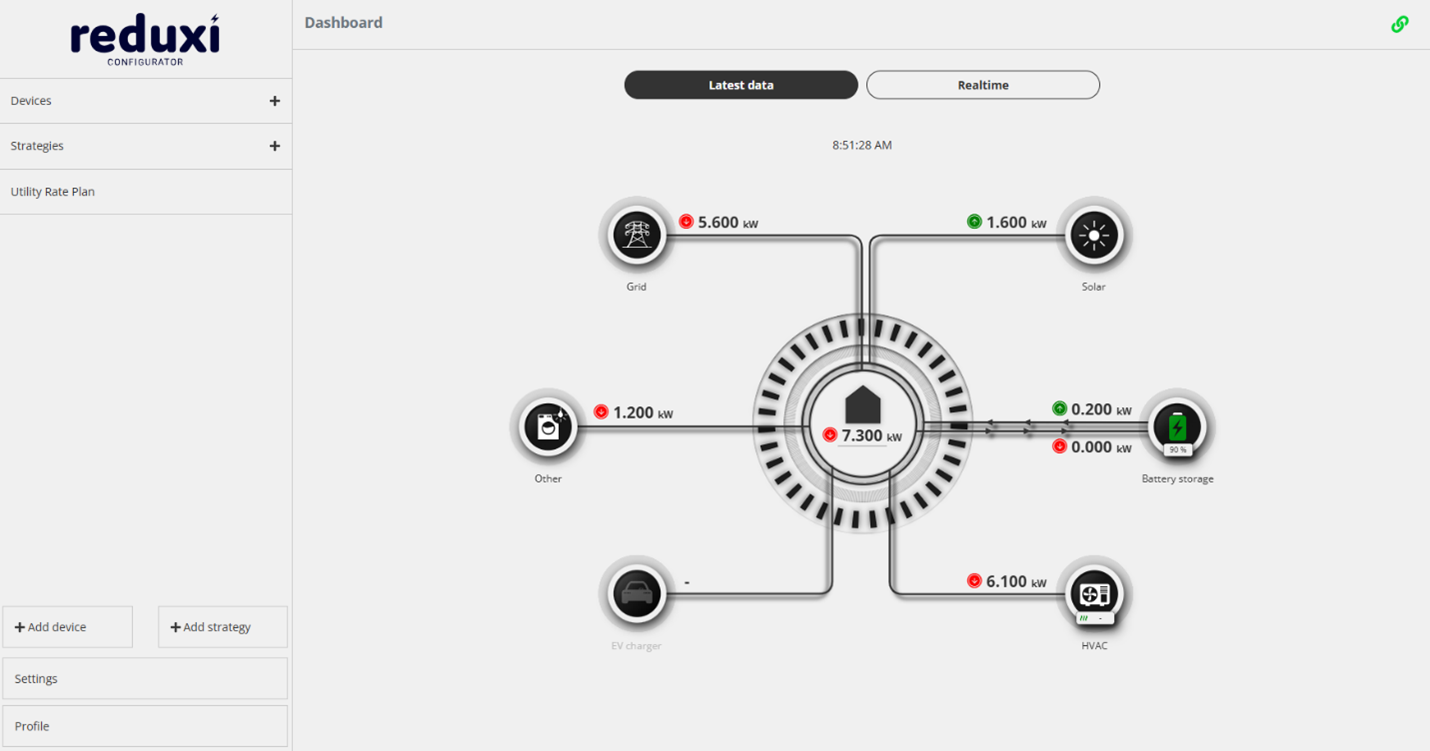

- Now you can start adding devices (smart energy meter, charging stations, solar inverters etc.) to Reduxi. See Reduxi Configurator. If you cannot find the device, write us a request via Send us request with a detailed description of the device. We will reach out to you and help supporting the new device
- Add strategies to define how the devices should work together to save costs, balance energy consumption etc. Stratagies for Reduxi controller
- Done, you have successfully connected and configured Reduxi solution. You can now get online for the best user experience, to control your home energy management, access to analytical data etc. Everything from web or mobile app, just create an account in Reduxi Cloud Reduxi Cloud
Reduxi Cloud
Reduxi Cloud is an online web and mobile application. It provides effortless real-time monitoring, analytical data and control of your Reduxi local solution. Reduxi Cloud brings user experience to the highest level.
To access the Reduxi cloud benefits, create an account on https://app.reduxi.eu
- After creating a new account and set a password, you will be asked to add a new Reduxi controller. You will define a name, and then register your Reduxi Controller using either QR code on the back of Reduxi or by writing Reduxi serial number which can be found left of the QR codes.
- By that, you have linked your Reduxi Controller to the Reduxi Could application.
- You are now fully onboarded to manage your energy consumption and start saving costs.
3. SPECIFICATIONS
3.1. Dimensions

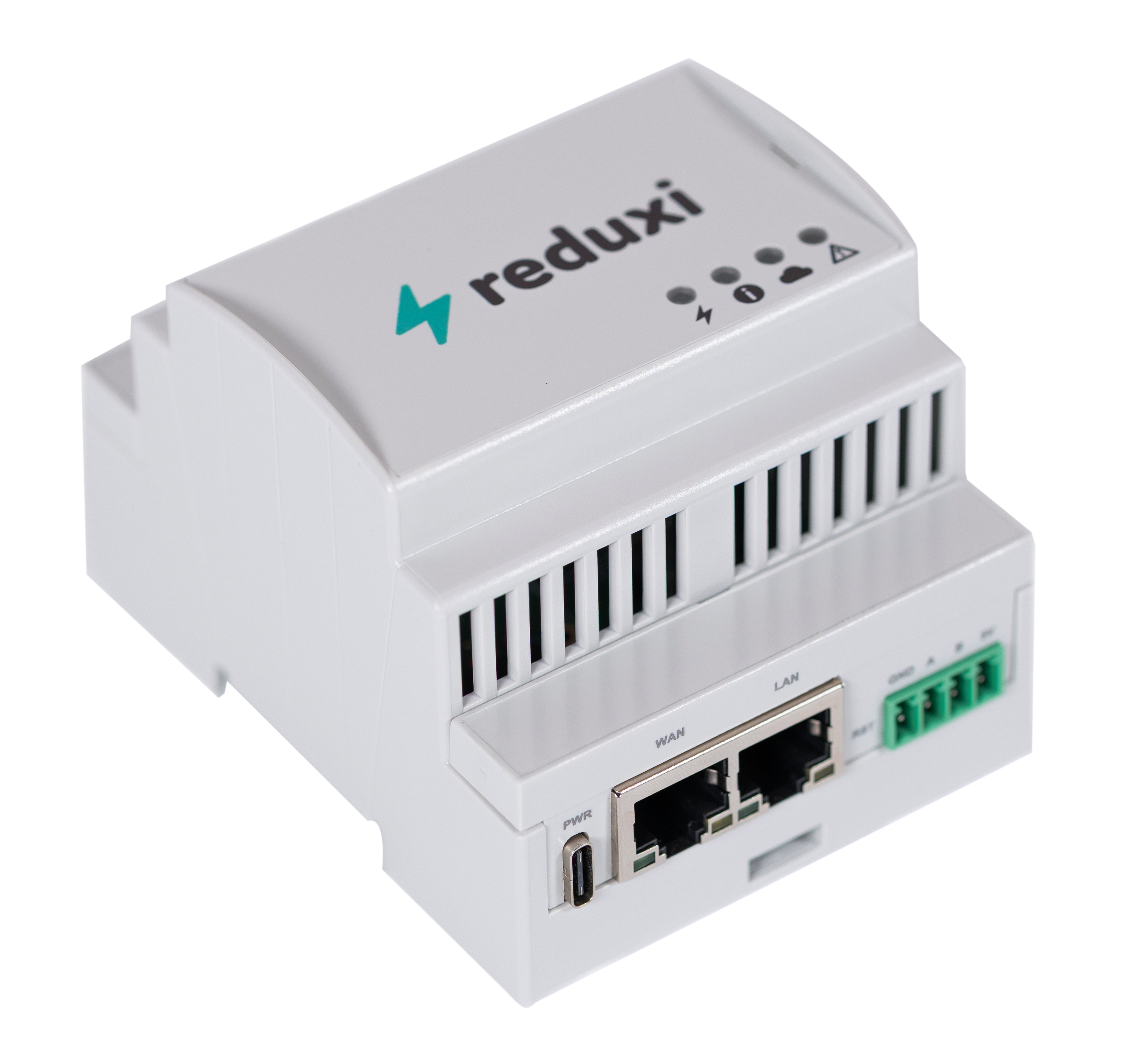

- Desktop housing with option for DIN rail IEC/EN 60715 TH35 attachment.
- Dimensions: 150 x 100 x 30 mm.
- Ingress Protection: <IP20.
- Weight: 230g.

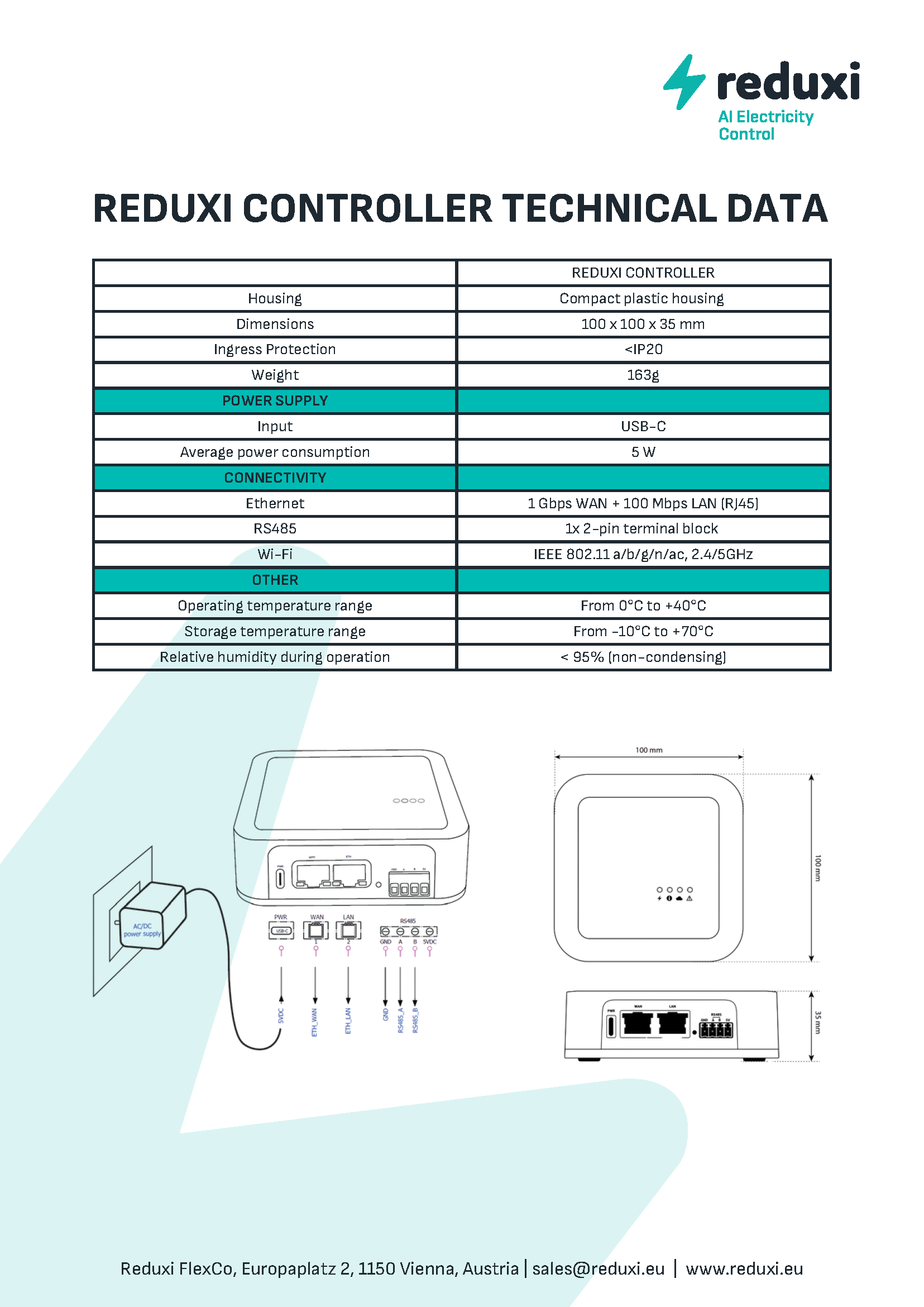

3.2. Technical data
| POWER SUPPLY | |
| Supply voltage – DC Jack | 12 – 24 V DC |
| Average power consumption at 12 V DC | 250 mA |
| Supply voltage - PoE | 48 V |
| PoE Type | IEEE 802.3 at Type 1 |
| PINS | |
| Power supply | 2-pin DC jack |
| Ethernet | RJ45 10/100 Mbps (half / full duplex) |
| RS485 | 2x 2-pin terminal block |
| CONNECTIVITY | |
| Ethernet | 10/100 Mbps |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac, 2.4/5GHz |
| RS485 | 2x 921600 BAUD half duplex |
| OTHER | |
| Operating temperature range | From 0°C to +40°C |
| Storage temperature range | From -10°C to +70°C |
| Relative humidity during operation | < 95% (non-condensing) |
| Ingress Protection | < IP20 |
3.3. Connection pinouts
3.3.1. Reset button
With the following procedure you can reset Reduxi to factory default.
- Disconnect Reduxi from power.
- Press the reset button with a needle and hold it (do not release it).
- Connect Reduxi to power.
- Continue pressing the reset button with the needle for 30-60 seconds until LED lights start blinking.
- Release the reset button after the LED lights start blinking.
- Wait 3-5 minutes for Reduxi to reset everything to factory settings.
3.3.2. Power supply
|
Figure 1: Power supply pinout (marked as |
Device shall be supplied by Limited power |
3.3.3. Ethernet – RJ45

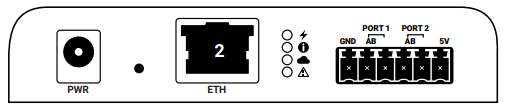

Figure 2: Ethernet pinout (marked as number 2)
| PIN no. | Function |
|
| 1 | TX+ | |
| 2 | TX- | |
| 3 | RX+ | |
| 4 | PoE | |
| 5 | PoE | |
| 6 | RX- | |
| 7 | PoE | |
| 8 | PoE |
3.3.4. Communication RS485 interfaces

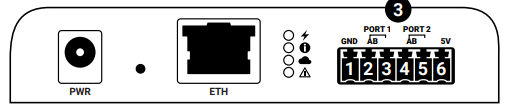

Figure 3: Communication interfaces pinout (marked as number 3).
|
4. A + (port 2) |
- Data rate: 921600 BAUD.
- Half duplex.
- Voltage level: 0 V - 5 V.
There are also additional adapters available for 3rd-party communication support. Please contact us for a list of currently available add-ons and prices.
3.3.5. LED Indicator Lights
|
First from the top LED - Green light: Power supply is active. Second from the top LED – Green light: System is running; Red light: Error. Third from the top LED – Green light: Network connection (off - no connection, green - connection ok, blinking green - error in connection). Fourth from the top LED – Red light: blinking red - error in any of the added devices. |
4. GENERAL INSTRUCTIONS FOR USE
- By using this device you accept Privacy policy and Terms and conditions
- Read and retain these instructions for future reference. Adhere to all warnings and guidelines.
- Placement: Ensure the product is placed on a stable, non-vibrating surface.
- Unpacking: Remove all packaging materials before connecting the product to the power supply.
- Ventilation: Keep the ventilation slots unobstructed; do not place items on the product.
- Moisture and Liquids: Protect the product from exposure to liquids, rain, or moisture.
- Cleaning: Always unplug the product before cleaning. Use only a soft, dry cloth; avoid liquid or spray cleaners.
- Openings: Do not insert objects into any openings.
- Repairs and Modifications: Do not attempt to open or repair the product yourself, as this will void your warranty. Only qualified service technicians should perform repairs.
- Relocation: Disconnect the product from the power supply before moving it.
- Labels: Keep all original labels intact and do not remove them from the product.
- Heat Sources: Avoid installing the product near heat sources such as radiators, heaters, or other appliances that generate heat.
- Power Cable: Install the power cable securely and ensure it is not a tripping hazard or exposed to potential damage from objects that could pinch or twist it.
- Accessories: Use only accessories or additional equipment recommended by the manufacturer.
- Unplugging: Disconnect the product from the power source during electrical storms or if it will not be used for an extended period.
- Voltage Requirements: Connect the product only to a power outlet that matches the voltage requirements specified in these instructions.
- Power Access: Ensure that the power input on the device is always accessible and functional.
- Electrical Load: Do not overload electrical sockets, extension cords, or circuit breaker panels.
5. DECLARATION OF CONFORMITY
Amibit hereby declares that the product REDUXI Controller, version 1.2 complies with Directive 2014/53/EU. The full text of the compliance statement is available at the following web address: link.
6. EU - DISPOSAL AND RECYCLING
The symbol indicates, that the product should be disposed of in regards to local laws and regulations. Take the discarded device to the appropriate waste collection center. By appropriately disposing of waste devices, you help preserve natural resources and ensure sustainable environmental development.
Producer
Name: AMIBIT d.o.o.
Address: Šaleška 2 a, 3320 Velenje
Identification Number: 6930808000
TAX ID: SI51315831
Email: info@reduxi.eu
Phone: +386 (0)3 777 01 40
Document
Purpose: Reduxi Controler - User Manual
Version: V2.0 11.2024
Copyright
© 2022 AMIBIT d.o.o.
All rights reserved. No part of this document may be reproduced, stored on a storage and retrieval system or in any other form, electronic, electrostatic, magnetic tape, photocopying or otherwise without the prior written permission of AMIBIT d.o.o.
