Description of advanced configuration parameters for adding devices in Reduxi Configurator
Advanced configuration parameters you set when you add devices in Reduxi Configurator.
Advanced configuration
| Do you want to set data saving interval? | At which interval do we capture the data we measure? |
| Measurement interval – Every minute | Measurement is taken every minute. |
|
Measurement interval – Every 5 minutes |
Measurement is taken 5 minutes. |
|
Measurement interval – Every 10 minutes |
Measurement is taken 10 minutes. |
|
Measurement interval – Every 15 minutes |
Measurement is taken 15 minutes. |
|
Measurement interval – Every 30 minutes |
Measurement is taken 30 minutes. |
|
Measurement interval – Every hour |
Measurement is taken every hour. |
| Measurement interval – Every day |
Measurements are taken once per day. |
| How long do we wait before we execute the read command (ms). | |
| How long do we wait before we execute the write command (ms). | |
| When an application sends the alarm signal that device communication failed – we use this to delay the alarm signal (ms). | |
| When an application sends the alarm signal that the package was lost during the communication – we use this to delay the alarm signal (ms). | |
| We switch the energy direction for import and export | |
| L1,L2,L3 is connected to main feed or disabled? |

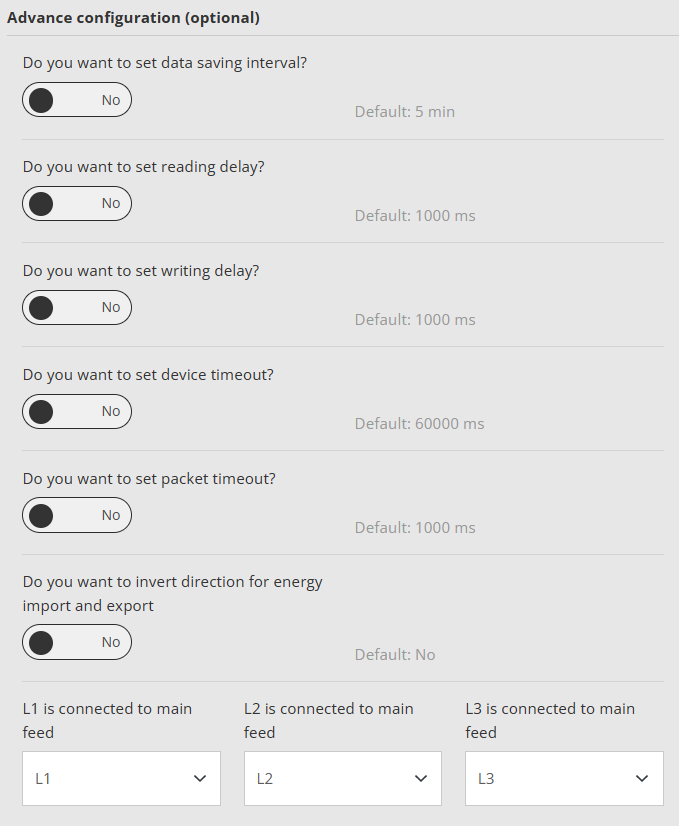

Text description of this image
Screenshot of the Advance configuration (optional) section in the Reduxi Configurator (light theme). Each row is a question with a toggle set to No and a default value on the right. Do you want to set data saving interval? No; Default: 5 min. Do you want to set reading delay? No; Default: 1000 ms. Do you want to set writing delay? No; Default: 1000 ms. Do you want to set device timeout? No; Default: 60000 ms. Do you want to set packet timeout? No; Default: 1000 ms. Do you want to invert direction for energy import and export? No; Default: No. Bottom row, three dropdowns: L1 is connected to main feed: L1; L2 is connected to main feed: L2; L3 is connected to main feed: L3.
