Description of communication parameters for adding devices in Reduxi Configurator
Communication parameters you set when you add devices in Reduxi Configurator.
Communication channel
| Connection | Connection type. |
| Connection – Local Serial Port | Local serial port. |
| Connection – Reduxi gateway | Reduxi adapter which is connected through an Ethernet connection. |
| Connection – TCP/IP | TCP/IP connection |
| Connection – UDP | UDP connection. |
| Connection – Local Serial Port | We define a port number for serial communication. |
| Connection – Reduxi gateway – IP | IP address of Reduxi gateway. |
| Connection – TCP/IP - IP | IP address for TCP/IP communication. |
| Connection – TCP/IP - Port | Port device for TCP/IP communication. |
| Connection – UDP - IP | IP address for UDP communication. |
| Connection – UDP - Port | Port number for UDP communication. |
|
Baud rate – 300 kbps – 460800 kbps |
Baud rate of communication – standard range. |
|
Data bits – 5 – 8 |
Range for package data bits. |
| Stop bit – 1- 2 |
Rane for bits which represent the end of the package. |
| Parity – None. Even, Odd | Indicates parity. |

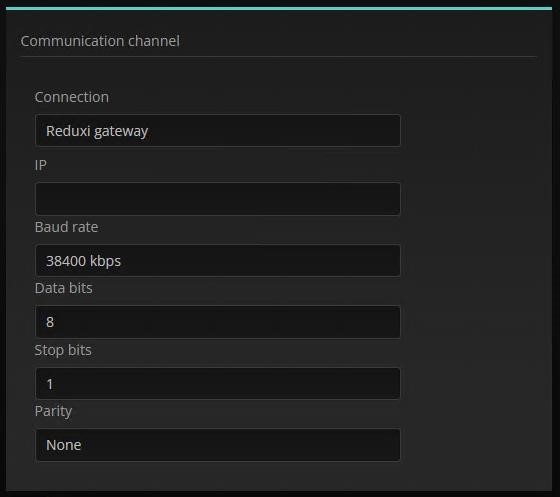

Text description of this image
Screenshot of the Communication channel section in the Reduxi Configurator (dark theme). Fields: Connection: Reduxi gateway; IP: empty; Baud rate: 38400 kbps; Data bits: 8; Stop bits: 1; Parity: None.
