1. Introduction

Welcome to the world of Reduxi which allows you to take control of energy costs and efficient use of electricity for sustainable development. Main features:

• Peak power management,
• Solar power plant production management,
• Optimisation of electricity consumption.

Accurate measurement and energy consumption analysis are the first steps towards energy reduction. To achieve this goal, you need the right technology. Reduxi Converter enables the connection of AM550 meter to Reduxi system via Reduxi Controller or Reduxi Gateway device.

2. Specifications

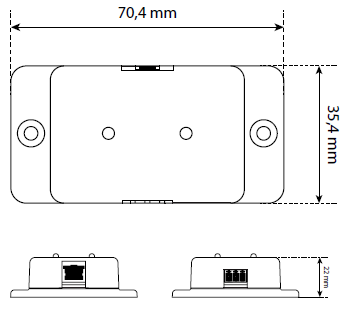

2.1. Dimensions

• Table housing that can be attached.
• Dimensions: 35.4 x 70.4 x 22 mm.
• Protection: <IP20.
• Weight: 30 g.

2.2. Technical data

2.3. Connection plugs

2.3.1. RS485 plugs

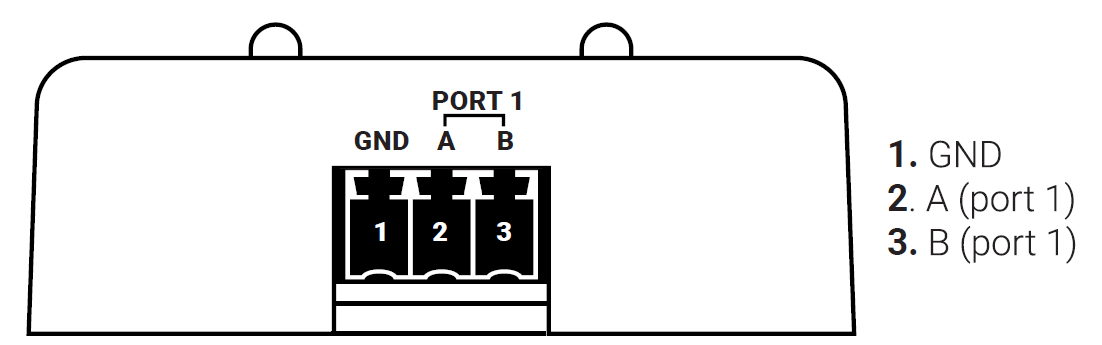

Picture 1: Communication plugs RS485 (marked with number 1).

• Maximum data transfer rate: 921600 BAUD.

• Half duplex.

• Voltage level: 0 V – 5 V.

2.3.2. RJ12 plugs

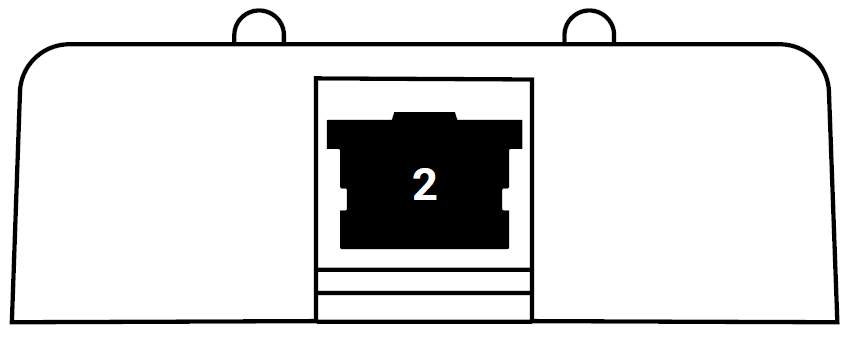

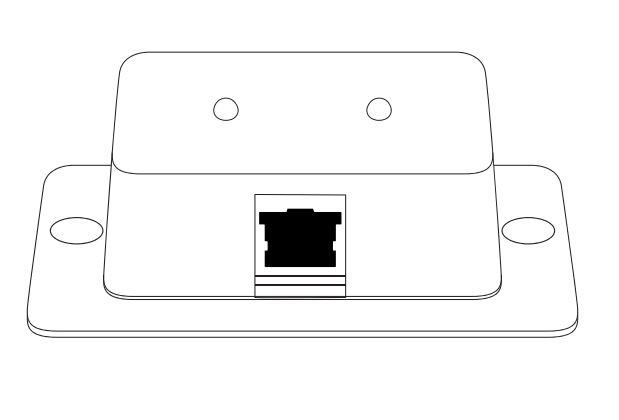

Picture 2: Communication plugs RJ12 (marked with number 2).

1. +5V DC power supply.
2. Data line demand – input.
3. Data GND.
4. NC – not connected.
5. Data line – output.
6. GND power supply.

• Communication via Iskra P1 output.
• Voltage level: 0 V – 5 V.

2.3.5. LED indicator lights

	Green LED: power supply is active.
	Yellow LED: flashing during data transfer.

3. Connection instructions

For the first configuration, you need to connect Reduxi Converter to Reduxi Controller or Reduxi Gateway to RS485 port. For the connection, we recommend using a double-insulated twisted-pair wire with a braid (shielded cable).

• The double-insulated twisted-pair wire must be connected in the following way: the first wire on converter A is connected to Reduxi wire A. Connect the other wire on inverter B to Reduxi wire B. Connect the braided cable (shielded cable) to GND.
• Connect Iskra AM550 meter with RJ12 cable to Reduxi Converter (make sure the order of the wires in RJ12 cable matches on both sides of RJ12 cable).
• The green LED from above should start to glow.

For software configuration/installation, please visit the website where you find the latest documentation:

support.reduxi.eu.

4. General instructions for use

• Read these instructions. Keep these instructions. Follow and abide by all the warnings.
• Install the product according to the producer’s instructions.
• The product must not be exposed to vibration.
• Remove all packaging before plugging the product into an electricity supply.
• Do not place the product on unstable ground.
• Do not place any objects such as lamps, books, vases of water, tablecloths, etc. on the product. Do not cover the ventilation slots.
• Do not expose the product to liquids, rain or moisture.
• Unplug the product before cleaning. Do not use liquid or spray cleaning agents to clean the product. Use a soft, dry cloth for cleaning.
• Do not insert objects into the openings of the product. This may cause a short circuit and lead to electric shock or fire.
• Do not open or repair the product yourself. Opening the product will make your warranty invalid. This product contains no user-replaceable parts.
• Always unplug the product when you plan to move it.
• Avoid procedures that may cause a short circuit.
• Do not remove the original labels from the product.
• Do not use the product near water.
• Do not install the product near heat sources such as radiators, heaters, etc.
• Protect the electric cable and route it in such a way that it will not be walked on and that there are no objects next to it that could pinch or twist it.
• Only use accessories/additional equipment specified by the producer.
• Unplug the product during storms or when not in use for a long time.
• All repairs should be performed by qualified service personnel.
• The correct voltage for this product is specified in these instructions. You can only connect the product to a socket with the voltage and frequency specified in these instructions. If you do not have information about the voltage, contact your service provider or electricity distribution company.
• Do not overload an electrical sockets or extension cords or electrical enclosures.
