Why doesn't battery storage operate optimally?
Find out why your battery storage does not operate optimally and how to fix it.
1 Objective
Reduxi regulates the battery storage in a way that during the day it is charged via the solar power plant, and at night, when the production of the solar power plant is not large enough to cover the consumptions in the house, it turns on the electricity consumption from the battery storage, thereby increasing self-sufficiency.
2 Problem
Why doesn't the battery storage operate optimally even though the state of charging (SOC) of the selected battery storage is relatively high – battery storage is almost always full (Figure 1)?
Text description of this image

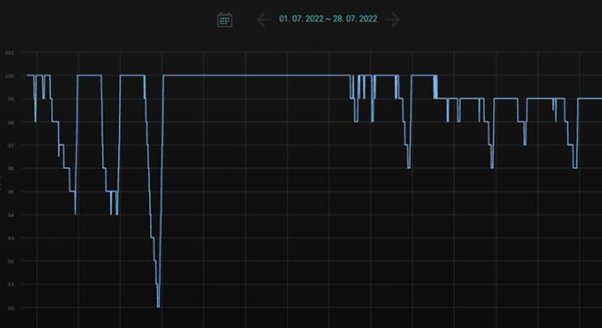

Screenshot of a Reduxi Cloud line chart on a dark background (low resolution). Top: calendar icon and date range 01. 07. 2022 ~ 28. 07. 2022 with left and right arrows. A single light blue line is plotted; y axis with small print labels from 90 at the bottom to about 101 at the top in steps of 1; x axis labels not visible. The line sits at 100 for long periods and drops in several dips: to about 94 early in the range, to about 95 twice more, a deep sharp dip to about 90, then stays at 100 for the longest stretch, then from about two thirds of the range shows small dips between 96 and 99 and settles around 99 at the right end. No legend or title.
Figure 1: State of charging (SOC) is always high; web application Reduxi.
1. Make sure the battery storage is connected correctly.
Go to Reduxi Configurator. On the first page of Reduxi Configurator (left menu), click:
- Battery storage for which you want detailed insight into the measurements.
If the selected battery storage is connected, under the Last measurement tab, you will see information about the state of battery storage.
As the data for the selected battery storage is displayed, it means that the battery storage is correctly connected and is operating (Figure 2).
Text description of this image

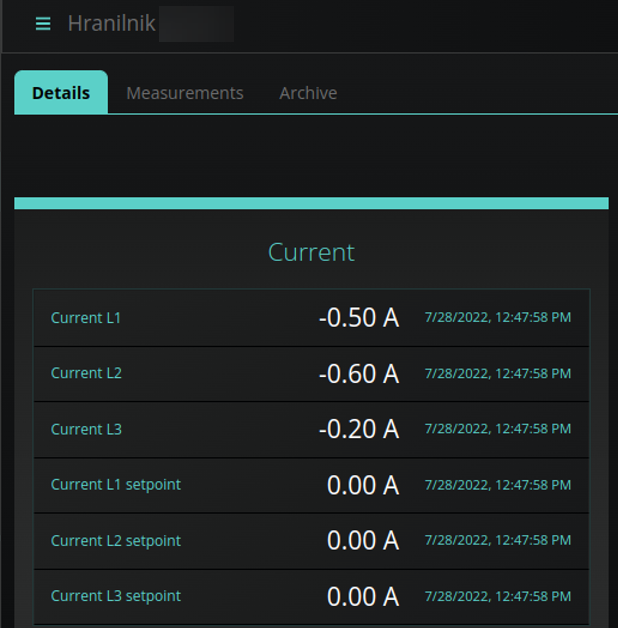

Screenshot of the Reduxi Cloud device page of a battery storage, dark theme. Header: menu icon and the title Hranilnik [Storage]. Tabs: Details (selected, teal), Measurements, Archive. Teal section header: Current. Table rows (label, value, timestamp): Current L1: -0.50 A, 7/28/2022, 12:47:58 PM; Current L2: -0.60 A, 7/28/2022, 12:47:58 PM; Current L3: -0.20 A, 7/28/2022, 12:47:58 PM; Current L1 setpoint: 0.00 A, 7/28/2022, 12:47:58 PM; Current L2 setpoint: 0.00 A, 7/28/2022, 12:47:58 PM; Current L3 setpoint: 0.00 A, 7/28/2022, 12:47:58 PM. The image is cropped at the bottom.
Figure 2: Battery storage is correctly connected and is operating, data is displayed; Reduxi Configurator.
2. Check the settings of the selected battery storage
Click:
- Settings (left menu).
- The battery storage for which you want to see the settings.
The Configuration form shows that the basic settings have been edited. The permission to fill the battery storage to 100% and the permission to empty the battery storage to 100% are set (Figure 3).
Text description of this image

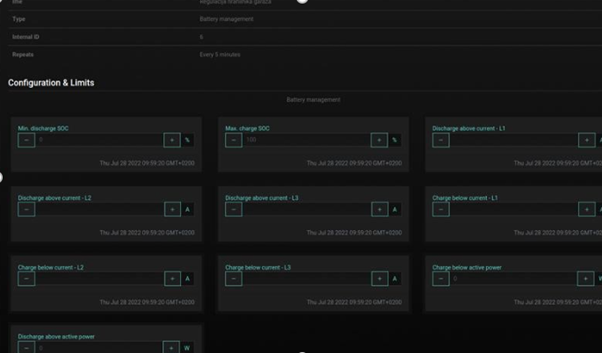

Low-resolution screenshot of a Reduxi Cloud strategy configuration page for a battery storage, dark theme, cropped at the top, right and bottom. Top rows (partly cut): Name; Type: Battery management; Internal ID: 6; Repeats: Every 5 minutes. Section heading: Configuration & Limits, with sub-label Battery management. Grid of value cards, each with a minus button, a greyed value field, a plus button and a unit box; each card shows the timestamp Thu Jul 28 2022 09:59:20 GMT+0200. Cards in order: Min. discharge SOC (value 0, unit %); Max. charge SOC (value 100, unit %); Discharge above current - L1 (unit A, cut off); Discharge above current - L2 (A); Discharge above current - L3 (A); Charge below current - L1 (A, cut off); Charge below current - L2 (A); Charge below current - L3 (A); Charge below active power (value 0, unit W); Discharge above active power (value 0, unit W).
Figure 3: Configuration of the selected battery storage.
The battery storage is connected correctly, and the settings in the Configuration form are edited. What is the reason that the operation of the battery storage is not optimal?
3 Possible causes and solutions
There is a possibility that there are no electricity consumers. Therefore, electricity from the battery storage is not consumed.
The graph (Figure 4) shows that there are electricity consumers. The orange colour on the graph, which indicates the selected battery storage, shows that the electricity is being consumed from the grid. Since the battery's state of charge (SOC) is high, electricity could be consumed from the battery storage instead of the grid.
Text description of this image

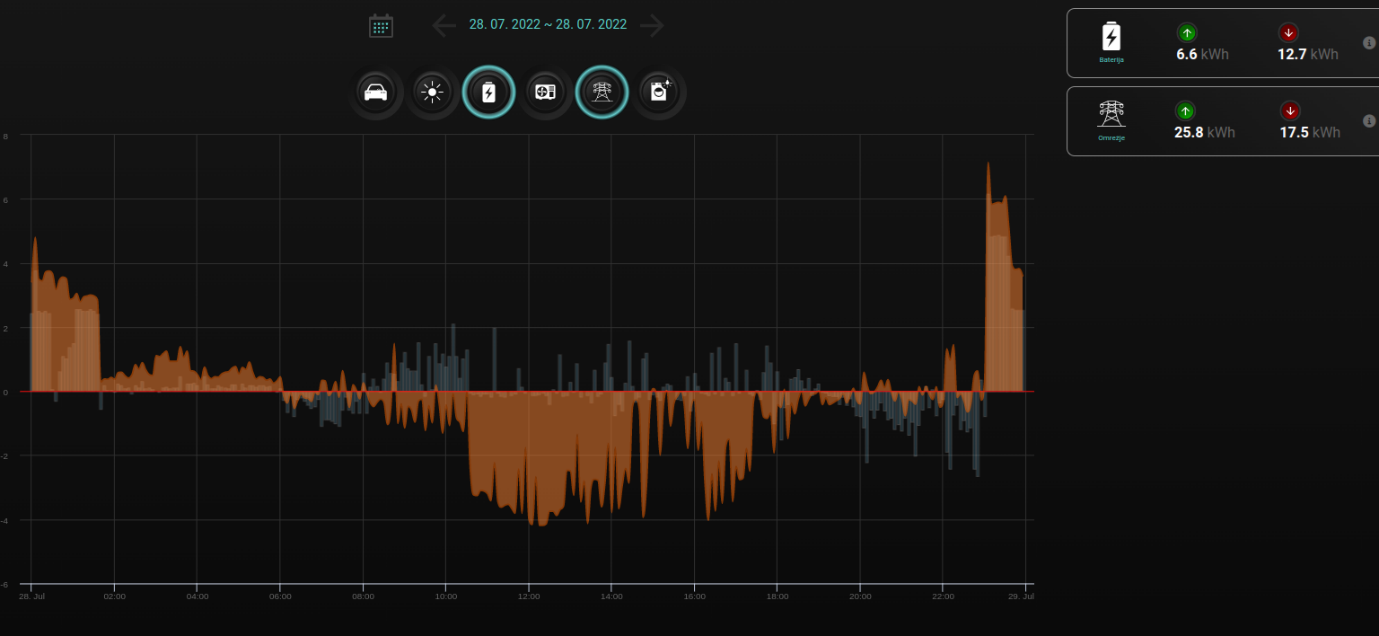

Screenshot of a Reduxi Cloud statistics chart on a dark background for one day. Top: calendar icon, date range 28. 07. 2022 ~ 28. 07. 2022 with left and right arrows. Row of six round device icons: EV charger (car), solar (sun), battery (ringed in teal, selected), heat pump, grid (pylon, ringed in teal, selected), other (washing machine). Chart: x axis from 28. Jul to 29. Jul with ticks every 2 hours (02:00 to 22:00); y axis from -6 to 8 with gridlines every 2. An orange filled area and thin blue-grey bars are plotted around the 0 line; which series is which is not labelled. Orange area: positive about 2.5 to 4.8 from 00:00 to about 01:40; about 0.3 to 1 until 06:00; negative from about 06:00, reaching about -4 between 11:00 and 13:30 and again about -4 at 17:00; near 0 from 18:00 to 22:30; strongly positive, about 6 to 7, from about 23:00 to 24:00. Right side, two summary boxes: Baterija [Battery] with battery icon: green up arrow 6.6 kWh, red down arrow 12.7 kWh; Omrežje [Grid] with pylon icon: green up arrow 25.8 kWh, red down arrow 17.5 kWh; each with an info icon.
Figure 4: Display of consumption from the grid and the COF of the battery storage; web application Reduxi.
The grey colour on the graph indicates the consumption of electricity from the battery storage. Below the orange line, for the time period from 10 am to 12 pm, it can be seen that the electricity consumption from the battery storage is minimal, despite the fact that the battery storage is almost full.
The reason for this could be the battery storage. It has its own system that does not allow it to be controlled by an external device. If the battery storage is working in stand-alone mode, it will not obey Reduxi's commands. In this case, the battery storage will not operate optimally, even though you have set optimization strategies in Reduxi. For example, Victron battery storages have ESS control algorithms (more can be found in the instructions for Victron batteries, 4.3.1. Mode).
