Why Solar Power Plant is showing zero production value, if latest values are showing correct Active Power value?
Find out why a solar power plant shows zero production in Reduxi Cloud while the latest Active Power value is correct.

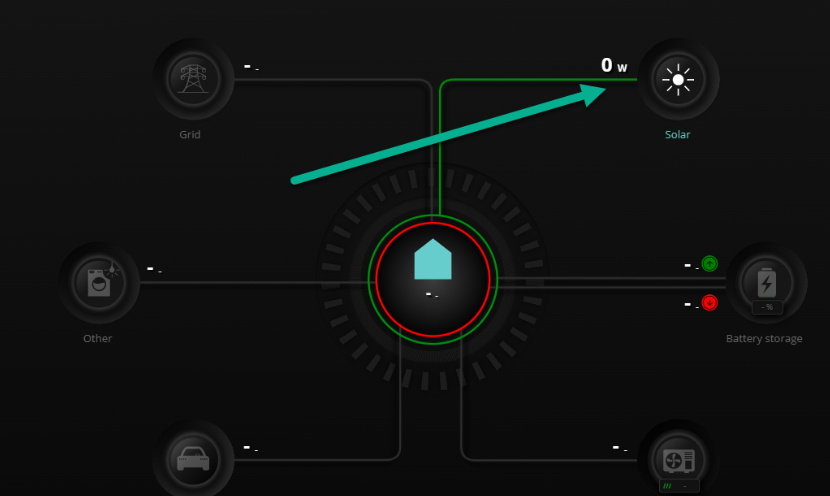

In the Reduxi Cloud application, the Solar Power Plant production value is 0.
Text description of this image
Screenshot of the Reduxi Cloud energy flow diagram on a dark background, cropped at the bottom. Centre: circle with a house icon and a dash as value, with green and red rings. Icons around it: Grid (pylon icon, top left): value shown as a dash; Solar (sun icon, top right, highlighted in white): 0 W on a green line; Other (washing machine icon, left): dash; Battery storage (battery icon, right): dash on a green marker and dash on a red marker, small badge with a dash; EV charger (car icon, bottom left, label cut off): dash; HVAC (heat pump icon, bottom right, label cut off): dash, with a small badge. A large teal arrow points from the lower left towards the Solar icon and its value 0 W.
Source: Reduxi Cloud - bvs.si controller

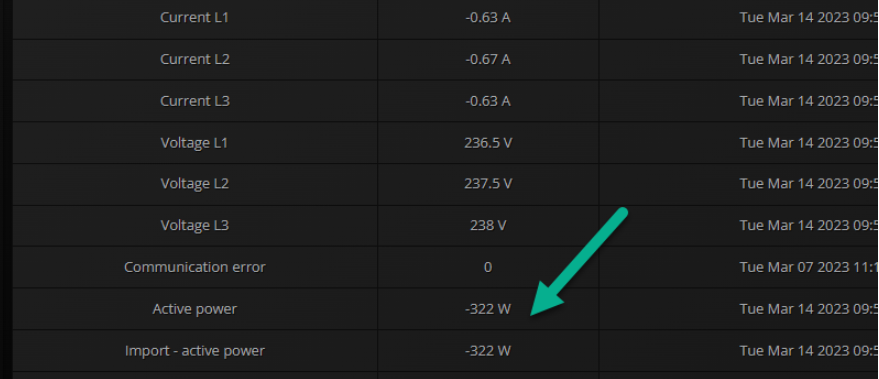

If we go to the controller section in Reduxi Cloud and check Latest Data, we can see Latest Data is showing the correct Active Power.
Text description of this image
Screenshot of a Reduxi Cloud latest-data table on a dark background, cropped at the right and bottom. Columns: name, value, timestamp (timestamps cut off). Rows: Current L1: -0.63 A, Tue Mar 14 2023 09:5(cut); Current L2: -0.67 A, Tue Mar 14 2023 09:5(cut); Current L3: -0.63 A, Tue Mar 14 2023 09:5(cut); Voltage L1: 236.5 V, Tue Mar 14 2023 09:5(cut); Voltage L2: 237.5 V, Tue Mar 14 2023 09:5(cut); Voltage L3: 238 V, Tue Mar 14 2023 09:5(cut); Communication error: 0, Tue Mar 07 2023 11:1(cut); Active power: -322 W, Tue Mar 14 2023 09:5(cut); Import - active power: -322 W, Tue Mar 14 2023 09:5(cut). A teal arrow points at the Active power value -322 W.
Source: Reduxi Cloud - bvs.si controller
What is wrong? As we can see, there is a minus before the actual value. That indicates the Reduxi Controller sends inverted values for energy import and export.
Text description of this image
Screenshot of one setting row in a Reduxi Cloud form (light grey). Question: Do you want to invert direction for energy import and export. Toggle showing the text Yes with the knob at the right end. Text next to it: Default: No.
We have to go to Reduxi Configurator, find & edit the device and disable the invert direction for energy import and export.
