Please access your EV charger Etrel Inch Pro over the web interface. INCH Installation Manuals can be found here.

1. Physical connection

Connect with na UTP cable to the Reduxi Controller's network. If you have more advanced network configurations, please consult your IT expert.

2. EV charger Etrel Inch Pro configuration

Connect to the IP of EV charger Etrel Inch Pro device. Please do the following actions.

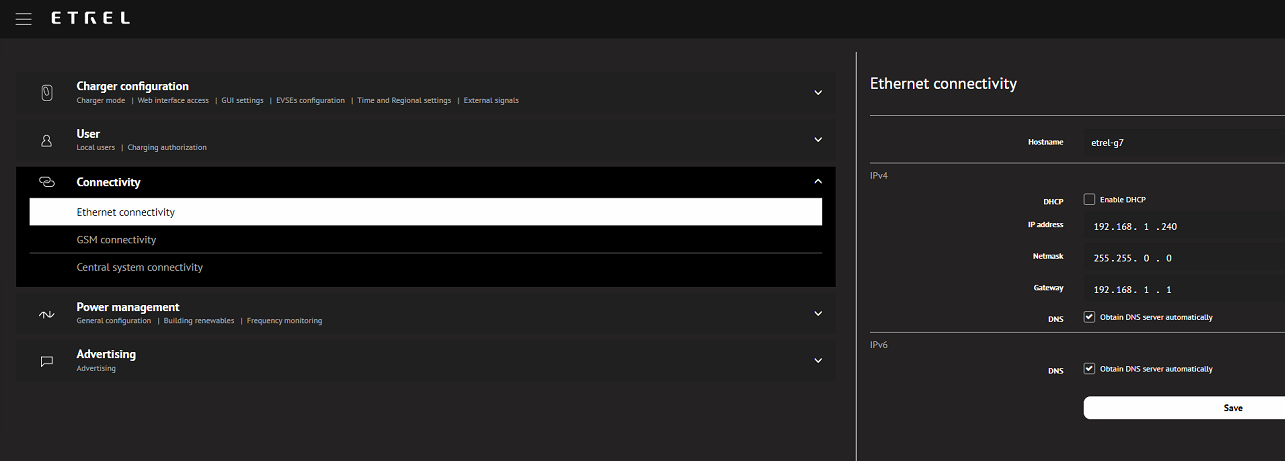

1. Configure Ethernet connectivity

Remember IP. Default port is 502.

This configuration documentation was created in cooperation with Mojaelektrarna.si.

3. Add the device to Reduxi Configurator

First, you can log in to Reduxi Configurator using Reduxi Configurator via the browser.

1. Click Add Device

2. Enter Basic Settings

3. Select Communication Channel

Please enter the settings you used in the section Configure Ethernet connectivity of Web Interface for EV charger Etrel Inch Pro.

4. Enter Device Configuration

Modbus unit ID - Normally, 1 is used.

5. Enter and choose Advance settings

4. What if the communication does not work?

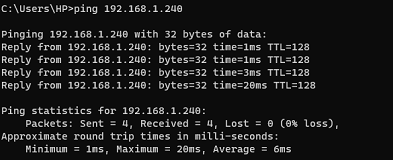

Try to ping this device to see if the network communication is working.
