How to use 1-phase current based ON/OFF regulation in Reduxi Configurator?
Measure and regulate devices by single-phase current with ON/OFF regulation in Reduxi Configurator.
1-phase current-based ON/OFF regulation strategy in Reduxi Configurator allows us to measure and regulate devices based on 1-phase current value.

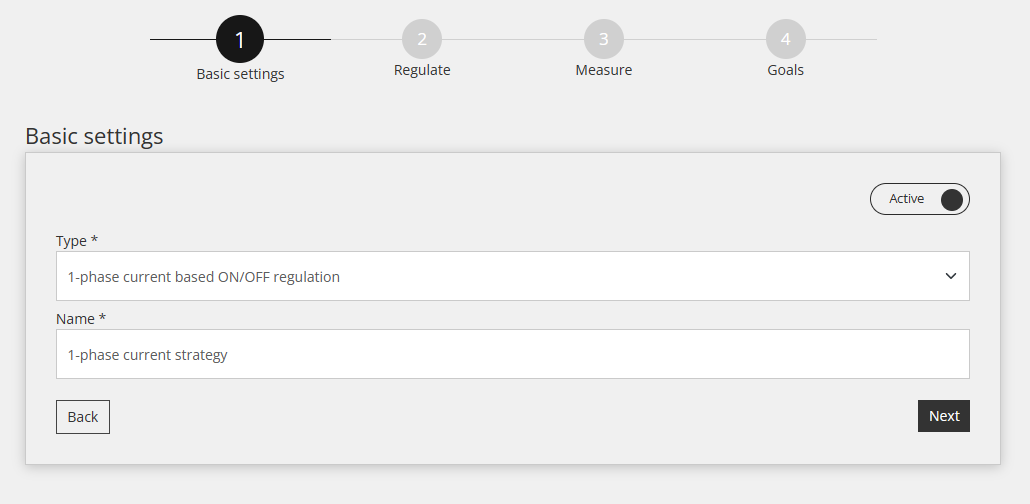

We simply start with choosing the strategy type and filling in the name.
Text description of this image
Screenshot of the Basic settings step of the Reduxi Configurator strategy wizard. Step bar: 1 Basic settings (current, dark), 2 Regulate, 3 Measure, 4 Goals (grey). Toggle at the top right: Active (on). Fields: Type *: 1-phase current based ON/OFF regulation (dropdown); Name *: 1-phase current strategy (text field). Buttons: Back (bottom left, light) and Next (bottom right, dark).

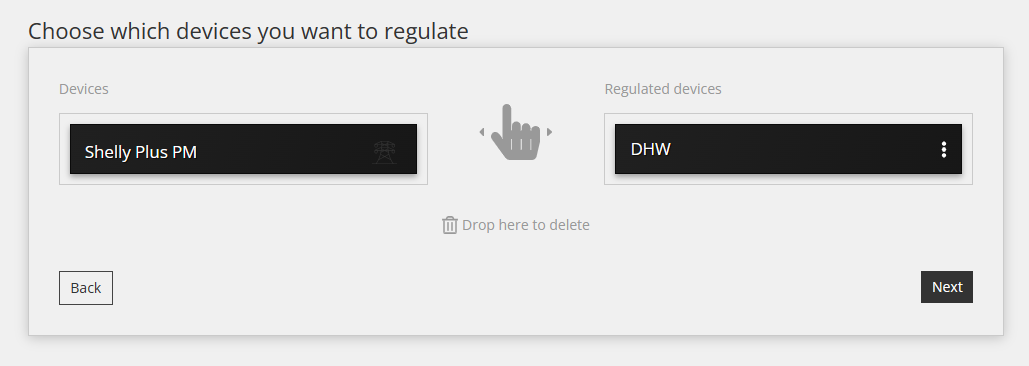

The next step is to select a device we want to regulate, for example, DHW.
Text description of this image
Screenshot of the Reduxi Configurator strategy wizard. Heading: Choose which devices you want to regulate. Left box Devices contains one dark entry: Shelly Plus PM. Right box Regulated devices contains one dark entry: DHW, with a three-dot menu icon. Between the boxes a grey hand icon indicating drag and drop. Below: a bin icon with the text Drop here to delete. Buttons: Back (bottom left, light) and Next (bottom right, dark).

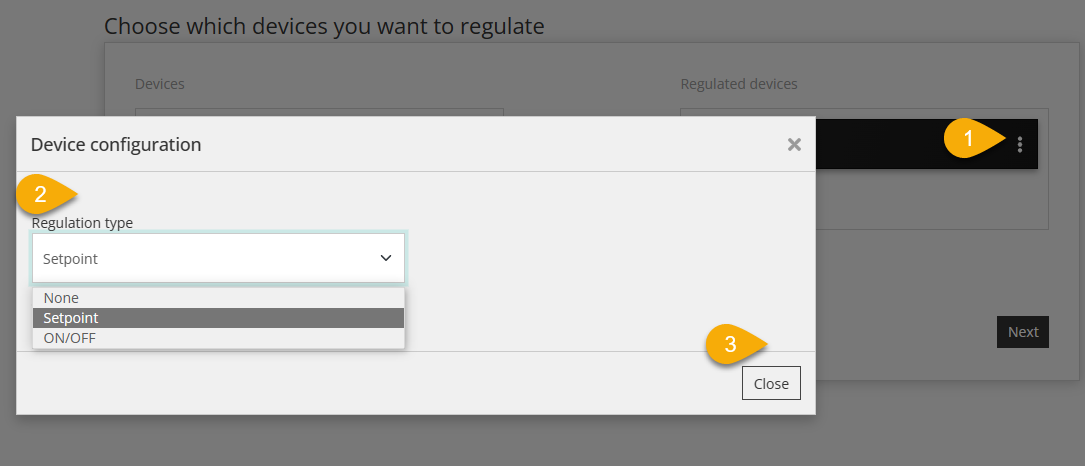

If we click on the three dots found at each device, we can set specific parameters per device under the strategy:
-
- Regulation type (none/setpoint/on-off)
- Inverted (YES/NO)
Text description of this image
Screenshot of the Reduxi Configurator strategy wizard, greyed in the background: heading Choose which devices you want to regulate, columns Devices and Regulated devices, and a Next button at the bottom right. In front is the dialog Device configuration with a close x. Field: Regulation type, dropdown with the current value Setpoint, open with the list: None, Setpoint (highlighted dark), ON/OFF. Button: Close (bottom right of the dialog). Orange number badges: 1 at the three-dot menu on the dark device row in the Regulated devices column; 2 at the Regulation type field; 3 at the Close button.
Text description of this image

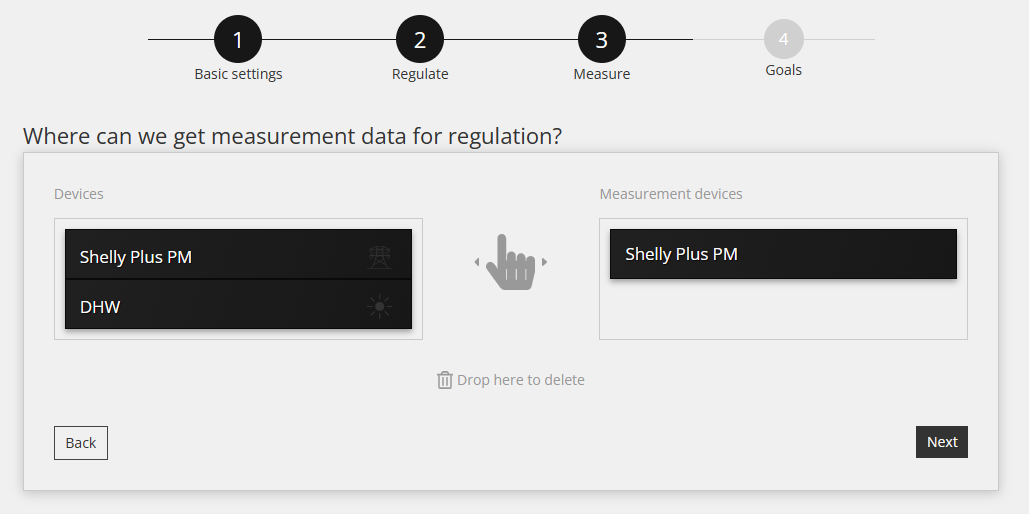

Screenshot of the Reduxi Configurator strategy wizard. Step bar with four steps: 1 Basic settings, 2 Regulate, 3 Measure (current, dark) and 4 Goals (grey, not reached). Question: Where can we get measurement data for regulation? Left box Devices contains two dark entries: Shelly Plus PM and DHW. Right box Measurement devices contains one dark entry: Shelly Plus PM. Between the boxes a grey hand icon indicating drag and drop. Below: a bin icon with the text Drop here to delete. Buttons: Back (bottom left, light) and Next (bottom right, dark).

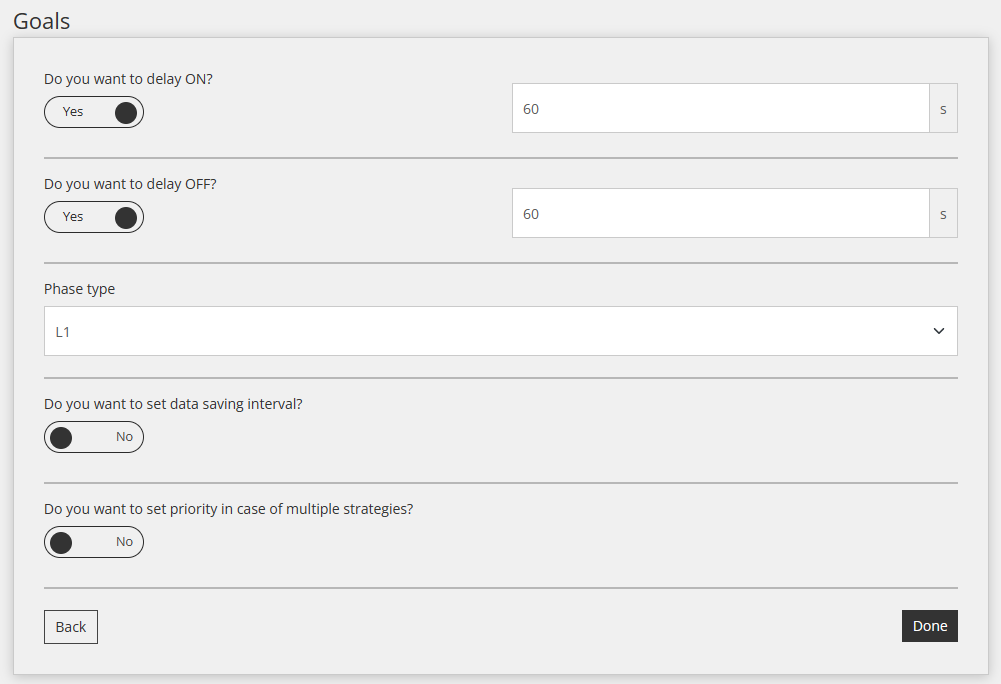

Selecting advance settings, which is optional. This setting are applied to all regulated devices inside the strategy.
Text description of this image
Screenshot of the Goals page of the Reduxi Configurator strategy wizard. Fields: Do you want to delay ON?: toggle Yes (on), value 60 s. Do you want to delay OFF?: toggle Yes (on), value 60 s. Phase type: L1 (dropdown). Do you want to set data saving interval?: toggle No (off). Do you want to set priority in case of multiple strategies?: toggle No (off). Buttons: Back (bottom left, light) and Done (bottom right, dark).
Set delay ON (set in seconds)
How much time will Reduxi wait with strategy activation?
Set delay OFF (set in seconds)
How much time will Reduxi wait with strategy de-activation?

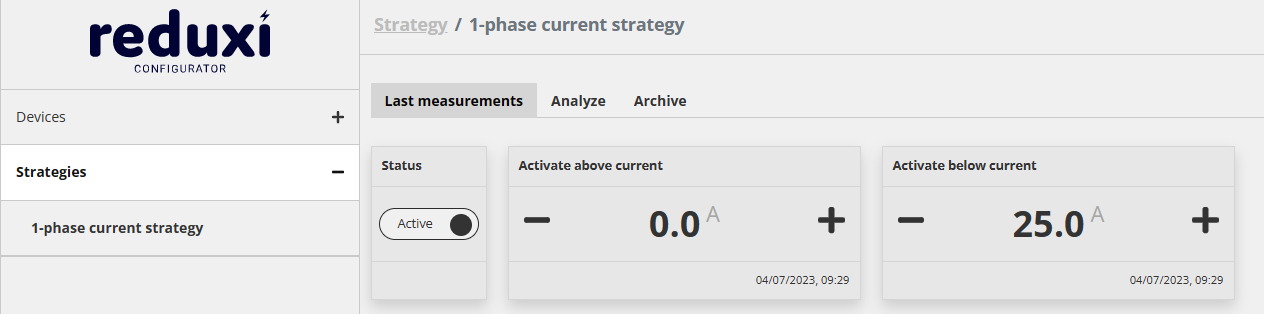

After the strategy is saved, we can go to the home page of Reduxi Configuration, select a strategy and configure our values.
Text description of this image
Screenshot of the Reduxi Configurator page 1-phase current strategy. Top left: logo reduxi CONFIGURATOR. Left menu: Devices (with +), Strategies (with -, expanded) containing 1-phase current strategy (highlighted white). Breadcrumb: Strategy / 1-phase current strategy. Tabs: Last measurements (selected), Analyze, Archive. Panels: Status: toggle Active (on); Activate above current: 0.0 A with minus and plus buttons; Activate below current: 25.0 A with minus and plus buttons. Each value panel has a small date and time line below.
