How to connect Tesla Backup Gateway battery with Reduxi controller
Connect the Tesla Backup Gateway and Powerwall to the Reduxi Controller.
1 Prepare the Tesla Backup Gateway
1.1 Required equipment
- Reduxi Controller
- Tesla Backup Gateway with Powerwall
- Network connection (router or switch)
- Laptop or tablet with internet access to configure the device in Reduxi
1.2 Physical connection
Follow the Tesla article Powerwall pre-installation.
1.3 Connect to the Tesla Powerwall
Follow the Tesla article Connecting to Tesla Gateway and Powerwall.
2 Log in to the Tesla Powerwall
Follow the Tesla article Powerwall Post-Installation. Use these login details:
- Email: the email you use for your Tesla account.
- Password: the first time you sign in, the password is the last five characters of the Gateway password.
If you forgot your password, tap Change or Forgot Password and follow the on-screen instructions.
Text description of this image
Screenshot of the Tesla Powerwall login page titled Change or Reset Password (Installer). A small text at the top right edge is cut off. Section RESET PASSWORD with the text: To reset the password, toggle the switch on a Powerwall, then enter the Gateway sticker password. Two collapsed entries with arrows: Toggling a Powerwall; Finding the password on a Gateway. Field PASSWORD: empty, placeholder Gateway password, with a red dots icon in the field and a right arrow button. Checkbox Show Password: not ticked. Blue button: SCAN QR CODE.
3 Gather the information for the Reduxi Configurator
3.1 Find the IP address
After you log in to the web interface, note the IP address of the Tesla Powerwall. You need it in the Reduxi Configurator.
Text description of this image
Screenshot of a menu list in a battery gateway web interface (white background). Entries, each with a right arrow: System; Network with the status text Connected below it; Summary; Software Update; Diagnostics; Change or reset password. An orange number badge 1 with an arrow points at the Network entry.
Text description of this image
Screenshot of the Network screen in the Tesla Powerwall web interface. Header text: Network. Subtitle: Connect to the Internet with all available network types. Entries: Ethernet with a green dot and a check mark, IP: 192.168.0.107, MAC: 98:ED:5C:00:5F:EE; Wi-Fi with a yellow dot, text: Configured, but not connected. Check your WIFI settings.; Cellular with a green dot and signal bars, IP: 10.195.0.75. Blue link at the bottom: CHECK INTERNET CONNECTION.
3.2 Set a static IP
Text description of this image
Screenshot of the Ethernet settings page of the Tesla Powerwall web interface. Header: Ethernet, with a green dot and the text Connected (192.168.0.107) with a check mark. Section CONFIGURATION has two radio buttons: DHCP (selected, blue ring, bold) and Static (not selected). Below: IP ADDRESS: Not available; SUBNET MASK: Not available; GATEWAY: Not available. An orange number badge 1 points to the Static radio button.
3.3 Verify the IP address (optional)
You can verify the IP address of the Tesla Powerwall with Advanced IP Scanner.
Text description of this image
Screenshot of the Advanced IP Scanner window (Slovenian interface). Menu: Datoteka, Pogled, Nastavitve, Pomoč. Scan range field: 192.168.0.1-254. Tabs: Rezultati, Priljubljene. Table columns: Stanje, Ime, IP. Visible rows: 192.168.0.107 (name 192.168.0.107, IP 192.168.0.107) expanded, with the sub-entry HTTP, Tesla Energy - Setup; and 192.168.0.108 (IP 192.168.0.108). A red hand-drawn ellipse marks the 192.168.0.107 row together with the HTTP, Tesla Energy - Setup entry.
4 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image

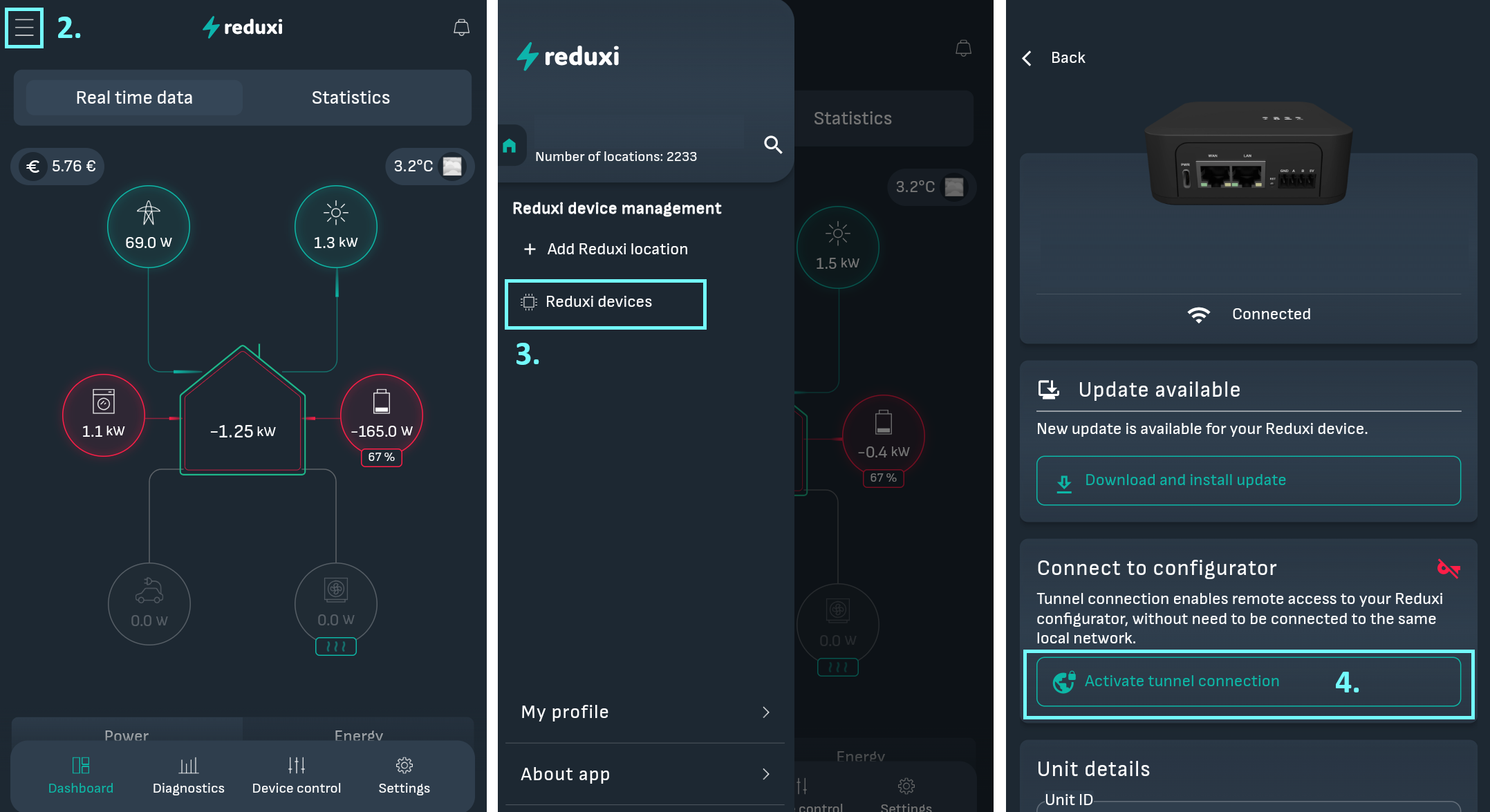

Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image

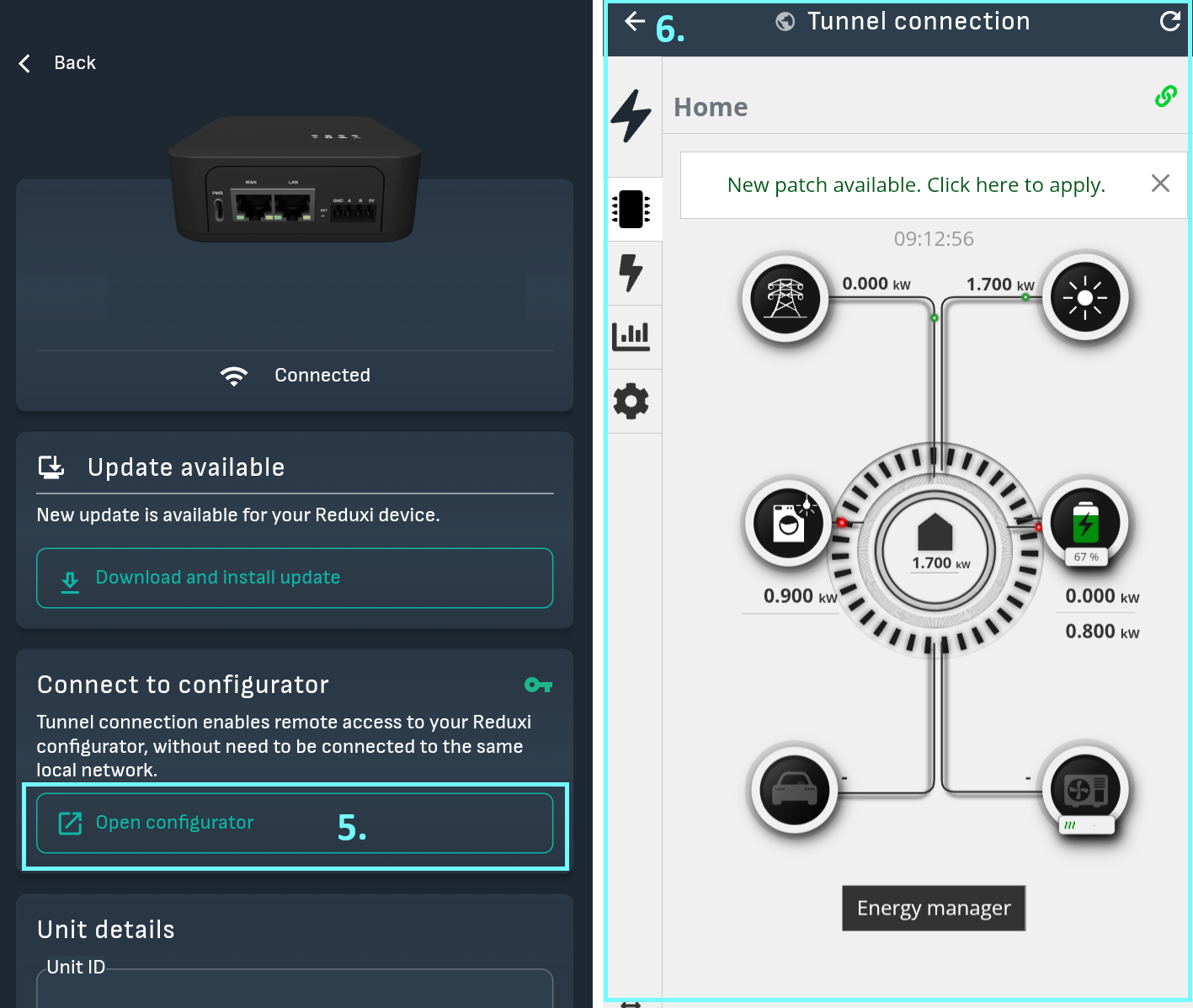

Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image

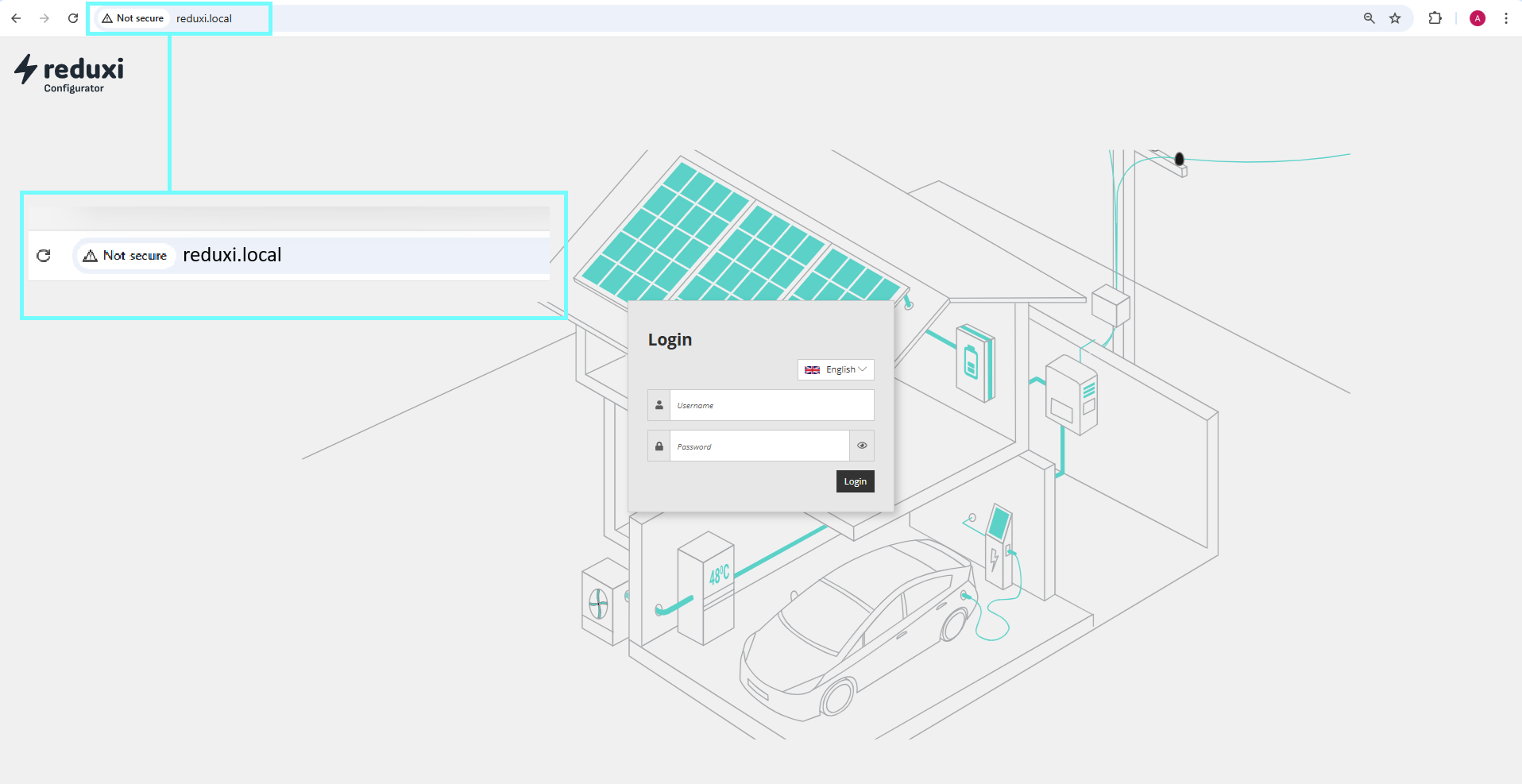

Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image

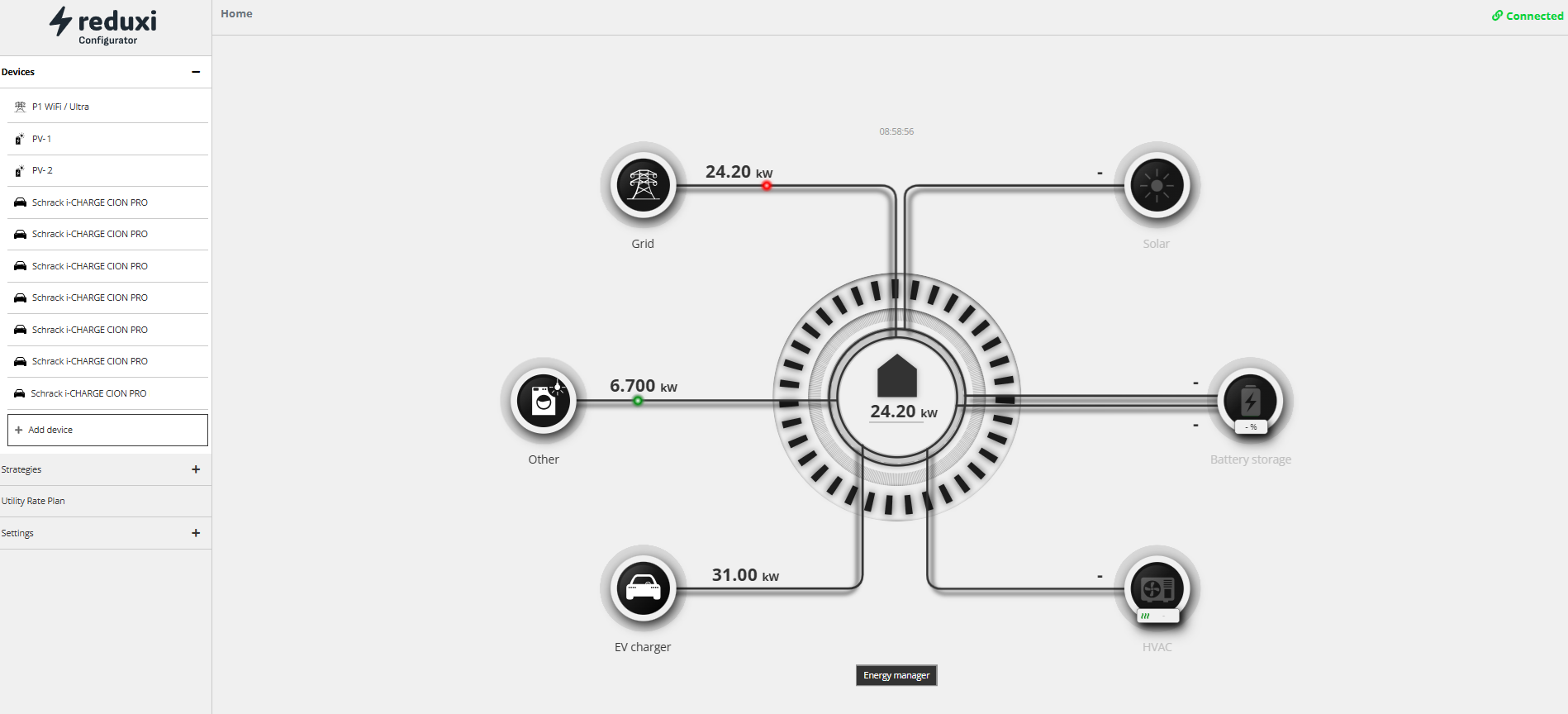

Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
5 Add the Tesla Backup Gateway to Reduxi
Use these steps to add a new Tesla Backup Gateway or to edit an existing one.
5.1 Basic settings
Log in to the Reduxi Configurator via the browser (see Point 4). Click + Add device and enter the basic settings.
Text description of this image
Screenshot of the Reduxi Configurator dialog titled Basic settings. Fields: Device type (required): Battery; Type (required): Tesla Powerwall / Backup Gateway; Name (required): Tesla Powerwall / Backup Gateway. Buttons: Back (outlined, left) and Next (dark, right).
5.2 Communication settings
Select the communication channel and enter the device configuration. Use the IP address you gathered in Point 3.
Text description of this image
Screenshot of the Reduxi Configurator page Communication channel and device configuration. Fields: Connection *: TCP/IP (dropdown); IP *: 192.168.0.107; Port *: 443; Username *: test; Password *: test. Buttons: Back (bottom left, light), Test communication (light) and Next (dark) at the bottom right.
5.3 Advanced settings
Enter and select the advanced settings of the device.
5.4 Test communication
Click Test communication at the bottom of the wizard. It reads the Tesla Backup Gateway once and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the bottom button bar of a Reduxi Configurator page. Left: button 'Back'. Right: button 'Test communication' (marked with a cyan box) and dark button 'Done'.
Text description of this image

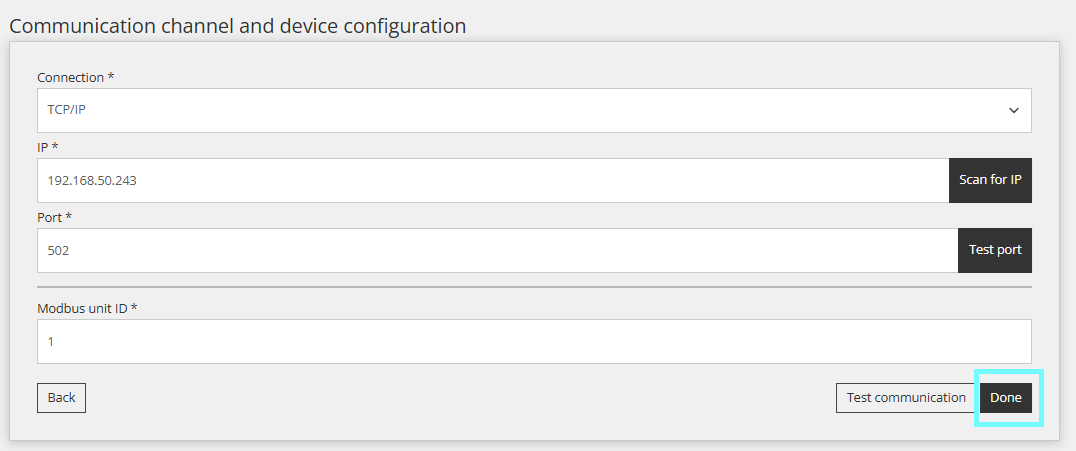

Screenshot of the Reduxi Configurator page 'Communication channel and device configuration'. Connection *: TCP/IP (dropdown). IP *: 192.168.50.243, with button 'Scan for IP'. Port *: 502, with button 'Test port'. Modbus unit ID *: 1. Buttons at the bottom: Back (left), Test communication and Done (right). The Done button is marked with a cyan box.
6 Check the readings
6.1 Last measurements
After communication is established, check the values under Devices – Tesla in the Reduxi Configurator as an additional test.
6.2 Enable control by Reduxi
For advanced battery control, integrate the device into the Reduxi strategy. Under Devices in the Reduxi Configurator, set the control type to AUTO. Only then do strategy commands affect the battery.
To reduce energy costs with dynamic prices and tariffs, define a strategy as described in Strategies for Reduxi controller.
Images and instructions were gathered in cooperation with Moja elektrarna.
✓ Summary
Preparation (Points 1–3): Connect the gateway following the Tesla articles. Log in to the Powerwall web interface and note its IP. Set a static IP.
Tesla Powerwall (Points 2–3): First password: last five characters of the Gateway password. Optionally verify the IP with Advanced IP Scanner.
Add to Reduxi (Points 4–5): Log in to the Reduxi Configurator, click + Add device, enter the settings and run Test communication.
Go live (Point 6): Check the last measurements and set the control type to AUTO.
→ Common issues
| Issue | Solution |
|---|---|
| Forgot the Tesla Powerwall password | Tap Change or Forgot Password on the login page and follow the on-screen instructions (see Point 2). |
| Communication stops after the IP changed | Set a static IP address for the Powerwall and enter it in the Reduxi Configurator (see Point 3). |
| IP address unknown | Verify the Powerwall IP with Advanced IP Scanner (see Point 3). |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
