Why data from the energy meter is shown on Reduxi Configurator homepage but not Reduxi Cloud homepage?
Find out why energy meter data shows on the Reduxi Configurator homepage but not on the Reduxi Cloud homepage.

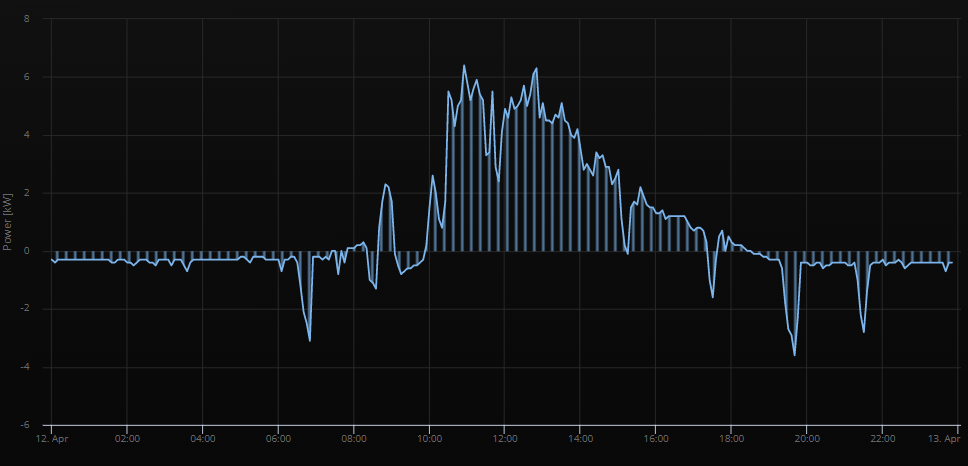

An energy meter was added to Reduxi Configurator, and data was successfully sent to Reduxi Cloud, as seen in the chart below.
Text description of this image
Screenshot of a dark-theme line and bar chart of an energy meter. Y axis label: Power [kW], scale from -6 to 8 in steps of 2. X axis: time from 12. Apr to 13. Apr with labels every two hours (02:00, 04:00, ... 22:00). The blue line with vertical bars stays slightly below 0 kW (about -0.3 kW) at night, drops to about -3 kW near 07:00, rises to a peak of about 6 kW between 11:00 and 13:00, falls to about 1 kW by 16:00 to 18:00, drops to about -3.6 kW near 19:30 and returns to about -0.4 kW at night. No legend or title is visible.

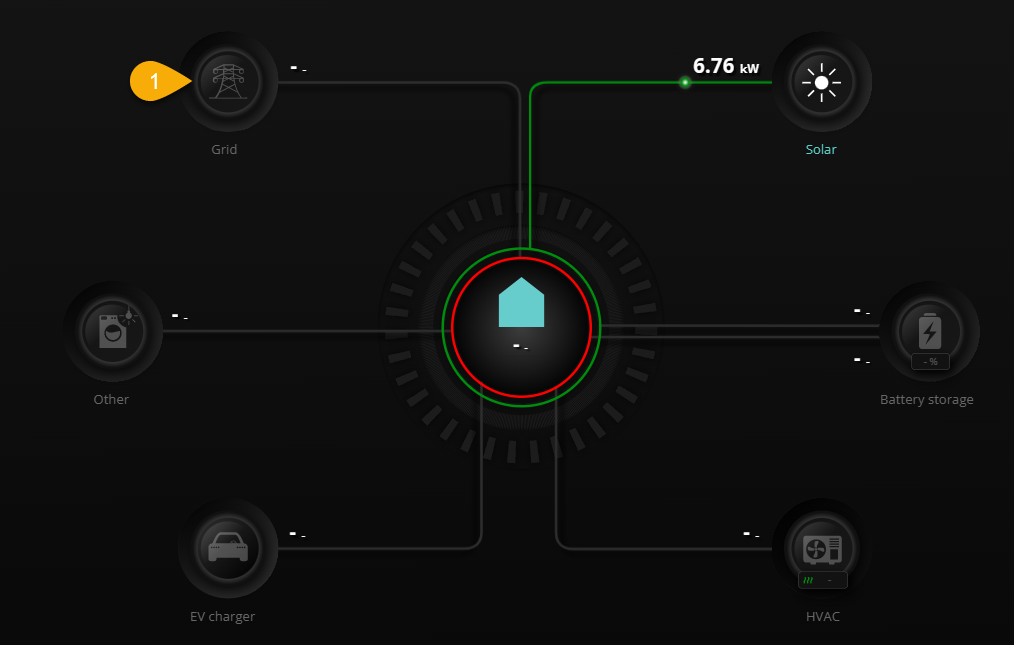

Why is the data from the energy meter not shown on the Reduxi Cloud homepage?
Text description of this image
Screenshot of the Reduxi Cloud home screen (dark theme) with the energy flow diagram. Centre: house icon in a circle with a red and green ring and the value - (no number). Solar (top right): 6.76 kW, connected with a green line to the centre. Grid (top left): value -, marked by an orange number badge 1. Other (left): -; Battery storage (right): -; EV charger (bottom left): -; HVAC (bottom right): -. All other lines are grey.

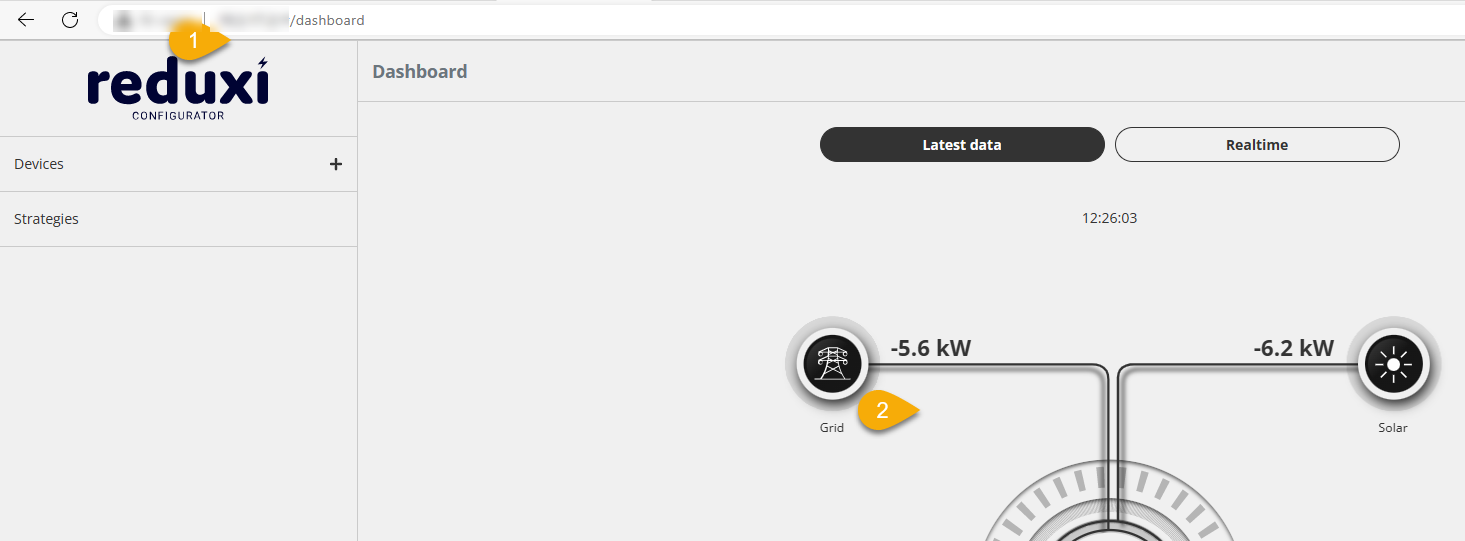

When we look at the Reduxi Configurator homepage, we can see the data is shown. What is the problem?
Text description of this image
Screenshot of the Reduxi Configurator Dashboard in a browser, cropped at the bottom. The address bar ends in /dashboard; orange badge 1 marks the address bar. Left menu: Devices (+), Strategies. Header: Dashboard. Two toggle buttons: Latest data (selected, dark) and Realtime. Time shown: 12:26:03. Energy flow diagram: Grid icon with -5.6 kW (orange badge 2 below the Grid icon) and Solar icon with -6.2 kW; the house in the centre is cut off.

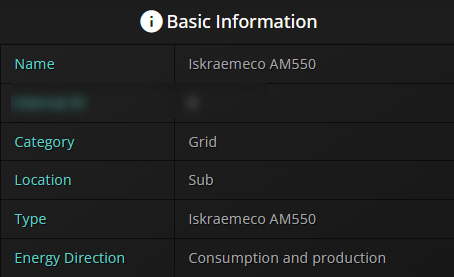

The problem is in the configuration of the energy meter. When the device was added, the location was set to sub, not main. This means the Reduxi Cloud will not show the energy meter data in the Grid section.
Text description of this image
Screenshot of a dark-theme table headed Basic Information (with an info icon), cropped on the right. Rows: Name: Iskraemeco AM550; the second row label and value; Category: Grid; Location: Sub; Type: Iskraemeco AM550; Energy Direction: Consumption and production.
We can change this using Reduxi Configurator with the following steps:
1. How to log in to Reduxi Configurator via browser?

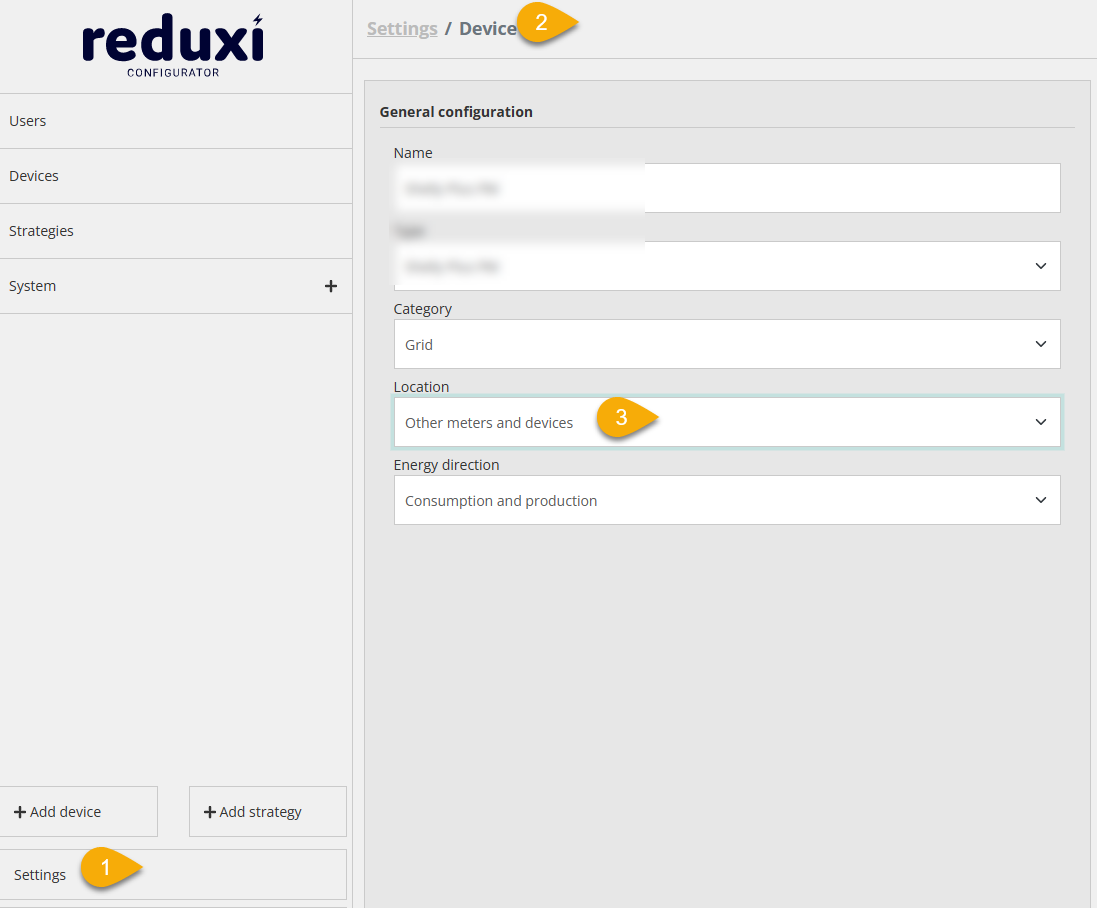

2. Click Settings -> Devices -> Edit energy meter device
3. Change location from "Other meters and devices" to "Main meters"
Text description of this image
Screenshot of the Reduxi Configurator (logo: reduxi CONFIGURATOR), page Settings / Device. Left menu: Users, Devices, Strategies, System (+); at the bottom buttons + Add device and + Add strategy, and an entry Settings marked by orange badge 1. Breadcrumb Settings / Device is marked by orange badge 2. Panel General configuration with fields: Name; Type; Category: Grid; Location: Other meters and devices (highlighted field, orange badge 3); Energy direction: Consumption and production. Dropdown arrows are on the right of Type, Category, Location and Energy direction.
4. Click Save

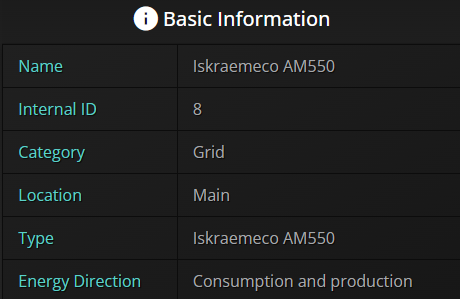

When we changed the location of the energy meter to the main, data is now also shown on Reduxi Cloud homepage.
Text description of this image
Screenshot of a dark-theme table headed Basic Information (with an info icon), cropped on the right. Rows: Name: Iskraemeco AM550; Internal ID: 8; Category: Grid; Location: Main; Type: Iskraemeco AM550; Energy Direction: Consumption and production.
Text description of this image
Screenshot of the Reduxi Cloud home screen (dark theme) with the energy flow diagram. Centre: house icon with -4.59 kW. Nodes: Grid (top left) 2.03 kW, with an orange number badge 1 next to the Grid icon; Solar (top right) 6.62 kW; Other (left) -4.59 kW; Battery storage (right) with values -; EV charger (bottom left) with -; HVAC (bottom right) with -. Grid, Solar and Other are connected to the centre with teal lines; EV charger, Battery storage and HVAC are greyed out.
This article was written with cooperation with BVS.si.
