How to test if ethernet device is reachable from Reduxi Controller?
Test from Reduxi Configurator whether an Ethernet device is reachable by the Reduxi Controller.
Reduxi Configurator has a built-in tool that allows us to test if an ethernet device is reachable from Reduxi Controller. This is the first step when connecting a new device to Reduxi Controller, as we confirm that the device is reachable in the network. We can start implementing the communication protocol specific to this device.
1. How to log in to Reduxi Configurator via browser?
2. Update Reduxi Controller using Reduxi Cloud
3. Settings -> System -> Tools -> Ping Test
Text description of this image
Screenshot of the Reduxi Configurator (logo: reduxi CONFIGURATOR), page Ping test. Breadcrumb: Settings / System / Tools / Ping test, marked by orange badge 1. Left menu: Users, Devices, Strategies, System (expanded, orange badge 2), then Tools (expanded) with sub-entries Ping test (selected, bold, orange badge 3) and TCP port test. Panel Ping test with fields: Host: 8.8.8.8; Result: empty text area. The right part of the panel is cut off.
4. Enter the IP of the device

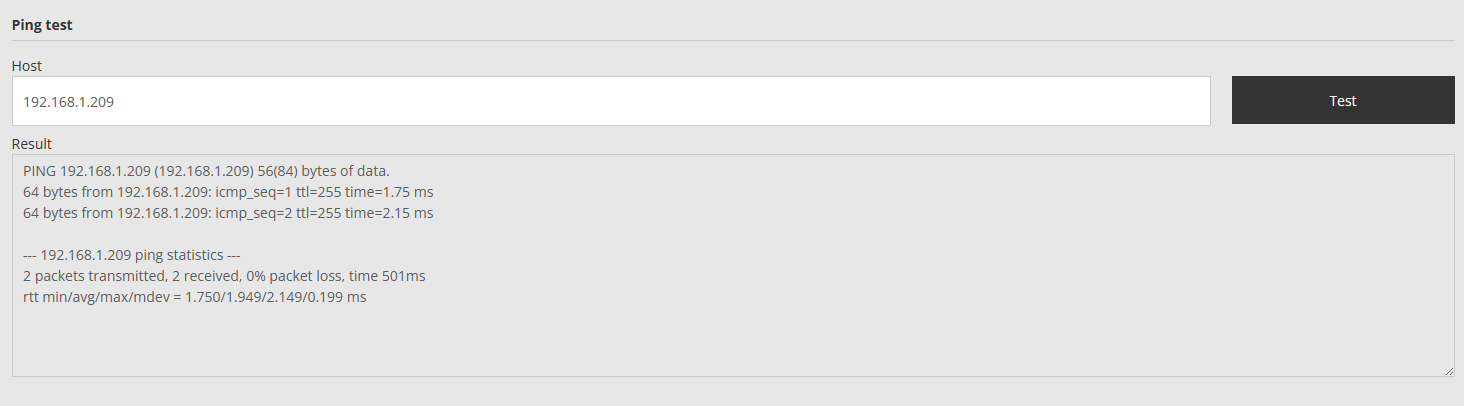

5. Check results if the device is reachable from Reduxi Controller or not
Text description of this image
Screenshot of the Ping test panel in the Reduxi Configurator (light theme). Title: Ping test. Field Host: 192.168.1.209. Dark button on the right: Test. Field Result with the output text: PING 192.168.1.209 (192.168.1.209) 56(84) bytes of data. / 64 bytes from 192.168.1.209: icmp_seq=1 ttl=255 time=1.75 ms / 64 bytes from 192.168.1.209: icmp_seq=2 ttl=255 time=2.15 ms / (empty line) / --- 192.168.1.209 ping statistics --- / 2 packets transmitted, 2 received, 0% packet loss, time 501ms / rtt min/avg/max/mdev = 1.750/1.949/2.149/0.199 ms.
