How to connect Iskra WM3x6 energy meter with Reduxi controller
Connect the Iskra WM3x6 three-phase energy meter to the Reduxi Controller via Modbus RTU (RS485).

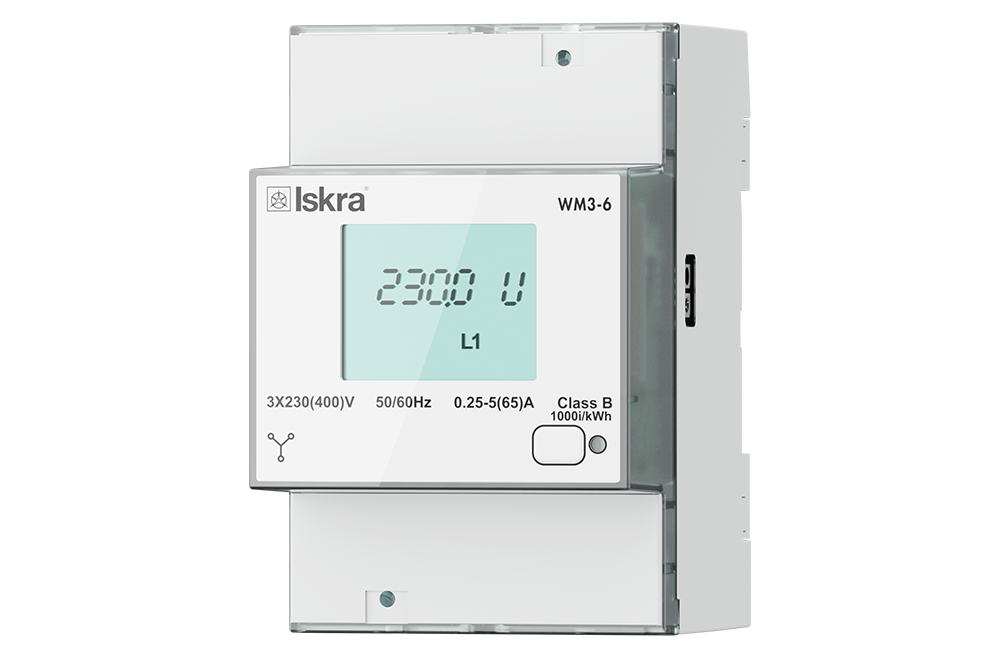

Text description of this image
Product photo of a white DIN-rail energy meter on a white background. Front: 'Iskra' logo at the top left, model 'WM3-6' at the top right, LCD showing 230.0 V and 'L1'. Below: '3X230(400)V', '50/60Hz', '0.25-5(65)A', 'Class B', '1000/kWh', a three-phase wiring symbol at the left and an LED with a rounded rectangle at the right. A small green LED is at the top and a small LED at the bottom left of the housing.
1 Technical documentation
Instructions for connecting and configuring the meter are on the manufacturer web page: https://www.iskra.eu/en/Smart-energy-meters/energy-meter-WM3/
- Iskra WM3x6 product page – Variants, interfaces and downloads
- Users manual WM3x6 – Connection, communication settings and Modbus registers
- Data sheet WM3x6 – Technical data and ordering codes
2 Required equipment
You need the following components:
- Reduxi Controller
- Iskra WM3-6 or WM3M6 energy meter with the RS485 option
- RS485 cable between the meter and the Reduxi Controller
- Laptop or tablet with internet access to configure the device in Reduxi
022433920003 (WM3-6 230DB) and 022433920103 (WM3M6 230DB, MID).3 Connect the meter to the Reduxi Controller
3.1 RS485 terminals on the meter
The RS485 line is on the auxiliary terminals 15 and 16, labelled B and A in the manufacturer documentation. The terminals take 1 to 2.5 mm² wire (M3 screws, 0.7 Nm recommended torque). The manufacturer recommends a ferrite bead with two turns on the RS485 line.
4 Set the communication parameters on the meter
The meter uses Modbus RTU on RS485. The factory settings from the manufacturer documentation:
| Parameter | Factory setting |
|---|---|
| Protocol | Modbus RTU |
| Frame |
8, N, 2 (8 data bits, no parity, 2 stop bits) |
| Modbus address | 33 |
| Speed | 1200 to 19200 bit/s |
Change the settings with the Iskra MiQen software (serial connection or WM-USB adapter). You can also set the address on the meter: hold the front button for more than 6 seconds. The meter then answers on address 149 until you change the address.
5 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
6 Add the meter to Reduxi
Use these steps to add a new meter or to edit an existing one.
6.1 Basic settings
Log in to the Reduxi Configurator via the browser (see Point 5), click + Add device and enter the basic settings of the meter.
6.2 Communication settings
Select the communication channel and enter the device configuration:
| Parameter | Value |
|---|---|
| Modbus unit ID | Normally 1 is used. The value must match the Modbus address set on the meter. |
Then enter and choose the advanced settings.
6.3 Test communication
Click Test communication at the bottom of the wizard. It reads the Iskra WM3x6 once and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the bottom button bar of a Reduxi Configurator page. Left: button 'Back'. Right: button 'Test communication' (marked with a cyan box) and dark button 'Done'.
Text description of this image
Screenshot of the Reduxi Configurator page 'Communication channel and device configuration'. Connection *: TCP/IP (dropdown). IP *: 192.168.50.243, with button 'Scan for IP'. Port *: 502, with button 'Test port'. Modbus unit ID *: 1. Buttons at the bottom: Back (left), Test communication and Done (right). The Done button is marked with a cyan box.
7 Check the readings
7.1 Last measurements
After communication is established, check the values under Devices – Iskra WM3x6 in the Reduxi Configurator.
✓ Summary
Preparation (Points 1–2): Open the manufacturer documentation. Prepare the controller, a meter with the RS485 option, the RS485 cable and a laptop or tablet.
Iskra WM3x6 (Points 3–4): Connect the RS485 terminals 15 and 16. Check address, speed and frame on the meter.
Add to Reduxi (Points 5–6): Log in to the Reduxi Configurator. Add the device, enter the Modbus unit ID and test communication.
Go live (Point 7): Check the last measurements under Devices.
→ Common issues
| Issue | Solution |
|---|---|
| No data from the meter | Check that the meter has the RS485 option (label on the side of the meter). The Modbus unit ID and communication settings in Reduxi must match the meter. |
| Several meters on one RS485 line | Each meter needs a unique Modbus address. |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
