How to connect Schrack NA96 energy meter with Reduxi controller
Connect your Schrack NA96 network analyser to the Reduxi Controller via Modbus RS485.
Text description of this image

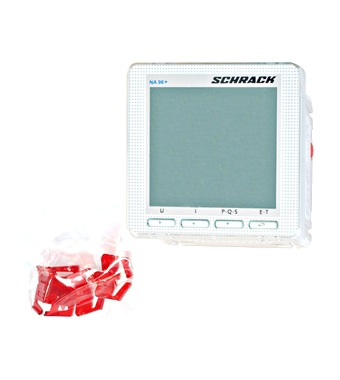

Product photo of a white square panel-mount network analyser on a white background. Front: 'SCHRACK' logo at the top right, 'NA 96 +' at the top left, a blank grey-green LCD (no values), and four buttons below labelled U, I, P-Q-S and E-T. In the lower left, a small pile of red plastic clips or parts in a transparent bag.
1 Technical documentation
The Schrack NA96 is a panel-mounted multifunction network analyser (96 x 96 mm, article number MGF39000). The NA96+ has higher accuracy and wider ranges. The base unit has no communication interface. RS485 is available as an optional plug-in module.
Instructions for connecting and configuring the meter are in the Schrack catalogue. Manufacturer documents:
- Schrack catalogue pages: network analysers – Description, specifications and RS485 module data (EN)
- Operating manual NA96 (SK) – RS485 module: programming menu, terminals, wiring
- Operating manual NA96+ (DE) – Operating manual of the NA96+
- Mounting manual NA96+ – Installation of the device
- Schrack product page: NA96+ – Product data and downloads
2 Required equipment
- Schrack NA96 network analyser with the RS485 plug-in module
- Data cable for RS485
- Reduxi Controller
- Laptop or tablet with internet access to configure the device in Reduxi
3 System overview and wiring
3.1 RS485 connection
The RS485 module of the NA96 has these terminals:
| Terminal | Function |
|---|---|
3 |
Rx (+) |
4 |
Tx (-) |
5 |
GND |
Rules for the RS485 bus:
- Connect the devices in a daisy chain, from device to device. A star topology is not allowed.
- Terminate the bus with a 120 Ω resistor on the last device.
- Up to 32 devices per bus, or up to 255 with an RS485 repeater.
- Maximum distance from the master: 1200 m.
4 Device configuration on the meter
4.1 RS485 settings
Set the RS485 parameters in the programming menu of the NA96, according to the operating manual:
PASS 0000.1000 and confirm with the enter key.A Addr.Addr: set a value from 001 to 255 and confirm.bAUd: select 19.2k, 9.6k or 4.8k bit/s and confirm.PAr: select EUEn (even), odd or nonE (none) and confirm.The protocol is Modbus/JBUS compatible with 8 data bits and 1 stop bit. The Modbus unit ID is normally 1. Note the settings. You enter the same values in Reduxi (see Point 6).
5 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
6 Add the Schrack NA96 to Reduxi
6.1 Basic settings
Log in to the Reduxi Configurator via the browser (see Point 5).
- Click + Add device.
- Enter the basic settings: device type
Energy meter, typeSchrack NA96, and a name of your choice. - Press Next.
6.2 Communication settings
Select the communication channel and enter the device configuration:
| Parameter | Value |
|---|---|
| Communication channel | The RS485 port of the controller the meter is connected to |
| Modbus unit ID | Normally 1. Use the address set on the meter. |
| Baud rate and parity | Same values as set on the meter (see Point 4) |
| Data bits / stop bits |
8 / 1
|
| Advanced settings | Enter and choose them as needed |
6.3 Test communication
Click Test communication at the bottom of the wizard. It reads the Schrack NA96 once and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the bottom button bar of a Reduxi Configurator page. Left: button 'Back'. Right: button 'Test communication' (marked with a cyan box) and dark button 'Done'.
Text description of this image
Screenshot of the Reduxi Configurator page 'Communication channel and device configuration'. Connection *: TCP/IP (dropdown). IP *: 192.168.50.243, with button 'Scan for IP'. Port *: 502, with button 'Test port'. Modbus unit ID *: 1. Buttons at the bottom: Back (left), Test communication and Done (right). The Done button is marked with a cyan box.
7 Check the readings
7.1 Last measurements
After communication is established, check the values under Devices – Schrack NA96 in the Reduxi Configurator.
7.2 Use the meter in a strategy
To use the readings in the Reduxi strategy, define a strategy as described in Strategies for Reduxi controller.
✓ Summary
Preparation (Points 1–2): Install the RS485 plug-in module in the NA96. Prepare the cable, the controller and a laptop or tablet.
Schrack NA96 (Points 3–4): Wire the RS485 terminals 3, 4 and 5. Set address, baud rate and parity in the programming menu.
Add to Reduxi (Points 5–6): Log in to the Reduxi web interface. Add the device as Energy meter, type Schrack NA96. Test the communication.
Go live (Point 7): Check the last measurements and use the meter in your strategy.
→ Common issues
| Issue | Solution |
|---|---|
| Test communication fails | Check the Modbus unit ID, baud rate and parity against the NA96 settings. Check that the RS485 module is installed in slot A. Swap the RS485 wires A/B. |
| Several devices on the bus | Connect the devices in a daisy chain and terminate the last device with a 120 Ω resistor. Do not use a star topology. |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
