How to connect Shelly 3EM energy meter with Reduxi controller
Connect your Shelly 3EM to the Reduxi Controller over your local Wi-Fi network.
Text description of this image

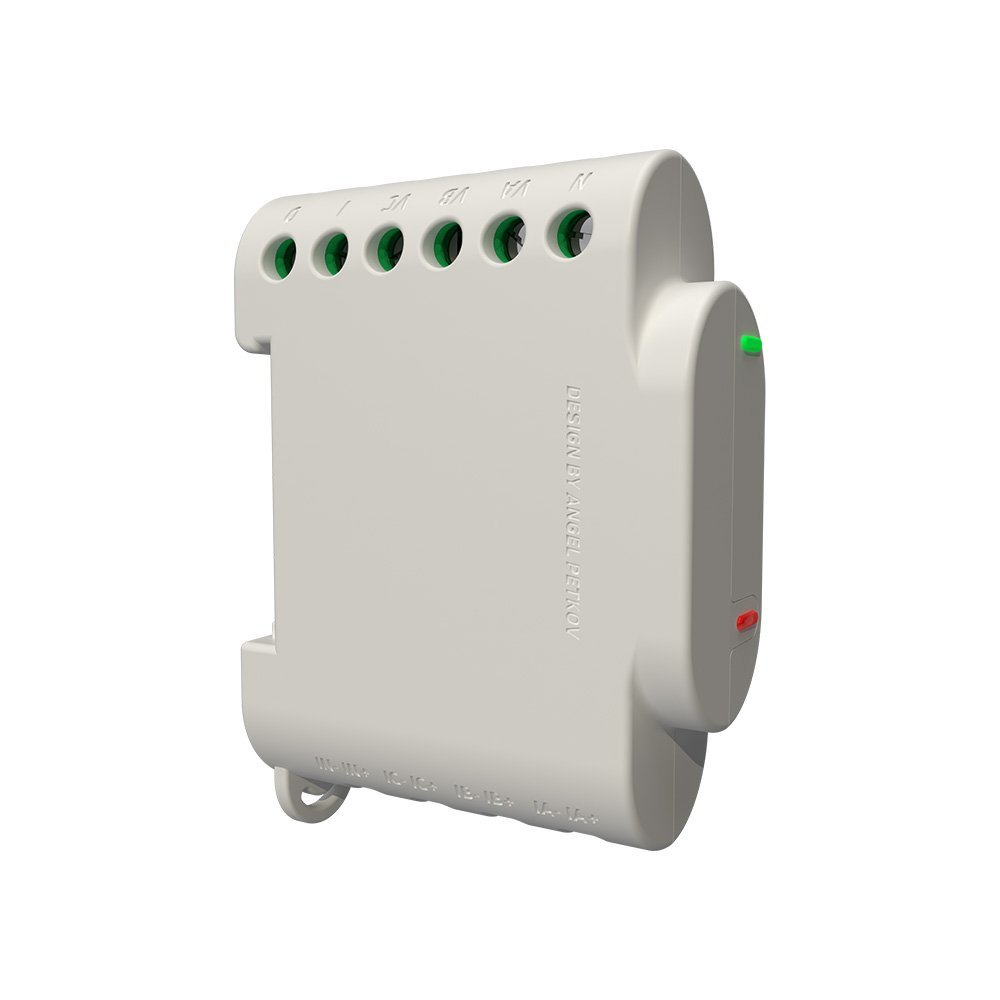

Product render of a small off-white compact module (Shelly 3EM style housing) on a white background, shown from the front and slightly from above, in the left half of the picture. The top edge has six round screw openings with green inner rings and embossed labels above them. A green LED is on the right side of the housing and a red LED lower down on the right side. Embossed vertical text on the front reads 'DESIGN BY ANGEL PETKOV' (partly cut off). The bottom edge has embossed current input markings in four pairs and a small mounting loop at the lower left. The rest of the image is empty white.
1 Technical documentation
Instructions for connecting and configuring the device are on the manufacturer web page. These documents belong to the Shelly 3EM:
- Shelly 3EM: knowledge base – Connection and configuration instructions on the manufacturer web page
- Shelly 3EM: User and Safety Guide – Installation and safety instructions
- Shelly API documentation – Interfaces of Shelly devices
2 Required equipment
You need the following components:
- Reduxi Controller
- Shelly 3EM with the 3 current transformers (120 A, supplied with the device)
- Local Wi-Fi network (802.11 b/g/n)
- Smart device (phone, computer or tablet) to configure the Shelly
- Laptop or tablet with internet access to configure the device in Reduxi
3 Connect the Shelly 3EM to your Wi-Fi network
3.1 Connect Shelly to the power supply
The Shelly 3EM is supplied with 110–230 V AC ±10 %, 50/60 Hz.
3.2 Connect to the Shelly Wi-Fi with a smart device (phone, computer, tablet)
The Shelly Wi-Fi network is available when you scan for Wi-Fi networks. Connect your smart device to it.
3.3 Open the browser and go to the default Shelly IP
The default Shelly IP is 192.168.1.33.
Text description of this image
Screenshot of the Shelly 3EM web interface in a phone browser (dark theme). Status bar: time 13:48, 5G, battery 61. Address bar: 192.168.33.1. Header: 'Shelly 3EM' logo, a red cloud icon, a router or Wi-Fi icon, a red open padlock icon, and 'Time: --:--'. Total power: -0.06kW with a download icon. Phase 1: 21W; VOLTAGE 220V; CURRENT 0.60A; POWER FACTOR 0.16. Phase 2: -19W; VOLTAGE 227V; CURRENT 0.43A; POWER FACTOR -0.19. Phase 3: -64W; VOLTAGE 225V; CURRENT 0.64A; POWER FACTOR -0.45.
3.4 Open the Wi-Fi settings and connect to your local Wi-Fi network
Open Internet & Security and switch on Connect the Shelly device to an existing WiFi Network under WIFI MODE - CLIENT.
Text description of this image
Screenshot of a phone browser showing the Shelly web interface (dark theme). Status bar: time 13:49, signal, 5G, battery 61. Address shown: 192.168.33.1. Top row of tiles: Timer, Weekly schedule, Internet & Security (the Internet & Security tile, with a globe icon, is marked with a green arrow badge numbered 1). Second row of tiles: Safety, Actions, Settings. Below, a header 'Settings' with an expandable list, each entry with an info icon and a down chevron: POWER ON DEFAULT MODE; LED LIGHT CONTROL; FIRMWARE UPDATE; TIME ZONE AND GEO-LOCATION; DEVICE NAME. All entries are collapsed.
Text description of this image
Screenshot of the Shelly web interface in a phone browser (dark theme), tall image. Status bar: time 13:49, signal, E, battery 61. Address: 192.168.33.1. Tiles: Timer, Weekly schedule, Internet & Security (first row); Safety, Actions, Settings (second row). Header 'Internet & Security' with a globe icon. Expanded section 'WIFI MODE - CLIENT' (up chevron) with an unticked checkbox 'Connect the Shelly device to an existing WiFi Network'; the checkbox is marked with a green arrow badge numbered 1. Further down the collapsed sections, each with a globe icon and down chevron: 'WIFI CLIENT AP ROAMING', 'WIFI MODE - ACCESS POINT', 'RESTRICT LOGIN', 'SNTP SERVER'. The lower part of the picture is empty white.
Enter the name and password of your Wi-Fi network. Enter a static IP address (recommended). Enter the mask and, optionally, the default gateway IP. Press SAVE.
Text description of this image
Screenshot of the Shelly web interface in a phone browser (dark theme), section 'WIFI MODE - CLIENT' (expanded, up chevron). Status bar: time 13:49, signal, E, battery 61. Address: 192.168.33.1. Ticked checkbox: 'Connect the Shelly device to an existing WiFi Network'. Network name field with a Wi-Fi icon: first characters, ends with 137. Password field with a lock icon: masked dots with a text cursor at the end, and an eye icon at the right. Unticked checkbox: 'Set static IP address'. Button 'SAVE' with a Wi-Fi icon. Below it a collapsed section 'WIFI CLIENT BACKUP' (down chevron). At the bottom the phone keyboard toolbar with up and down arrows and 'Done'.
3.5 Shelly restarts and is accessible with the new IP
Text description of this image
Screenshot of the Shelly web interface in a phone browser after saving Wi-Fi settings. Address: 192.168.33.1. A white banner with 'Success' and 'Settings changed' and a green bar below it. Dimmed form behind it: Wi-Fi network name field with value BITNJE137; password field with eight masked characters and an eye icon; unchecked box 'Set static IP address'; button 'SAVE'. A black message box with a blue frame reads: 'The device will try to connect to BITNJE137, you can continue operating it at its new address.' (BITNJE137 shown in blue). Below, dimmed collapsed entries with globe icons and chevrons, including 'WIFI MODE - ACCESS POINT' and 'RESTRICT LOGIN' (other entries partly hidden).
3.6 Connect to Shelly over your local network
Connect your smart device to your local network. Enter the IP address that you set for the Shelly device in the browser bar.
4 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
5 Add the Shelly 3EM to Reduxi
Use these steps to add a new Shelly 3EM or to edit an existing one.
5.1 Basic settings
Log in locally to the Reduxi Configurator on the controller (see Point 4) and press the Add device button. In the first step, enter the basic settings of the device: select the energy meter and the Shelly 3EM, and enter a name of your choice. Then press Next.
5.2 Communication settings
Select the communication channel. Enter the connection details of the Shelly 3EM:
| Parameter | Value |
|---|---|
| Connection | Local network (TCP/IP), REST API |
| IP | The IP address you set on the Shelly in Point 3 |
Then enter and choose the advanced settings.
5.3 Test communication
Click Test communication at the bottom of the wizard. It reads the Shelly 3EM once and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the bottom button bar of a Reduxi Configurator page. Left: button 'Back'. Right: button 'Test communication' (marked with a cyan box) and dark button 'Done'.
Text description of this image
Screenshot of the Reduxi Configurator page 'Communication channel and device configuration'. Connection *: TCP/IP (dropdown). IP *: 192.168.50.243, with button 'Scan for IP'. Port *: 502, with button 'Test port'. Modbus unit ID *: 1. Buttons at the bottom: Back (left), Test communication and Done (right). The Done button is marked with a cyan box.
6 Check the readings
6.1 Last measurements
After communication is established, check the values under Devices – Shelly 3EM in the Reduxi Configurator as an additional test.
✓ Summary
Preparation (Points 1–2): Open the Shelly documentation and prepare the equipment.
Shelly 3EM (Point 3): Power the Shelly, open its web interface and connect it to your Wi-Fi network with a static IP.
Add to Reduxi (Points 4–5): Log in to the Reduxi Configurator, add the device with the Shelly IP and test the communication.
Go live (Point 6): Check the last measurements under Devices.
→ Common issues
| Issue | Solution |
|---|---|
| The Shelly web interface does not open after saving the Wi-Fi settings | The Shelly restarts and is reachable only at the new IP. Connect your smart device to the local network and enter the IP you set. |
| Test communication fails | Check that the IP in the Reduxi Configurator is the same IP you set on the Shelly. A static IP is recommended. |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
