How to connect Socomec Diris A energy meter with Reduxi controller
Connect your Socomec DIRIS A energy meter to the Reduxi Controller via Modbus.

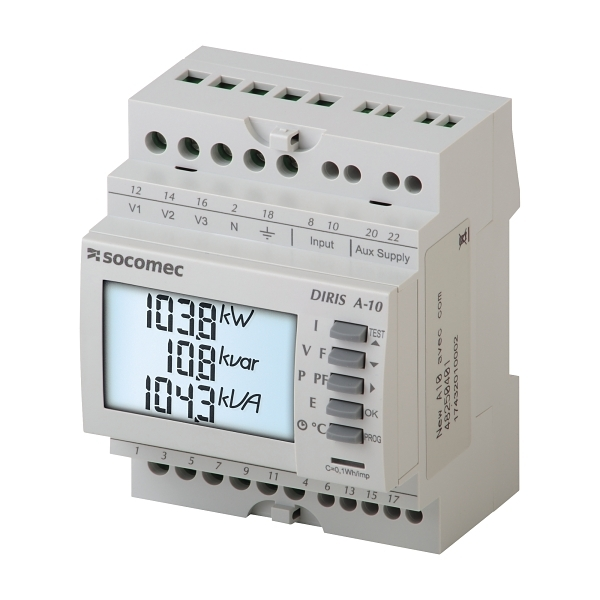

Text description of this image
Product photo of a light grey DIN-rail multifunction meter on a white background, seen from above and the front. Front: 'socomec' logo, 'DIRIS A-10', LCD showing three lines: 103.8 kW, 10.8 kvar, 104.3 kVA (the digits read about 103.8, 10.8 and 104.3). Five grey buttons at the right with labels (I, V F, P PF, E, clock and degree C symbols) and small functions TEST, OK, PROG with arrow symbols. Top terminal row labelled V1 12, V2 14, V3 16, N 2, earth symbol 18, 'Input' 8 and 10, 'Aux Supply' 20 and 22. Bottom terminals numbered 1, 3, 5, 7, 9, 11, 4, 6, 13, 15, 17. A side label with small print.
1 Technical documentation
Instructions for connecting and configuring the device are on the manufacturer web page.
- Socomec resources – Manufacturer web page with documents
- DIRIS A-10: product page – Product data and document list
- DIRIS A-10, A-20, A-30, A-41: quick start guide (PDF) – Multilingual quick start guide
- DIRIS A-10: Modbus communication table – Register tables of the meter
2 Required equipment
You need the following components:
- Reduxi Controller
- Socomec DIRIS A meter (A-10 RS485, A-20, A-30, A-40, A-41)
- RS485 cable between the meter and the Reduxi Controller, or an Ethernet cable for the DIRIS A-40 Ethernet
- Current transformers for the current inputs
- Laptop or tablet with internet access to configure the device in Reduxi
3 Prepare the Socomec DIRIS A meter
3.1 Technical data (DIRIS A-10 RS485)
3.2 Measurement inputs
The voltage inputs are labelled V1, V2, V3 and VN. The current inputs are labelled I1, I2 and I3, each with an S1 and S2 connection. Connect the meter as described in the quick start guide of the manufacturer (see Point 1).
3.3 Set the Modbus parameters on the meter
The communication parameters are set in the configuration menu of the meter. The menu entries are CON Adr (Modbus address), CON bdS (baud rate), CON PAr (parity) and CON St0P (stop bit). Use the same values in the Reduxi Configurator (see Point 5).
4 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
5 Add the Socomec DIRIS A to Reduxi
Use these steps to add a new Socomec DIRIS A or to edit an existing one.
5.1 Basic settings
Log in locally to the Reduxi Configurator on the controller (see Point 4) and press the Add device button. In the first step, enter the basic settings of the device: select the energy meter and the Socomec Diris A, and enter a name of your choice. Then press Next.
5.2 Communication settings
Select the communication channel. Enter the device configuration:
| Parameter | Value |
|---|---|
| Connection | RS485 (Modbus). TCP/IP (Modbus) for the DIRIS A-40 Ethernet. |
| Modbus unit ID | Normally 1 is used. |
Then enter and choose the advanced settings.
5.3 Test communication
Click Test communication at the bottom of the wizard. It reads the Socomec DIRIS A once and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the bottom button bar of a Reduxi Configurator page. Left: button 'Back'. Right: button 'Test communication' (marked with a cyan box) and dark button 'Done'.
Text description of this image
Screenshot of the Reduxi Configurator page 'Communication channel and device configuration'. Connection *: TCP/IP (dropdown). IP *: 192.168.50.243, with button 'Scan for IP'. Port *: 502, with button 'Test port'. Modbus unit ID *: 1. Buttons at the bottom: Back (left), Test communication and Done (right). The Done button is marked with a cyan box.
6 Check the readings
6.1 Last measurements
After communication is established, check the values under Devices – Socomec Diris A in the Reduxi Configurator as an additional test.
✓ Summary
Preparation (Points 1–2): Open the Socomec documentation and prepare the equipment.
Socomec DIRIS A (Point 3): Connect the meter and set its Modbus parameters.
Add to Reduxi (Points 4–5): Log in to the Reduxi Configurator, add the device with the Modbus unit ID and test the communication.
Go live (Point 6): Check the last measurements under Devices.
→ Common issues
| Issue | Solution |
|---|---|
| Test communication fails | Check that the Modbus unit ID in the Reduxi Configurator matches the address set on the meter. Normally 1 is used. Check that the serial parameters of the meter and the controller are identical. |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
