How to connect Kaco solar power plant with Reduxi controller
Connect your KACO inverter to the Reduxi Controller via Modbus.
Text description of this image

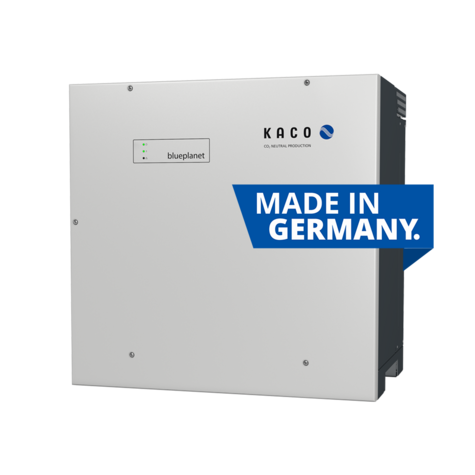

Product photo of a light grey wall-mount string inverter housing on a white background, seen from the front and slightly from the right, with a dark grey side part. Front: 'KACO' logo with a blue circle symbol and a small tagline underneath; a small label field with three LED dots and the word 'blueplanet'. A blue banner across the right edge with the white text 'MADE IN GERMANY.' Screws at the corners of the front cover.
1 Technical documentation
Manufacturer pages and manuals:
- KACO new energy downloads – Manuals and technical documentation of the manufacturer
- KACO string and hybrid inverters – Product overview of the manufacturer
2 Required equipment
You need:
- Reduxi Controller
- KACO inverter
- Communication connection between the Reduxi Controller and the inverter, as described by KACO (see Point 1)
- Laptop or tablet with internet access to configure the device in Reduxi
3 Connect and configure the inverter
3.1 Connect and configure on the KACO side
Find the instructions to connect and configure the inverter on the manufacturer web page: https://kaco-newenergy.com/downloads
4 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
5 Add the KACO inverter to Reduxi
Use these steps to add a new inverter or to edit an existing one.
5.1 Basic settings
Log in to the Reduxi Configurator (see Point 4) and click + Add device. Then enter the basic settings:
- Device type:
Solar Power Plant - Type:
Kaco - Name: a name of your choice, for example Kaco
Click Next.
5.2 Communication settings
Select the communication channel and enter the device configuration:
| Parameter | Value |
|---|---|
| Communication channel | The channel you use to connect the inverter (see Point 2) |
| Unit address | Normally 1
|
| Advanced settings | Enter and choose the advanced settings as needed |
5.3 Test communication
Click Test communication at the bottom of the wizard. It reads the Kaco inverter once and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the bottom button bar of a Reduxi Configurator page. Left: button 'Back'. Right: button 'Test communication' (marked with a cyan box) and dark button 'Done'.
Text description of this image
Screenshot of the Reduxi Configurator page 'Communication channel and device configuration'. Connection *: TCP/IP (dropdown). IP *: 192.168.50.243, with button 'Scan for IP'. Port *: 502, with button 'Test port'. Modbus unit ID *: 1. Buttons at the bottom: Back (left), Test communication and Done (right). The Done button is marked with a cyan box.
6 Check the readings
6.1 Last measurements
After communication is established, check the values under Devices – Kaco in the Reduxi Configurator.
The List of supported devices shows the Kaco solar power plant as Read. Reduxi reads the values of the inverter.
✓ Summary
Preparation (Points 1–2): Check the KACO documentation and prepare the equipment.
KACO inverter (Point 3): Connect and configure the inverter as described by the manufacturer.
Add to Reduxi (Points 4–5): Log in to the Configurator and add the device as Solar Power Plant, type Kaco. Select the communication channel, enter the unit address (normally 1), run Test communication and click Done.
Go live (Point 6): Check the last measurements.
→ Common issues
| Issue | Solution |
|---|---|
| Test communication fails | Check that the unit address matches the inverter. It is normally 1. Check that the communication connection to the inverter is set up as described by KACO. |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
