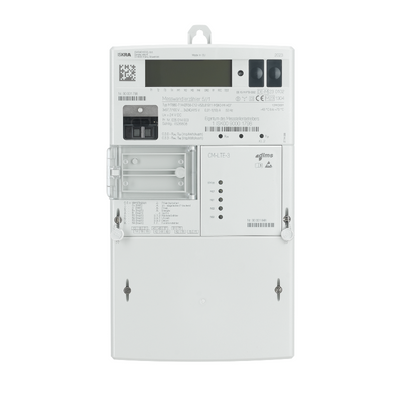

To configure the Iskraemeco MT880 meter properly, use the following basic structure Reduxi standard telegram structure for Iskraemeco AM550 DLMS push on P1 interface, and configure the meter in Iskraemeco SEP2W manager or Symbiot tool.
We need only one telegram with data defined in the Reduxi standard telegram structure for Iskraemeco AM550 DLMS push on the P1 interface.
Please take the following steps in the Iskraemeco SEP2W manager tool.

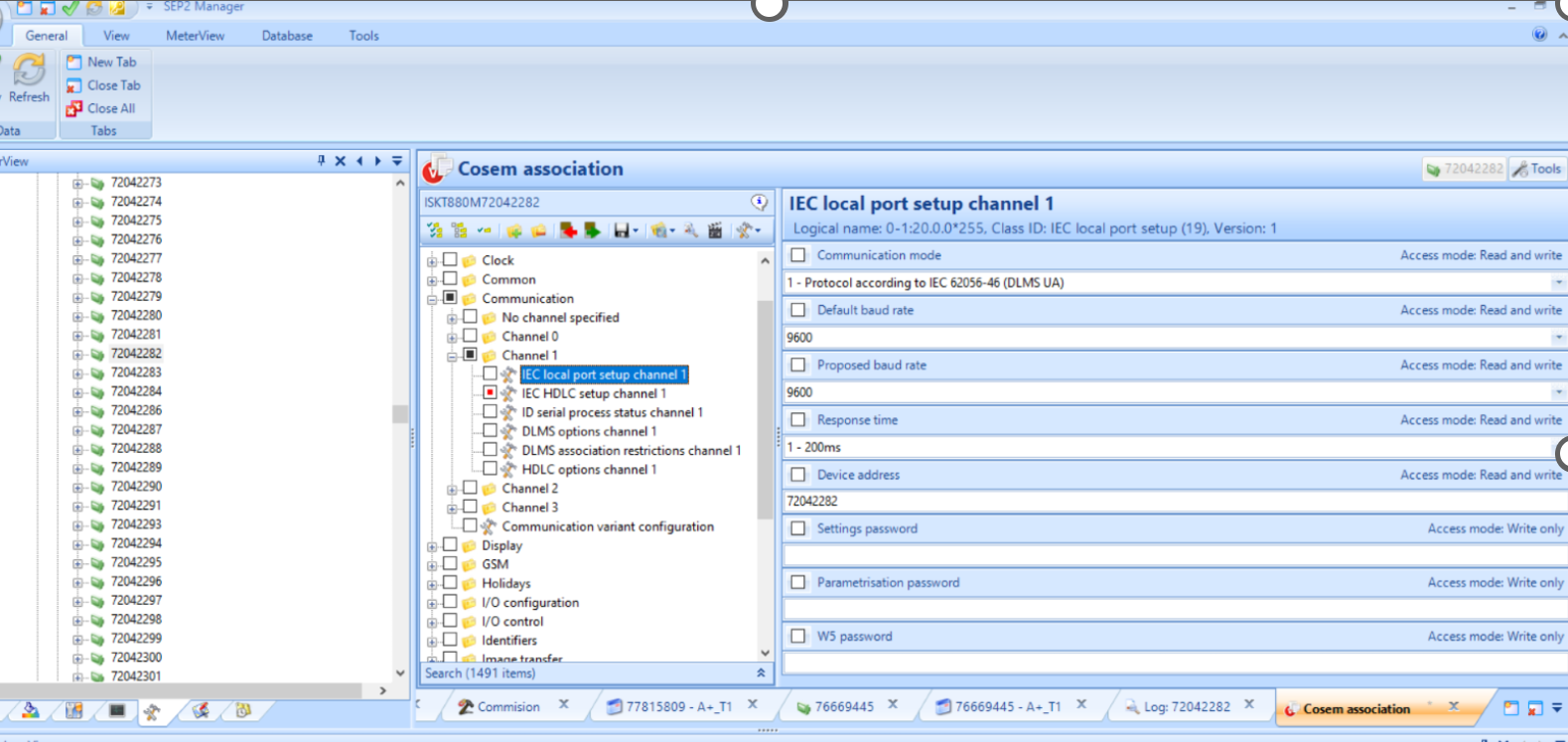

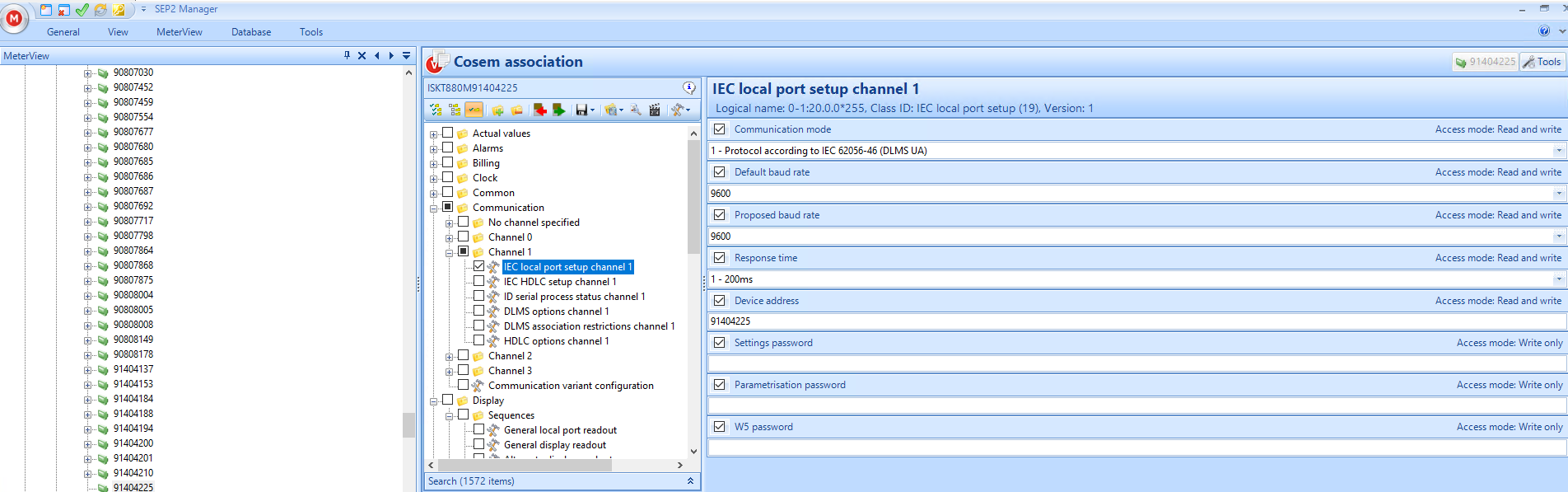

1. IEC local port setup channel 1

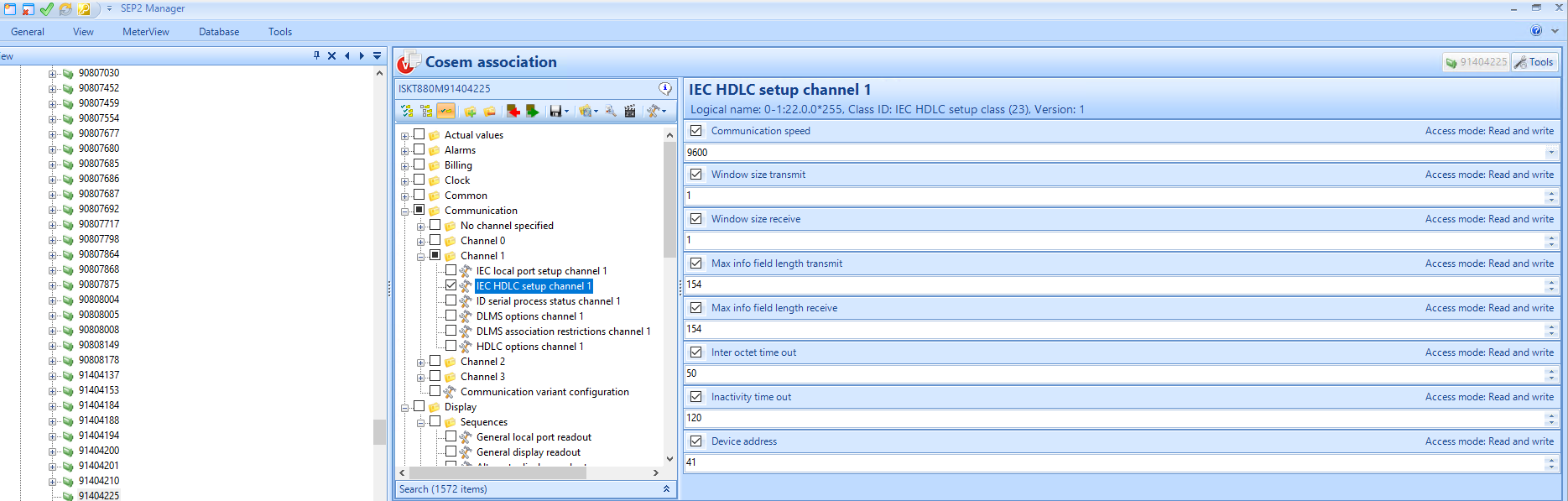

2. IEC HDLC setup channel 1

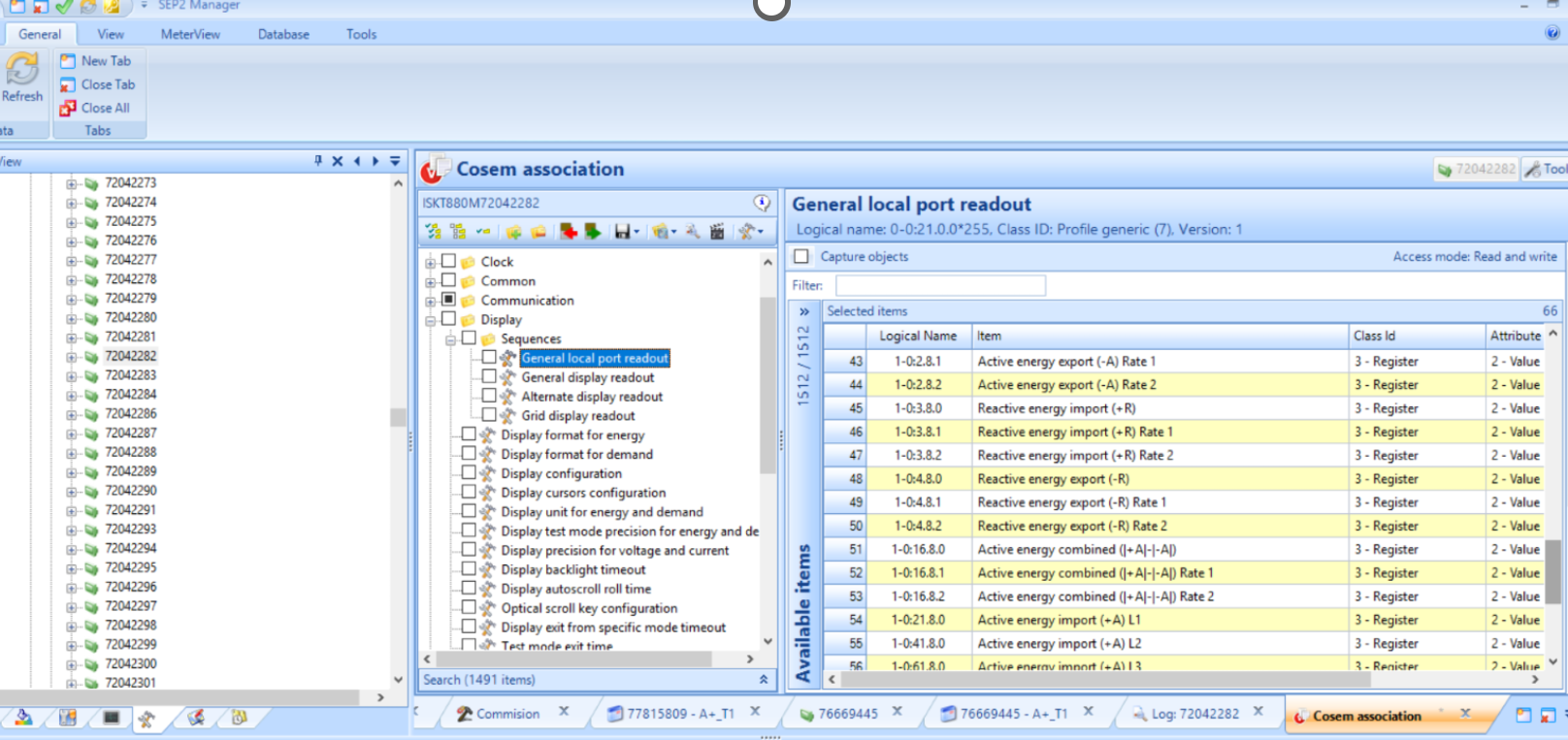

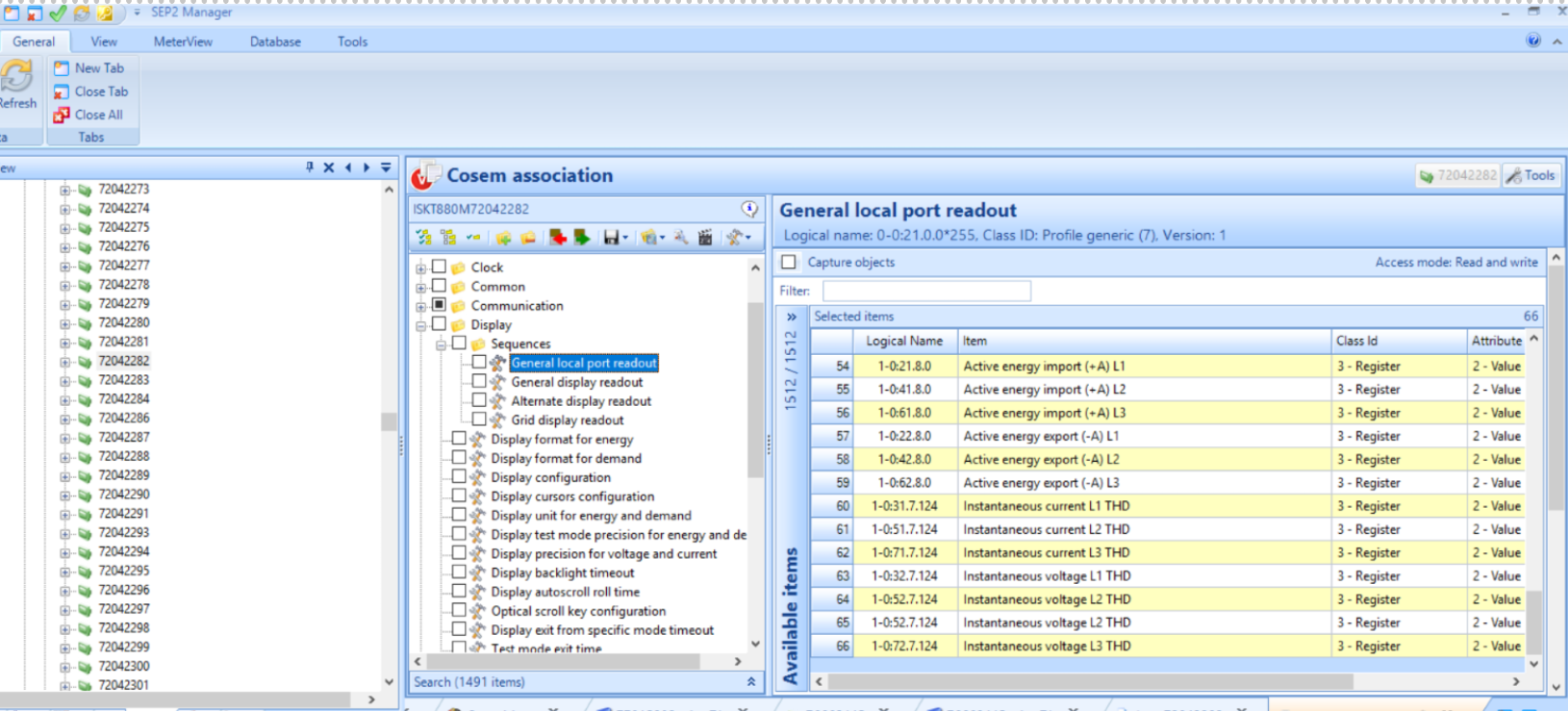

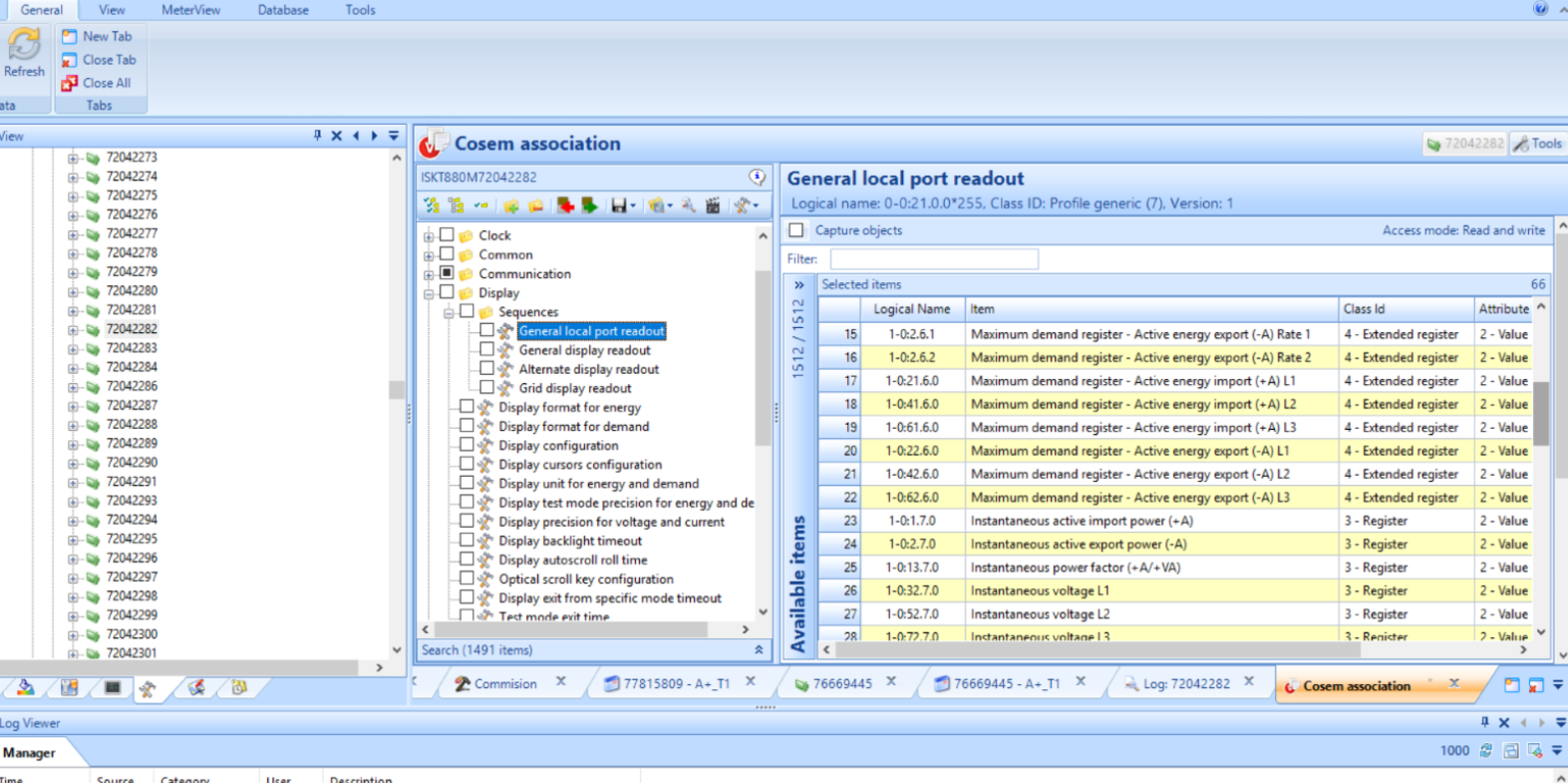

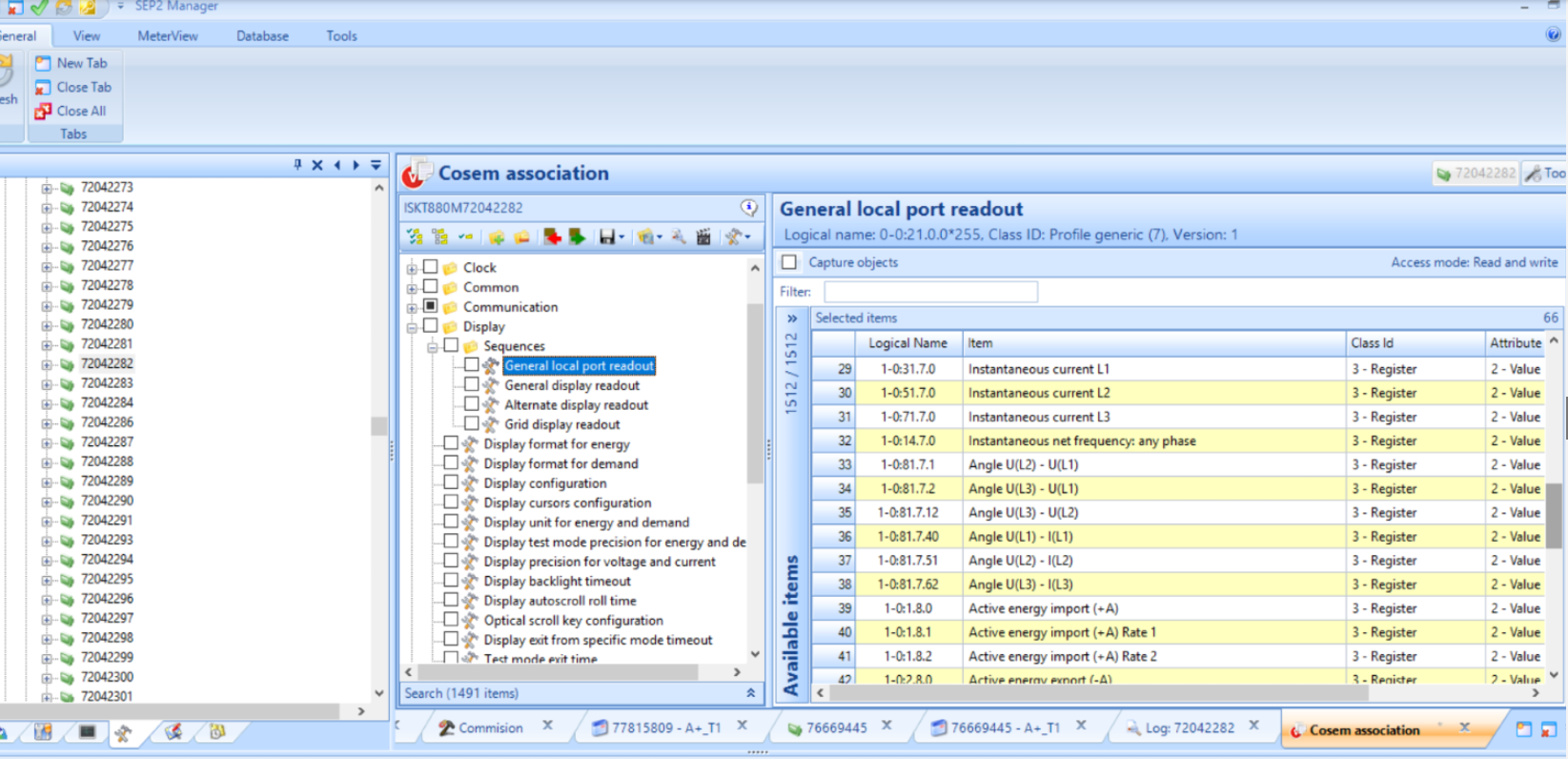

3. General local port readout
Due to large number of rows, screenshots are separated in parts. Please note row number and Logical Name, to modify correct settings.
