What does Max. current per phase on the EVCS Analyze chart mean?
Understand the Max. current per phase value on the EVCS Analyze chart in Reduxi Configurator.
Using Reduxi Configurator, you can click on Devices, select ECVS device, and click Analyze. On the chart Current, Max. current per phase appears.
What does this term value represent?
Text description of this image

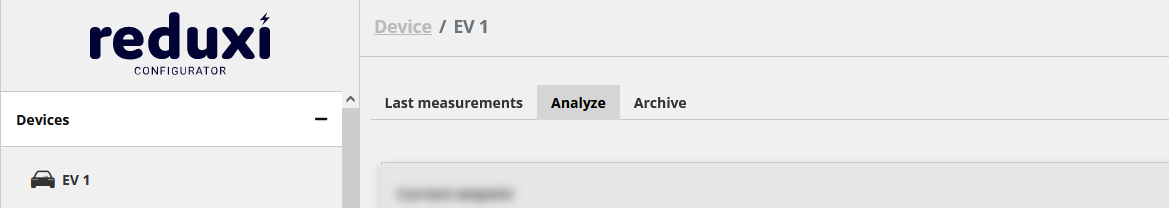

Screenshot of the top-left part of the Reduxi Configurator on a light theme. Left sidebar: Reduxi Configurator logo; heading "Devices" with a collapse minus icon; first entry "EV 1" with a car icon. Main area: breadcrumb "Device / EV 1" (Device is a link). Tabs: "Last measurements", "Analyze" (selected, grey background), "Archive". The image is cut off below this.
Text description of this image

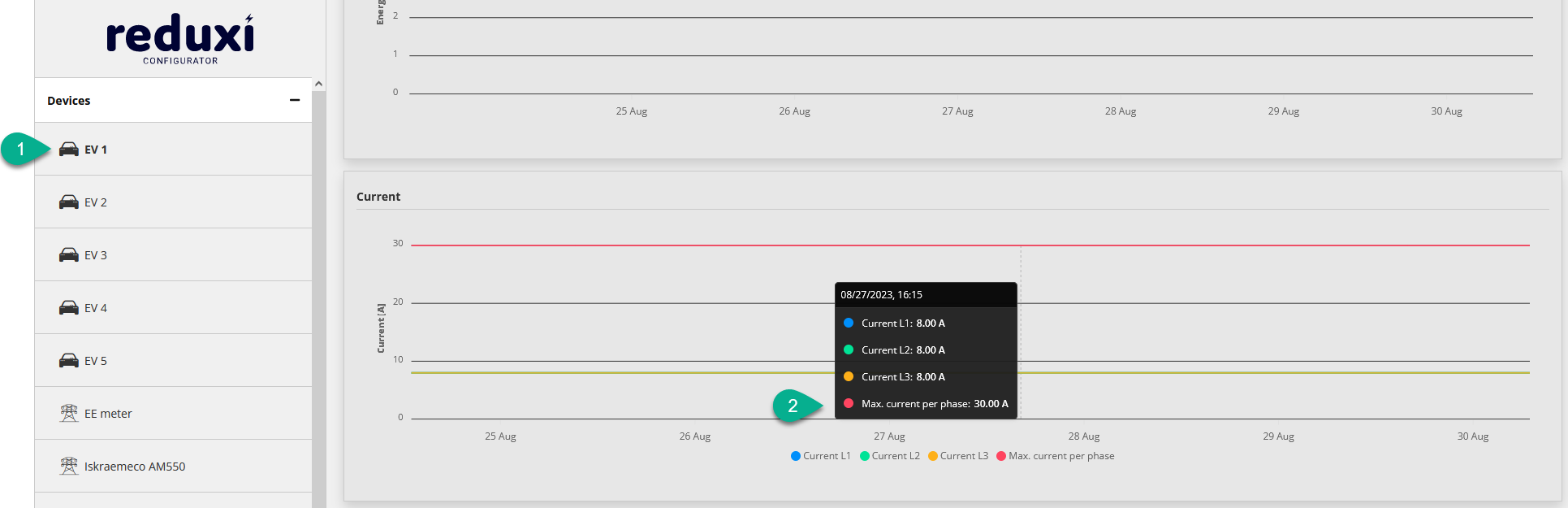

Screenshot of the Reduxi Configurator Analyze view with a light theme. Left panel "Devices" (collapse minus icon) lists entries with a car icon: the first, "EV 1", is marked with teal badge 1; four more car-icon entries below it (labels: EV 2, EV 3, EV 4, EV 5); then two meter entries "EE meter" and "Iskraemeco AM550". Right side: an upper chart (title not visible) with horizontal lines and y values 0, 1, 2; below it a chart titled "Current" with y axis "Current [A]" (values partly legible: 0, 10, 20 and a higher value). X axis shows dates 25 Aug to 30 Aug. A red horizontal line runs near the top of the chart, a yellow line and grey lines lower. A dark tooltip (teal badge 2 at its last row) reads: 09/27/2023 with a time; Current L1: 8.00 A; Current L2: 8.00 A; Current L3: 8.00 A; Max. current per phase: 30.00 A. Legend under the chart: Current L1 (blue), Current L2 (green), Current L3 (orange), Max. current per phase (red).
EVCS provides a report displaying the maximum available current per phase, which the Reduxi Controller solely reads.
Why is there a difference between the current and maximum current per phase?
The maximum current per phase remains constant across all three phases, thanks to the symmetrical load of the electric vehicle (EV). This implies that this maximum value can be achieved at any given time for each phase. However, this value may fluctuate continuously if dynamic limitations are active or remain fixed if a specific value has been set.
