1. Introduction
Welcome to the world of Reduxi which allows you to take control of energy costs and efficient use of electricity for sustainable development. Main features:
- Peak power management,
- Solar power plant production management,
- Optimisation of electricity consumption.
Accurate measurement and energy consumption analysis are the first steps towards energy reduction. To achieve this goal, you need the right technology. Reduxi Converter enables the connection of P1 meters to Reduxi system via Reduxi Controller.
2. Connection instructions
Reduxi Converter P1 WiFi first needs to be connected to a WiFi network. Then you need to connect Reduxi Converter to Reduxi Controller through the newly established TCP/IP connection.
See also this document: Connect P1-WiFi converter to Reduxi
- Connect Smart meter with RJ12 cable to Reduxi Converter (make sure the order of the wires in RJ12 cable matches on both sides of RJ12 cable). A working cable is included in the package.
- The green LED on the Converter should start to glow.

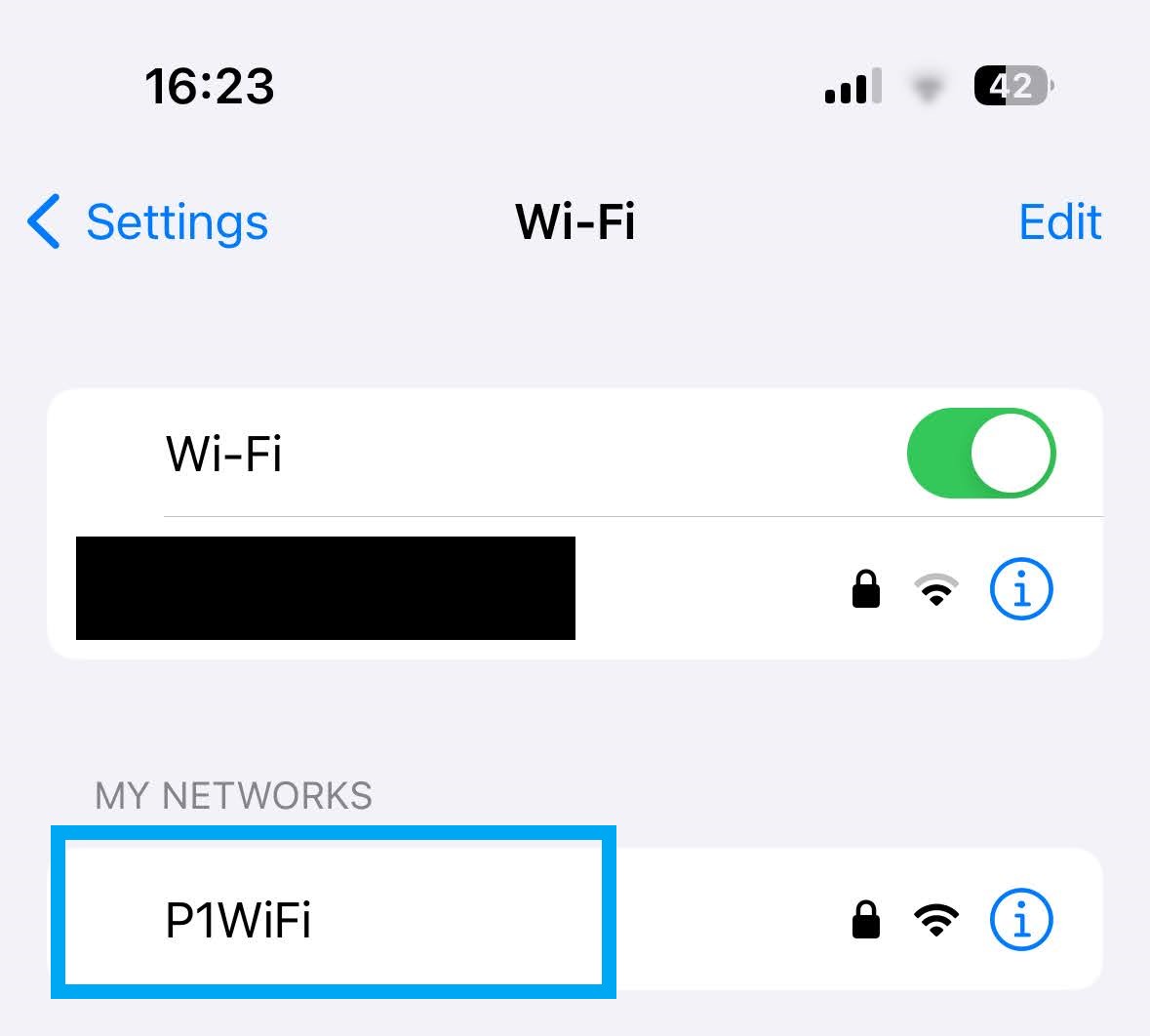

- Go to WiFi networks using your phone or computer, and connect to the WiFi network with name "P1WIFI".
- If a window doesn't automatically pop-up , open your browser, and go to the http://p1wifi.local
- Use username "admin" and password "admin" for login.
- Connect the Converter to your local WiFi network by configuring the wireless network settings (we recommend setting the static IP address).
- Click save, and now connect with your mobile phone or computer to the same wifi local network that you have connected the Converter.

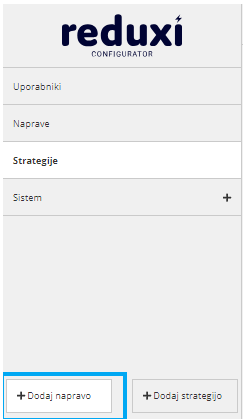

- Connect to the Reduxi Controller, by going to the http://reduxi.local, login and select "Add device".

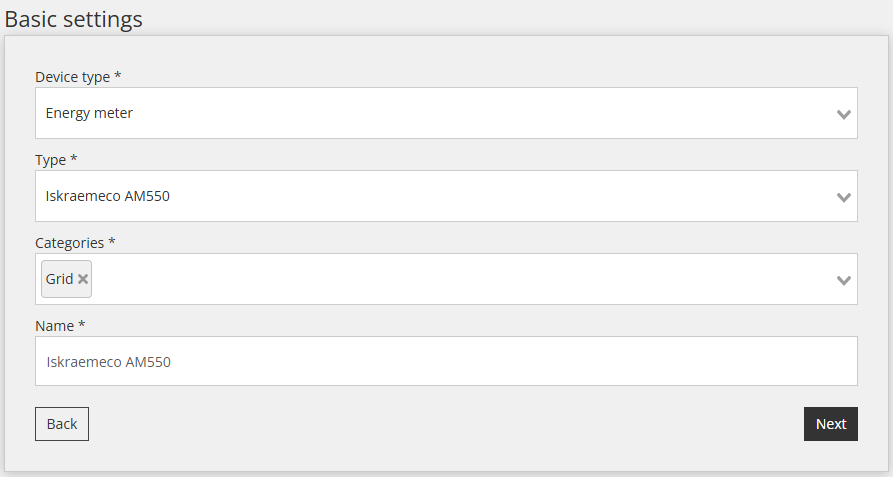

- Select "Energy meter" and the type of Smart meter with P1 port that you would like to add (e.g. Iskraemeco AM550). The other fields can be left default. For example:
- Select Device type: Energy meter,
- Select Type: Iskraemeco AM550,
- Select Category: Grid,
- And define the name.
Note, some Energy meters are not compatible with the P1 protocol.

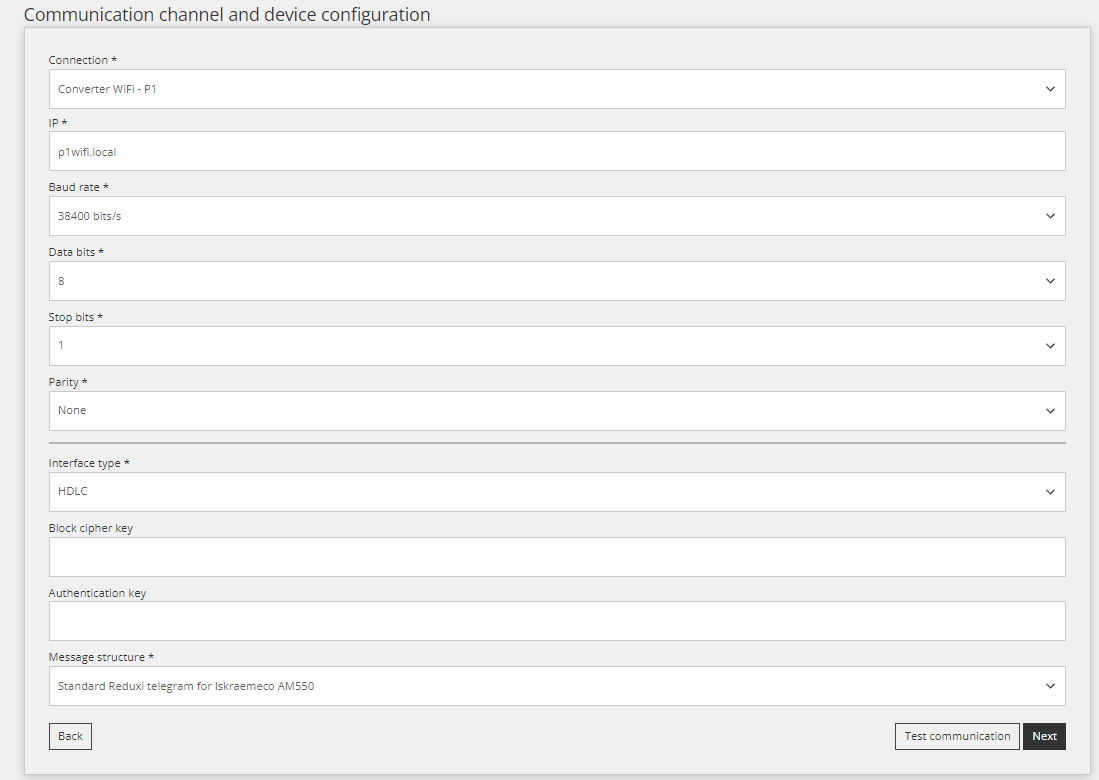

- In the next screen, select Connection type: "Converter WiFi - P1"
- Insert the IP address of Reduxi Converter P1 WiFi or type p1wifi.local. NOTE: the last parameter "Message structure" can differ depending on where your meter is located (i.e. different country) and must be changed accordingly. The rest can be left default.
- Test communication is done via the "Test communication" button at the bottom, right after all Communication channel fields are entered.
- There are two different cases of communication response.

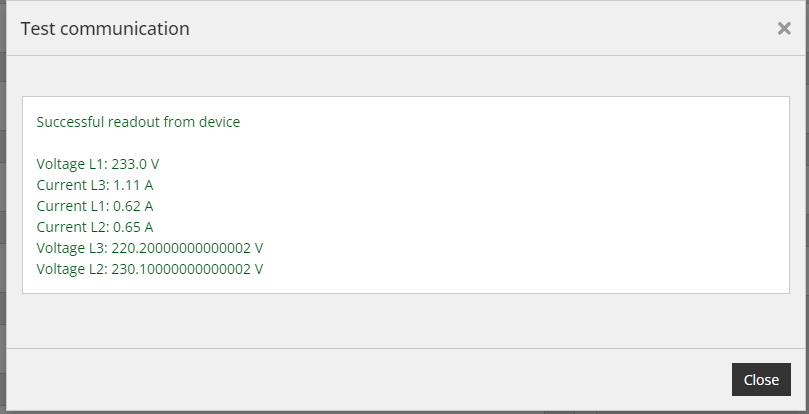

- Case 1: Communication is working properly

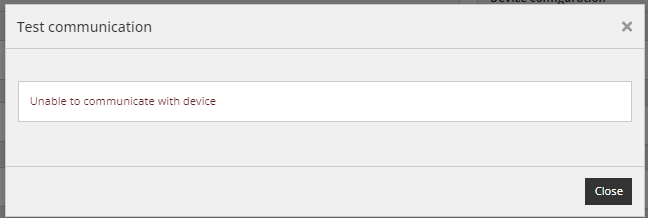

- Case 2: Unable to communicate with the device
- If communication is working select "done", and device is added.
- If communication is not working try the following
- Check and experiment with the "Message structure"
- Check if the Converter is correctly connected to the network. You can try to connect to the Converter using your browser by opening http://p1wifi.local or the IP address that you have configured.
- Check all the steps given in this document.
- Contact your DSO (distribution system operator) to configure the electrical meter accordingly. Explain that you need the meter to regularly report the measurements.
For software configuration/installation, please visit the website where you find the latest documentation:
Compatible devices
The Reduxi P1 WiFi Converter is compatible with Energy meters that follow P1 standard. For example:
- Iskraemeco AM550
3. Specifications

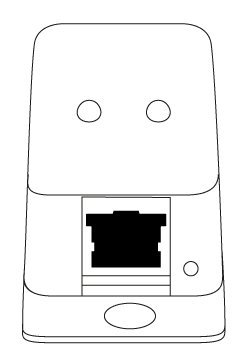

3.1. Dimensions
- Table housing that can be attached.
- Dimensions: 35.4 x 70.4 x 22 mm.
- Protection: <IP20.
- Weight: 30 g.
Length: 35.4 mm | Width: 70.4 mm | Height: 22 mm |
3.2. Technical data
POWER SUPPLY |
|
Power supply |
Smart meter |
PINS |
|
Smart meter |
RJ12 |
CONNECTIVITY |
|
WiFi |
|
Smart meter |
P1 port TTL level |
OTHERS |
|
Operating temperature range |
From 0°C to +40°C |
Storage temperature range |
From -10°C to +70°C |
Relative humidity during operation |
< 95% (doesn't condense) |
Protection |
< IP20 |
3.3. Connection plugs
3.3.1. RJ12 plugs
Picture 2: Communication plugs RJ12 (marked with number 2).
- +5V DC power supply.
- Data line demand – output.
- Data GND.
- NC – not connected.
- Data line – input.
- GND power supply.
- Communication via P1 output.
- Voltage level: 0 V – 5 V.
3.3.2. LED indicator lights
Green LED: The power supply is active. | |
Purple LED blinking: The device is connected to your home Wi-Fi network and data is transferred. |
|
Blue LED blinking: The device is connected to your home Wi-Fi network and NO data is transferred. |
|
Red LED ON: The device is NOT connected to your home Wi-Fi network and data is transferred. |
4. General instructions for use
- By using this device you accept Privacy policy and Terms and conditions
- Read and retain these instructions for future reference. Adhere to all warnings and guidelines.
- Placement: Ensure the product is placed on a stable, non-vibrating surface.
- Unpacking: Remove all packaging materials before connecting the product to the power supply.
- Ventilation: Keep the ventilation slots unobstructed; do not place items on the product.
- Moisture and Liquids: Protect the product from exposure to liquids, rain, or moisture.
- Cleaning: Always unplug the product before cleaning. Use only a soft, dry cloth; avoid liquid or spray cleaners.
- Openings: Do not insert objects into any openings.
- Repairs and Modifications: Do not attempt to open or repair the product yourself, as this will void your warranty. Only qualified service technicians should perform repairs.
- Relocation: Disconnect the product from the power supply before moving it.
- Labels: Keep all original labels intact and do not remove them from the product.
- Heat Sources: Avoid installing the product near heat sources such as radiators, heaters, or other appliances that generate heat.
- Power Cable: Install the power cable securely and ensure it is not a tripping hazard or exposed to potential damage from objects that could pinch or twist it.
- Accessories: Use only accessories or additional equipment recommended by the manufacturer.
- Unplugging: Disconnect the product from the power source during electrical storms or if it will not be used for an extended period.
- Voltage Requirements: Connect the product only to a power outlet that matches the voltage requirements specified in these instructions.
- Power Access: Ensure that the power input on the device is always accessible and functional.
- Electrical Load: Do not overload electrical sockets, extension cords, or circuit breaker panels.
Producer
Name: AMIBIT d.o.o.
Address: Šaleška 2 a, 3320 Velenje
Identification Number: 6930808000
TAX ID: SI51315831
Email: info@reduxi.eu
Phone: +386 (0)3 777 01 40
Document
Purpose: Reduxi Converter P1 WiFi
Version: V1.0 12.2022
