Reduxi P1-WiFi converter is used to obtain messages from different energy meters like Iskraemeco AM550, Sagemcom T211, and other P1 meters

Image: P1 port Iskraemeco AM550                                    Image: Cover for P1 port Sagemcom T211

1. Physical connection between P1 port and Reduxi Converter

The psychic connection is established with RJ-12 cable, which is also used to power the P1-WiFi converter. No extra power supply is needed. RJ-12 cable is part of P1-WiFi converter delivery.

1.1 Physical connection for Iskraemeco AM550:

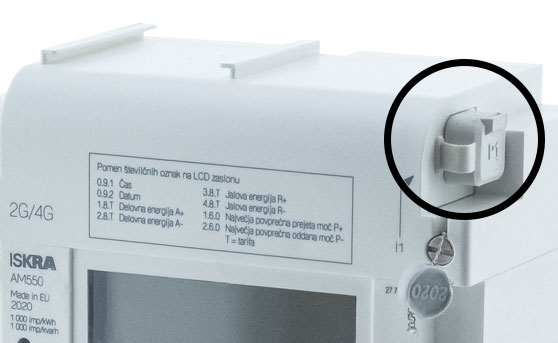

The P1 port is located in the upper right corner of the AM550 energy meter. Connect Iskraemeco AM550 meter with RJ12 cable to Reduxi Converter over P1 port. A cable is included in the package with the Reduxi Converter. The green LED from above should start to glow.

Note, in practice, the electrical distributors (DSO) allow non-encrypted communication. However, some enery meters still use an encrypted connection. Without encryption keys, you can test whether the connection from Iskraemeco AM550 to Reduxi Controller works. You will get information on whether the communication works (data is being received). If the keys are not entered, no data can be converted into a measurement, but at least you can see if the physical communication is working. You can add keys later via a remote connection to the Reduxi controller or (recommended) by asking the electrical distributor to use an unencrypted connection.

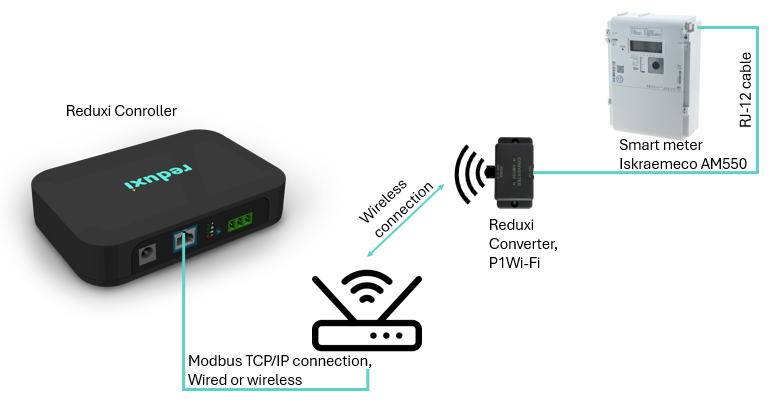

1.1.1 Wireless connection to Reduxi Controller

For details, see also Reduxi Converter P1 WiFi

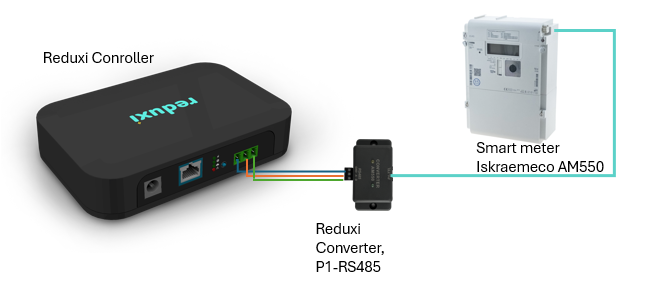

1.1.2 Wired connection directly to Reduxi Controller

This option is presented in the case of a wired RS485 connection

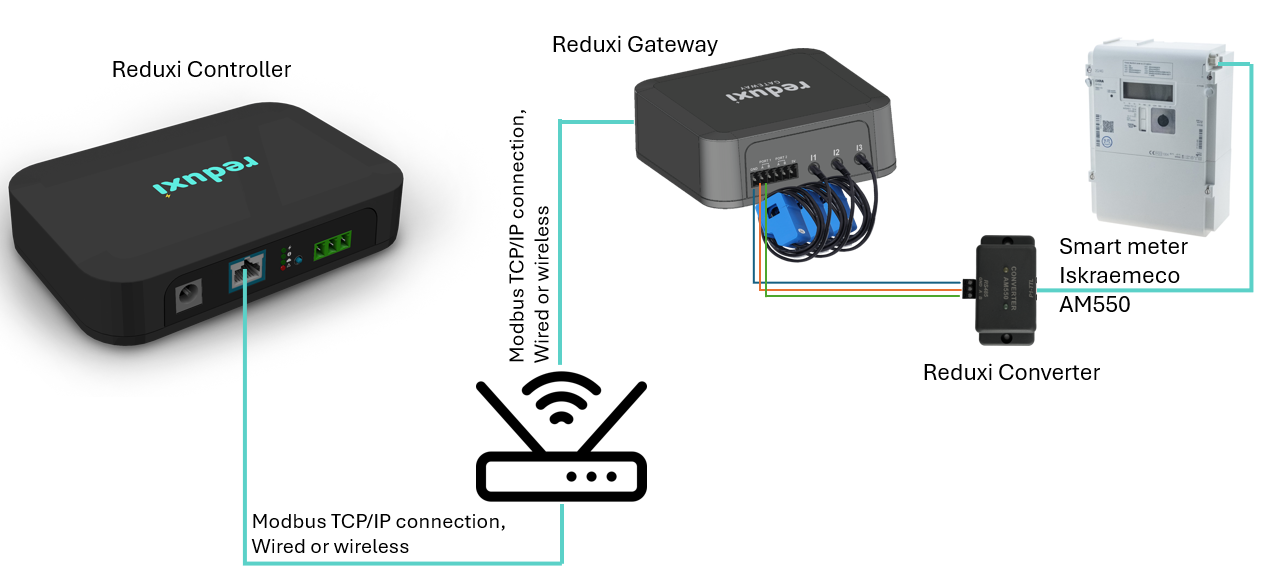

1.1.3 Physical connection to Reduxi Gateway and connection via Modbus TCP/IP to the

Reduxi Controller

This option is presented in the case of a wired RS485 connection

1.2 Physical connection for Sagemcom T211:

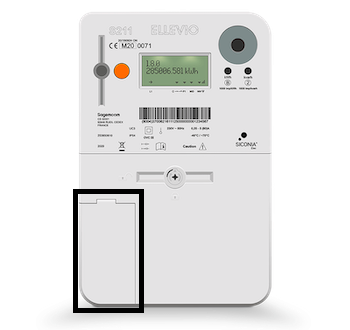

The P1 port is located in the down left corner under the plastic cover of the Sagemcom T211. Connect the P1 port of Sagemcom T211 meter with the RJ12 cable to Reduxi Converter. A cable is included in the package with the Reduxi Converter. The green LED from above should start to glow.

The connection between Smartmeter Sagemcom T211 and Reduxi Controller is established in the same fashion as described in the points for Iskraemeco:

• 1.1.1 Wireless connection to Reduxi Controller
• 1.1.2 Wired connection directly to Reduxi Controller
• 1.1.3 Physical connection to Reduxi Gateway and connection via Modbus TCP/IP to the

2. Connect P1 Wi-Fi to the Reduxi controller

For the first configuration, you need to connect Reduxi Converter to Reduxi Controller using WiFi (TCP/IP) connection. For more information, please follow Reduxi Converter P1 WiFi

Advanced settings

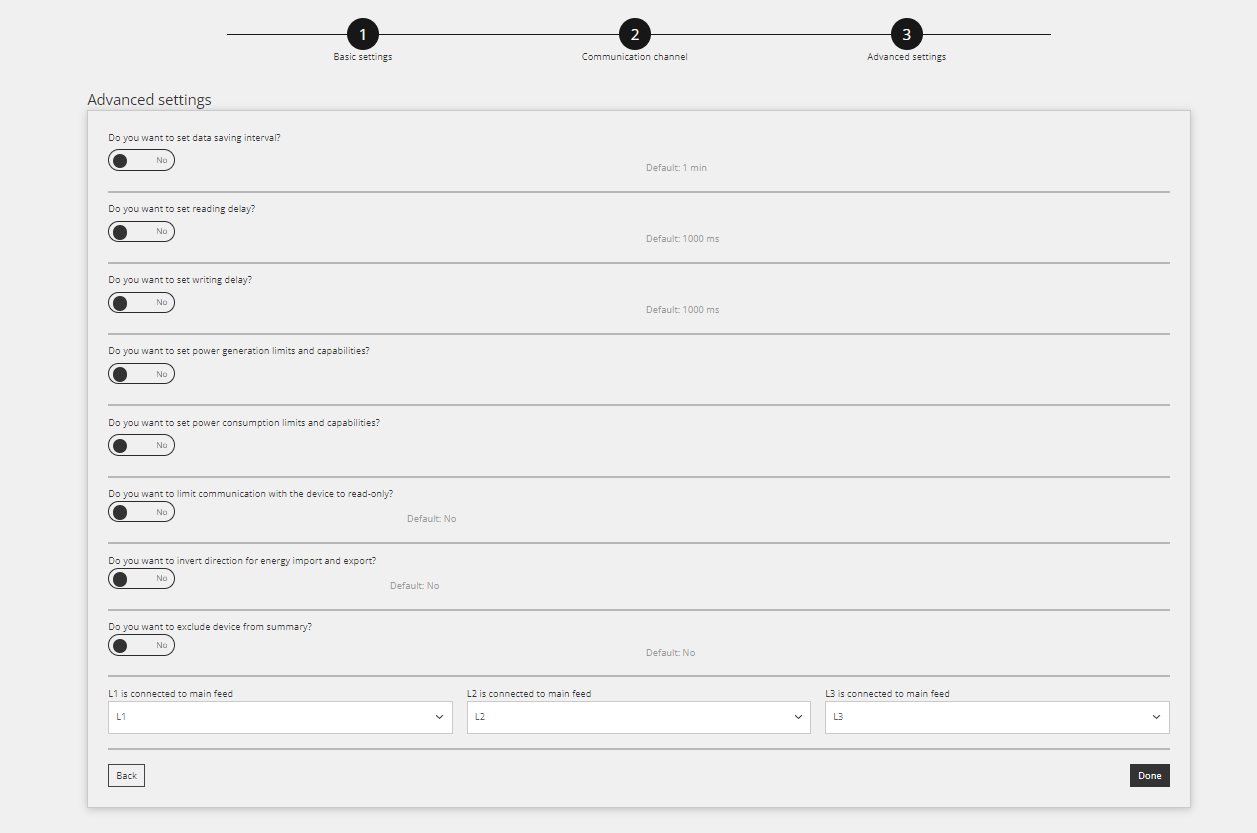

Fill in the advanced settings and choose the parameters shown in the image below. Settings can vary depending on location needs. Once you are done, click on the "Done" button down the right of your screen.

Last measurement

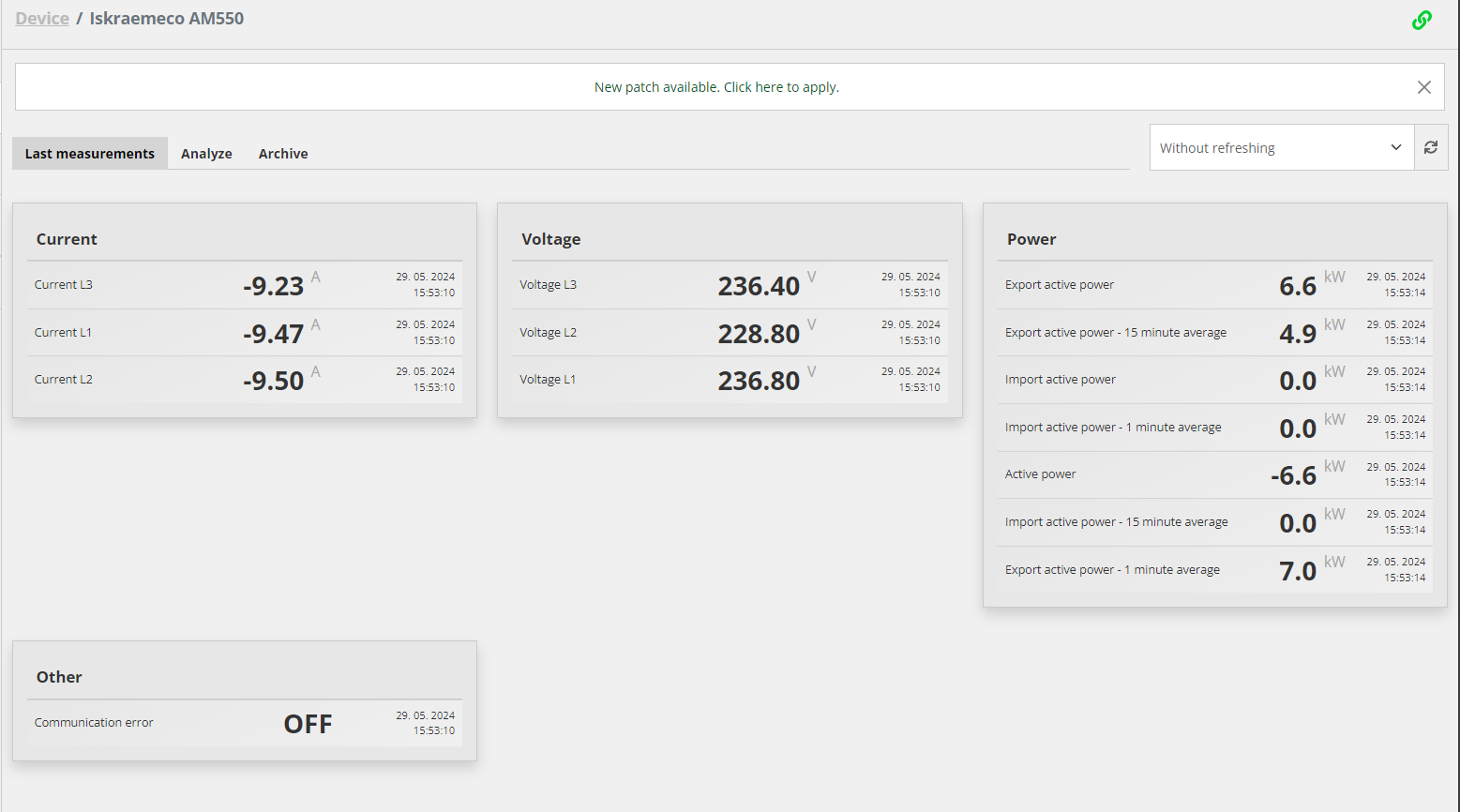

After successfully establishing communication with the device, we can perform an additional test by checking the values on the device. This is done by clicking on the device selection on the home screen, where we select the newly added energy meter in the tree structure.

Once the device is successfully added through the configurator, it can be monitored and controlled via cloud application Reduxi.
