Adding Reduxi Controller to cloud
Connect the cloud and the controller for a quick overview of location power, market prices, and more. With Reduxi, cost benefits can increase by 30%.
Text description of this image
Screenshot of the Reduxi Cloud login page (app.reduxi.eu). The background is a dark line illustration with turquoise elements: a carport with solar panels on the roof, an electric car under it, a charging station showing 48 degrees C, a heat pump unit with a fan and a battery on the right. In the centre is a dark sign-in box with the reduxi logo. Box content: Sign in, language selector English with a flag, New user? Create an account (link), Email address (empty field), Password (empty field), Forgotten Password (link), turquoise Login button.
1 Introduction
The cloud is a web application used by basic users or aggregators to access key information on location power usage via the Reduxi Controller. It also enables alarms, providing first-level support by sending instant location information directly to the users' email.
2 Log in and open the location settings
2.1 Log in to the web application
Log in at https://app.reduxi.eu/. The login page is shown in the picture at the top of this article.
2.2 Choose your company
Find the company tab and click it.

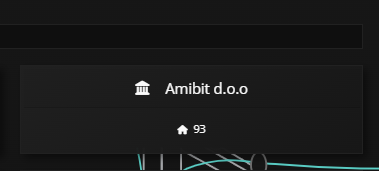

Text description of this image
Screenshot of the company tab in Reduxi Cloud on a dark background. A box in the centre shows a bank-building icon and the company name Amibit d.o.o. Below it, in a second row, is a house icon with the number 93. Under the box a few light grey and teal network lines are partly visible. A dark bar is visible above the box. The right part of the picture is white.
2.3 Choose Global Settings
Click Global Settings in the menu on the left.
Text description of this image
Screenshot of the left menu of Reduxi Cloud on a dark background. Top: reduxi logo, then a Search field. Below is a turquoise row with a bank-building icon, Amibit d.o.o and a minus sign, followed by a dark row with a hierarchy icon, All locations and a plus sign. The large middle part of the menu is empty. At the bottom is an entry Settings and below it a row Global Settings with a globe icon, marked with a blue rectangle frame.
2.4 Choose Location & Groups
Click Location & Groups.
Text description of this image
Screenshot of a Reduxi Cloud menu on a dark background. The top row is turquoise with a bank-building icon, the text Amibit d.o.o and a minus sign at the right. Below are three dark menu entries: Locations & Groups, Controllers, Users. Locations & Groups is marked with a blue rectangle frame.
3 Create the location group and the location
3.1 Add a location group
Create a new location group and name it.

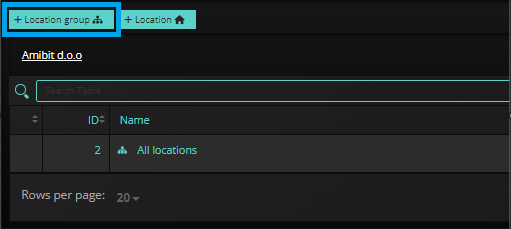

Text description of this image
Screenshot of the Locations & Groups page in Reduxi Cloud on a dark background. Top row: turquoise buttons + Location group (with a hierarchy icon, marked with a blue rectangle frame) and + Location (with a house icon). Below is the underlined breadcrumb Amibit d.o.o. Then a search field with a magnifier icon and the placeholder Search Table. Table header: sort column, ID, Name. One row: ID 2, Name All locations (with a hierarchy icon). Bottom row: Rows per page: 20 with a dropdown arrow. The right edge is cut off.
3.2 Add a location
Create a new location and name it.

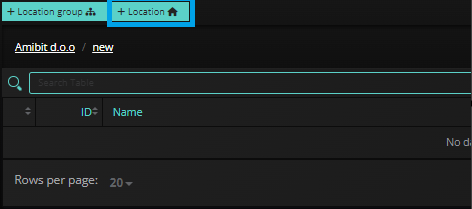

Text description of this image
Screenshot of the Locations & Groups page in Reduxi Cloud on a dark background. At the top are two turquoise buttons: + Location group (with a hierarchy icon) and + Location (with a house icon); the + Location button is marked with a blue rectangle frame. Below is the breadcrumb: Amibit d.o.o / new, both underlined. Then a search field with a magnifier icon and the placeholder Search Table. A table header has a sort column, ID and Name. The table body shows the text No da (cut off at the right edge, presumably No data). Bottom row: Rows per page: 20 with a dropdown arrow. The right part of the picture is cut off.
4 Link the controller
4.1 Link the controller
Click Find Controller and enter the serial number. If you use a phone, scan the QR code to add the controller to the cloud.
Text description of this image
Screenshot of the New location wizard in Reduxi Cloud (dark theme, house icon and close X in the title bar). A progress bar with three steps: Location (done, tick mark), Link controller (current, highlighted in turquoise), Overview (grey). Below: heading Add your controller and the text Click on the button below to find and link a controller to your account. In the middle is a photo of a dark grey flat controller box with a barrel power jack on the left, an Ethernet port in the middle and a green screw terminal block on the right. At the bottom is a wide turquoise button with a link icon and the text Find controller.

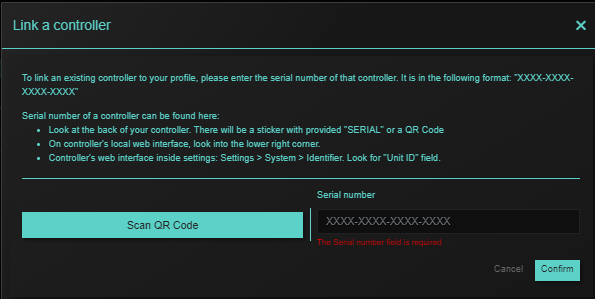

Text description of this image
Screenshot of the dialog Link a controller in Reduxi Cloud (dark theme, close X at the top right). Text: To link an existing controller to your profile, please enter the serial number of that controller. It is in the following format: XXXX-XXXX-XXXX-XXXX. Then: Serial number of a controller can be found here: bullet 1: Look at the back of your controller. There will be a sticker with provided SERIAL or a QR Code; bullet 2: On controller's local web interface, look into the lower right corner; bullet 3: Controller's web interface inside settings: Settings > System > Identifier. Look for Unit ID field. Below a divider: a wide turquoise button Scan QR Code on the left; on the right a field Serial number with the placeholder XXXX-XXXX-XXXX-XXXX and a red message: The Serial number field is required. Bottom right: Cancel (grey) and a turquoise Confirm button.
4.2 Finish adding the controller
If the controller is connected to the internet, the new location is created automatically. Devices connected to the controller are displayed as part of the new location.
For further information about the cloud, see Reduxi Cloud.
✓ Summary
Introduction (Point 1): The cloud shows location power usage via the Reduxi Controller and sends alarms to the users' email.
Log in and settings (Point 2): Log in at app.reduxi.eu. Choose your company, then Global Settings, then Location & Groups.
Group and location (Point 3): Create a new location group and a new location. Name both.
Link the controller (Point 4): Click Find Controller. Enter the serial number or scan the QR code. The location is created automatically when the controller is online.
→ Common issues
| Issue | Solution |
|---|---|
| The location is not created automatically | The controller must be connected to the internet (see Point 4.2). |
| You use a phone and cannot type the serial number | Scan the QR code instead (see Point 4.1). |
