Connect GARO to Reduxi

Updated

Connect Redux to the GARO charger via Ethernet or Wi-Fi using the OCPP protocol. The flexibility of the Redux system allows for cost reductions of up to 30%.

1. Install the GARO App

GARO SUPPORT.png

1.1 The app is available on the Google Play Store:
https://play.google.com/store/apps/details?id=se.garo.nxt&hl=en_US

1.2 The app is available on the Apple App Store:
https://apps.apple.com/us/app/garo-connect/id1534289157





2. Connect to the GARO Connect App

For the initial connection, the following URL provides a video tutorial on how to connect the GARO charger: First GARO Entity Connection.

GARO Entity!



2.1 Login/Registration in the GARO Connect App

Open the app, log in, or register a new account by clicking the 'New User' button, then log in.


2.2 Add a New GARO Charger Location

  • Open the GARO Connect app, click the menu icon in the top-right corner, and select 'Installation Menu'.


  • A new menu will appear. Click the 'Add New Unit' button located at the bottom center.


  • Name your unit and select the GARO charger type from the dropdown menu (in this case, choose "Entity"). Then, click 'Add New Unit' at the bottom center.


  • Click on the newly added device ("Need installation is offline").


  • A new installation process menu will open (0/5). Read the instructions and click 'I have understood' at the bottom center.


  • Name the group and set the maximum current for the station, then click 'Next' at the bottom center.


  • Select the internet access option and click 'Save and continue installation' at the bottom center.


  • A new menu will appear showing the installation group locations. Click 'OK, continue installation' at the bottom center.


  • A new menu will open for network connection. Click 'Continue installation' in the center.


  • Enter the required network connection details according to the GARO charger specifications. Click 'Grid connection tested OK, confirm settings and proceed' at the bottom center.


  • Proceed to the bracket installation ID. Click 'Continue installation' in the center.


  • Scan the QR code on the front or back of the GARO charger. Click 'Read QR code on bracket' in the center.


  • Continue with communication settings. Click 'Continue installation' in the center.


  • Turn on the GARO charger and click 'Next' on the right.


  • A direct Wi-Fi connection test will appear.


  • Join the offered Wi-Fi network.


  • The connection between the GARO charger and your phone will be displayed.


  • Select the Wi-Fi network to which the GARO charger will connect and click 'Next' on the right.


  • Enter the password and click 'Connect' in the center.


  • Once the direct connection is closed, click 'Close connection' in the center, then click 'Complete'.


  • Contintinue


  • A new menu will appear, featuring a Test and verification function, as well as a 'Declare as Installed' option. If the tests are successful, confirm that the GARO charger is installed and click the 'Next' button.






3. Connect the GARO Charger to the Same Wi-Fi Network as the Redux Controller

For communication between the Redux controller and the GARO charger, both devices must be connected to the same network (LAN or WLAN). As described in step 2.1, the Redux must use the same network as the GARO charger.

Once this criterion is met, proceed with OCPP configuration.


Once this criterion is met, proceed with OCPP configuration.



4. OCPP Communication Setup Between the GARO Charger and the Redux Controller

4.1 Add a Device

Log in to the local Redux configurator and add a new device by clicking 'Add Device'.

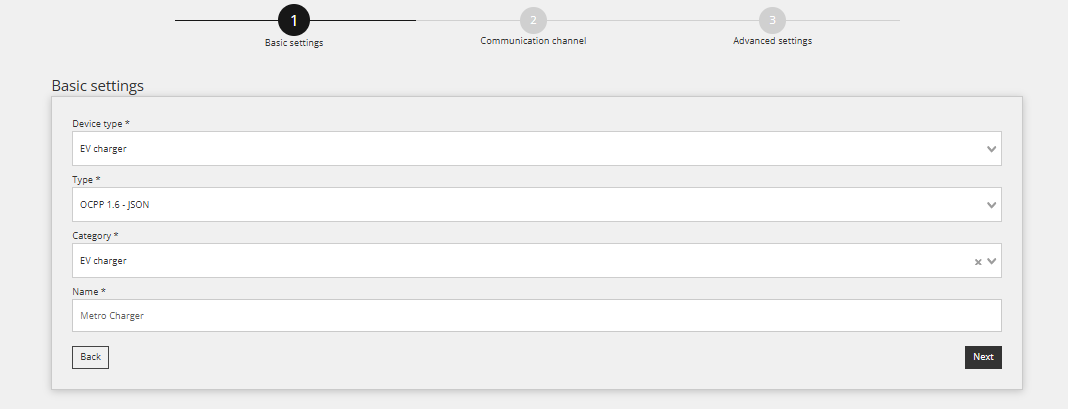

4.2 Select the Device to Add

  • In the first step, configure the basic settings:

    • Device type: EV Charger

    • Protocol: *OCPP 1.6 - JSON*

    • Assign a name.

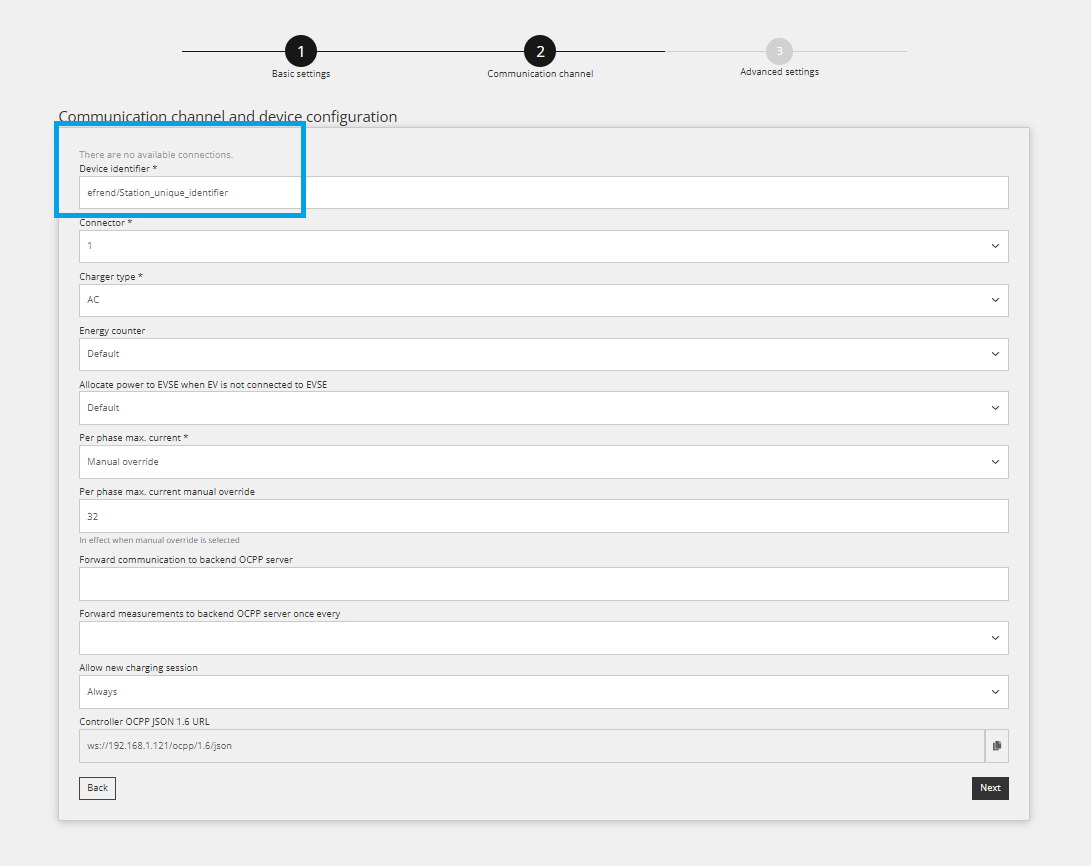

4.3 Configure OCPP Device Settings

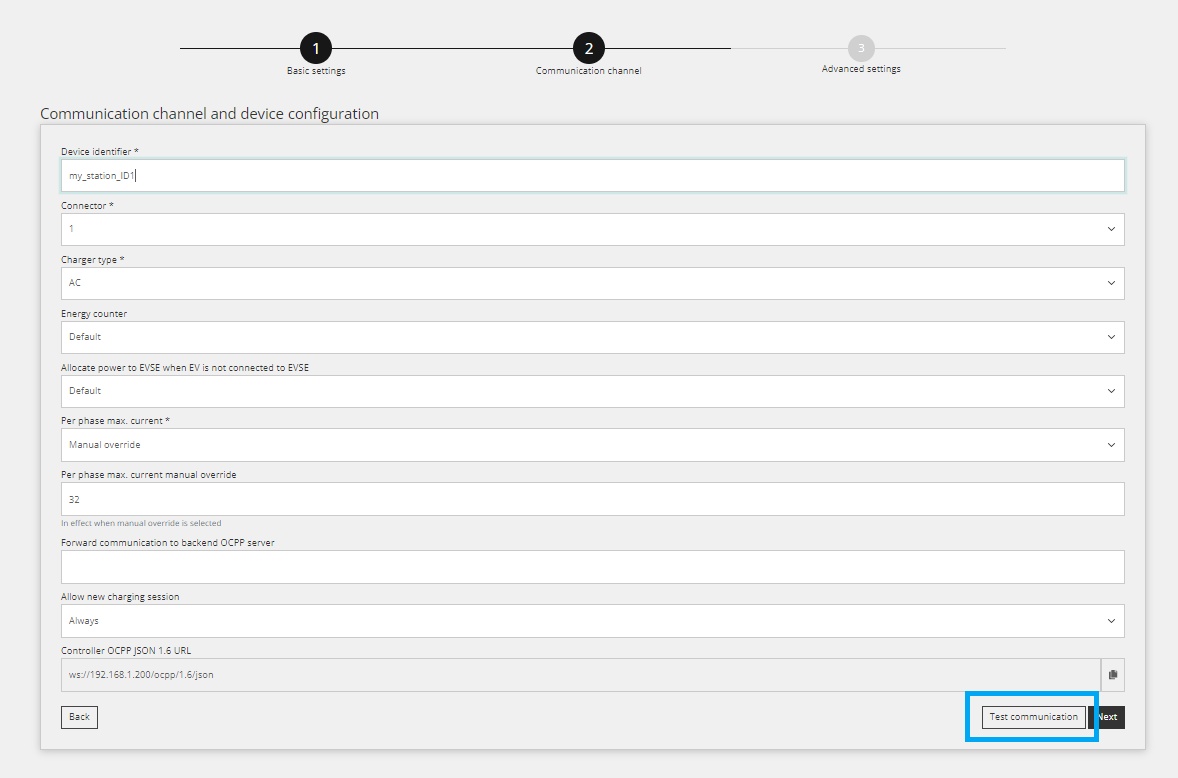

The second step is for the communication channel and OCPP communication testing. Enter the device identifier obtained from the GARO charger.

If using OCPP JSON 1.6, the OCPP server URL generated by the Redux controller is required. The URL can be retrieved directly from the communication channel.

Example URL: ws://192.168.1.121/ocpp/1.6/json/

GARO Reduxi configuration.png

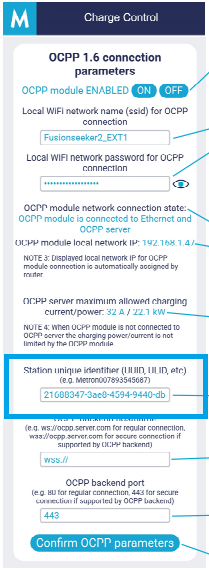

4.4 Configure OCPP Settings in the GARO Charger

After obtaining the JSON URL from the Redux controller, paste it into the GARO charger to enable the OCPP connection.

Navigate to the 'Configuration' section of the GARO charger, then 'OCPP Settings'.

Scroll down to 'GaroCsmsURL' and paste the URL.



IMG_6665.PNG        IMG_6673.PNG





4.5 Communication Test

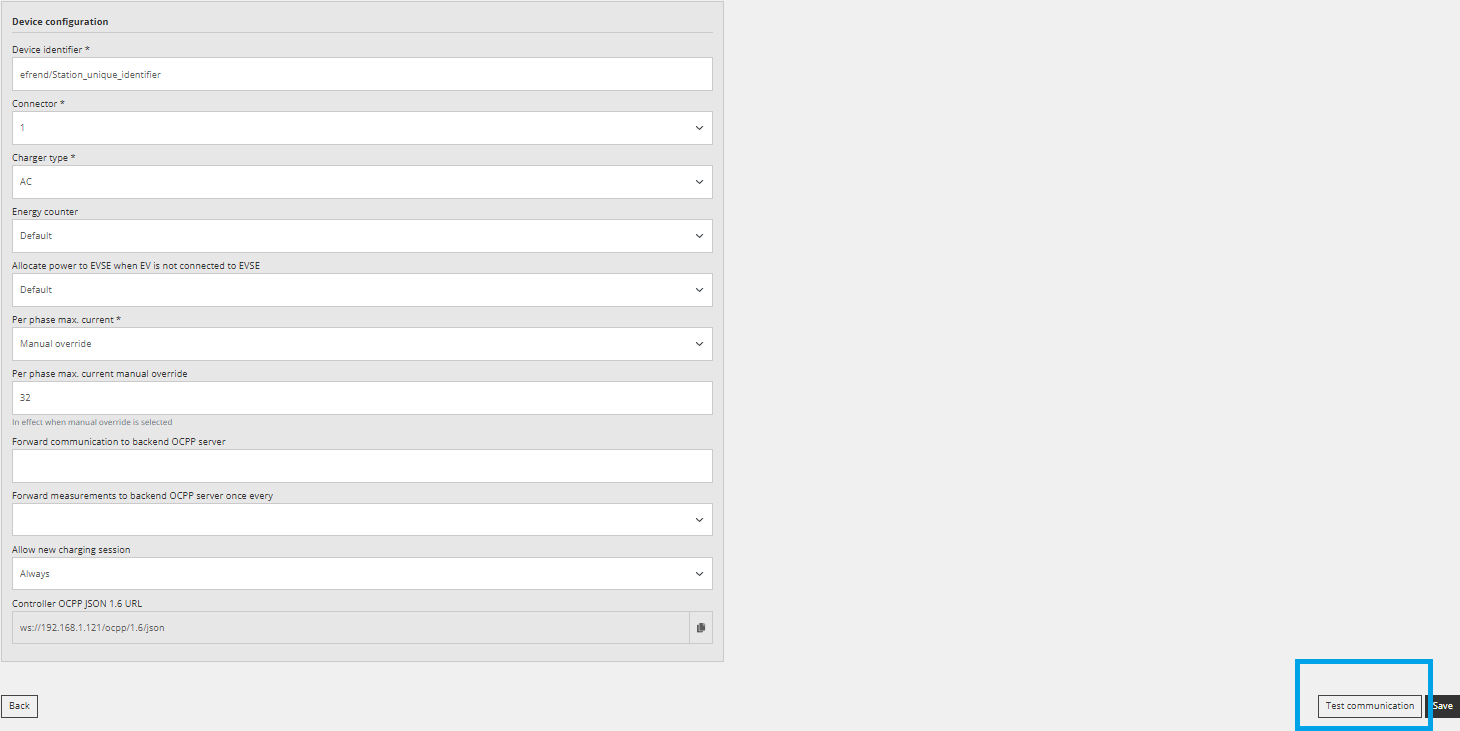

To verify OCPP communication, use the 'Test Communication' button located at the bottom right of the communication channel fields.


There are three possible response scenarios:

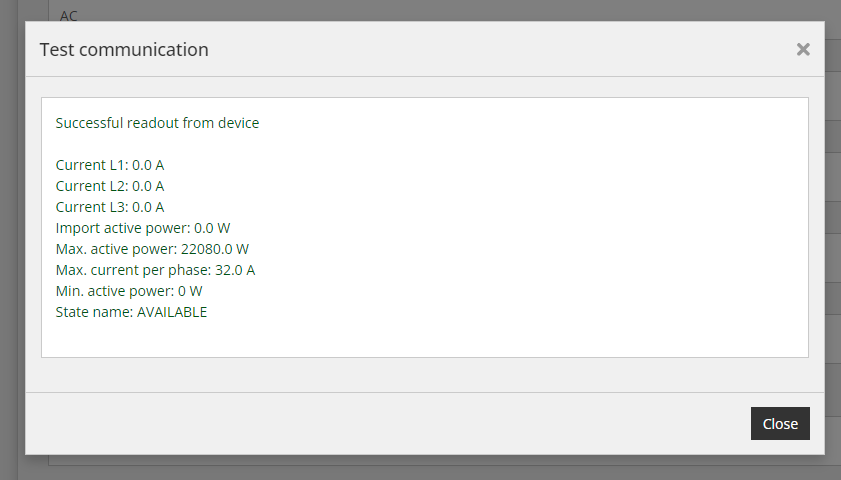

  1. Success: Communication works correctly.

dodaj napravo - preveri komunikacijo.png

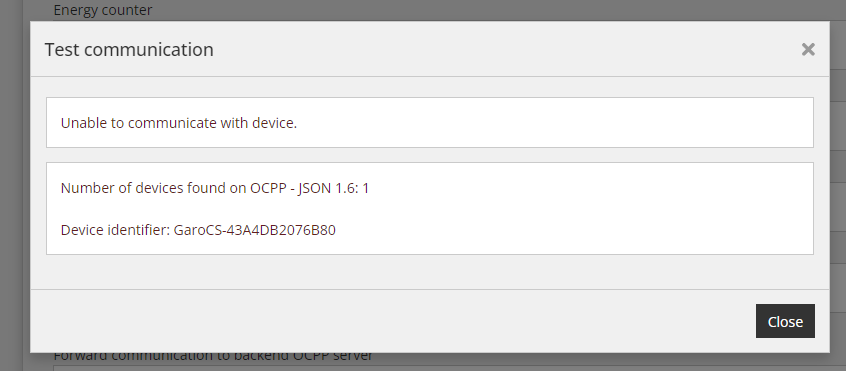

2. Error 1: Unable to communicate with the device (ID not set or incorrect).

dodajte napravo - preverite identifier.png

3. Error 2: OCPP 1.6-compatible device unavailable.



4.6 Default Parameters

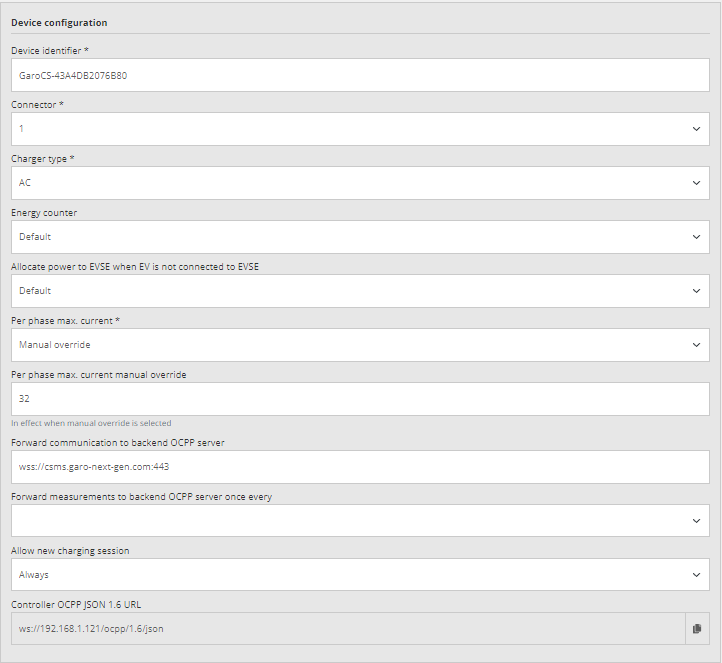

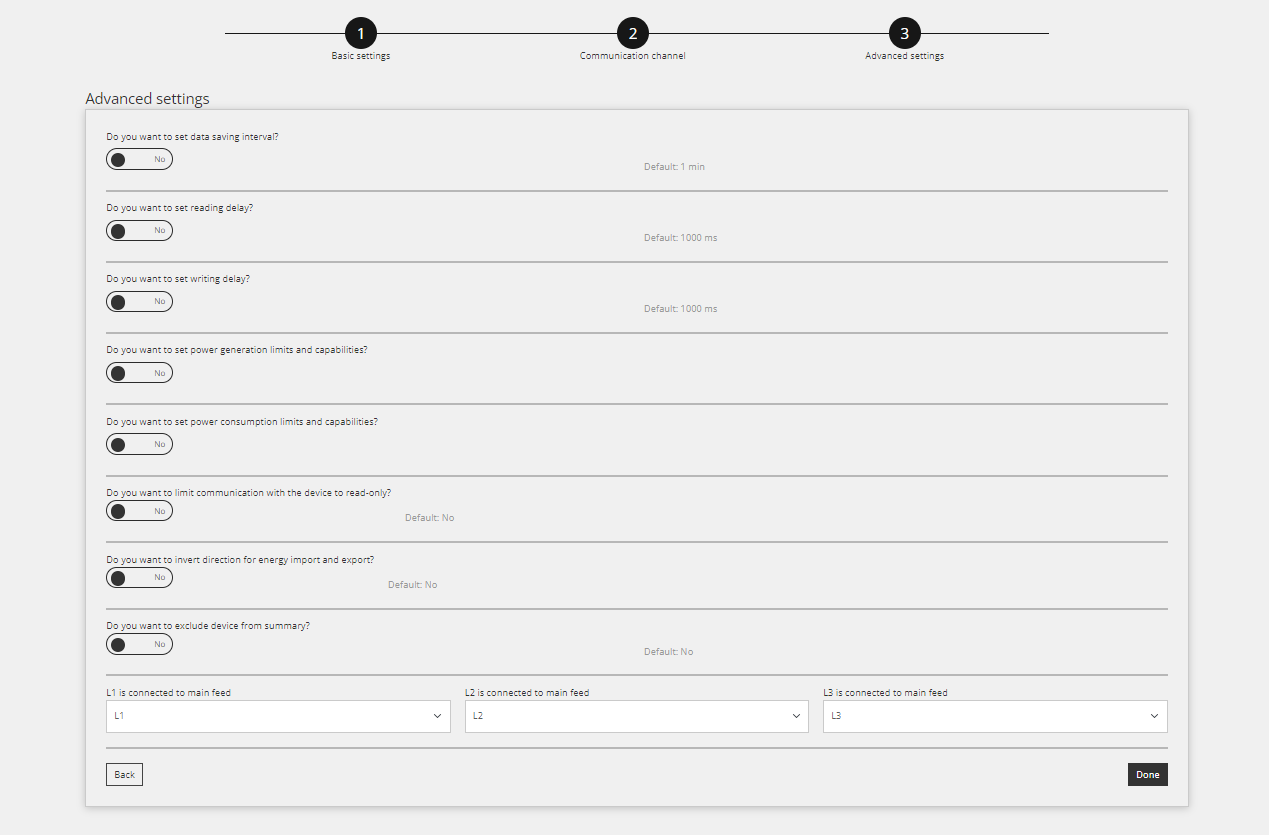

  • Configure advanced settings and select the parameters as shown in the image below (settings may vary based on location needs).

  • Once completed, click 'Finish' on the right side of the screen.

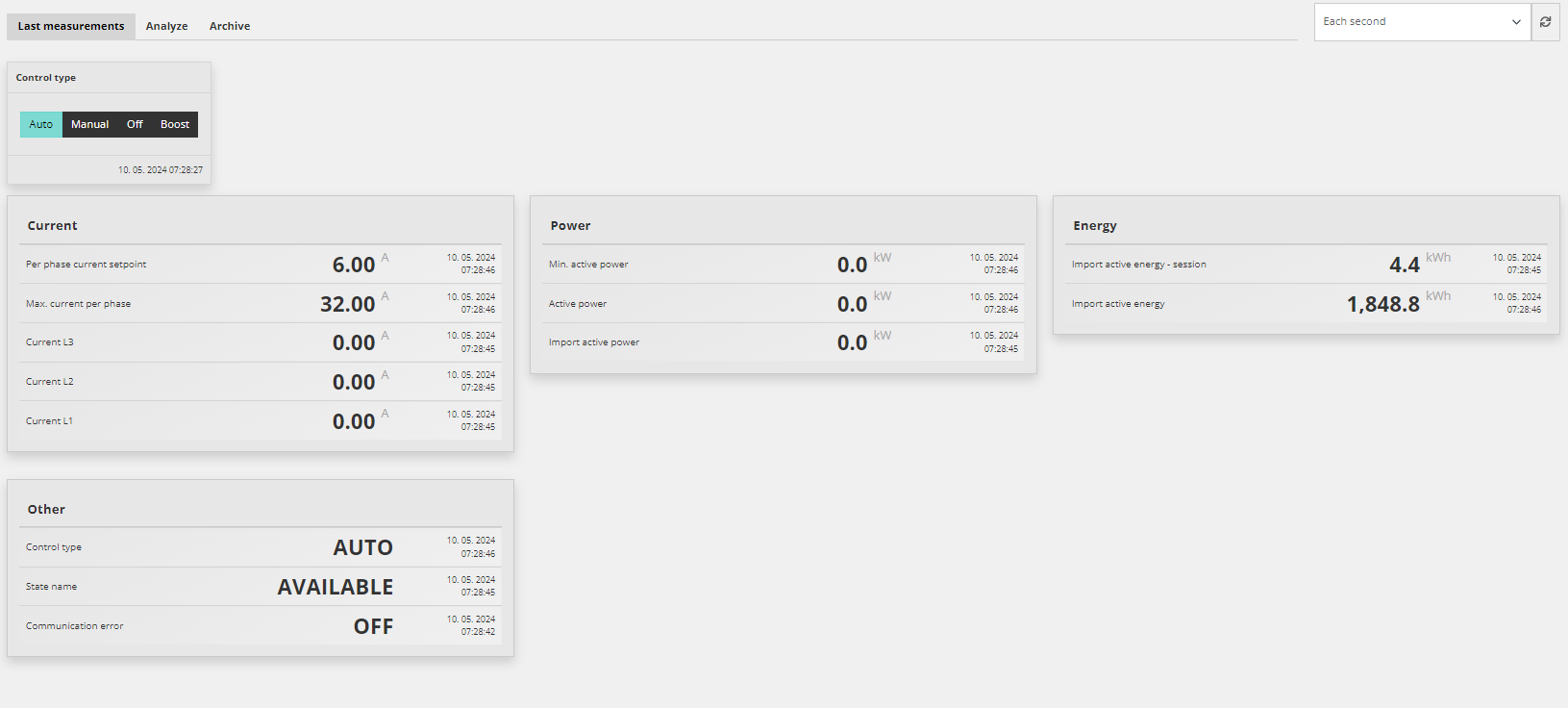

4.7 Device Readings

To check device readings, go to 'Device/Last Measurement' in the Redux configurator.



Once the device is successfully added via the configurator, it can be monitored via the Redux web app. Reduxi Cloud .

4.8 Factory Reset

If the charger is relocated or needs to connect to a different network, a factory reset is required.

To perform a factory reset:

    • Press and hold the test button for 20 seconds.

    • Reconfigure the GARO charger afterward.
