Typical Use Cases of Reduxi Solution
Typical ways to use Reduxi: smart EV charging, heating control, self-sufficiency and selling energy at high prices.

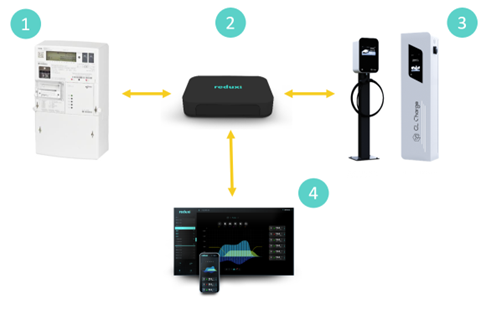

1 Control charging of your electric vehicle
Text description of this imageDiagram with four numbered elements on a white background, connected by yellow double-headed arrows. 1: white electricity meter with a display and buttons (no model legible). 2: black Reduxi device (reduxi logo on top). 3: two EV chargers, a black pedestal charger with a screen and charging cable, and a white wall-mounted charger with the printed text CL Charge. 4: Reduxi software dashboard on a monitor and a phone, showing a coloured chart and a list of buttons. Arrows: between 1 and 2, between 2 and 3, and from 2 down to 4. |
Text description of this imageTeal icon on a white background: a rounded square outline containing three vertical bars, like sliders, each with a round euro sign coin at a different height (left bar: middle, centre bar: low, right bar: high). Symbol for price based control. Lower the costs Text description of this imageSmall teal icon on a white background: a rounded square outline containing a teal wave curve with one high peak in the middle and low parts on both sides. A short red line marks the top of the peak, two green curved arrows point from the peak down to both sides, and two short green horizontal lines are at the sides. Symbol for peak reduction. Charge during lower prices Text description of this imageSmall teal icon on a white background: a rounded square outline containing a teal wave curve that starts with a high peak on the left and decreases in height to the right. A red horizontal line runs across the top at the level of the first peak. Symbol for a limit line above a fluctuating curve. Limit the power from the grid |
- Connect Reduxi (2) to the smart electrical energy meter (1)
- Connect Reduxi (2) to your charging station (3)
- Control the charging power (3) in order to:
- Lower the costs (charge during the time of lower energy cost)
- Take care not to overload the maximal power from the grid (decrease the charging power when other devices use electricity)
- Analyze the data in the web or mobile application (4)

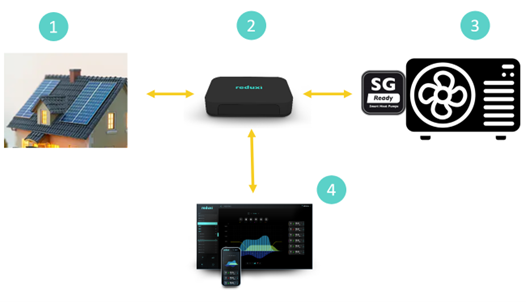

2 Control your heating program
Text description of this imageDiagram with four numbered elements on a white background, connected by yellow double-headed arrows. 1: photo of a house with solar panels on the roof. 2: black Reduxi device (reduxi logo on top). 3: black outdoor heat pump unit icon with a fan, with an SG Ready badge (text: SG, Ready, Smart Heat Pumps) on its left. 4: Reduxi software dashboard on a monitor and a phone, showing a coloured chart and a list of buttons. Arrows: between 1 and 2, between 2 and 3, and from 2 down to 4. |
Text description of this imageTeal icon on a white background: a rounded square outline containing three vertical bars, like sliders, each with a round euro sign coin at a different height (left bar: middle, centre bar: low, right bar: high). Symbol for price based control. Lower the costs Text description of this imageTeal icon on a white background: a rounded square outline containing a sun above a tilted solar panel drawn as a grid. Symbol for solar power. Use electricity you produce Text description of this imageSmall teal icon on a white background: a rounded square outline containing a teal wave curve with one high peak in the middle and low parts on both sides. A short red line marks the top of the peak, two green curved arrows point from the peak down to both sides, and two short green horizontal lines are at the sides. Symbol for peak reduction. Heat during lower prices |
- Connect Reduxi (2) to the photovoltaic power plant (1)
- Connect Reduxi (2) to the heat pump (3)
- Control the heat pump (3) in order to:
- Lower the costs (use the electricity produced by the photovoltaic power plant and/or control the power plant based on the dynamic electricity prices)
- Increase your self-sustainability and help the environment
- Keep the comfort, while controlling the costs
- Analyze the data in the web or mobile application (4)

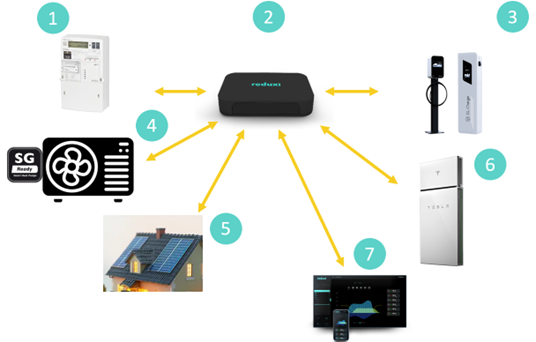

3 Become fully self-sustainable and earn
Text description of this imageDiagram with seven numbered elements on a white background. In the centre top, 2: black Reduxi device. Yellow double-headed arrows connect it to: 1: white electricity meter (top left); 3: two EV chargers, a black pedestal charger and a white wall-mounted charger (top right); 4: black heat pump outdoor unit with an SG Ready badge (left); 5: house with solar panels on the roof (bottom left); 6: white upright home battery unit; 7: Reduxi software dashboard on a monitor and a phone with a coloured chart (bottom). |
Text description of this imageTeal icon on a white background: a rounded square outline containing three vertical bars, like sliders, each with a round euro sign coin at a different height (left bar: middle, centre bar: low, right bar: high). Symbol for price based control. Lower the costs and earn Text description of this imageTeal icon on a white background: a rounded square outline containing a sun above a tilted solar panel drawn as a grid. Symbol for solar power. Use electricity you produce Text description of this imageSmall teal icon on a white background: a rounded square outline containing a teal wave curve with one high peak in the middle and low parts on both sides. A short red line marks the top of the peak, two green curved arrows point from the peak down to both sides, and two short green horizontal lines are at the sides. Symbol for peak reduction. Use electricity during lower prices Text description of this imageSmall teal icon on a white background: a rounded square outline containing a grey battery with teal charge bars, surrounded by two circular arrows (a charge and discharge cycle symbol). Save excess energy Text description of this imageSmall teal icon on a white background: a rounded square outline containing a line drawing of a high voltage transmission pylon (electricity tower). Send your energy to the grid during high prices |
- Connect Reduxi (2) to all your smart energy devices (the electrical energy meter (1), charging station (3), heat pump (4), solar power plant (5), and battery energy storage system (6))
- Control all devices in order to:
- Lower the costs
- Become self-sustainable by storing energy in the battery storage system
- Earn by trading electrical energy and cooperating in ancillary services

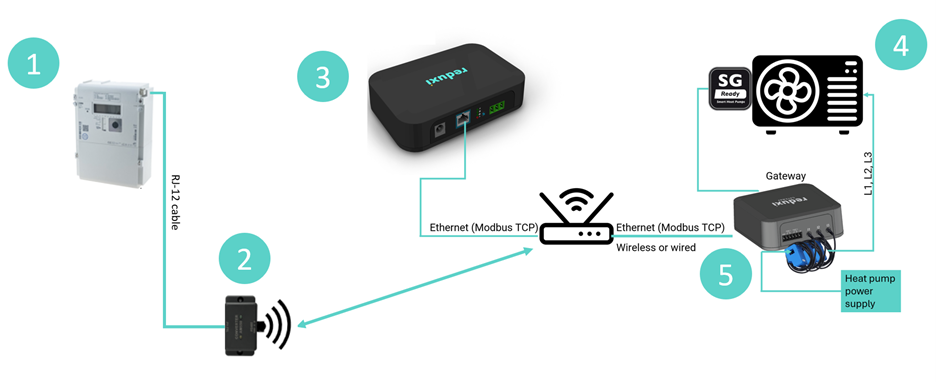

4 Concrete connection example
Text description of this image
Connection diagram with five numbered elements on white background, drawn with teal lines. 1: white electricity meter, connected by a line labelled RJ-12 cable to element 2. 2: small black device with radio wave symbol next to it, connected by a double-headed arrow to a router icon (wireless symbol). 3: black Reduxi device with a power socket, an Ethernet port and green display digits on its side; its Ethernet port is connected by a line labelled Ethernet (Modbus TCP) to the router. The router is connected by a second line labelled Ethernet (Modbus TCP), with the text Wireless or wired below, to the device labelled Gateway (a black Reduxi Gateway with three blue current clamps, element 5). 4: black heat pump outdoor unit with an SG Ready badge (Smart Heat Pumps). Gateway is connected to the SG Ready badge side of the heat pump by a line, and a line labelled L1, L2, L3 leads from the current clamps to the heat pump. A teal box labelled Heat pump power supply is attached by a line to the current clamps (5).
- Connect energy meter (Iskraemeco AM550) (1) to the P1-WiFi (2) converter connected to the local network
- Connect Reduxi Gateway (5) to the same local network using wired or wireless connection
- Connect Reduxi Gateway (5) to the heat pump (4) via SmartGrid (SG) Ready contacts using relay outputs and measure the heat pump current using the current transformers
- Connect Reduxi Controller (3) to the same local network and control the device
