How to connect Zaptec GO, GO 2 and Pro EV chargers with Reduxi controller
Integrate Zaptec chargers with Reduxi for Dynamic Load Balancing with AI tools.
Text description of this image

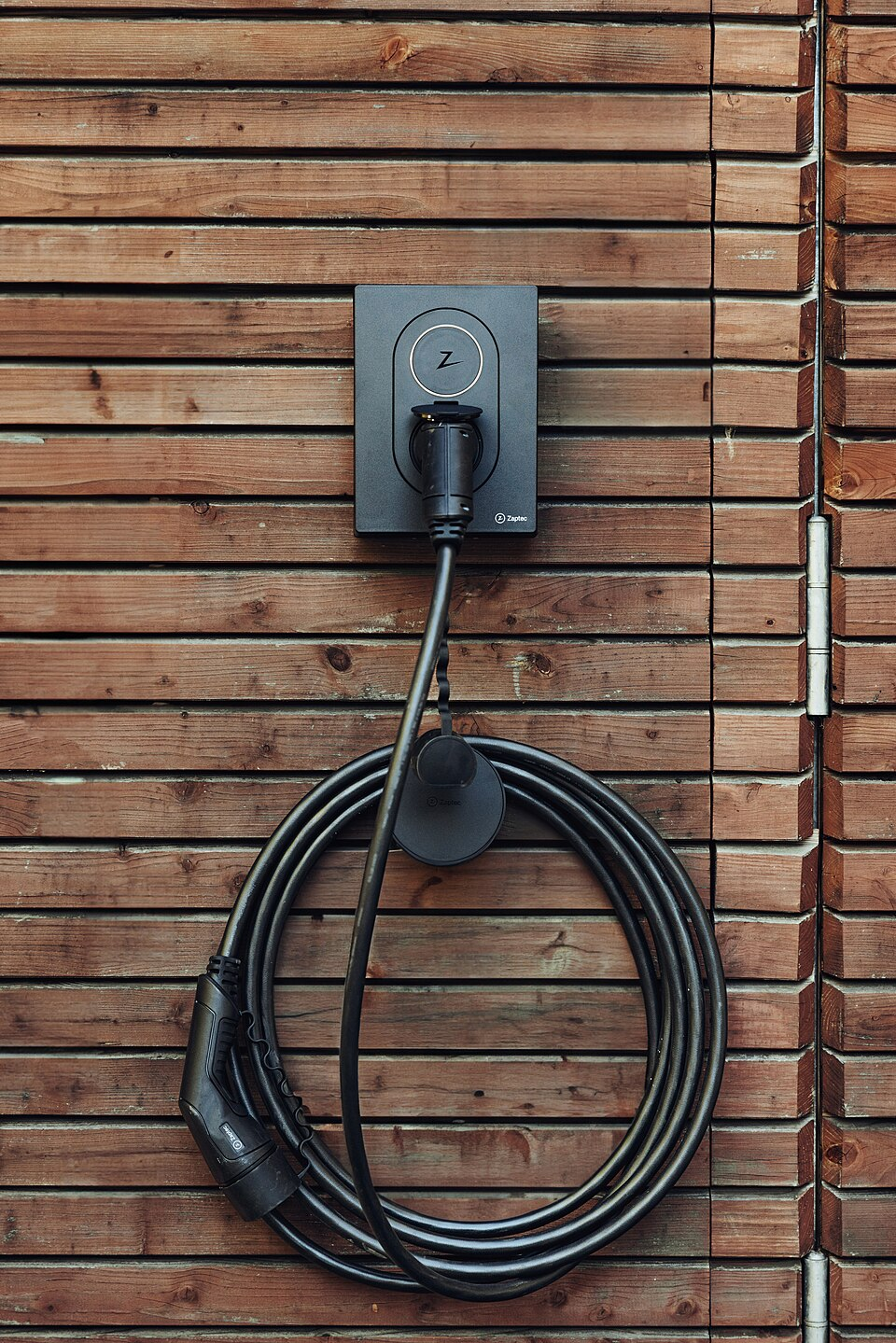

Photo of a dark grey wall-mounted EV charger on a wall of horizontal brown wooden boards. The charger is a rectangular plate with a rounded round-edged oval recess; a circular logo with a stylised Z inside a light ring sits in the upper part, and a black charging plug is inserted in the lower part, with the cable hanging down. The print Zaptec is at the lower right corner of the plate. Below, the black charging cable is coiled in a large loop and hangs on a round black holder; the connector with a Zaptec print lies at the lower left end of the coil. A vertical metal pipe runs along the wall at the right.
1 Technical documentation
Documents and tools from Zaptec:
- How to install Zaptec Go 2 – Installer guide: mounting, wiring, configuration in the Zaptec app
- How to install Zaptec Pro – Installer guide for the Zaptec Pro
- Zaptec Installation Guide (Zaptec Go and Go 2, Swedish) – Installation guide linked in the original article
- Zaptec Portal – Portal for the authorisation of Reduxi
2 Required equipment
You need these components:
- Zaptec Go, Zaptec Go 2 or Zaptec Pro charger
- Zaptec app on your smartphone (Android or iOS)
- Access to the Zaptec Portal
- Reduxi Controller
- Reduxi P1 Ultra
- Wi‑Fi network for the charger
- Laptop or tablet with internet access to configure the device in Reduxi
3 Prepare the charger and the Reduxi system
3.1 Zaptec app
Text description of this image
Logo of Zaptec: black circle outline with a stylised letter Z inside, followed by the word Zaptec in black on a white background.
The application is available on Google Play: https://play.google.com/store/apps/details?id=com.zaptec.zapapp
The application is available on the Apple App Store: https://apps.apple.com/no/app/zaptec/id1131162170
3.2 Install the Zaptec Go, Go 2 or Pro
Follow the instructions from Zaptec: Zaptec Installation Guide (see also Point 1).
3.3 Install the Reduxi Controller and the P1 Ultra
- When the installation of the Zaptec Go, Go 2 or Pro is completed, swap the connection of the charger from 4G to Wi‑Fi.
- Install the Reduxi Controller.
- Install the Reduxi P1 Ultra.
4 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image

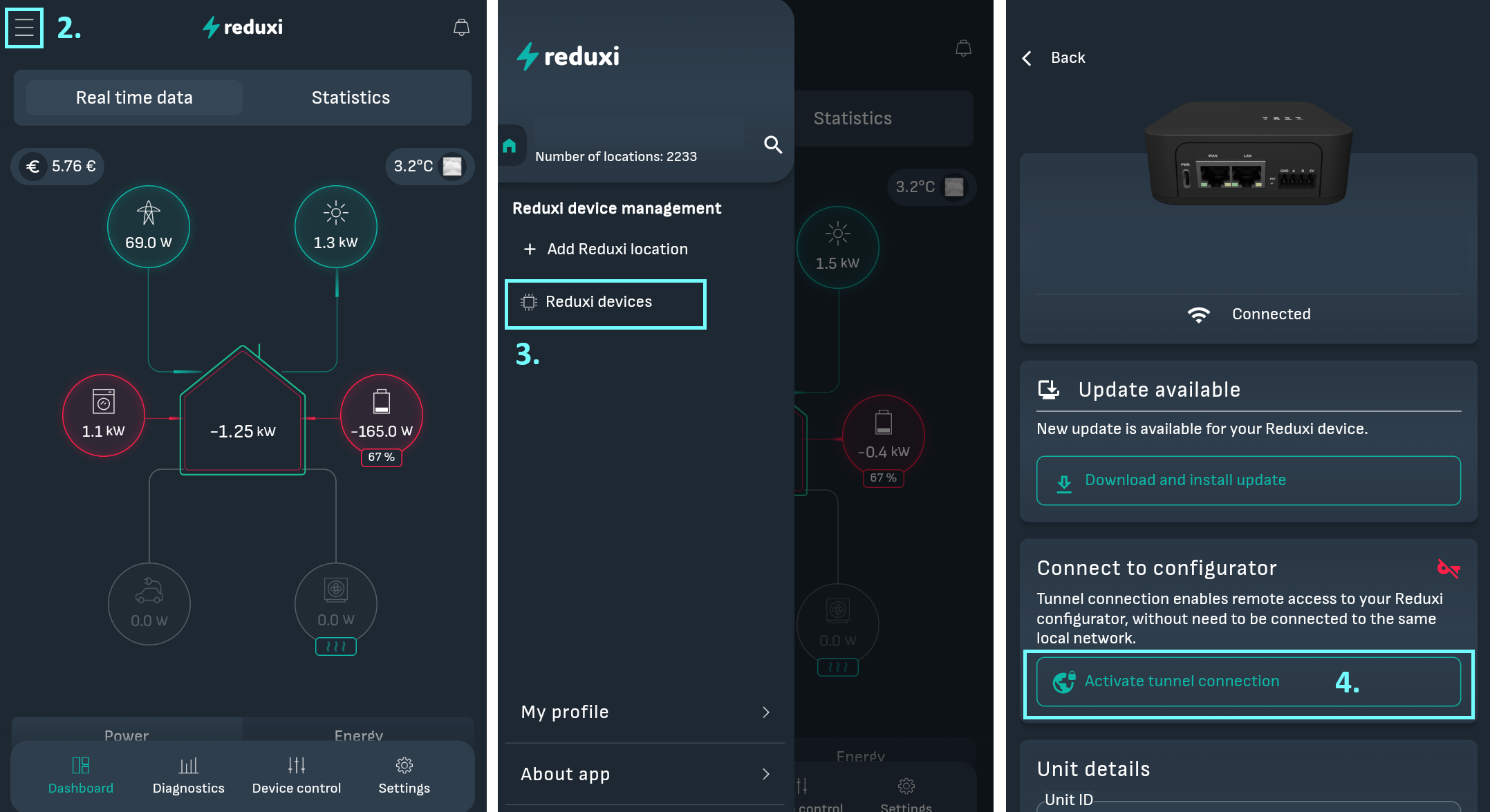

Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image

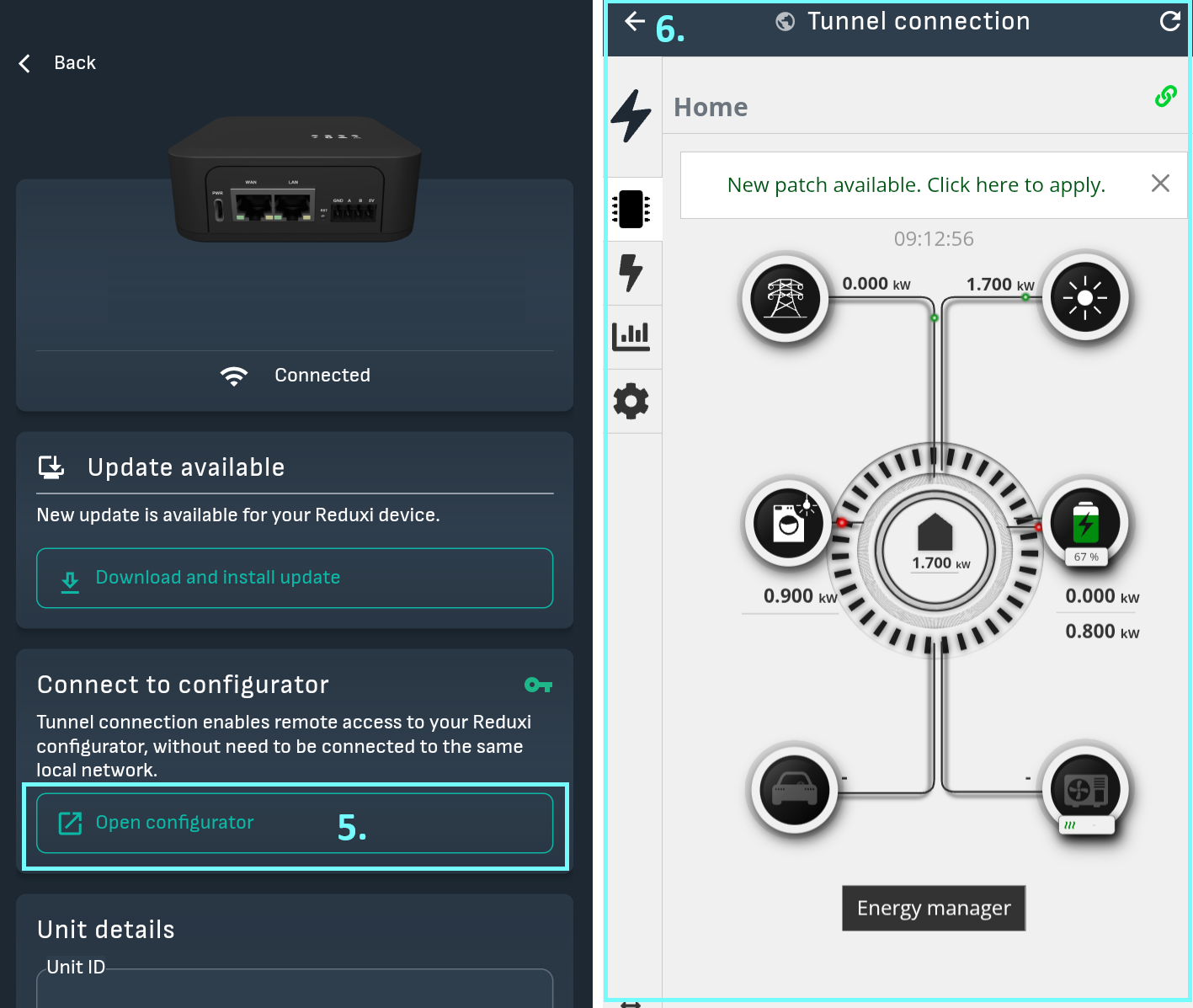

Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image

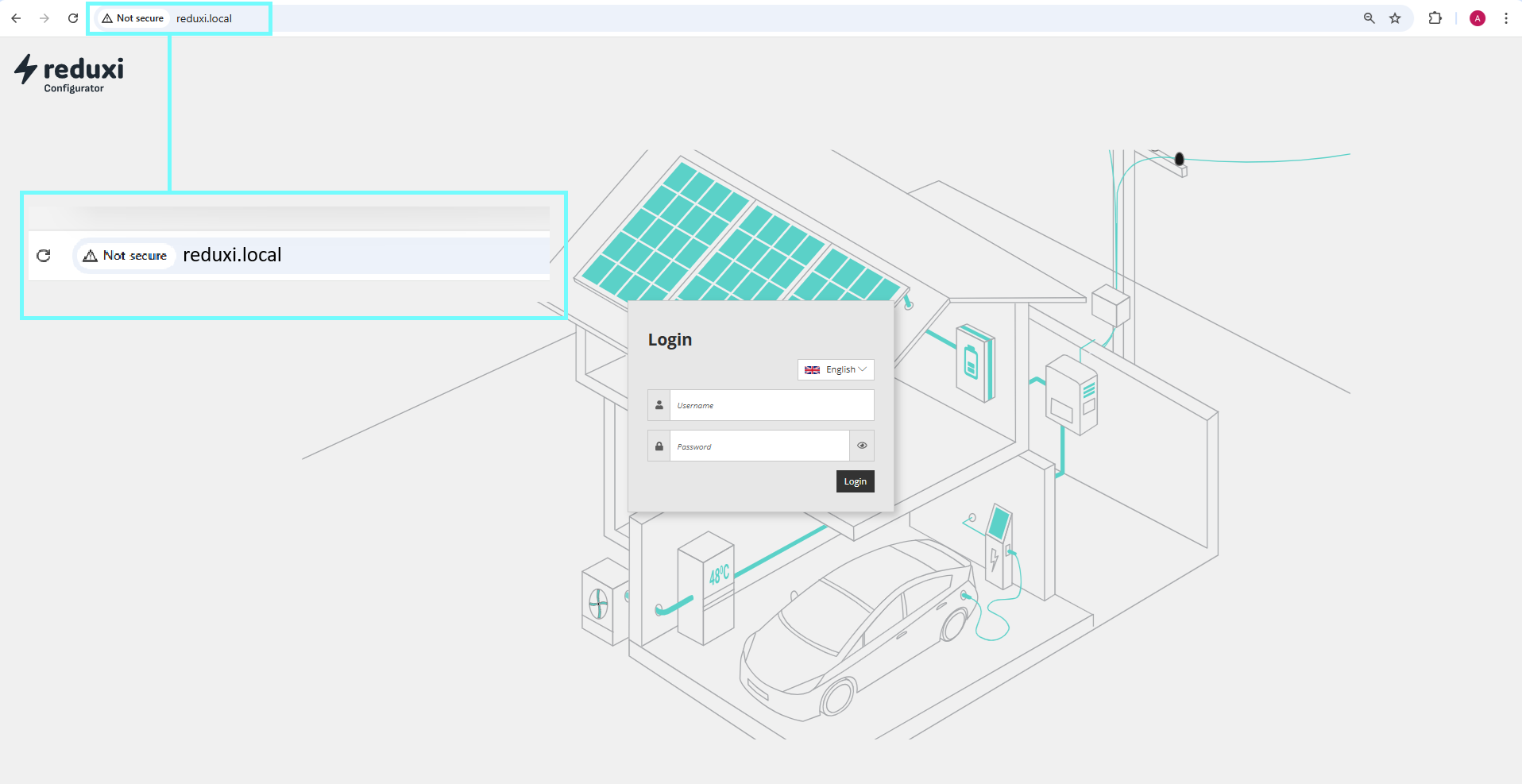

Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
5 Add the Zaptec charger to Reduxi
Use these steps to add a Zaptec Go, Go 2 or Pro charger.
5.1 Basic settings
Log in locally to the Reduxi Configurator on the controller (see Point 4) and click + Add device.
Text description of this image
Screenshot of the left sidebar of the Reduxi Configurator. Top: reduxi logo with the text CONFIGURATOR. Collapsed sections: Devices (plus icon) and Strategies (plus icon). Below, two buttons side by side: Add device (plus icon, marked with a blue highlight box) and Add strategy (plus icon). Below them two entries: Settings and Profile. The area to the right of the sidebar is empty white.
In the first step (basic settings), select the basic parameters of the device. Example for a Zaptec GO 2:
- Device type:
EV charger - Type:
Zaptec GO 2 - Name: a name of your choice
Text description of this image
Screenshot of the Reduxi Configurator wizard, step 1 Basic settings. Step indicator: 1 Basic settings (active, black), 2 Communication channel (grey). Heading: Basic settings. Fields: Device type *: EV charger (dropdown); Type *: Zaptec GO + Zaptec GO 2 (dropdown); Name *: Zaptec GO + Zaptec GO 2 (grey text). Buttons: Back (left), Next (dark, right).
Click Next.
5.2 Communication settings
| Parameter | Value |
|---|---|
| Authorisation option | Authorisation flow |
| Control type | All chargers |
| Installation ID | Not required |
Click Done.
Text description of this image
Screenshot of the Reduxi Configurator wizard, step 2 Communication channel. Step indicator: 1 Basic settings, 2 Communication channel (both black). Heading: Communication channel and device configuration. Grey text: There are no available connections. Fields: Authorization option * (red asterisk): Authorization flow (dropdown); Control type * (red asterisk): All chargers (dropdown); Installation ID: empty. Hint text under the field: Installation ID obtained on https://portal.zaptec.com/ under Installations -> (desired installation) -> Settings -> Copy installation ID. Buttons: Back (left), Done (dark, right).
5.3 Give Reduxi access to the charger
After you click Done, a pop-up from the Zaptec Portal appears. Use it to give Reduxi access to your charger:
- Log in to the Zaptec Portal.
- Enter the serial number and click Search to find the chargers of your installation. You find the serial number on the front cover of the charger or in the Zaptec Portal.
- Select the installation and click Grant access. A message confirms the successful authorisation.
Text description of this image
Screenshot of a small browser window titled Grant access to external party - Za... (Zaptec Portal), address bar portal.zaptec.com/access/confirm/9Y... (shortened), with minimize, maximize, close buttons. Dark green page with a white card. Heading: Reduxi is requesting access to your installation. Text: You own multiple installations, please provide a serial number for one of the charging stations in the installation you wish to grant access. Field: Serial number (Required), empty. Brown button: Search (magnifier icon). Greyed button: Grant access. Outlined button: Cancel. Footer text: Zaptec Portal @ 2015-2026 Zaptec Charger AS. A scroll bar is at the right edge of the window.
Text description of this image
Screenshot of a small browser window titled Grant access to external party - Za... (Zaptec Portal), address bar portal.zaptec.com/access/confirm/9Y... (shortened), scrolled down. Dark green page with a white card. Heading: Reduxi is requesting access to your installation. A selectable installation entry with a house icon: (installation name omitted). Text: By granting access, Reduxi will be able to see charge history and other details for this installation. They will also be able to change settings for the installation and the installation charging stations. Text: Permissions can at any time be revoked using the Zaptec app or Portal. Link with icon: Select another installation. Brown button: Grant access. Outlined button below: Cancel. Scroll bar at the right edge.
Text description of this image
Screenshot of a small browser window (Chrome, dark title bar with minimize, maximize and close buttons). Tab title and address bar: 10.4.2.158/api/device/auth/callback (shortened with ...). Security indicator: Inte säker [Swedish: Not secure] with a warning triangle; translate icon at the right of the address bar. Page content on white background: heading Authorization successful (bold), text You can close this tab. The rest of the page is empty white.
The Zaptec charger is now added to Reduxi.
6 Check the readings
6.1 Last measurements
Open the charger under Devices in the Reduxi Configurator and check the values as an additional test.
6.2 Enable control by Reduxi
For Dynamic Load Balancing with Reduxi, set the control type of the device to AUTO. Only then do strategy commands affect the charger. Define a strategy as described in Strategies for Reduxi controller.
✓ Summary
Preparation (Points 1–3): Get the Zaptec documents. Install the charger, the Zaptec app, the Reduxi Controller and the P1 Ultra. Swap the charger from 4G to Wi‑Fi.
Zaptec charger (Point 3): Install the Zaptec Go, Go 2 or Pro with the Zaptec installation guide.
Add to Reduxi (Points 4–5): Log in to the Reduxi web interface. Add the device as EV charger. Choose Authorisation flow and All chargers, click Done and grant access in the Zaptec Portal.
Go live (Point 6): Check the last measurements. Set the control type to AUTO. Define a strategy.
→ Common issues
| Issue | Solution |
|---|---|
| Charger is not found in the Zaptec Portal | Enter the serial number from the front cover of the charger or from the Zaptec Portal (see Point 5). |
| Charger stays offline after installation | Swap the connection of the charger from 4G to Wi‑Fi (see Point 3). |
| Controller and charger are on different networks | This works. The Zaptec platform shares the data between them. |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
