How to connect Metron EVSEs with Reduxi controller
Reduxi and Metron EVSEs integration enables DLM, protects installations and optimizes costs under dynamic pricing strategies.
Text description of this image

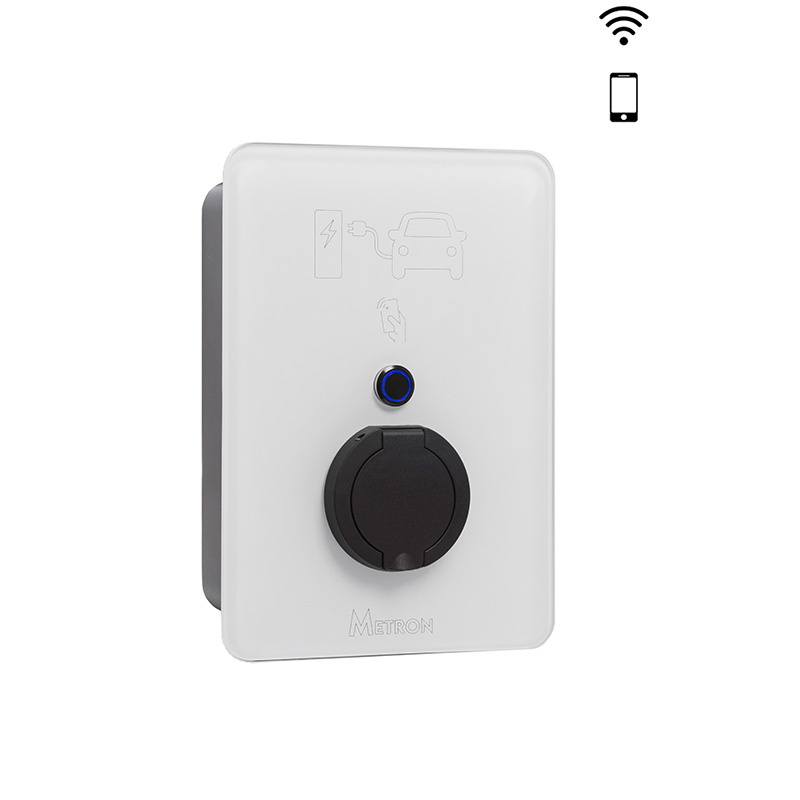

Photo of a white wall-mounted EV charging station with rounded corners, seen from the front at a slight angle. On the front: a faint outline of a battery or charger symbol connected to a car symbol, a faint card or phone tap symbol below it, a small round button with a blue light ring, and a black round socket with a hinged cover. The Metron logo is printed at the bottom. At the top right of the image, outside the device, there is a Wi-Fi symbol above a smartphone symbol.
1 Technical documentation
Manufacturer document for the Metron charger:
- Metron charging station Wi‑Fi quick installation guide (rev. 10) – How to connect the charger to the local network.
2 Required equipment
You need:
- Reduxi Controller
- Metron EVSE with Wi‑Fi or LAN connection
- Smartphone or laptop to open the Metron Charge Control application via the access point of the EVSE
- Local Wi‑Fi or LAN network for the EVSE and the Reduxi Controller
- Laptop or tablet with internet access to configure the device in Reduxi
3 Connect the Metron charger to the local network
The Metron EV charger connects to Wi‑Fi or to a local LAN network.
3.1 Connection to Wi‑Fi or LAN
Follow the quick installation guide: https://eauto.si/metron-shop/wp-content/uploads/Metron-CHARGING-STATION-WiFi-QUICK-INSTALLATION-GUIDE-rev.10.pdf
- LAN: the IP address is defined by DHCP, or you set a static IP manually.
- Wi‑Fi: write the SSID and the password of the Wi‑Fi network to the Metron EVSE.
- LAN always has priority over Wi‑Fi.
Text description of this image
Screenshot of the Metron Charge Control app with speech-bubble notes. Left phone screen titled Charge Control (logo M): OCPP 1.6 connection parameters; OCPP module ENABLED with ON and OFF buttons; Local WiFi network name (ssid) for OCPP connection: ZLAN-04EEE81484E1 (small text); Local WiFi network password for OCPP connection: masked with dots, with an eye icon; OCPP module network connection state: OCPP module is connected to Ethernet and OCPP server; OCPP module local network IP: 192.168.8.234. The Wi-Fi name and password fields are framed in blue. Bubble 1: OCPP module can be enabled or disabled. Bubble 2: Insert WiFi ssid & password in case you want to connect OCPP to the internet via WiFi. The other way to connect it to the internet is via Ethernet port. Inner bubble beside a photo of a grey DIN-rail module: If you connect the Ethernet cable to Ethernet port the OCPP module will connect to the internet via Ethernet as a priority connection. If you disconnect Ethernet cable it will automatically try to connect to the internet via WiFi if ssid & password is provided and WiFi signal is present. Bottom bubble, cut off: Here you get info about OCPP connection – connected to internet via WiFi or.
3.2 Open the Metron Charge Control application
You reach the Metron Charge Control application via the access point of the EVSE. Use it to configure the Metron EVSE.
| Parameter | Value |
|---|---|
| Access point SSID |
METRON Portable 1 or METRON Station 1
|
| Password | 12345678 |
4 OCPP settings in the Metron EVSE
Configure the OCPP settings exactly as shown below. The Metron EVSE is the OCPP client. The Reduxi Controller is the server.
| Parameter | Value |
|---|---|
| Station unique identifier | /ocpp/1.6/json/Station_unique_ID |
| OCPP backend hostname | ws://IP_Reduxi |
| OCPP backend port | 80 |
Text description of this image
Screenshot from a phone app, cropped, showing OCPP settings. Station unique identifier (UUID, ULID, etc) (e.g. Metron007893545687): /ocpp/1.6/json/Station_unique_ID. OCPP backend hostname (e.g. ws://ocpp.server.com for regular connection, wss://ocpp.server.com for secure connection if supported by the OCPP backend): ws://IP_Reduxi. OCPP backend port (e.g. 80 for regular connection, 443 for secure connection if supported by the OCPP backend): 80. OCPP authentication key/password (e.g. m9456345 or leave this field blank if the key/password is not supported by the OCPP backend): empty. Blue button: Confirm OCPP parameters. Short blue lines at the right edge point to the fields.
5 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
6 Add the Metron EVSE to Reduxi
Create the OCPP communication between the Metron EVSE and the Reduxi Controller.
6.1 Basic settings
Log in to the local Reduxi Configurator (see Point 5) and click + Add device.
Text description of this image
Screenshot of the left sidebar of the Reduxi Configurator. Top: reduxi logo with the text CONFIGURATOR. Collapsed sections: Devices (plus icon) and Strategies (plus icon). Below, two buttons side by side: Add device (plus icon, marked with a blue highlight box) and Add strategy (plus icon). Below them two entries: Settings and Profile. The area to the right of the sidebar is empty white.
In the first step, select the basic settings:
- Device type:
EV charger - Type:
OCPP 1.6 - JSON - Name: a name of your choice
Text description of this image
Screenshot of the Reduxi Configurator add-device wizard, step 1 of 3. Progress bar with three steps: 1 Basic settings (active, black circle), 2 Communication channel (grey), 3 Advanced settings (grey). Heading: Basic settings. Fields: Device type * : empty dropdown; Type * : empty dropdown; Name * : empty text field. Buttons: Back (bottom left), Next (bottom right, dark).
6.2 Communication settings
The second step sets the communication channel for OCPP. Copy the Device identifier (Station unique identifier) from the Metron Charge Control application into the first field. With OCPP JSON 1.6 the Reduxi Controller generates the server OCPP URL. You find the URL in the communication channel. Enter it in the Metron EVSE as described in Point 4.
| Parameter | Value |
|---|---|
| Device identifier | Station unique identifier from the Metron Charge Control application. Example: 1234
|
| Server OCPP URL | Generated by the Reduxi Controller. Example: ws://10.150.120/ocpp/1.6/json/
|
Text description of this image
Screenshot of the Reduxi Configurator form Communication channel and device configuration. Device identifier *: 1234. Connector *: 1. Charger type *: AC. Energy counter: Default. Allocate power to EVSE when EV is not connected to EVSE: Default. Per phase max. current *: Auto detect from EVSE. Per phase max. current manual override: 32 (hint: In effect when manual override is selected). Forward communication to backend OCPP server: ws://app.eu.tridenstechnology.com/ev-charge/gw-comm/glcharge. Forward measurements to backend OCPP server once every: 30 seconds. Allow new charging session: Forward to backend OCPP server. Controller OCPP JSON 1.6 URL (read-only, with copy icon): ws://10.150.1.120/ocpp/1.6/json. Buttons: Back, Test communication, Next (dark).
6.3 Test communication
Click Test communication at the lower right, below the communication channel fields. It checks the OCPP communication and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the Reduxi Configurator add-device wizard, step 2 of 3 (Communication channel). Progress bar: 1 Basic settings (black), 2 Communication channel (black, active), 3 Advanced settings (grey). Heading: Communication channel and device configuration. Fields: Device identifier *: my_station_ID1 (text field being edited, green outline); Connector *: 1; Charger type *: AC; Energy counter: Default; Allocate power to EVSE when EV is not connected to EVSE: Default; Per phase max. current *: Manual override; Per phase max. current manual override: 32 (hint below, small); Forward communication to backend OCPP server: empty; Allow new charging session: Always; Controller OCPP JSON 1.6 URL: ws:// address followed by /ocpp/1.6/json. Buttons at the bottom: Back (left), Test communication (marked with a blue box) and Next (right).
The test returns one of two results:
Text description of this image
Screenshot of a dialog titled "Test communication" with a close button (x) at top right, over a dimmed form. Green text: "Successful readout from device". Values: Current L1: 0.0 A; Current L2: 0.0 A; Current L3: 0.0 A; Import active power: 0.0 W; Max. active power: 22080.0 W; Max. current per phase: 32.0 A; Min. active power: 0 W; State name: AVAILABLE. Button at bottom right: Close.
Text description of this image
Screenshot of a dialog titled "Test communication" with a close button (x) at top right, shown over a dimmed page. First box: "Unable to communicate with device." Second box: "Number of devices found on OCPP - JSON 1.6: 0". Button at bottom right: Close.
7 Check the readings
7.1 Last measurements
After communication is established, check the readings of the new device under Devices – Last measurements in the Reduxi Configurator.
Text description of this image
Screenshot of the Reduxi Configurator page "Last measurements" of a DAZE charger (per the existing alt text). Card "Control type": a button group Auto (selected, turquoise), Manual, Off, Boost; timestamp 02. 10. 2024 15:47:17. Card "Current": Current L1 0.00 A; Current L2 0.00 A; Current L3 0.00 A; Max. current per phase 32.00 A; Per phase current setpoint 6.00 A (each with timestamp 02. 10. 2024 15:47:17). Card "Power": Import - active power 0.0 kW; Max. active power 22.1 kW; Min. active power 0.0 kW (timestamp 02. 10. 2024 15:47:17). Card "Energy": Import active energy 5,104.5 kWh (timestamp 02. 10. 2024 15:47:17). Card "Other": Communication error OFF (timestamp 02. 10. 2024 15:47:16); Control type AUTO; Error OFF; State name CABLE_UNPLUGGED... (text cut off with dots); timestamps 02. 10. 2024 15:47:17.
7.2 Enable control by Reduxi
For advanced EVSE control, integrate the device into the Reduxi strategy. Under Devices – Metron EVSE in the Reduxi Configurator, set the control type to AUTO. Only then do strategy commands affect the EVSE.
To achieve maximum flexibility and energy cost reduction with dynamic prices and dynamic tariffs, define a strategy as described in Strategies for Reduxi controller.
After the device is added, you can also monitor and control it in the Reduxi application.
✓ Summary
Preparation (Points 1–2): Open the quick installation guide and collect the equipment.
Metron EVSE (Points 3–4): Connect the EVSE to Wi‑Fi or LAN, then set the OCPP hostname, port and station identifier in the Metron Charge Control application.
Add to Reduxi (Points 5–6): Log in, add an OCPP 1.6 - JSON device with the station identifier as Device identifier, run Test communication and click Done.
Go live (Point 7): Check the last measurements and set the control type to AUTO.
→ Common issues
| Issue | Solution |
|---|---|
| Test communication: no device with OCPP 1.6 communication is found | Check the OCPP settings in the Metron EVSE: hostname, port 80 and station identifier (Point 4). The EVSE and the controller must be in the same network (Point 3). |
| EVSE connects over LAN instead of Wi‑Fi | LAN always has priority over Wi‑Fi (Point 3.1). |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
