Integrate PEGO ECP200 BASE device with Reduxi controller via Modbus RTU, achieving maximal flexibility and possible cost and energy reductions of up to 30%.

1. PEGO ECP200 BASE documentation:

Download documentation can be obtained at the link:

http://www.dayan-rs.com/_Uploads/dbsAttachedFiles/9884.pdf

2. Physical connection between PEGO ECP200 BASE

and Reduxi controller

The physical connection must be established since Modbus RTU is used to access the PEGO ECP200 BASE

Modbus interface.

The image below displays how the physical connection is established between Reduxi and PEGO ECP200 BASE:

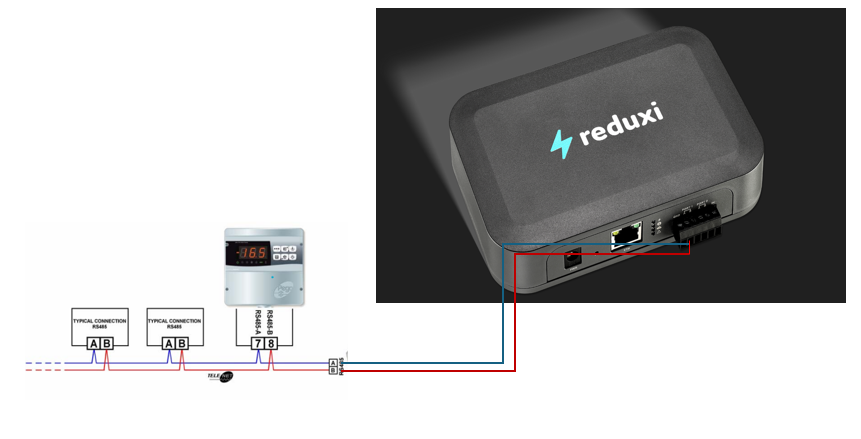

Posnetek zaslona 2025-02-17 155252.png

3. Add PEGO ECP200 BASE to the Reduxi system.

After connecting the Reduxi and the PEGO ECP200 BASE, you can register it as a new device (PEGO ECP200 BASE).

3.1 Add device (PEGO ECP200 BASE)

First, log in to the local Reduxi configurator and add a new device by clicking the 'Add device' button.

4.2 Select PEGO ECP200 BASE

Within the first step, basic settings are defined:

Select Device type: HVAC,
Select Type: PEGO ECP200 BASE,
Name the device.

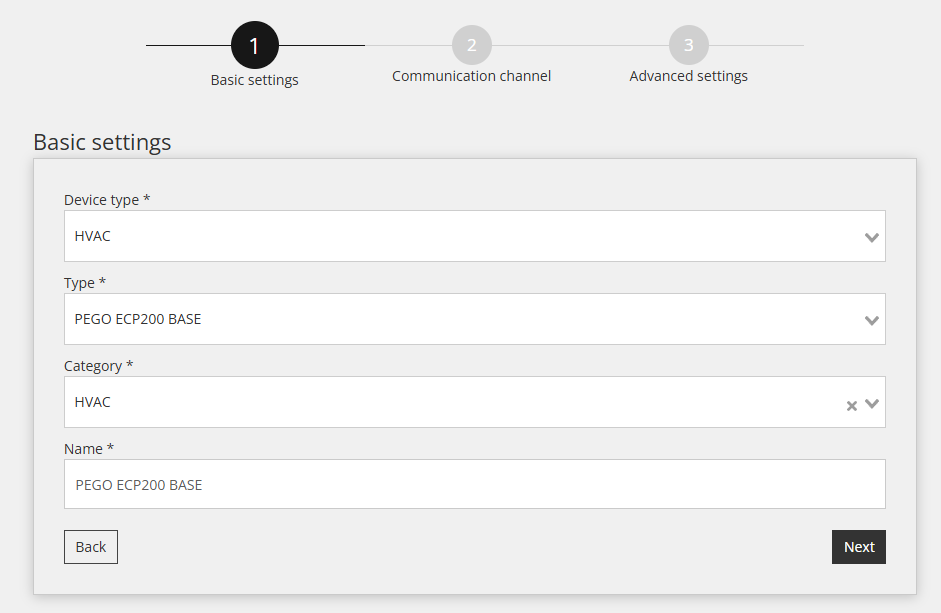

Posnetek zaslona 2025-02-17 155618.png

4.3 Device Configuration for Communication Channel

The second step involves configuring the communication channel, which is essential for proper Modbus RTU communication. In this step, the communication link between the Reduxi controller and the PEGO ECP200 BASE is established.

Settings for the Communication channel are displayed below:

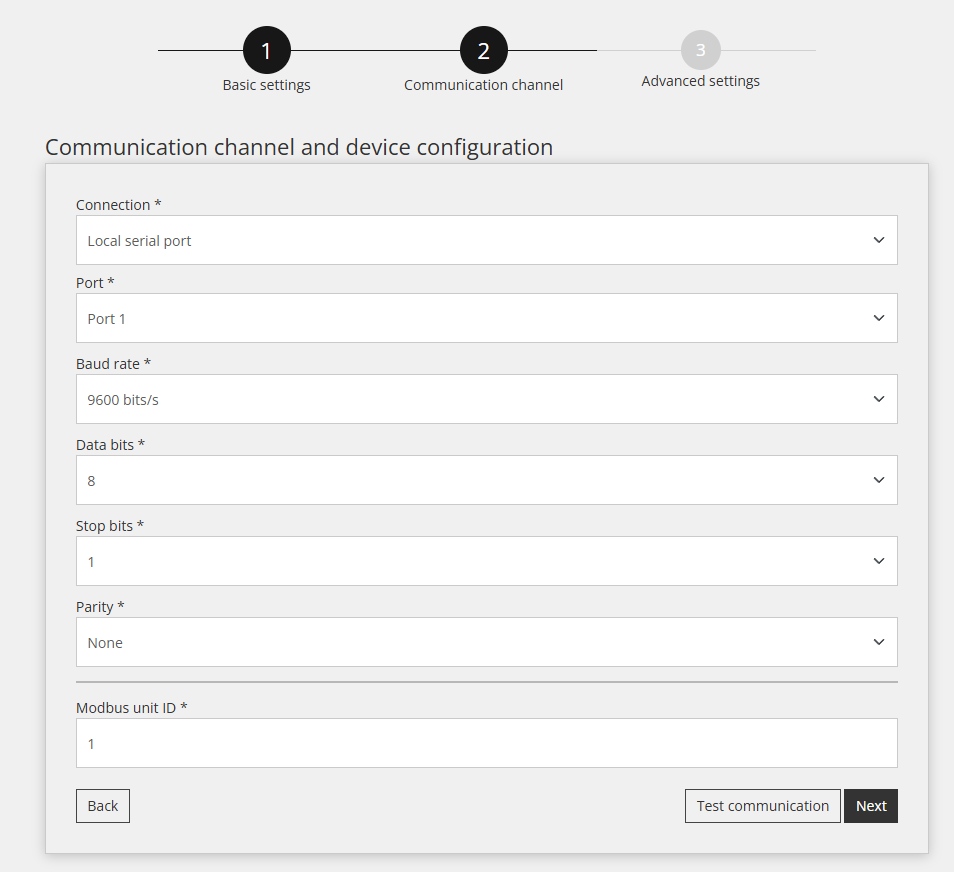

Posnetek zaslona 2025-02-17 155651.png

4.4 Test communication

Below all fields of the Communication channel mentioned in the previous step, there is a "Test Communication" button. This button is used to verify whether the Modbus RTU connection between the devices is functioning correctly.

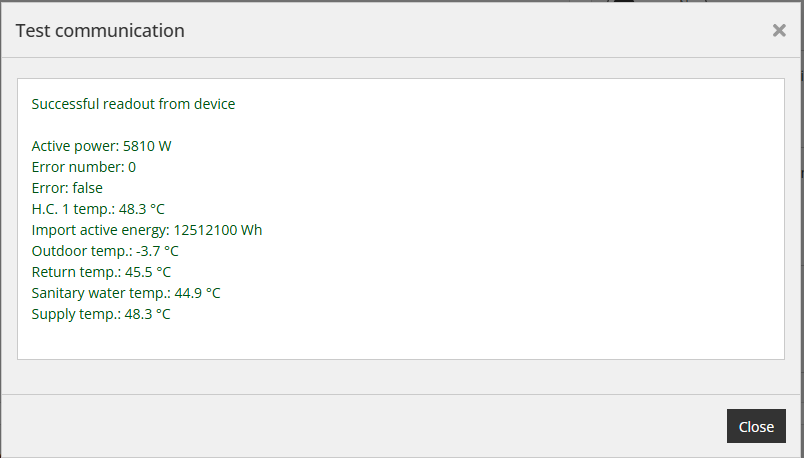

Posnetek zaslona 2025-02-17 155753.png
