How to connect Sigenergy hybrid inverter with Reduxi controller
Integrate the Sigenergy hybrid inverter with the Reduxi Controller via Modbus TCP/IP. This gives you maximum flexibility and cost and energy reductions of up to 30%.
Text description of this image

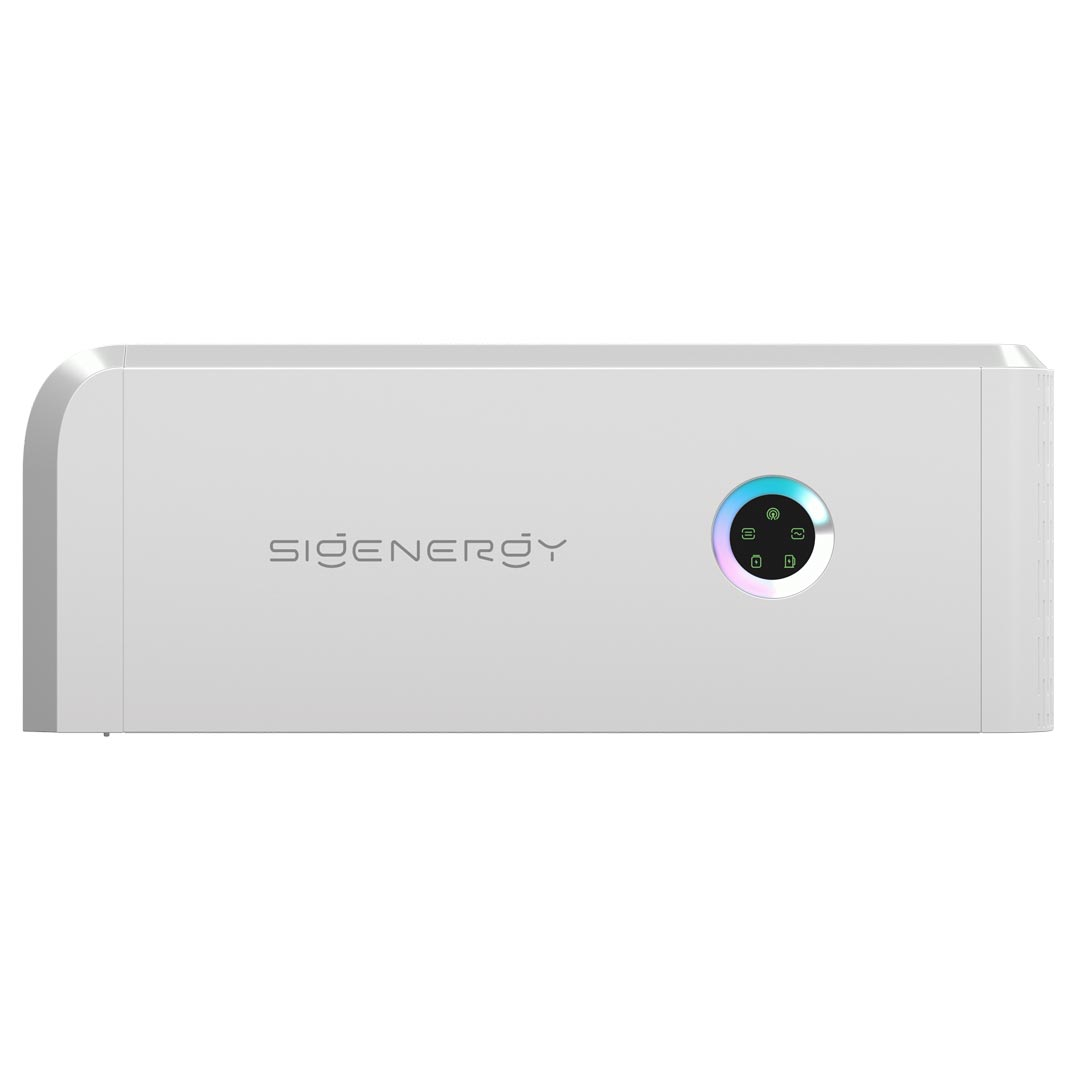

Photo or render of a white wall-mounted hybrid inverter on a white background. The housing is light grey/white with rounded corners at the top left. The word 'SIGENERGY' is printed in grey on the front left. To the right is a round indicator with a multicolour glowing ring (blue to pink) around a black circle with four small green icons (a wifi/signal symbol at the top, and symbols on the left, right, bottom left and bottom right). The lower part of the unit is plain with no other markings.
1 Preparation
1.1 Technical documentation
Use these documents for further information about the settings of the Sigenergy hybrid inverter.
- Sigenergy hybrid inverter documentation – Download of the inverter documentation (April Ice B2B)
- How to enable Modbus TCP/IP – Sigenergy support article
- Sigenergy Modbus Protocol V2.7 – Modbus protocol of Sigenergy, release 2025-05-23
- Video on YouTube – Video linked in the original article
1.2 Required equipment
- Reduxi Controller
- Sigenergy hybrid inverter, connected to the Reduxi Controller
- Smartphone with the mySigen app
- Laptop or tablet with internet access to configure the device in Reduxi
2 Configure the Sigenergy hybrid inverter
2.1 Download the mySigen app
Download the mySigen app:
- Google Play: mySigen on Google Play
- Apple App Store: mySigen on the App Store
2.2 Find the IP address of the inverter
When you have access through the mobile app, change the settings so that the Reduxi Controller can access the hybrid inverter through Modbus TCP/IP. Follow these steps.
Text description of this image
Screenshot of the home page of the mySigen app on a phone, dark theme, tall phone screenshot. Status bar: time 11:51, signal bars, Wi-Fi icon, battery 57. Top: menu icon (left), share icon (right); the system name between them is covered by a black bar. Under it a status pill: 'Normal | On Grid'. Weather: sun behind cloud icon, 7 °C. Top readings: 0 kW and 10.3 kW. A 3D illustration of a house with solar panels on the roof, an AC charger with a car, a white inverter and a battery, with energy flow lines. Labels: SOLAR, HOME, 'Available AC CHARGER'; below the house: 0 kW DC CHARGER; 0 kW · 90.0% SigenStor; 10.3 kW GRID. Row of five buttons: Diagnosis, Notice, Mode, Safety, Charger. Card 'Today': 0.04 kWh Solar Generate. (truncated), € -0.32 Energy Value. Bottom navigation: Home (selected, green), Device, Service, Setting. White home indicator bar at the bottom.
Text description of this image
Screenshot of the Settings page in the mySigen app on a phone, dark theme, tall phone screenshot. Status bar: time 11:49, signal bars, Wi-Fi icon, battery 58. Top: a row with an 'Ap' avatar tile, the name covered by a black bar, and a chevron. Below, a system card with a '.' menu button, a 3D illustration of a house with solar panels, a white inverter and a charger, and a text block covered by a black bar. Four quick-setting items: Operational Mode, Backup Reserve, Utility Rate Plan, Charging Setting. Card 'Settings & Tools' with rows, each with a chevron: About, App Setting, Network Configure, Device Configure. Bottom navigation: Home, Device, Service, Setting; the Setting item (green) is marked with a blue rectangle. White home indicator bar at the bottom.
Text description of this image
Screenshot of the System Settings screen in the mySigen app on a phone, dark theme, tall phone screenshot. Status bar: time 11:49, signal bars, Wi-Fi icon, battery 58. Header: back arrow and title 'System Settings'. A system card shows a 3D illustration of a house with solar panels, an inverter and a charger, with a green pencil (edit) icon; the system name and details below it are covered by a black bar. Section 'Basic Info': System ID: value covered; Country/Region: value covered; Time Zone: (UTC+01:00)Belgrade; Grid Connection Date: 2024-05-17; Total Panel Capacity: 3.44 kWp; Battery Capacity: 24.18 kWh. Section 'More Settings' with rows, each with a chevron: Connectivity (value Ethernet), Backup Event Center, Lighting Language, Advanced Settings, Software Update, System Share. The Connectivity row is marked with a blue rectangle (the rectangle starts at the 'More Settings' heading). White home indicator bar at the bottom.
Text description of this image
Screenshot of the Connectivity screen in the mySigen app on a phone, dark theme, tall phone screenshot. Status bar: time 11:50, signal bars, Wi-Fi icon, battery 58. Header: back arrow and title 'Connectivity'. Toggle with two tabs: System (selected) and Device (not selected); the Device tab is marked with a blue rectangle and a blue arrow pointing down at it. Below, in a dashed frame: an icon of a stacked device (battery/inverter), a green check mark, and a network plug icon connected by lines, with the text 'SigenStor is connected to the Network'. Below it a card with three rows, each with a chevron: Ethernet (plug icon crossed out), WLAN (Wi-Fi icon with x), Cellular (signal icon with x). The rest of the screen is empty dark background with a white home indicator bar at the bottom.
Text description of this image
Screenshot of a phone screen in the mySigen app, dark theme, tall phone screenshot. Status bar: time 11:50, signal bars, Wi-Fi icon, battery 58. Header: back arrow and title 'Connectivity'. Toggle with two tabs: System and Device (Device selected). Below is a device card titled 'SigenStor' with a small picture of a white device, a green status dot and the status 'Normal'; the device name/serial line under the title is covered by a black bar. The card lists three rows, each with a chevron: Ethernet (green plug icon), WLAN (grey Wi-Fi icon with x), Cellular (grey signal icon with x). The Ethernet row is marked with a blue oval outline. The rest of the screen below the card is empty dark background, with a white home indicator bar at the bottom.
Text description of this image
Screenshot of the Ethernet screen in the mySigen app on a phone, dark theme, tall phone screenshot. Status bar: time 11:50, signal bars, Wi-Fi icon, battery 58. Header: back arrow, title 'Ethernet', 'Save' (green, top right). Fields: MAC Address: value covered by a black bar. Card 'Ethernet' with status 'Connected' (green). Primary DNS: 8.8.8.8 (greyed out); Secondary DNS: 208.67.222.222. Toggle 'Obtain IP address automatically': on (green). Greyed fields: IP Address: 172.16.40.228, marked with a blue rectangle; Gateway: 172.16.40.1; Subnet Mask: 255.255.255.0. Below is empty dark background with a white home indicator bar.
2.3 Enable Modbus TCP/IP
For instructions on how to enable Modbus TCP/IP on the inverter, see the Sigenergy support article.
2.4 Set the discharge cut-off and the backup reserve
Text description of this image
Screenshot of the 'System Settings' screen in the mySigen app on a phone, dark theme. Status bar: time 6:51, 5G signal, battery 65. Header: back arrow, title 'System Settings', 'Save' (green). At the top a toggle row is cut off (text ending 'nable'). Section 'Charge & Discharge' with fields: Charge Cut-Off SOC (%): 100.0; Discharge Cut-Off SOC (%): 10.0; Backup Reserve (%): 90.0. A red hand-drawn oval circles the Discharge Cut-Off SOC (%) and Backup Reserve (%) fields.
3 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
4 Add the Sigenergy hybrid inverter to Reduxi
After you connect the Reduxi Controller and the Sigenergy hybrid inverter, register the inverter as a new device.
4.1 Basic settings
Log in locally to the Reduxi Configurator on the controller (see Point 3) and click + Add device.
Text description of this image
Screenshot of the left sidebar of the Reduxi Configurator. Top: reduxi logo with the text CONFIGURATOR. Collapsed sections: Devices (plus icon) and Strategies (plus icon). Below, two buttons side by side: Add device (plus icon, marked with a blue highlight box) and Add strategy (plus icon). Below them two entries: Settings and Profile. The area to the right of the sidebar is empty white.
In the first step (basic settings), select the basic parameters of the device:
- Device type:
Hybrid Inverter - Type:
Sigenergy Hybrid - Name: a name of your choice
4.2 Communication settings
The second step sets up the communication channel between the Reduxi Controller and the Sigenergy hybrid inverter. This step is essential for Modbus TCP/IP communication. The image shows the settings of the communication channel.
Text description of this image
Screenshot of the Reduxi Configurator, step 2 of 2 of the add-device wizard. Progress steps: 1 Basic settings, 2 Communication channel (both filled black circles). Section title: 'Communication channel and device configuration'. Fields: Connection *: TCP/IP (dropdown); IP *: 172.16.40.228; Port *: 502; Modbus unit ID *: 1. Buttons: Back (outlined), Test communication (outlined), Done (dark).
4.3 Test communication
Click Test communication at the bottom of the wizard. It reads the Sigenergy hybrid inverter once and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the bottom button bar of a Reduxi Configurator page. Left: button 'Back'. Right: button 'Test communication' (marked with a cyan box) and dark button 'Done'.
Text description of this image
Screenshot of the Reduxi Configurator page 'Communication channel and device configuration'. Connection *: TCP/IP (dropdown). IP *: 192.168.50.243, with button 'Scan for IP'. Port *: 502, with button 'Test port'. Modbus unit ID *: 1. Buttons at the bottom: Back (left), Test communication and Done (right). The Done button is marked with a cyan box.
4.4 Advanced settings
Use the advanced settings only if the location has special needs. By default, you do not need to change anything.
Text description of this image
Screenshot of the Reduxi Configurator wizard, step 3 Advanced settings. Step indicator: 1 Basic settings, 2 Communication channel, 3 Advanced settings (all black). Heading: Advanced settings. Each question has a toggle, all set to No: Do you want to set data saving interval? No (Default: 1 min); Do you want to set reading delay? No (Default: 1000 ms); Do you want to set writing delay? No (Default: 1000 ms); Do you want to set power generation limits and capabilities? No; Do you want to set power consumption limits and capabilities? No; Do you want to limit communication with the device to read-only? No (Default: No); Do you want to invert direction for energy import and export? No (Default: No). Dropdowns: L1 is connected to main feed: L1; L2 is connected to main feed: L2. Button: Back.
5 Check the readings
5.1 Last measurements
After communication is established, check the readings under Devices – Sigenergy Hybrid Inverter – Last measurement in the Reduxi Configurator.
Text description of this image
Screenshot of the Reduxi Configurator 'Last measurements' page of a device. Tabs: Last measurements (active), Analyze, Archive. Top right: refresh dropdown 'Without refreshing' and a refresh button. Card 'Control type': buttons Auto (light green) and Manual (dark, selected); timestamp 14. 03. 2025 12:49:13. All values below have timestamp 14. 03. 2025 12:49:01 unless noted. Card PV: PV active power -1.0 kW; PV current -1.98 A; PV voltage 327.63 V; PV export active energy 587.0 kWh; PV min. active power -10.0 kW; PV export active power limit: empty (unit kW); enumeration.PV_STATE_NAME: CONNECTED. Card Load: Load active power 0.4 kW; Load import active energy 1,109.2 kWh. Card Battery: Battery active power 0.4 kW; Battery current 1.09 A; Battery voltage 331.60 V; Battery state name CHARGING; Battery state of charge 33.80 %; Battery min. state of charge 0.00 %; Battery max. state of charge 100.00 %; Battery import active energy 765.9 kWh; Battery export active energy 740.8 kWh; Battery min. active power -9.1 kW; Battery max. active power 8.2 kW; Battery active power setpoint 1.0 kW. Card Inverter: Inverter active power -0.4 kW; Inverter max. active power 10.0 kW; Inverter min. active power -10.0 kW; State name RUNNING; Error OFF. Card Grid: Grid frequency 49.990 Hz; Grid active power 0.0 kW; Grid import active power limit: empty (kW); Grid export active power limit: empty (kW); enumeration.GRID_STATE_NAME METER_ONLINE; Grid export active energy 1,588.7 kWh; Grid import active energy 0.0 kWh. Card Other: Battery state of health 100.00 %; Battery temperature 23.10 °C; Model name SigenStorEC100TP; Communication error OFF (timestamp 12:48:56); Control type MANUAL; Mode name setpoint SELF_CONSUMPTION.
5.2 Enable control by Reduxi
For advanced control of the Sigenergy hybrid inverter, integrate the device into the optimization modes of the Reduxi system. Under Devices – Sigenergy Hybrid in the Reduxi Configurator, set the control type to AUTO. Only then do strategy commands affect the battery.
To achieve maximum flexibility and energy cost reduction with dynamic prices and dynamic tariffs, define a strategy as described in Strategies for Reduxi controller.
After you add the device, you can also monitor and control it in the Reduxi application.
✓ Summary
Preparation (Points 1–2): Use the Sigenergy documentation. Install the mySigen app.
Sigenergy inverter (Point 2): Copy the IP address in the mySigen app. Enable Modbus TCP/IP. Set Discharge Cut-Off SOC and Backup Reserve as shown.
Add to Reduxi (Points 3–4): Log in to the Reduxi web interface. Add the device with type Sigenergy Hybrid, paste the IP address and run Test communication.
Go live (Point 5): Check the last measurements. Set the control type to AUTO and define a strategy.
→ Common issues
| Issue | Solution |
|---|---|
| Test communication fails | Check that the IP address from the mySigen app is entered correctly. Check that Modbus TCP/IP is enabled on the inverter. |
| Unexpected battery behaviour | Check that Discharge Cut-Off SOC (%) and Backup Reserve (%) are set to the values shown in Point 2.4. |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
