How to connect KSTAR hybrid inverter with Reduxi controller
Integrate the KSTAR hybrid inverter with the Reduxi Controller via Modbus TCP/IP. This gives you maximum flexibility and cost and energy reductions of up to 30%.
Text description of this image

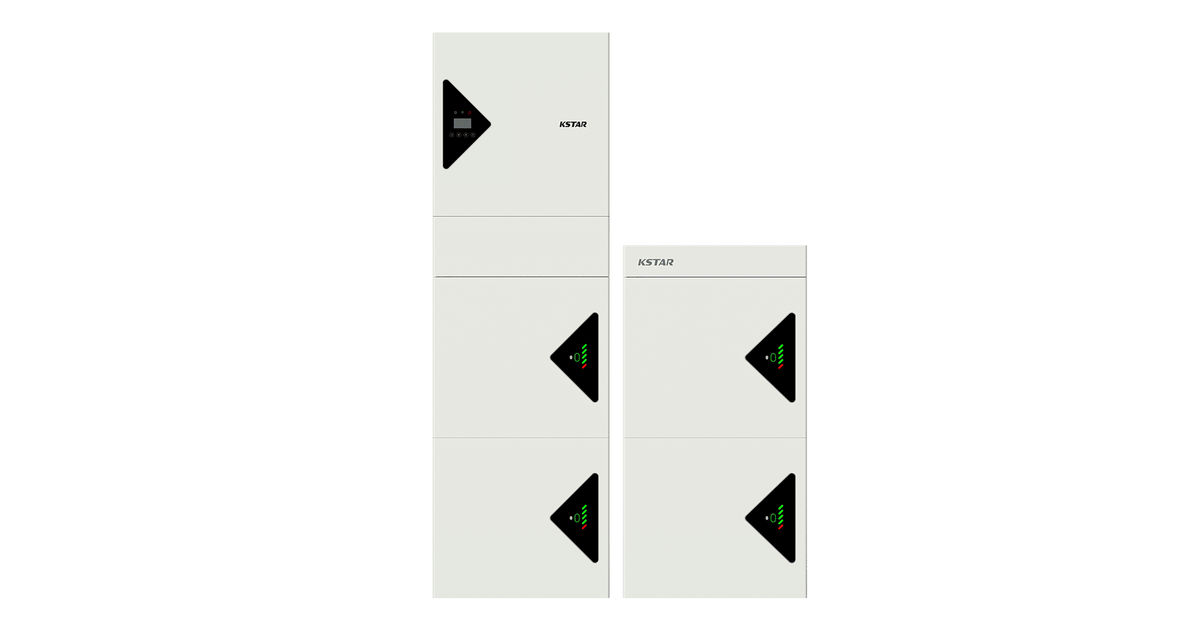

Product image of two KSTAR hybrid inverter stacks on a white background, shown from the front. Both are light grey/white tower units made of stacked modules. Left stack: a top module with a black triangular panel on its left side that holds a small display and a row of small buttons, and the text 'KSTAR' on the right; below it two modules, each with a black triangular indicator panel showing a battery icon with green and red level bars. Right stack: shorter, with the text 'KSTAR' at the top left and two modules, each with the same black triangular battery indicator panel.
1 Preparation
1.1 Technical documentation
For further information about the settings of the KSTAR hybrid inverter, see the manufacturer manual.
- KSTAR hybrid inverter user manual (E 8-12 KT, EN, V1.0) – Inverter settings, including the HMI
1.2 Required equipment
- Reduxi Controller
- KSTAR hybrid inverter, connected to the Reduxi Controller
- Laptop or tablet with internet access to configure the device in Reduxi
2 Configure the KSTAR hybrid inverter
2.1 Enable Modbus TCP/IP on the inverter
On the HMI of the inverter, enable the Modbus TCP/IP communication settings as shown in the image.
Text description of this image
Diagram with text from the KSTAR inverter documentation about the CYBERSAFETY page. Text: 'On the CYBERSAFETY page, you have two options:' Bullet 1: 'Modbus Write: To enable or disable remote control of the inverter. When this feature is enabled, you can control the inverter on the data-monitoring page.' Bullet 2: 'Upgrade: When this feature is enabled, you can upgrade the firmware of the inverter or the battery packs remotely.' Flow diagram of menu boxes: box '-CYBERSAFETY-' with '-> 1: Modbus Write' and '2: Upgrade'. An arrow labelled 'Modbus Write' leads to box '-Modbus Write-' with '-> 1: DISABLE' and '2: ENABLE'. An arrow labelled 'Upgrade' leads to box '-FW Upgrade-' with '-> 1: DISABLE' and '2: ENABLE'.
2.2 Find the IP address
3 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
4 Add the KSTAR hybrid inverter to Reduxi
After you connect the Reduxi Controller and the KSTAR hybrid inverter, register the inverter as a new device.
4.1 Basic settings
Log in locally to the Reduxi Configurator on the controller (see Point 3) and click + Add device.
Text description of this image
Screenshot of the left sidebar of the Reduxi Configurator. Top: reduxi logo with the text CONFIGURATOR. Collapsed sections: Devices (plus icon) and Strategies (plus icon). Below, two buttons side by side: Add device (plus icon, marked with a blue highlight box) and Add strategy (plus icon). Below them two entries: Settings and Profile. The area to the right of the sidebar is empty white.
In the first step (basic settings), select the basic parameters of the device:
- Device type:
Hybrid Inverter - Type:
KSTAR Hybrid - Name: a name of your choice
Text description of this image
Screenshot of the Reduxi Configurator, step 1 of 3 of the add-device wizard, page title 'Basic settings'. Progress steps: 1 Basic settings (active, black circle), 2 Communication channel, 3 Advanced settings (grey). Fields: Device type *: Hybrid inverter; Type *: KSTAR; Categories *: three tags, Solar power plant, Battery, Grid (each with an x); Name *: KSTAR. Buttons: Back (outlined), Next (dark).
4.2 Communication settings
The second step sets up the communication channel between the Reduxi Controller and the KSTAR hybrid inverter. This step is essential for Modbus TCP/IP communication. The image shows the settings of the communication channel.
Text description of this image
Screenshot of the Reduxi Configurator, step 2 of 3 of the add-device wizard. Progress steps: 1 Basic settings and 2 Communication channel (filled black circles), 3 Advanced settings (grey). Section title: 'Communication channel and device configuration'. Fields: Connection *: TCP/IP (dropdown); IP *: 192.168.2.210; Port *: 2000; Modbus unit ID *: 1. Buttons: Back, Test communication (outlined), Next (dark).
4.3 Test communication
Click Test communication at the bottom of the wizard. It reads the KSTAR hybrid inverter once and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the bottom button bar of a Reduxi Configurator page. Left: button 'Back'. Right: button 'Test communication' (marked with a cyan box) and dark button 'Done'.
Text description of this image
Screenshot of the Reduxi Configurator page 'Communication channel and device configuration'. Connection *: TCP/IP (dropdown). IP *: 192.168.50.243, with button 'Scan for IP'. Port *: 502, with button 'Test port'. Modbus unit ID *: 1. Buttons at the bottom: Back (left), Test communication and Done (right). The Done button is marked with a cyan box.
4.4 Advanced settings
Use the advanced settings only if the location has special needs. By default, you do not need to change anything.
Text description of this image
Screenshot of the Reduxi Configurator wizard, step 3 Advanced settings. Step indicator: 1 Basic settings, 2 Communication channel, 3 Advanced settings (all black). Heading: Advanced settings. Each question has a toggle, all set to No: Do you want to set data saving interval? No (Default: 1 min); Do you want to set reading delay? No (Default: 1000 ms); Do you want to set writing delay? No (Default: 1000 ms); Do you want to set power generation limits and capabilities? No; Do you want to set power consumption limits and capabilities? No; Do you want to limit communication with the device to read-only? No (Default: No); Do you want to invert direction for energy import and export? No (Default: No). Dropdowns: L1 is connected to main feed: L1; L2 is connected to main feed: L2. Button: Back.
5 Check the readings
5.1 Last measurements
After communication is established, check the readings under Devices – KSTAR Hybrid Inverter – Last measurement in the Reduxi Configurator.
Text description of this image
Screenshot of the Reduxi Configurator 'Last measurements' page of a KSTAR hybrid inverter. Control tiles at the top (timestamp 17. 03. 2025 12:27:01): Control type: Auto (dark), Manual (light green, selected); Grid import active power limit: 5.0 kW with minus and plus buttons; Grid export active power limit: 5.0 kW; Battery active power setpoint: 0.0 kW; Mode name setpoint: buttons Max. production, Self consumption (light green, selected), Max. consumption, Peak shaving, Setpoint. Values below have timestamp 17. 03. 2025 12:27:04 unless noted. Card Battery: Active power 0.2 kW; Current 0.00 A; Voltage 517.70 V; State of charge 11.75 %; State STANDBY; State of health 100.0 %; Min. state of charge 10.00 %; Temperature 14.4 °C; Max capacity 102.4 kWh; Max. state of charge 100.00 %; Import active energy 1,678,138.6 kWh; Export active energy 11,936.5 kWh; Min. active power -51.8 kW; Max. active power 51.8 kW; Active power setpoint 0.0 kW. Card PV: Active power 0.0 kW; Current 0.00 A; Voltage 30.17 V; Export active energy 0.0 kWh; Min. active power -50.0 kW; State STANDBY. Card Load: Active power 0.0 kW; Import active energy 0.0 kWh. Card Inverter: Active power 0.0 kW; Max active power 50.0 kW; Min active power -50.0 kW; State STANDBY; Error OFF. Card Grid: Grid frequency 50.010 Hz; Active power 38.6 kW; Import active power limit 5.0 kW; Export active power limit 5.0 kW; Export active energy 4,756.0 kWh; Import active energy 127,712.0 kWh. Card Other: Communication error OFF (12:27:02); Control type MANUAL; Mode name setpoint SELF_CONSUMPTION.
5.2 Enable control by Reduxi
For advanced control, integrate the device into the optimization modes of the Reduxi system. Under Devices – KSTAR Hybrid in the Reduxi Configurator, set the control type to AUTO. Only then do strategy commands affect the battery.
To achieve maximum flexibility and energy cost reduction with dynamic prices and dynamic tariffs, define a strategy as described in Strategies for Reduxi Controller.
After you add the device, you can also monitor and control it in the Reduxi application.
✓ Summary
Preparation (Points 1–2): Use the KSTAR manual. Connect the inverter to the Reduxi Controller.
KSTAR hybrid inverter (Point 2): Enable Modbus TCP/IP on the inverter HMI. Read the IP address from the HMI.
Add to Reduxi (Points 3–4): Log in to the Reduxi web interface. Add the device with type KSTAR Hybrid, enter the IP address and run Test communication.
Go live (Point 5): Check the last measurements. Set the control type to AUTO and define a strategy.
→ Common issues
| Issue | Solution |
|---|---|
| Test communication fails | Check that Modbus TCP/IP is enabled on the inverter HMI. Check that the IP address in the communication settings matches the IP address shown on the HMI. |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
