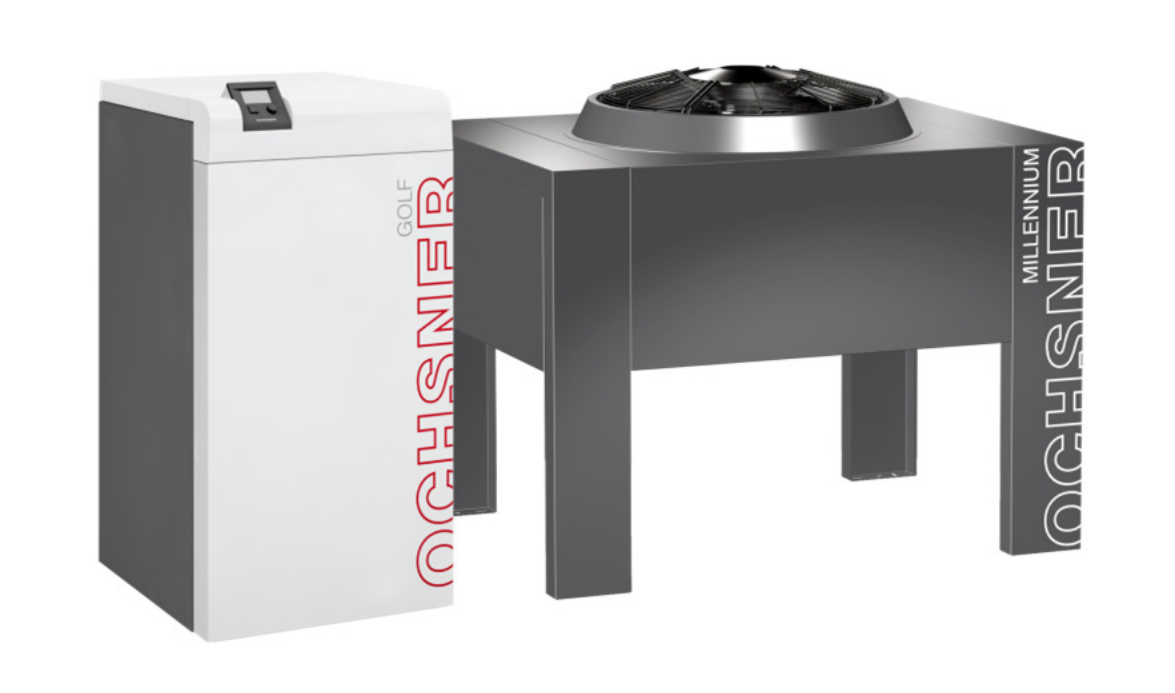

1. Necessary steps to establish communication between the Reduxi controller and the Ochsner GMLW Plus heat pump
1.1 Activation of the SG Ready function on the heat pump
Activation and the necessary firmware update will be performed by an OCHSNER service technician.
To schedule an appointment, please contact OCHSNER customer service:
https://www.ochsner.com/en/contact/
1.2 Required components for connecting the Reduxi controller to the Ochsner GMLW Plus heat pump.
To establish the connection between the Reduxi controller and the Ochsner GMLW Plus heat pump, two
components are needed:
- Reduxi Controller
- Reduxi Gateway device with 3x (30:1A) current sensors (CTs)
The Reduxi Gateway device must be first added (connected) to the Reduxi controller to control/commission the heat pump operation modes. The connection can be established wirelessly (WLAN) or wirely via a UTP cable (LAN). You can find more about the connection at the Gateway to Controller connection. The Reduxi Gateway device also includes 3x(30:1A) current sensors (transformer) used to measure the electrical current (i.e. power) for each phase of the heat pump. Additionally, two relay outputs are used to generate signals for SG-ready contacts, affecting the heat pump operation modes.
2. Connecting a Reduxi controller and Gateway device to the local network
A symbolic picture of the entire connection from the Reduxi controller to the heat pump is displayed below:
For further information on connecting a Reduxi Gateway device, please follow the link: How to configure Reduxi Gatway.
3. Connecting Reduxi gateway device's relay to SG-ready contacts of a heat pump
To physically connect the relays of the Reduxi Gateway device to the SG-ready contacts (called EVU) on the heat pump, it is essential to determine the exact locations of the SG-ready contacts on the heat pump’s circuit board.
The image below shows the locations of the SG-ready contacts on the Ochsner GMLW Plus heat pump's circuit board. The second image displays connections from relays to SG-ready contacts.

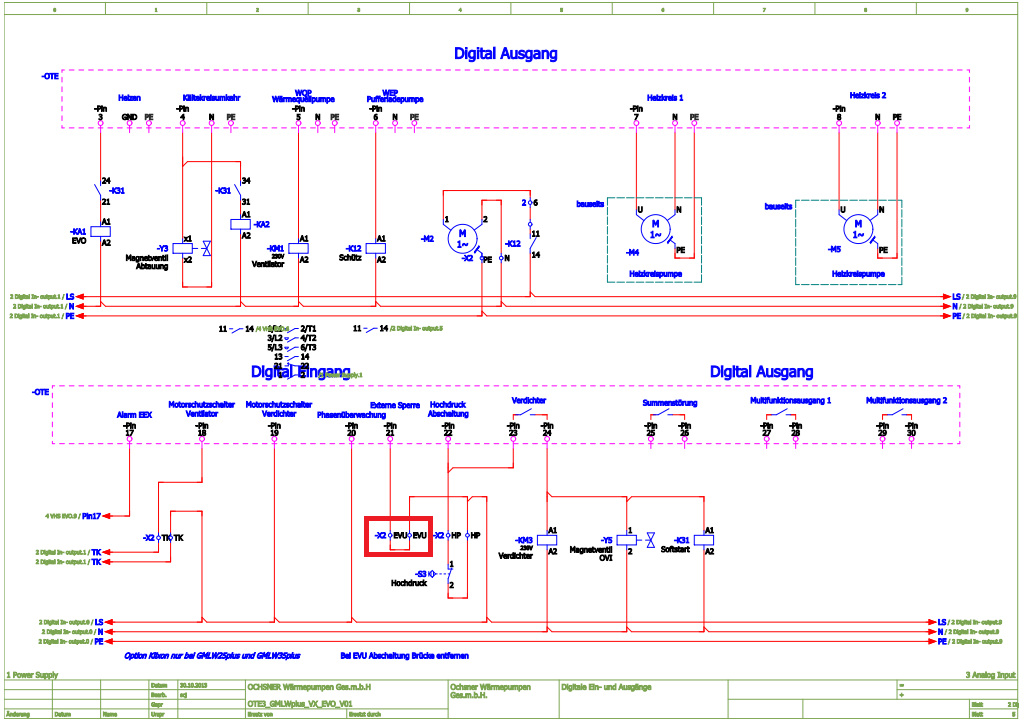

SG-ready (EVU) contacts on the HP circuit board:
It is important that you remove the cable bridge between the SG-ready (EVU) contacts!
Connection from Reduxi gateway device to SG-ready contacts on HP:

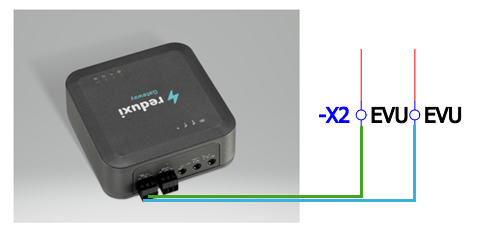

NC contact of the first relay of the Reduxi gateway device --> to contact 1 on connector X2; Blue wire
COM contact of the first relay of the Reduxi gateway device --> to contact 2 on connector X2; Green wire
Please note: The Reduxi Gateway device allows to use of relay outputs ass permanently closed, "Normally Closed - NC" or opened "Normally Opened - NO".
4. Reduxi Gateway device as a meter with current sensors
The current sensors (CTs) included in the Reduxi Gateway kit must be connected to three inputs, one for each phase, as illustrated in the image below.
The current sensor covers the individual phase wire (L1, L2, L3) of the heat pump, picture below:
5. Adding the heat pump as a new device in the Reduxi configurator
To add a new heat pump as a device or to edit an existing one, please follow these steps, detailed in individual points below.
5.1 Adding a device
Log in locally to the Reduxi configurator application on the controller and press the Add device button.
5.2 Select the device you would like to add
In the first step (basic settings), select the basic parameters of the device you want to add:
- Device type: HVAC,
- Type: Reduxi Meter
- Name: Specify the name of the device, for example: Ochsner GMLW Plus
5.3 Communication channel
The first part of the communication channel setup is designed for connecting between the Reduxi Gateway device and the Reduxi controller. Complete the fields as displayed in the image below (automatically populated).
The second part of the communication channel is intended for the current sensor settings of the Reduxi Gateway device, where we choose "Auto detect from gateway" for all current sensors.
The third part of the communication channel is dedicated to the definition of signals from the relays of the Redux gateway device.
Tabel for operation modes:
note NO stands for normally opened :
| ON | OFF |
| Relay 1 = NC | Relay 1 = NO |
ON mode (Normal operation), the first relay is closed (NC).
OFF mode (HP stop), the first relay is opened (NO)

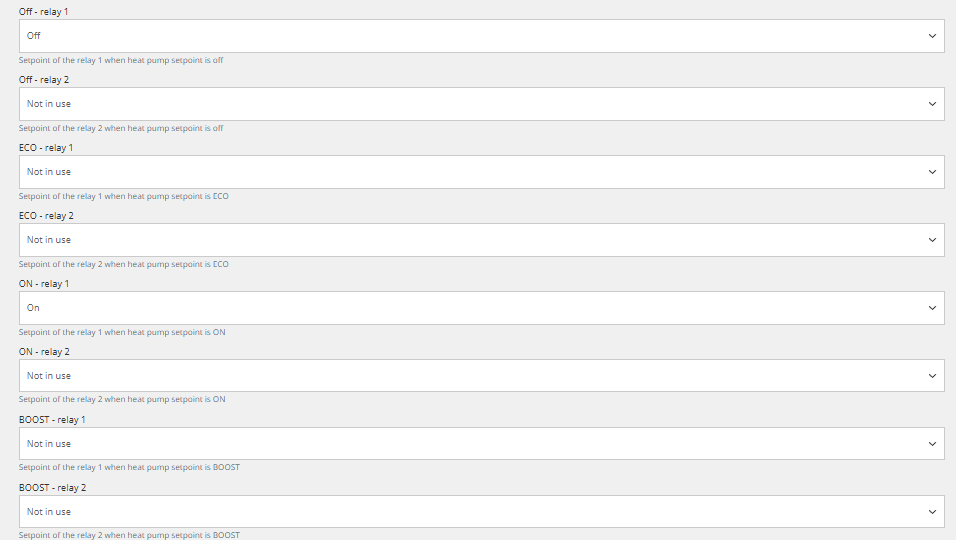

Complete configuration of the Relays signals in Reduxi configuration:
5.5 Communication test
The communication test is carried out with the help of the "Test communication" button, located on the lower right side after all the parameters fields of the communication channel.
The communication test can return two answers:
1. Communication is working properly, picture below:
2. Communication is not working properly, the picture below:
5.6 Advanced Settings
The advanced setting is arbitrary and depends on the specific needs of the location where the Reduxi controller is installed. After finishing all the advanced settings, press the "Done" button on the lower right side.
5.7 Last measurements
After successfully establishing communication with the newly added device, its values can be checked under Devices - Ochsner GLMW Plus heat pump in the Reduxi configurator as an additional test.
For advanced heat pump control, integrate the device into the Reduxi system strategy. Under Devices - Ochsner GLMW Plus in the Reduxi configurator, the control type must be set to AUTO so commands for strategy will affect the heat pump.
To achieve maximal flexibility and energy cost reduction with respect to dynamic price and dynamic tariffs please follow the instructions on how to define strategy at this link: Strategies for Reduxi controller.
After successfully adding the device and checking the values, the device can be inspected and controlled also via the Reduxi application.
