1. Connect the Reduxi Controller with Nemo 96 HDLe
1.1 Required components for connecting the Reduxi controller to the Nemo Power Analyzer 96 HDLe
To establish the connection between the Reduxi controller and the Nemo Power Analyzer 96 HDLE following components are needed:
- Nemo 96 HDLE Power Analyzer
- Modbus RS485 Connection Cable
1.2 Connection between the Reduxi Controller and the Power Analyzer

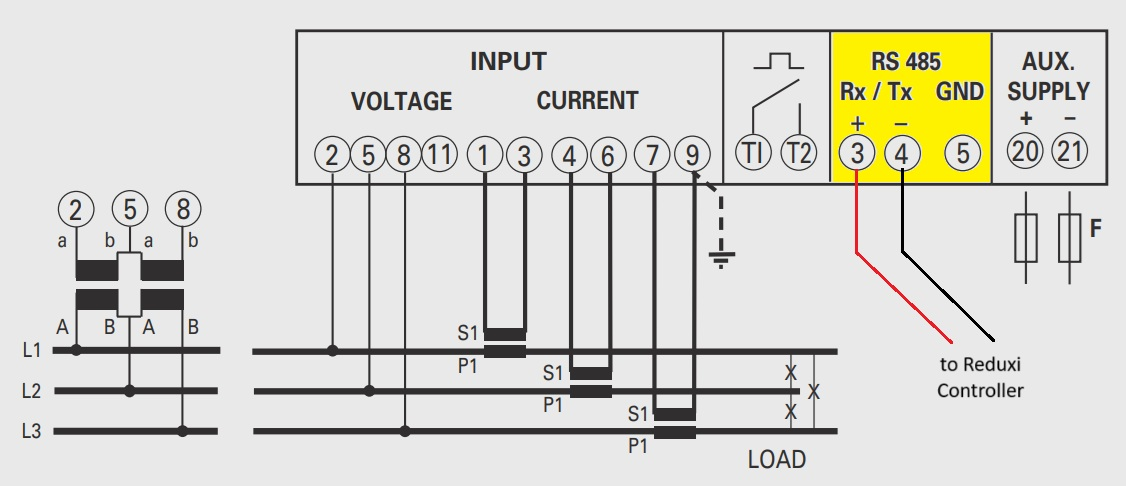

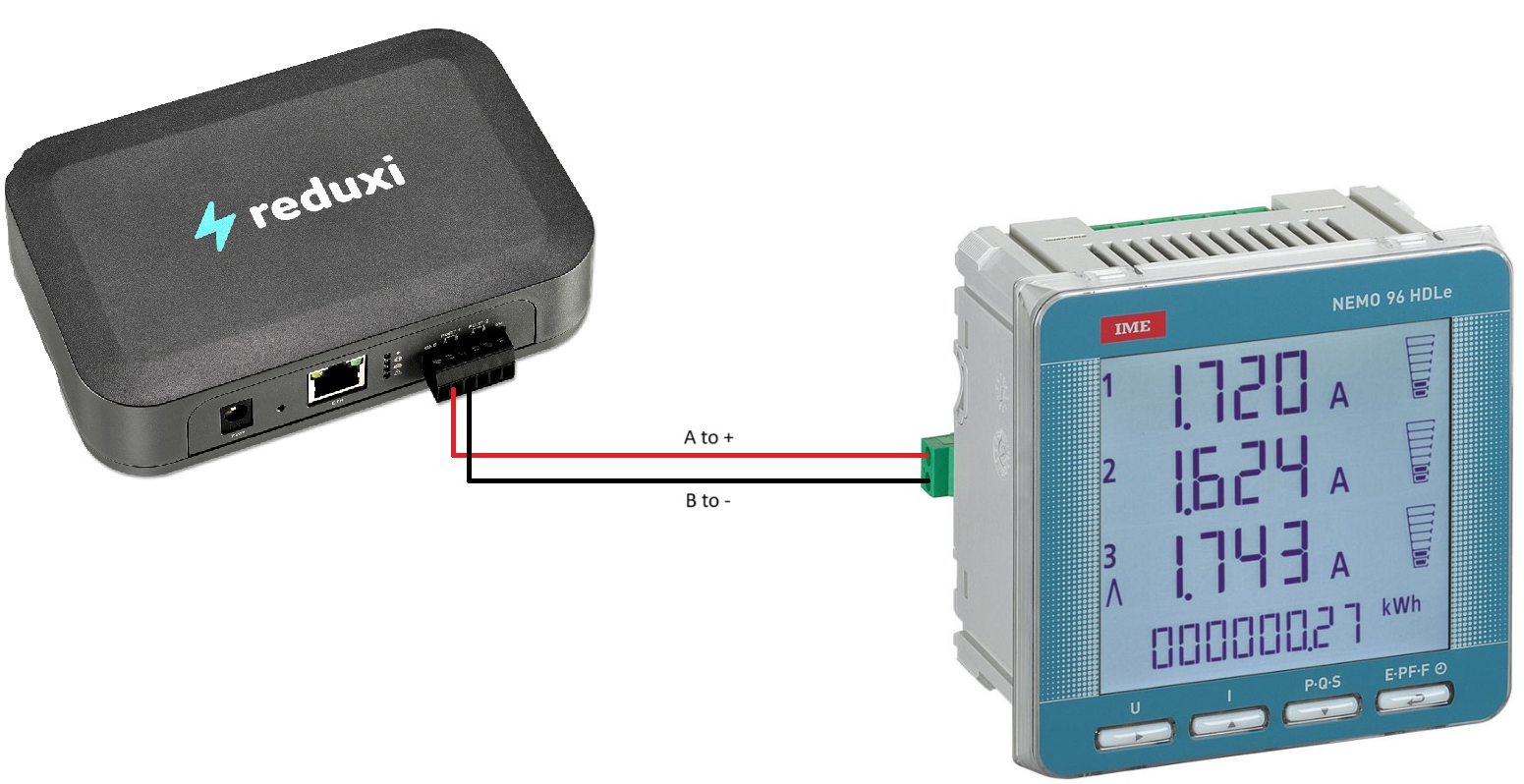

The following image shows a schematic diagram of the connection between the Reduxi Controller and the Nemo Power Analyzer. Route the Modbus connection from the terminals on the Reduxi controller (Port 1 - A + B) to the port on the Nemo 96 HDLe (RS 485 + and -). Connect port A to + and port B to - :

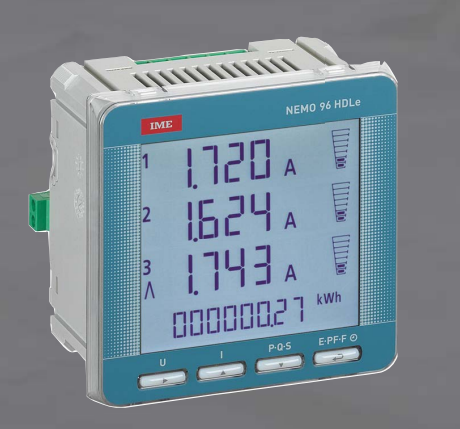

The next image shows the connection point on the Nemo 96 HDLe:
For further information about the device or how it works, please visit the manufacturer's homepage https://www.nhp.com.au/public/assets/pim/Original/10043/IME-Nemo-96-HD-Le-User-Manual.pdf
2. Add the device to Reduxi Configurator
First, you can log in to Reduxi Configurator using Reduxi Configurator via the browser.
2.1 Click Add Device

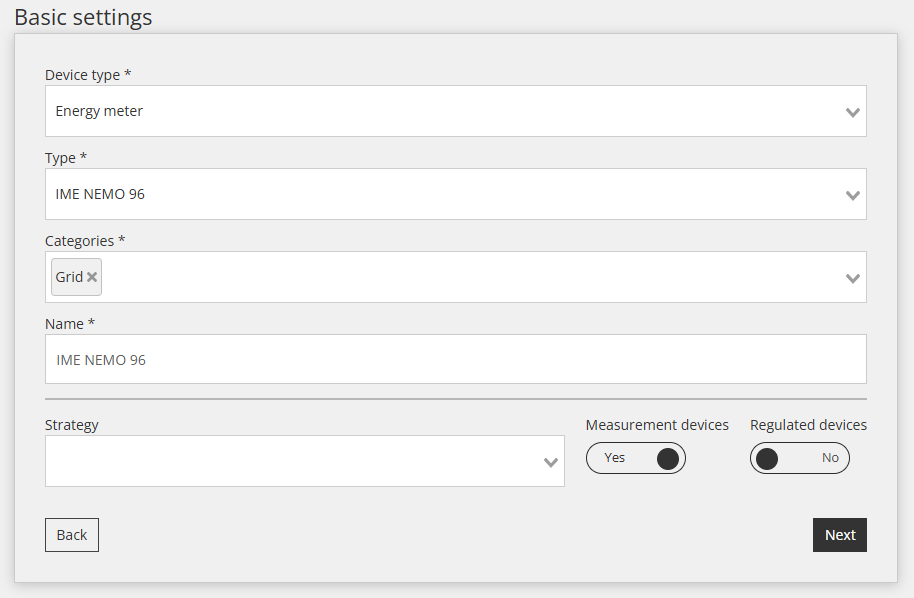

2.2 Enter Basic Settings
You can choose the name of the device yourself.

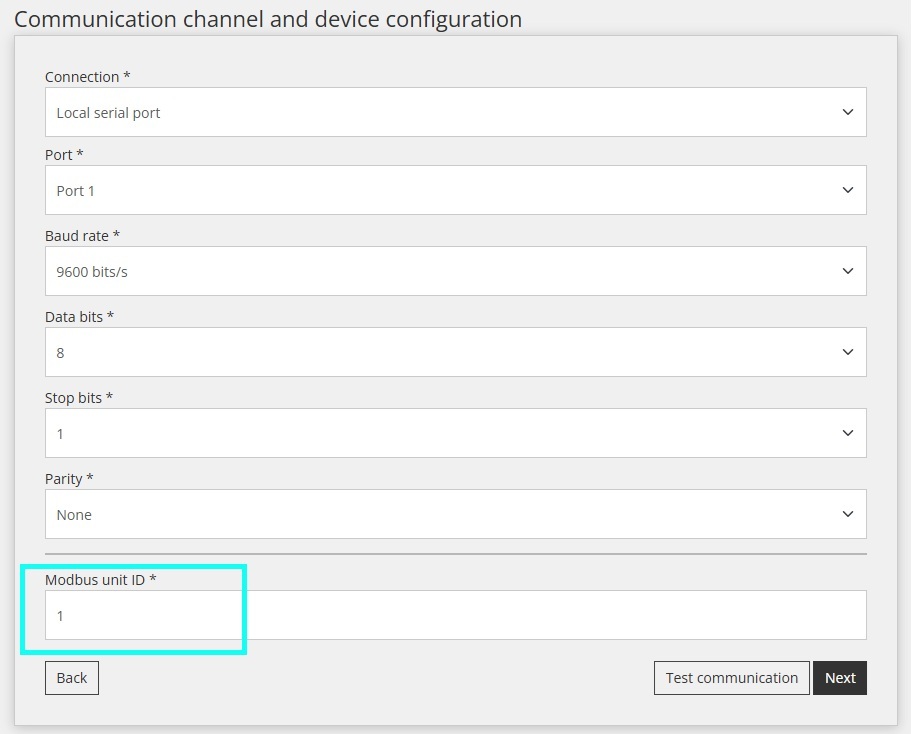

2.3 Select Communication Channel and Enter the Device Configuration.
We recommend testing the communication afterward.
There are two possible outcomes:

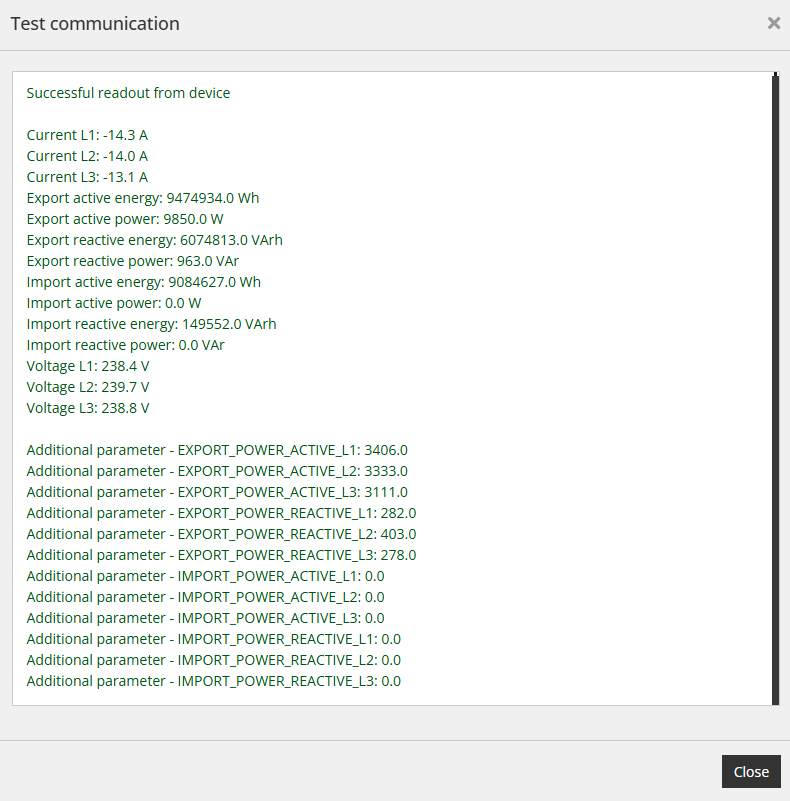

2.3.1 Success - nothing more needs to be done here

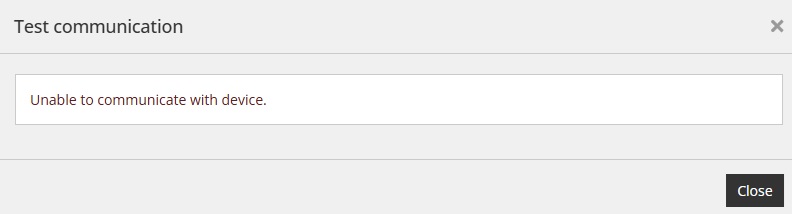

2.3.2 Failure - please check your input and try again.

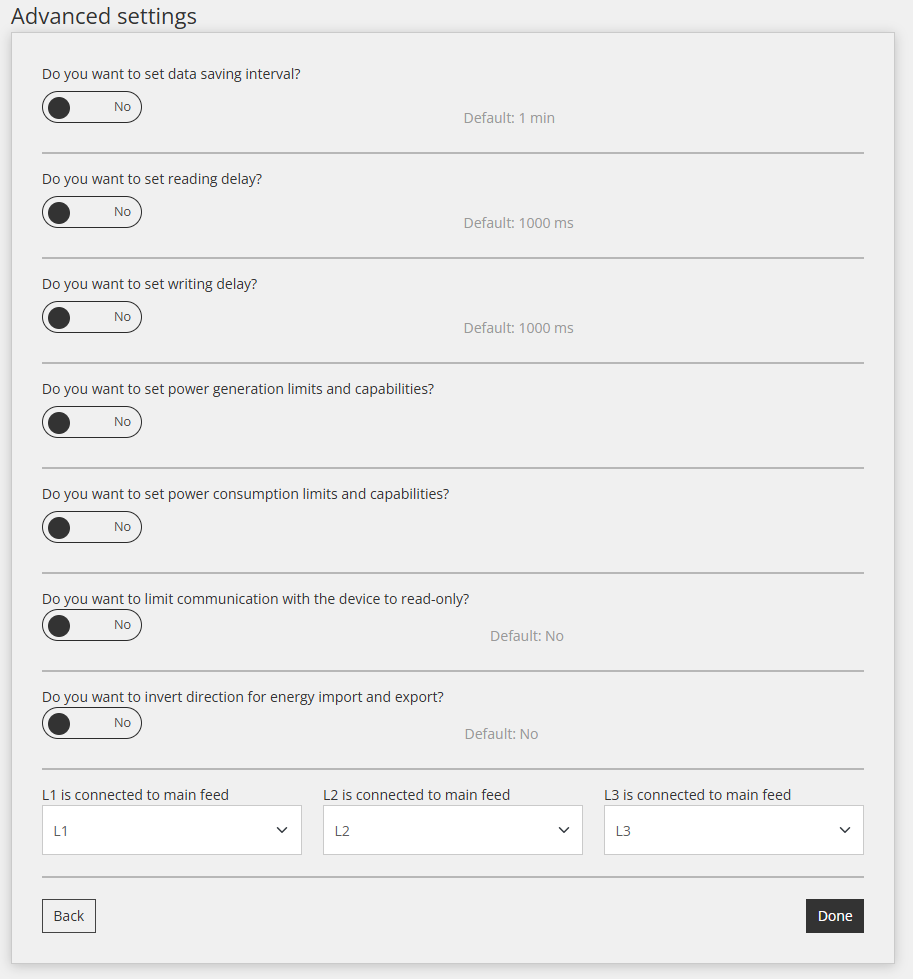

2.4 Enter Advanced Configuration (optional)
After finishing all the settings, press the "Done" button on the lower right side.
