How to connect ChargeAmps chargers with Reduxi controller
Connect your Charge Amps charger (Halo, Luna, …) to the Reduxi Controller via Wi‑Fi and OCPP.
Text description of this image

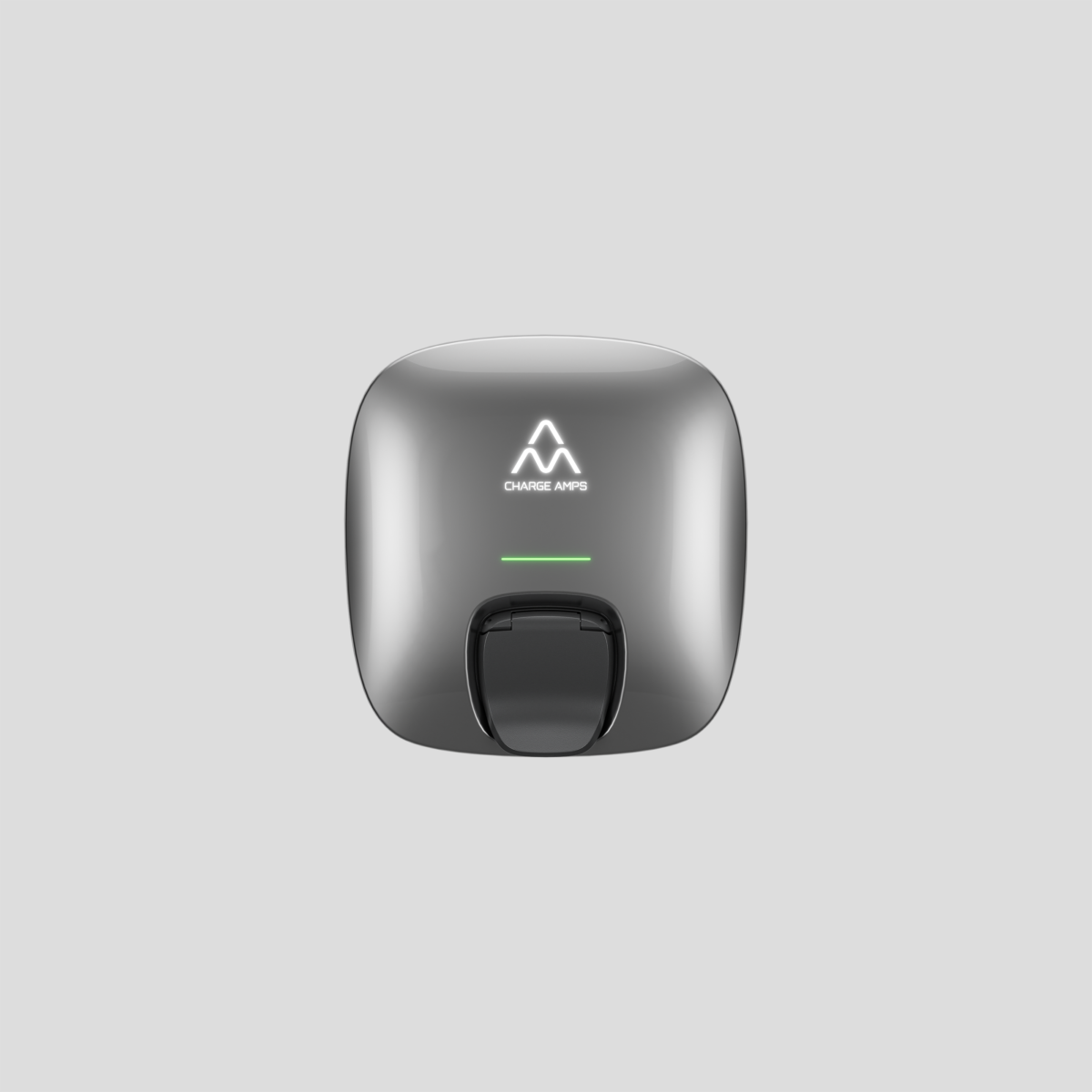

Product photo of the Charge Amps Luna EV charger on a light grey background: a rounded square wall box in dark grey metallic finish. The CHARGE AMPS logo (white mountain-like symbol with text) is on the upper front, a thin green light line sits below it, and a black cable holder or socket recess is at the lower centre.
1 Technical documentation
Manufacturer documents for the Charge Amps charger:
- Charge Amps Luna Installation Manual – Installation manual of the Luna charger (English).
- Charge Amps Halo product page – Specifications of the Halo charger.
- Video: how to connect the charger in the Installer app – Charge Amps video guide, see Point 6.
2 Required equipment
You need:
- Reduxi Controller
- Charge Amps charger (Halo, Luna, …) with Wi‑Fi and OCPP
- Serial number of the charger (used as Device identifier)
- Smartphone with the Charge Amps Installer app (Android or iOS)
- Wi‑Fi network that both the Reduxi Controller and the charger can join
- Laptop or tablet with internet access to configure the device in Reduxi
3 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
4 Set a static IP for the Reduxi Controller
The charger connects to the controller by IP address. A fixed address keeps this connection stable.
4.1 Open the network settings
In the Reduxi Configurator (see Point 3) select Settings – Network.
Text description of this image
Screenshot of the Reduxi web interface in a phone browser (status bar time 22:32, address bar 192.168.1.50 with a warning triangle). Left icon bar: lightning logo, device icon (selected), lightning icon, chart icon. Header: Home, green status Connected, time 22:32:26. A small energy flow diagram shows a grid icon and a PV icon with the value 6.800 kW. Menu Settings (expanded, minus sign) with entries Grid and Network; the Network entry is marked with a thick blue frame.
4.2 Enter the static IP
Select Static IP. Enter the static IP data for the communication module that is connected to your LAN (WAN, LAN or Wi‑Fi). Select Save.
Text description of this image
Screenshot of the network Settings page in the Reduxi web interface on a phone (status bar time 22:37). Left icon bar: lightning bolt logo, device/chip icon, lightning icon, chart icon, gear icon (selected). Page title: Settings. Tabs: WAN (with a green dot), LAN, Wi-Fi, Mobile, DNS server, Proxy server, Network redundancy. Fields: Type: STATIC (dropdown); IP: 192.168.1.50; Netmask: 255.255.255.0; Gateway: 192.168.1.1 (with info icon); Network isolation (with info icon): toggle showing Yes. Button: Save.
5 Add the charger to Reduxi
Create the OCPP communication between the charger and the Reduxi Controller.
5.1 Basic settings
Click + Add device.
Text description of this image
Screenshot of the top of the Reduxi Configurator left menu. Logo: reduxi Configurator. Devices (expanded, minus sign) lists one entry, Energy Meter (grid icon), followed by the button + Add device, which is highlighted with a thick blue frame. Below: Strategies (+), Utility Rate Plan, Settings (+).
Enter the basic settings:
- Device type:
EV charger - Type:
OCPP 1.6 - JSON - Name: a name of your choice
Text description of this image
Screenshot of the Reduxi web interface, page Device, step 1 Basic settings. Top right: green status Connected. Left icon bar with lightning logo, device icon (selected), lightning icon, chart icon, gear icon. Step indicator: 1 Basic settings (active), 2 Communication channel (greyed). Heading: Basic settings. Fields: Device type *: EV charger; Type *: OCPP 1.6 - JSON; Name *: Chargeamps Halo. Buttons: Back, Next (teal).
5.2 Communication settings
Configure the communication channel for OCPP:
| Parameter | Value |
|---|---|
| Device identifier | Serial number of the charger |
| Controller OCPP JSON 1.6 URL | Shown at the bottom of the configuration page. Example: ws://192.168.1.97/ocpp/1.6/json
|
Text description of this image
Screenshot of the Reduxi web interface on a narrow screen, page Device, step 2 Communication channel. Top right: green status Connected. Left icon bar: lightning logo, device icon (selected), lightning icon, chart icon, gear icon. Step indicator: 1 Basic settings, 2 Communication channel (active). Heading: Communication channel and device configuration. Grey note: There are no available connections. Fields: Device identifier *: 2104031222T; Connector *: 1; Charger type *: AC; Energy counter: Default; Allocate power to EVSE when EV is not connected to EVSE: Default; Per phase max. current *: Auto detect from EVSE; Per phase max. current manual override: 16 (hint: In effect when manual override is selected); Forward communication to backend OCPP server: wss://ocpp.charge.space/ocpp; Override authentication username for backend OCPP server: empty; Override authentication password for backend OCPP server: empty; Forward measurements to backend OCPP server once every: 1 second; Allow new charging session: Always; Controller OCPP JSON 1.6 URL: ws://192.168.1.97/ocpp/1.6/json (read-only field, highlighted, with a copy button). Buttons: Back, Done.
You need the Controller OCPP JSON 1.6 URL in Point 6.
6 Configure OCPP in the Charge Amps Installer app
Paste the OCPP URL of the Reduxi Controller into the CPMS Connection menu of the app.
6.1 Install the Charge Amps Installer app
Text description of this image
App icon of the Charge Amps Installer app: a rounded black square with a white symbol (two stacked mountain-like peaks) above the white text CHARGE AMPS.
Google Play: https://play.google.com/store/apps/details?id=com.chargeamps.installer&hl=en_US
Apple App Store: https://apps.apple.com/de/app/charge-amps-installer/id6446256364
6.2 Connect to the Charge Amps charger
Video: https://www.youtube.com/watch?v=wQN1QZn6INY
6.3 Connect the charger to the same Wi‑Fi network as the Reduxi Controller
The Reduxi Controller and the charger must be in the same Wi‑Fi network. In the app open the Internet menu, select the Wi‑Fi network and connect the charger with the credentials of that network.
6.4 Enter the OCPP URL
Text description of this image
Screenshot of the Charge Amps Installer app on a phone (status bar time 22:59), dark theme, screen SETTINGS with tabs General and Advanced (Advanced selected). Device: Charge Amps Luna, serial LUNA-020100003. Section CPMS CONNECTION: ws://192.168.1.50/ocpp/1.6/json with link Edit; green dot with status Connected. Section CHARGE POINT ID: 0201000039. Section CHARGER CONFIGURATION with link Edit: Maximum current: 16 A; Installation phase(s): 3; Installation phase order: RST; Fallback current: 10 A. Button: Complete configuration.
ws://192.168.1.97/ocpp/1.6/json. Click Connect.Text description of this image
Screenshot of the Charge Amps Installer app on a phone (status bar time 22:58), dark theme, screen CPMS CONNECTION. Text: Enter the credentials to connect to the Charge Point Management System (CPMS). Fields: OCPP server URL: ws://192.168.1.50/ocpp/1.6/json with link Reset and a help icon; example text: Example: wss://server.com/ocpp; Charge Point ID: 0201000039, with a help icon; Authorization Password: empty, with a help icon. Button: Connect (white).
Text description of this image
Screenshot of a wide white rounded button with dark text Complete configuration on a black background, from the Charge Amps Installer app.
Text description of this image
Screenshot of a wide button with white text I understand on a black background, white rounded outline, from the Charge Amps Installer app.
7 Test communication in Reduxi
Go back to the Reduxi Configurator and the settings of the new device. Click Test communication at the lower right. The test reads the charger once and saves nothing. If the test succeeds, click Done: only Done creates the device.
The test returns one of three results:
Text description of this image
Screenshot of a dialog titled Test communication in the Reduxi web interface, showing a successful test. Text in green: Successful readout from device. Values: Current L1: 0.0 A; Current L2: 0.0 A; Current L3: 0.0 A; Import active power: 0.0 W; Max. active power: 22080.0 W; Max. current per phase: 32.0 A; Min. active power: 0 W; State name: AVAILABLE null. Button: Close. Close cross at top right.
Text description of this image
Screenshot of a dialog titled Test communication in the Reduxi web interface, showing a failed test. First box (red-brown text): Unable to communicate with device. Second box: Number of devices found on OCPP - JSON 1.6: 1; Device identifier: my_station_ID1. Button: Close. Close cross at top right.
Text description of this image
Screenshot of a dialog titled Test communication in the Reduxi web interface, showing a failed test. First box (red-brown text): Unable to communicate with device. Second box: Number of devices found on OCPP - JSON 1.6: 0. Button: Close. Close cross at top right. A line of the page behind the dialog is partly visible at the bottom edge (text cut off, ends with backend OCPP server).
8 Check the readings
8.1 Last measurements
After communication is established, check the values under Devices – EV charger in the Reduxi Configurator.
8.2 Enable control by Reduxi
Under Devices in the Reduxi Configurator, set the control type of the charger to AUTO. Only then do strategy commands affect the charger.
To control charging with dynamic prices and dynamic tariffs, define a strategy as described in Strategies for Reduxi controller.
✓ Summary
Preparation (Points 1–2): Collect the manuals and the equipment, including the charger serial number.
Charge Amps charger (Point 6): Install the Installer app, join the same Wi‑Fi network and paste the OCPP URL of the controller into CPMS Connection.
Add to Reduxi (Points 3–5, 7): Log in, set a static IP, add an OCPP 1.6 - JSON device with the serial number as Device identifier, run Test communication and click Done.
Go live (Point 8): Check the last measurements and set the control type to AUTO.
→ Common issues
| Issue | Solution |
|---|---|
| Test communication: Unable to communicate with device 1 | The Device identifier is not set or differs. Enter the serial number of the charger exactly (Point 5.2). |
| Test communication: No device with OCPP 1.6 communication is found | Check that the OCPP URL is entered in CPMS Connection (Point 6.4) and that the charger and the controller are in the same Wi‑Fi network (Point 6.3). |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
