Reduxi Controller setup with Reduxi app
Set up the Reduxi Controller with the Reduxi app: register, connect the controller and enter your grid data.
1 Download and install the Reduxi app
Watch the video for the whole setup, or follow the steps below.
Install the Reduxi app on your mobile phone:
2 Register a new account in the Reduxi app
Create a new account in the app. The screenshots show the registration steps.
Text description of this image
Screenshot of the sign-in screen of a mobile app, dark blue background. Status bar: time 14:44, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 72. The reduxi logo is at the top. Heading: Sign in to your account. Fields: Email (empty); Password (empty). Checkbox: Save credentials (not ticked). Link: Forgotten password?. Buttons: Sign in (dimmed green, disabled); Register a new account (green outline). Below a divider: link text Demo account. A grey gesture bar is at the bottom.
Text description of this image

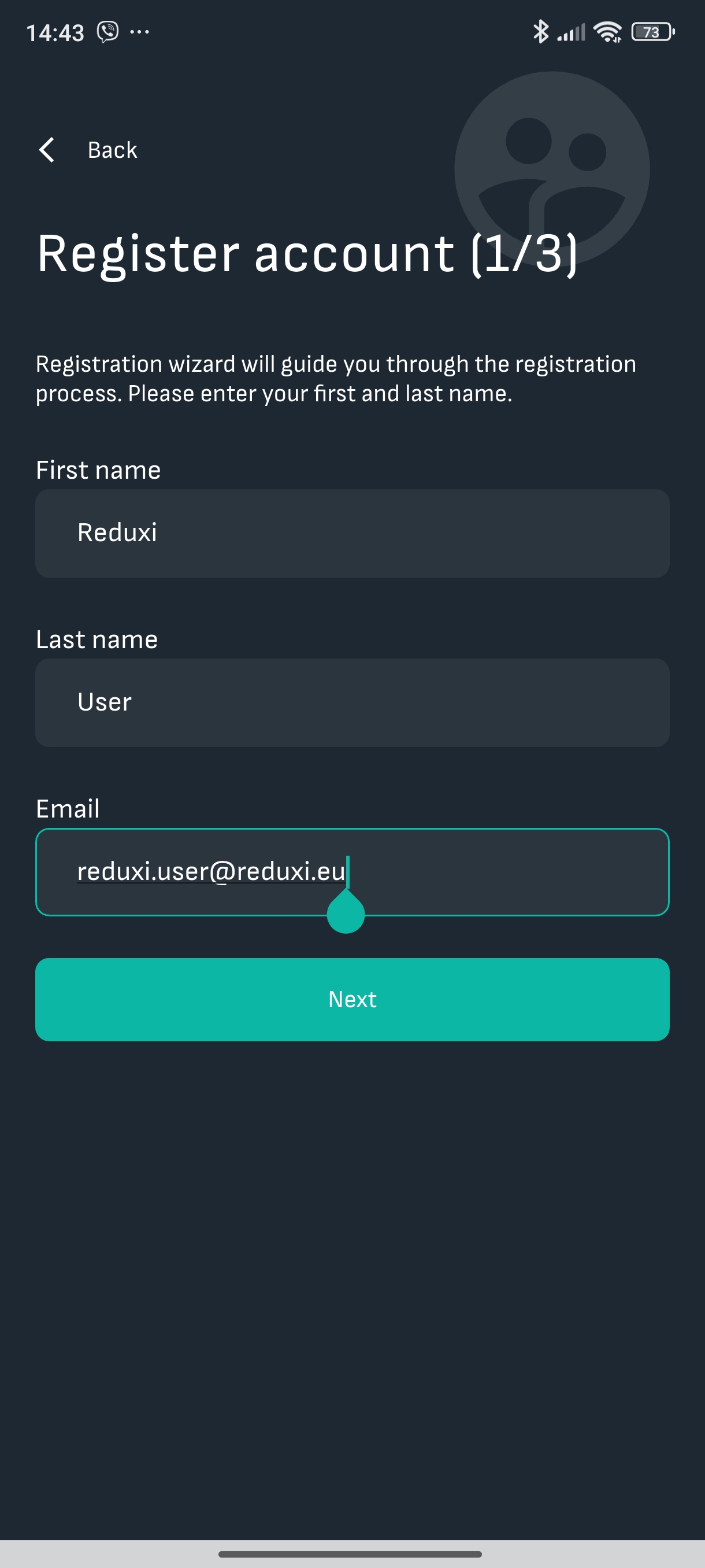

Screenshot of the Register account (1/3) screen of a mobile app, dark blue background. Status bar: time 14:43, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 73. Top: Back with a left arrow; heading Register account (1/3); a faint round icon with two dots in the background. Text: Registration wizard will guide you through the registration process. Please enter your first and last name. Fields: First name: Reduxi; Last name: User; Email: reduxi.user@reduxi.eu (field focused with a green outline, text cursor and cursor handle visible). Below: a solid green button Next. A grey gesture bar is at the bottom.
Text description of this image
Screenshot of the Register account (3/3) screen of a mobile app, dark blue background. Status bar: time 14:43, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 72. Top: Back with a left arrow; heading Register account (3/3); a faint round face icon in the background. Text: Confirm Terms&Conditions and Privacy Policy to finish your registration. Entries with right arrows: Terms and conditions; Privacy policy. Checkboxes, both ticked: I agree with terms and conditions; I agree with privacy policy. Below: a solid green button Finish registration. A grey gesture bar is at the bottom.
Text description of this image

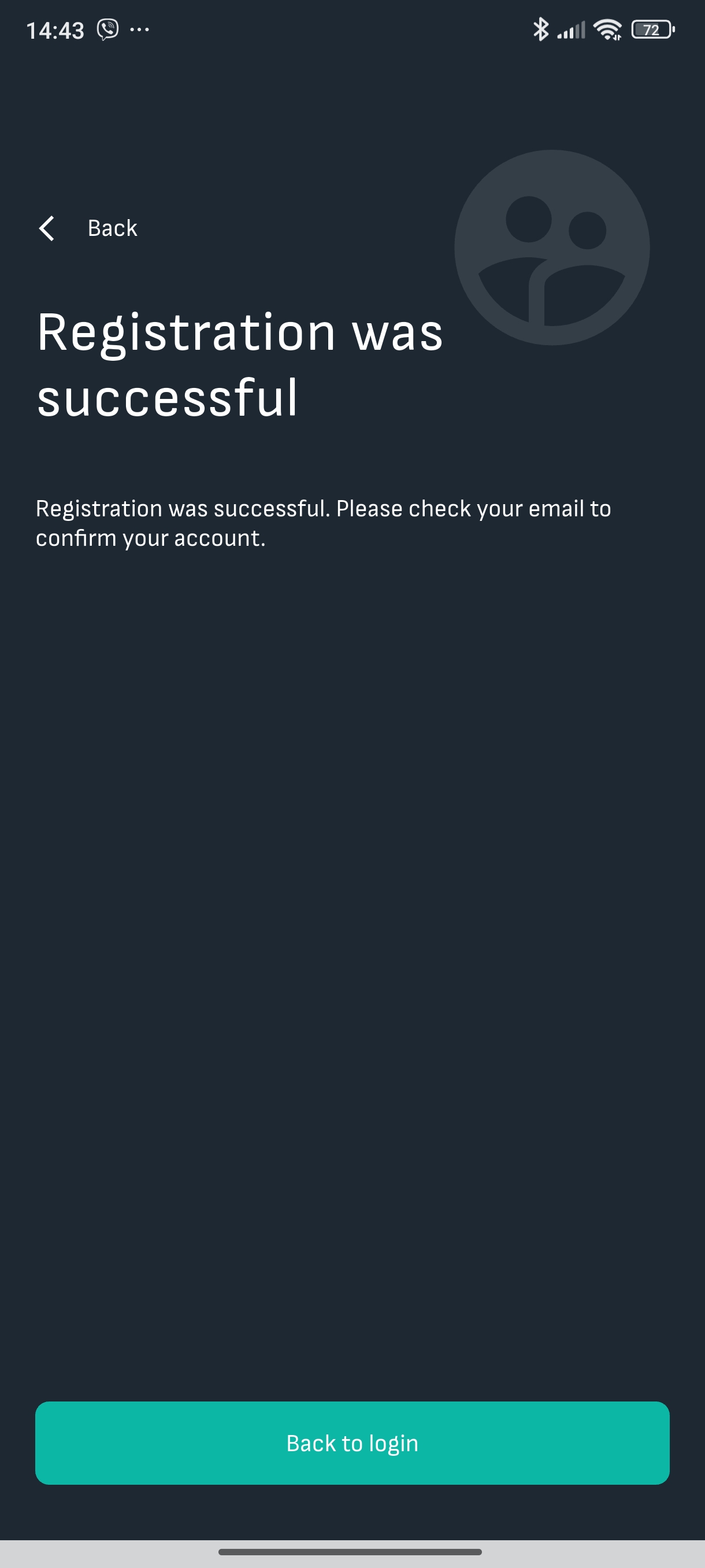

Screenshot of the registration result screen of a mobile app, dark blue background. Status bar: time 14:43, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 72. Top: Back with a left arrow; heading Registration was successful; a faint round icon with two person silhouettes in the background. Text: Registration was successful. Please check your email to confirm your account. At the bottom: a solid green button Back to login. A grey gesture bar is at the very bottom.
After you confirm your e-mail, log in to the app.
3 Create a location and add your device
3.1 Add a location

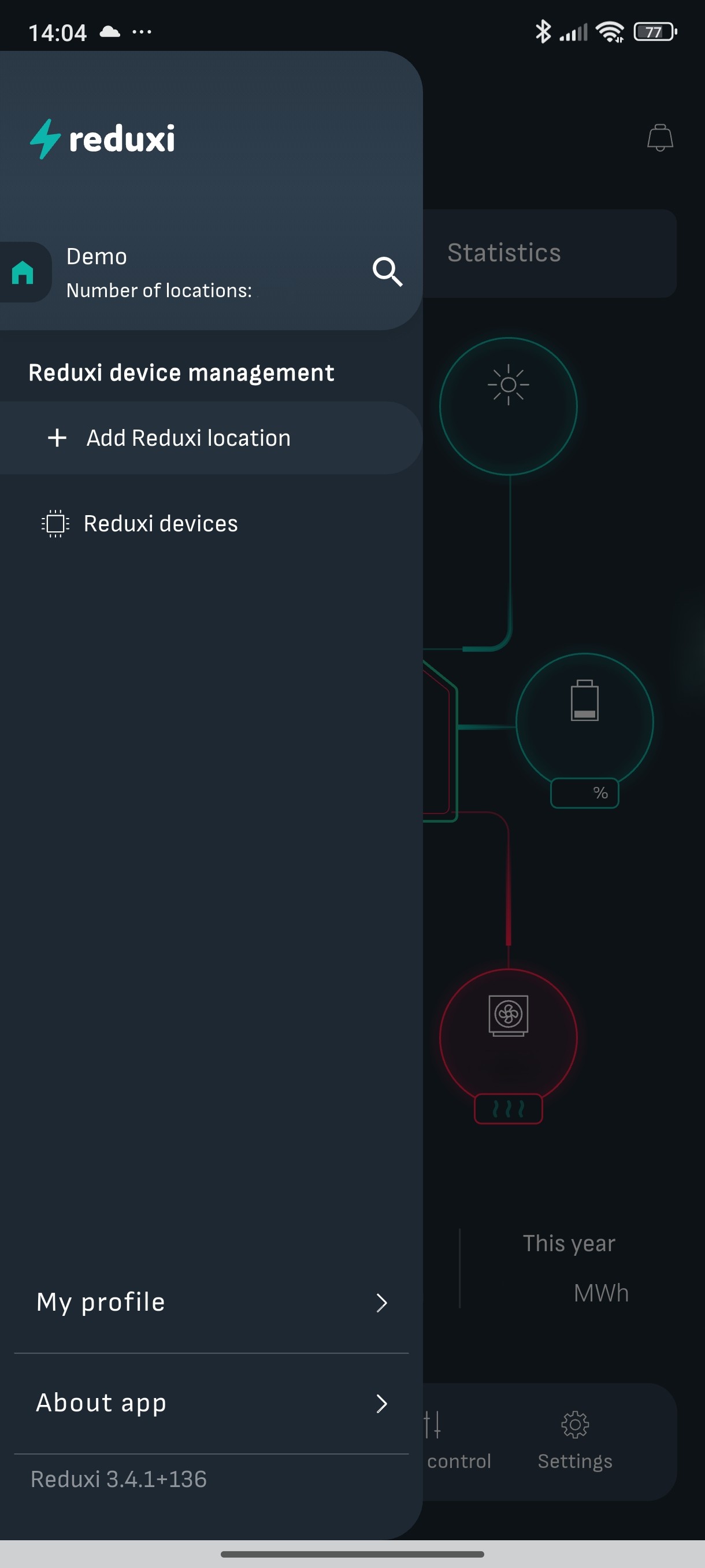

Tap the Menu icon (top left) and choose Add location.
Text description of this image
Screenshot of the side menu of a mobile app, dark theme, open over a dimmed dashboard. Status bar: time 14:04, cloud icon, Bluetooth, signal bars, Wi-Fi, battery 77. Menu header: reduxi logo; location card with a green home icon, name Demo, text Number of locations: (value not visible), and a magnifying glass icon. Section Reduxi device management: + Add Reduxi location (highlighted with a lighter rounded background); Reduxi devices (chip icon). Lower entries with right arrows: My profile; About app. Version text: Reduxi 3.4.1+136. Dimmed dashboard on the right: a bell icon, tab Statistics, energy-flow nodes with a sun, a battery, a fan unit with a heat label and a percent label, a This year value in MWh, and bottom navigation entries ending with control and Settings. A grey gesture bar is at the bottom.

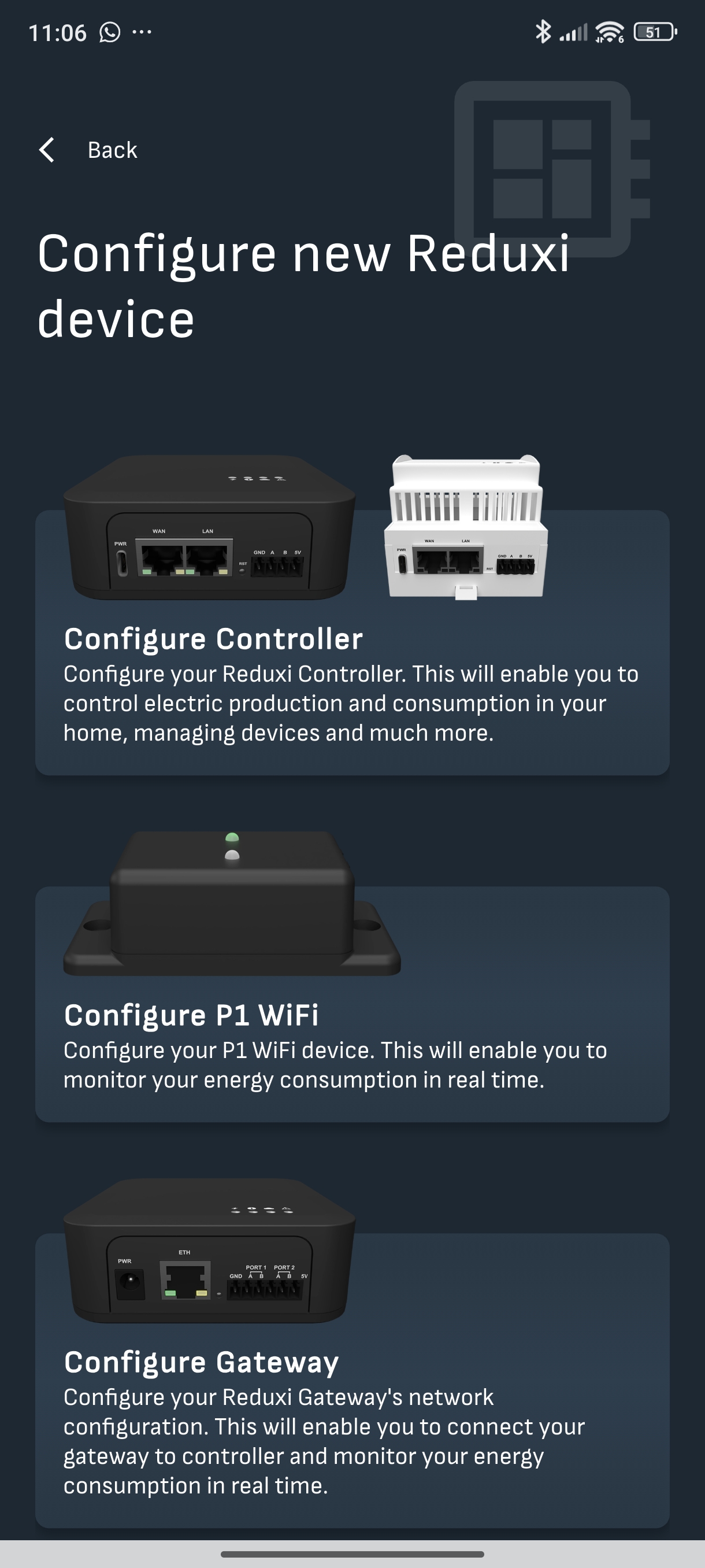

Choose Configure controller.
Text description of this image
Screenshot of the Configure new Reduxi device screen of a mobile app, dark blue background. Status bar: time 11:06, WhatsApp icon, Bluetooth, signal bars, Wi-Fi 6, battery 51. Top: Back with a left arrow; heading Configure new Reduxi device; a faint chip icon in the background. Three cards, each with a picture of a device and a text. Card 1: renders of a black controller (ports labelled PWR, WAN, LAN, RST, GND, A, B, 5V) and a white DIN-rail controller (PWR, WAN, LAN, GND, A, B, 5V); heading Configure Controller; text: Configure your Reduxi Controller. This will enable you to control electric production and consumption in your home, managing devices and much more. Card 2: render of a small black box with two LEDs (one green, one white) and mounting flanges; heading Configure P1 WiFi; text: Configure your P1 WiFi device. This will enable you to monitor your energy consumption in real time. Card 3: render of a black box with ports labelled PWR, ETH, PORT 1 (GND, A, B), PORT 2 (A, B), 5V; heading Configure Gateway; text: Configure your Reduxi Gateway's network configuration. This will enable you to connect your gateway to controller and monitor your energy consumption in real time. A grey gesture bar is at the bottom.

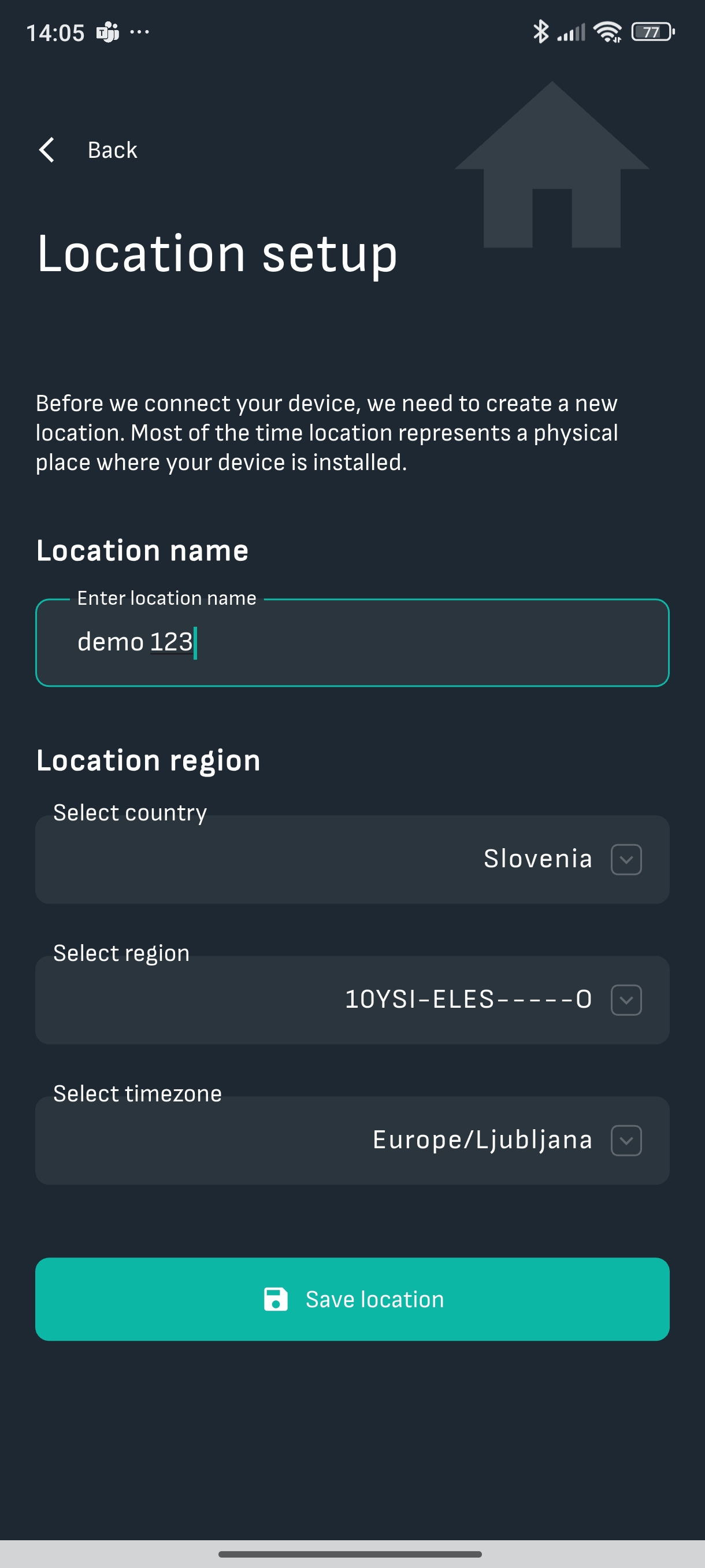

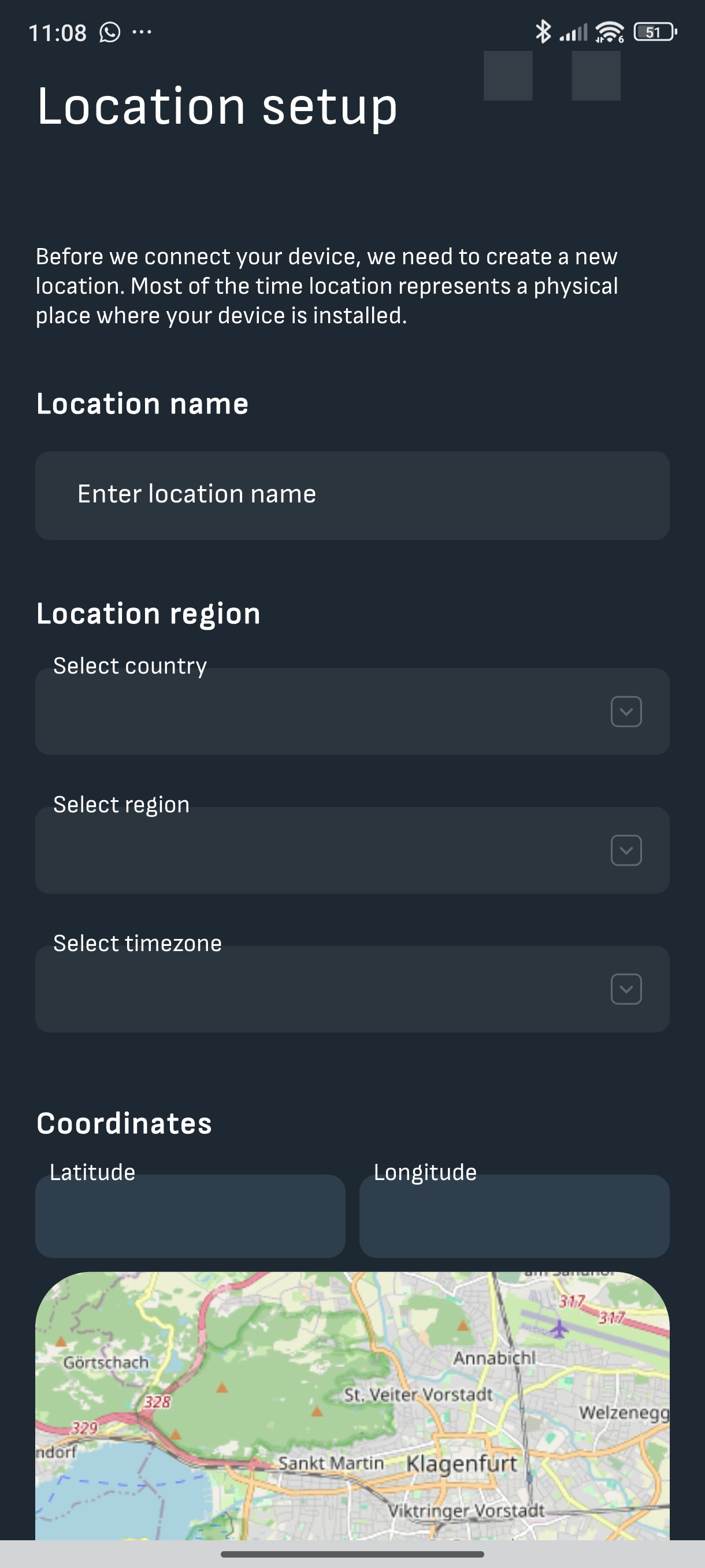

Enter the name of the location. Use a clear name, for example Demo User home.
Select your country. Region and time zone are selected automatically, or you can choose them yourself.
Select your geo-location.
Text description of this image
Screenshot of the Location setup screen of a mobile app, dark blue background. Status bar: time 11:08, WhatsApp icon, Bluetooth, signal bars, Wi-Fi 6, battery 51. Two grey squares at the top right (no content). Heading: Location setup. Text: Before we connect your device, we need to create a new location. Most of the time location represents a physical place where your device is installed. Section Location name: text field with the placeholder Enter location name. Section Location region: dropdown Select country (empty); dropdown Select region (empty); dropdown Select timezone (empty); each with a down-arrow icon. Section Coordinates: fields Latitude (empty) and Longitude (empty), side by side. Below: a map with rounded corners showing the area around Klagenfurt (map labels: Görtschach, Annabichl, St. Veiter Vorstadt, Welzenegg, Sankt Martin, Klagenfurt, Viktringer Vorstadt, road numbers 328, 329, 317). A grey gesture bar with a dark handle is at the bottom.
3.2 Connect to the controller

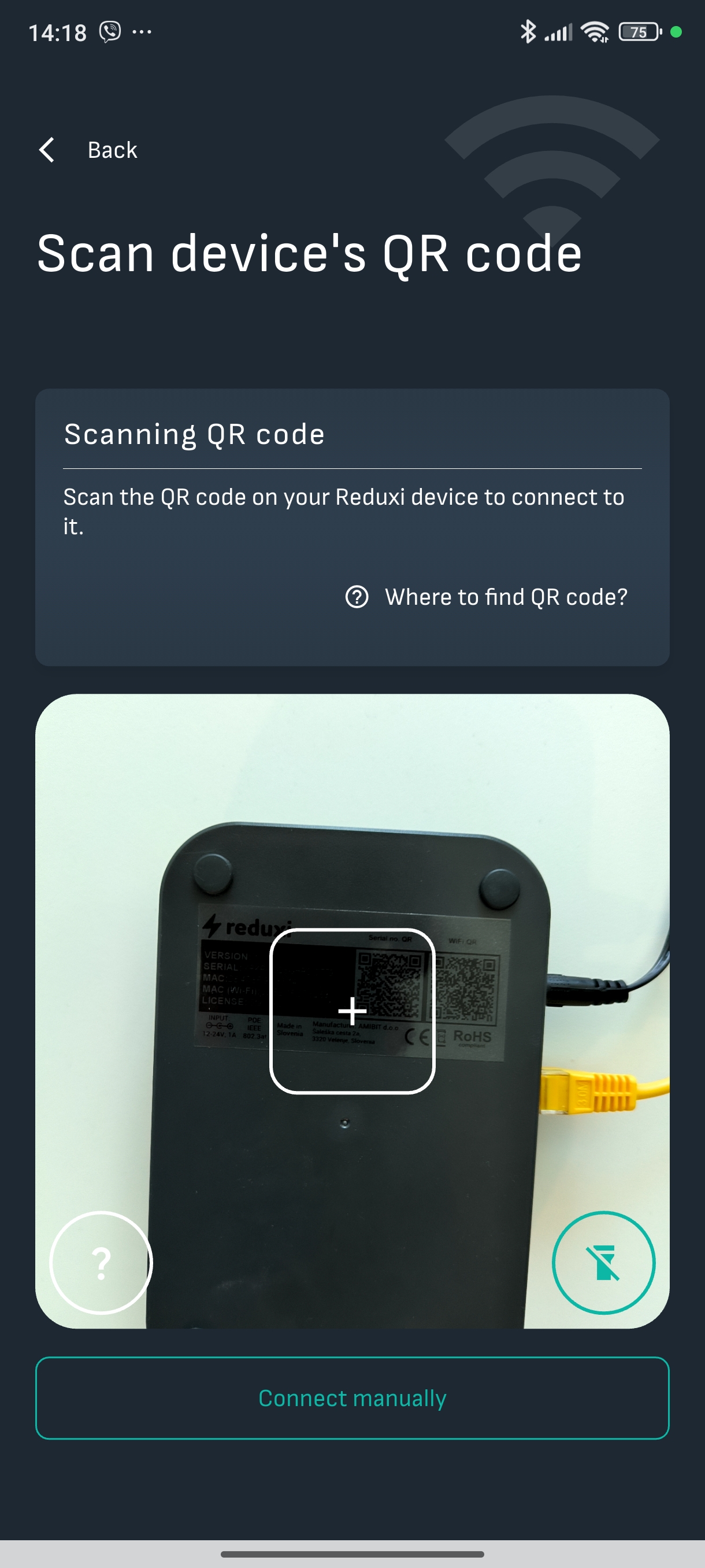

Scan the QR code on the controller.
Text description of this image
Screenshot of the Scan device's QR code screen of a mobile app, dark blue background. Status bar: time 14:18, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 75, green dot. Top: Back with a left arrow; large heading Scan device's QR code; a faint Wi-Fi symbol in the background. Card titled Scanning QR code with the text: Scan the QR code on your Reduxi device to connect to it. Link: (?) Where to find QR code?. Below the card, the camera view with rounded corners shows the underside of a dark grey device with two round feet, a black cable on the right and a yellow Ethernet cable at the bottom right. The device label shows the reduxi logo, the fields VERSION, SERIAL, MAC, MAC (Wi-Fi), LICENSE (values hidden by a black area), two QR codes labelled Serial no. QR and WiFi QR, INPUT 12-24V, 1A, POE IEEE 802.3at, Made in Slovenia, Manufacturer: AMIBIT d.o.o., Šaleška cesta 2a, 3320 Velenje, Slovenia, a CE mark and RoHS compliant. A white rounded square scan frame with a plus sign sits over the label and the first QR code. In the camera view, a round white button with a question mark is at the bottom left and a round green button with a crossed-out flashlight icon is at the bottom right. Below the camera view: button Connect manually (green outline). A grey gesture bar is at the bottom.

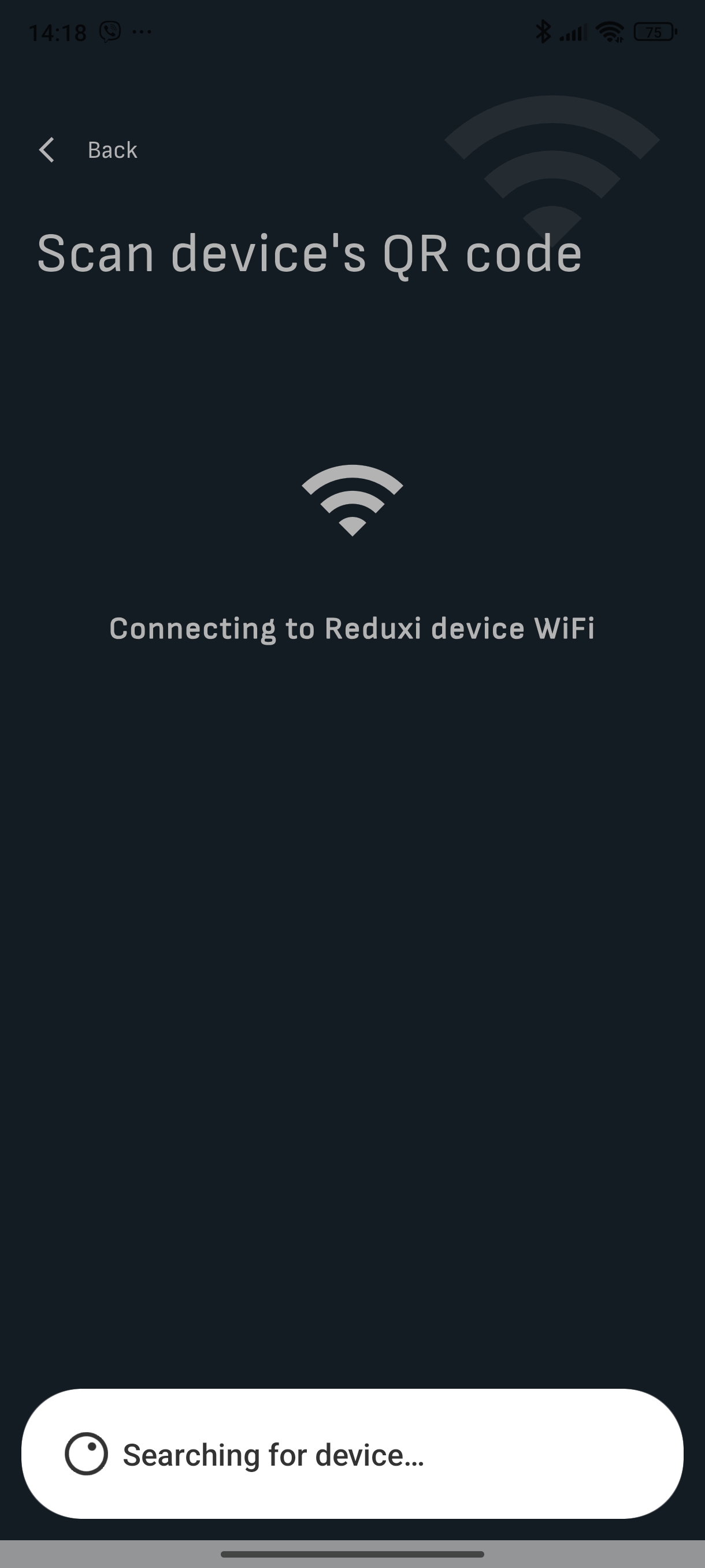

The app connects to the controller Wi‑Fi hotspot. Confirm the connection.
Text description of this image
Screenshot of a phone screen in the Reduxi app, dimmed with a dark overlay (a tall image). Status bar: time 14:18, Viber icon, Bluetooth, mobile signal, Wi-Fi, battery 75. Top left: back arrow with "Back". A large faded Wi-Fi symbol sits in the background top right. Heading: "Scan device's QR code". Below it, in the middle of the screen, a grey Wi-Fi symbol with the text "Connecting to Reduxi device WiFi". The lower part is a mostly empty dark area. Near the bottom a white rounded pop-up with a circle icon and the text "Searching for device...". Under it the grey phone navigation bar with a dark home bar, then white space.
Text description of this image

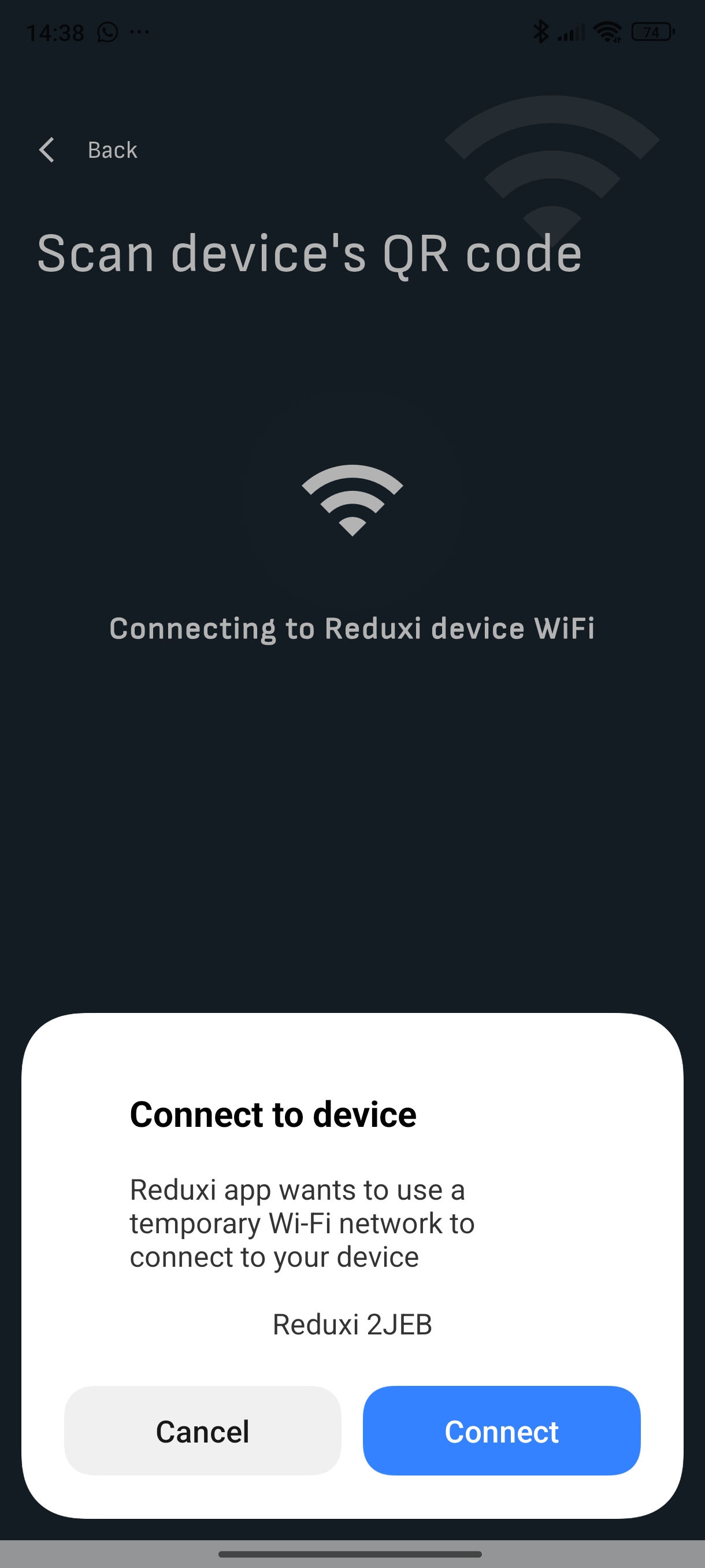

Screenshot of a mobile phone screen of an app with a system dialog over a dimmed screen. Status bar (dimmed): time 14:38, WhatsApp icon, Bluetooth, signal bars, Wi-Fi, battery 74. Dimmed app screen: Back with a left arrow; heading Scan device's QR code; a faint Wi-Fi symbol; a large Wi-Fi icon with the text Connecting to Reduxi device WiFi. White rounded dialog titled Connect to device with the text: Reduxi app wants to use a temporary Wi-Fi network to connect to your device. Network name: Reduxi 2JEB. Buttons: Cancel (light grey) and Connect (blue). A grey gesture bar is at the bottom.
Text description of this image
Screenshot of a mobile phone screen of an app with a system pop-up at the bottom, dimmed dark background. Status bar (dimmed): time 14:38, WhatsApp icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 74. Dimmed app screen: Back with a left arrow; heading Scan device's QR code; a faint Wi-Fi symbol; a large Wi-Fi icon with the text Connecting to Reduxi device WiFi. At the bottom: a white rounded pop-up with a circular loading icon and the text Connecting to device.... A grey gesture bar is at the very bottom.
Text description of this image

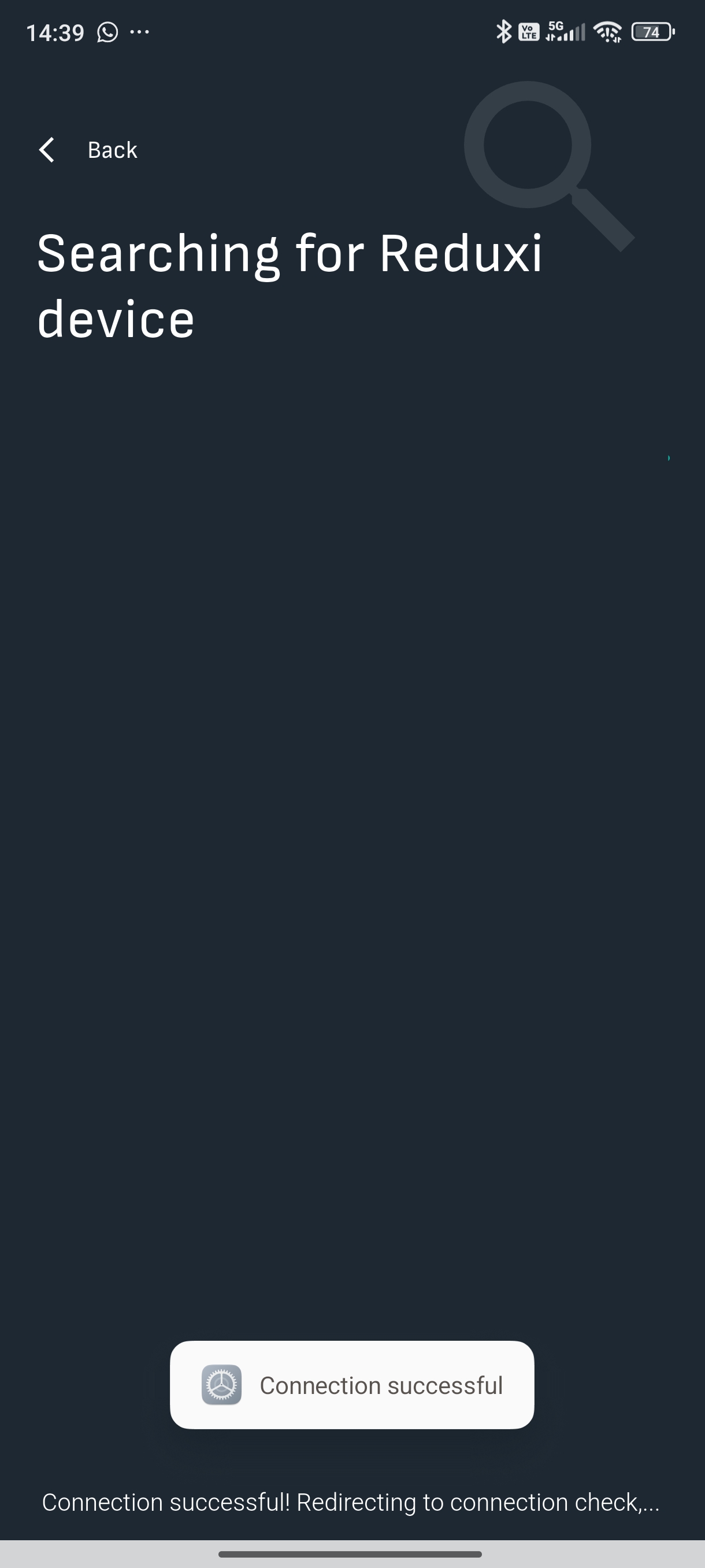

Screenshot of the Searching for Reduxi device screen of a mobile app, dark blue background, with a system message. Status bar: time 14:39, WhatsApp icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 74. Top: Back with a left arrow; heading Searching for Reduxi device; a faint magnifying glass icon in the background. The middle of the screen is empty. In the lower part: a white rounded pop-up with a grey settings gear icon and the text Connection successful. Below it, on the dark background, a system message: Connection successful! Redirecting to connection check,... A grey gesture bar is at the bottom.
3.3 Select the device and the network

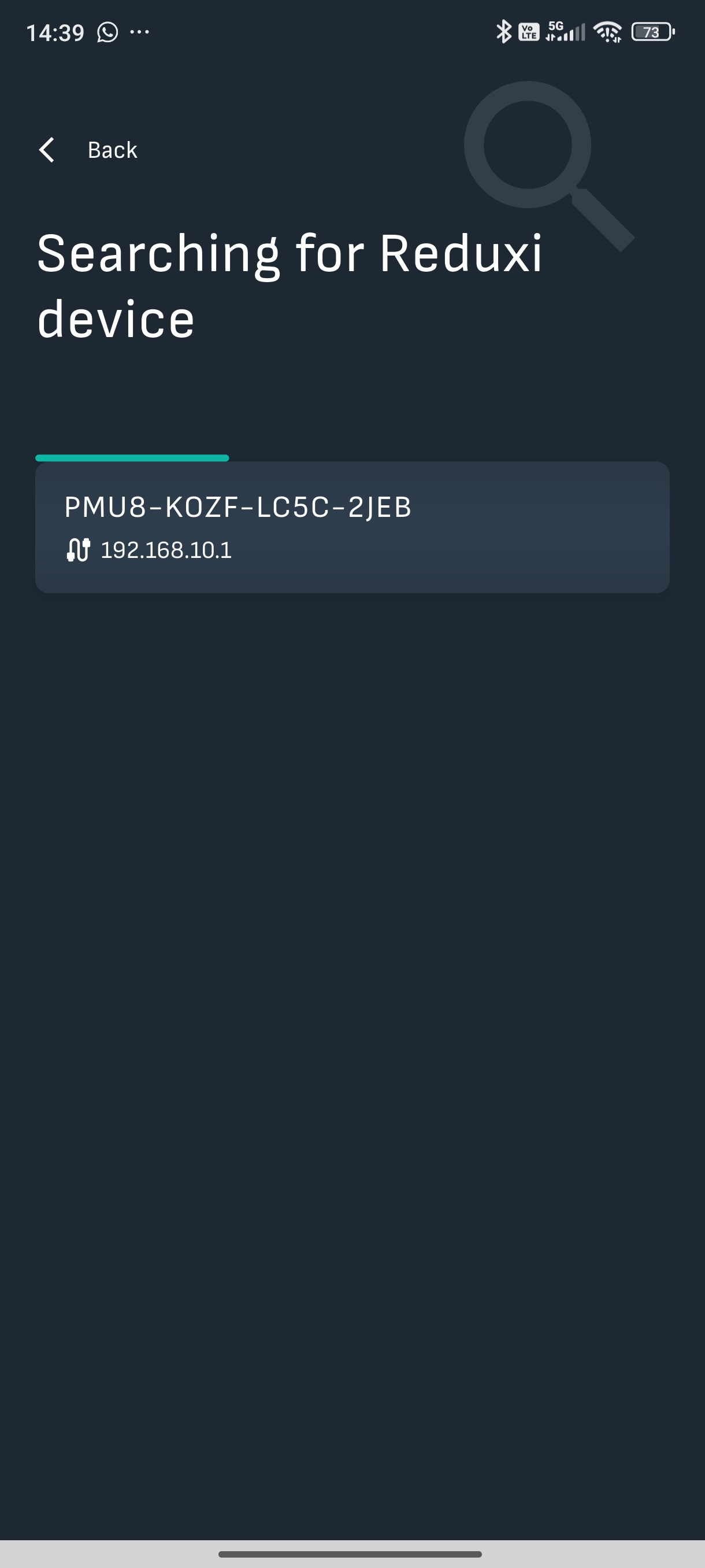

Select your Reduxi device. If the app offers more than one, check the S/N on the device label.
Text description of this image
Screenshot of the Searching for Reduxi device screen of a mobile app, dark blue background. Status bar: time 14:39, WhatsApp icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 73. Top: Back with a left arrow; heading Searching for Reduxi device; a faint magnifying glass icon in the background. Below: one card with a short green progress bar on its upper edge, the device identifier PMU8-KOZF-LC5C-2JEB and, with a cable icon, the address 192.168.10.1. The rest of the screen is empty. A grey gesture bar is at the bottom.

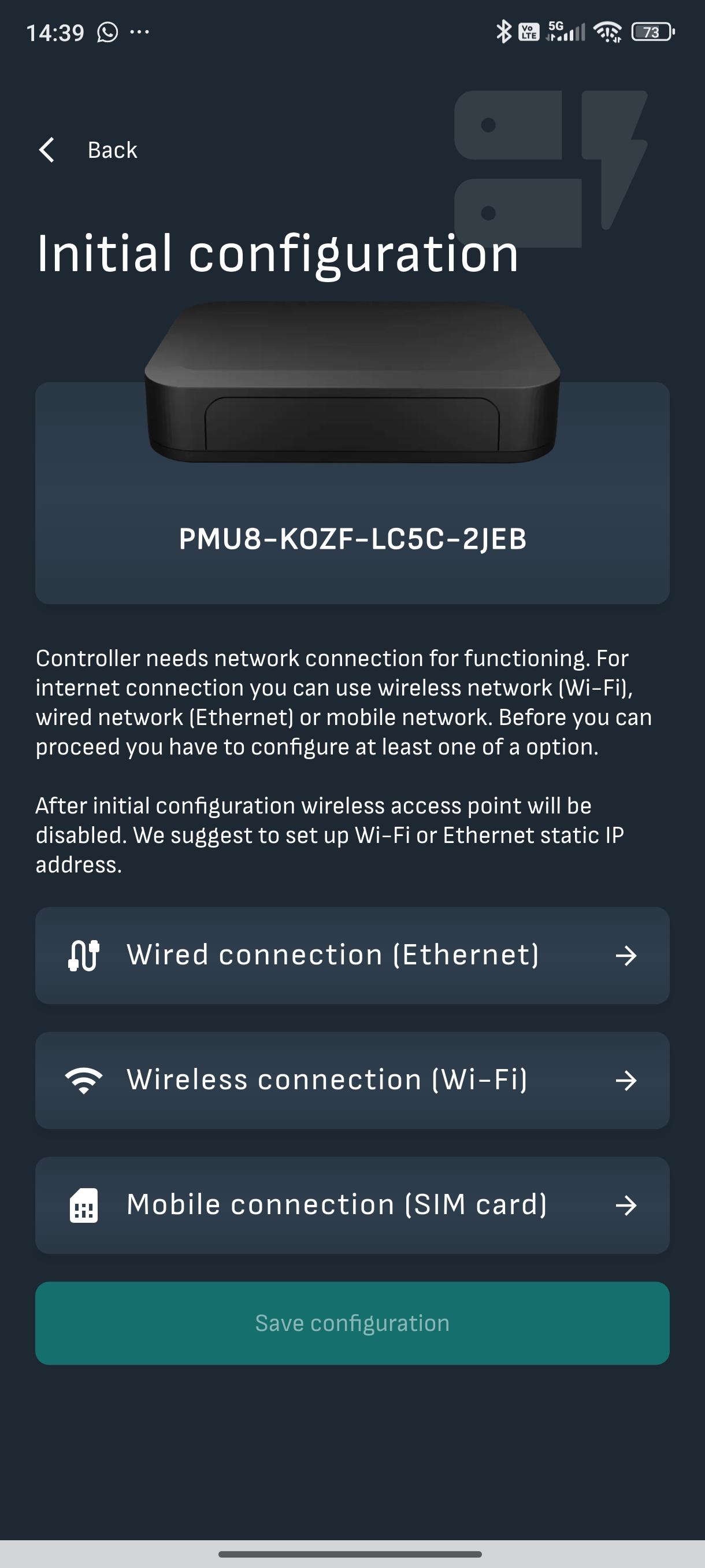

Select the network connection type.
Text description of this image
Screenshot of the Initial configuration screen of a mobile app, dark blue background. Status bar: time 14:39, WhatsApp icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 73. Top: Back with a left arrow; large heading Initial configuration; a faint server and lightning icon in the background. Card with a picture of a dark grey controller (seen from the top) and the identifier PMU8-KOZF-LC5C-2JEB below it. Text: Controller needs network connection for functioning. For internet connection you can use wireless network (Wi-Fi), wired network (Ethernet) or mobile network. Before you can proceed you have to configure at least one of a option. After initial configuration wireless access point will be disabled. We suggest to set up Wi-Fi or Ethernet static IP address. Three buttons with right arrows: Wired connection (Ethernet) with a cable icon; Wireless connection (Wi-Fi) with a Wi-Fi icon; Mobile connection (SIM card) with a SIM card icon. Below them a dimmed green button: Save configuration (disabled). A grey gesture bar is at the bottom.
If you connect to a Wi‑Fi network, wait until the app finishes scanning. Then select the correct Wi‑Fi network and enter the password.
Text description of this image

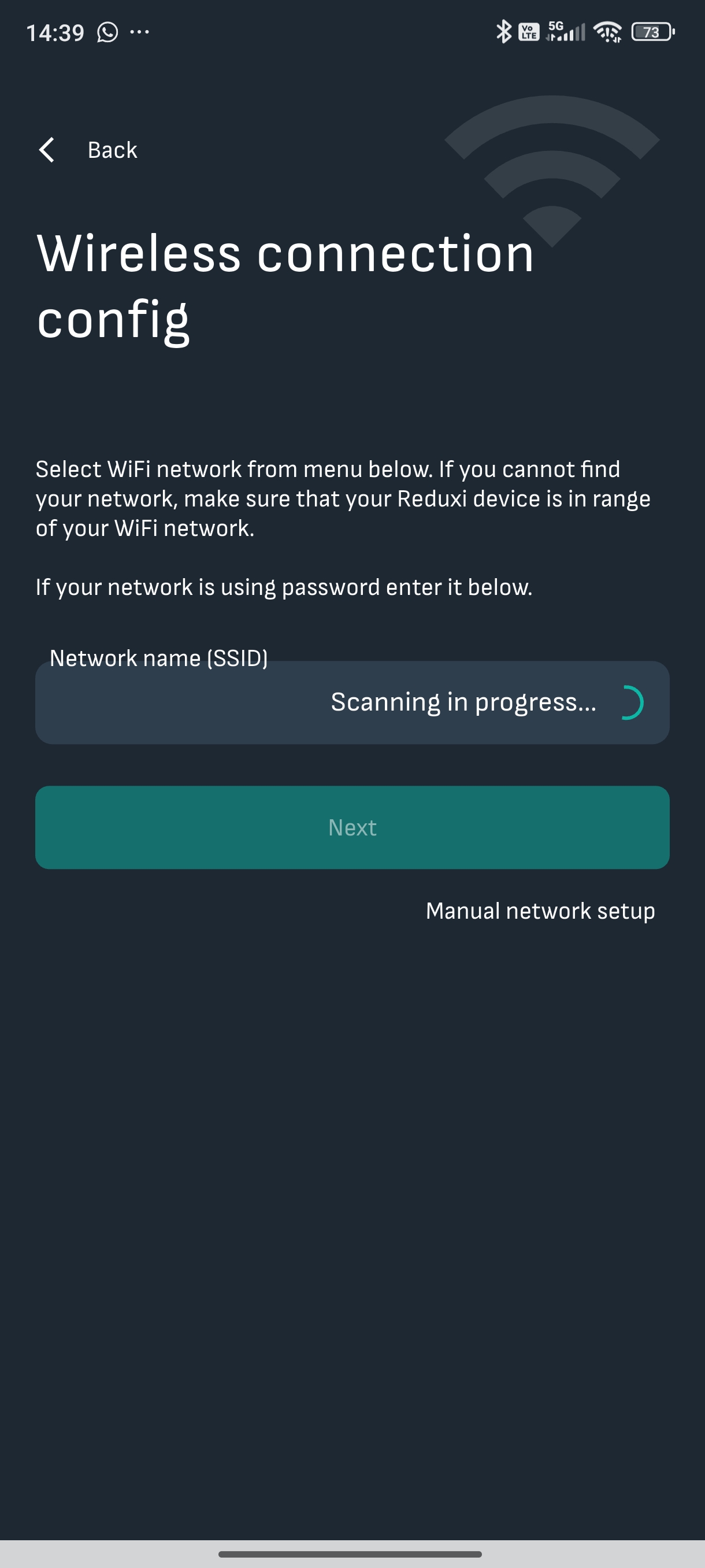

Screenshot of the Wireless connection config screen of a mobile app, dark blue background. Status bar: time 14:39, WhatsApp icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 73. Top: Back with a left arrow; heading Wireless connection config; a faint Wi-Fi symbol in the background. Text: Select WiFi network from menu below. If you cannot find your network, make sure that your Reduxi device is in range of your WiFi network. If your network is using password enter it below. Field Network name (SSID): shows Scanning in progress... with a green spinner. Button Next (dimmed green, disabled). Link text: Manual network setup. The rest of the screen is empty. A grey gesture bar is at the bottom.
Text description of this image

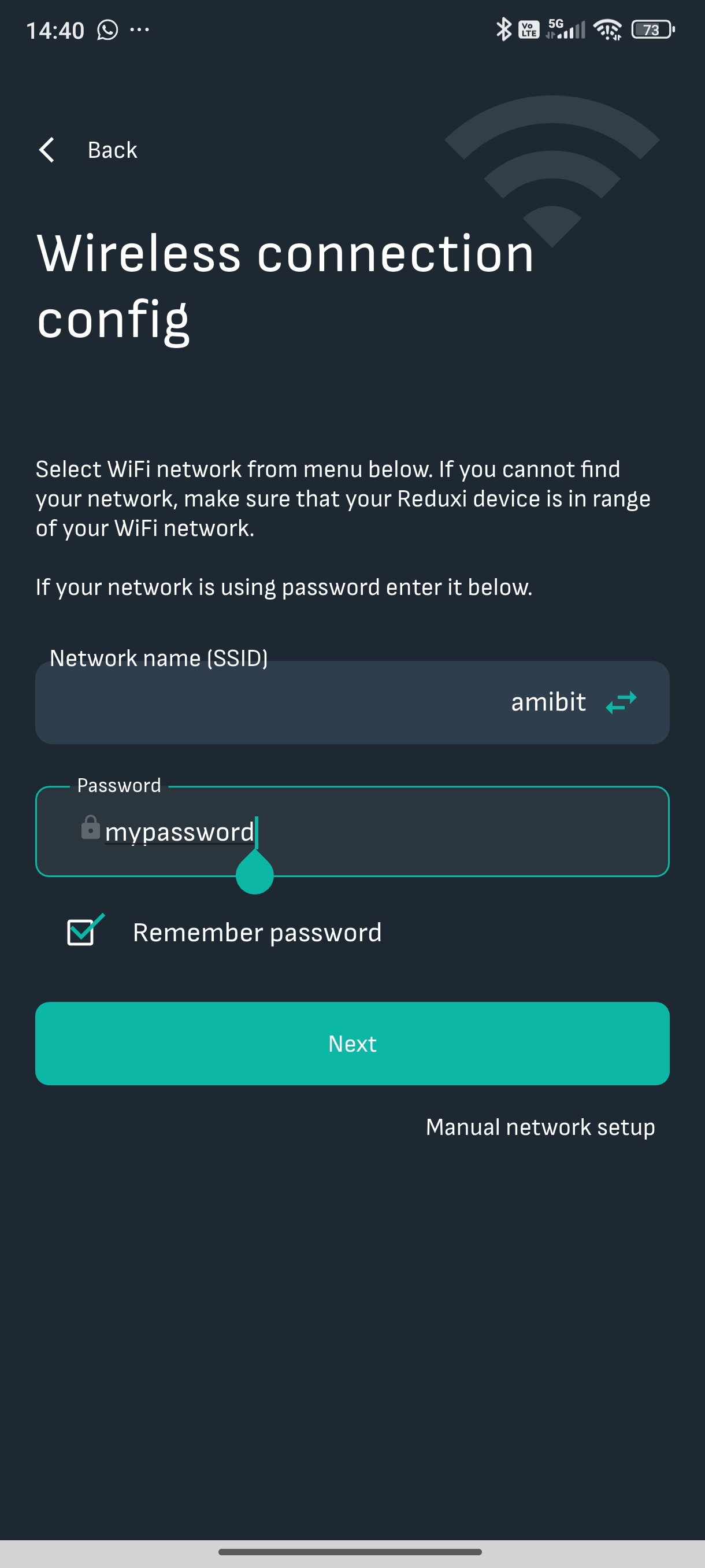

Screenshot of a phone screen in the Reduxi app, dark theme, titled "Wireless connection config". Status bar: time 14:40, WhatsApp icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 73. Top left: back arrow with "Back". A large faded Wi-Fi symbol sits in the background top right. Text: "Select WiFi network from menu below. If you cannot find your network, make sure that your Reduxi device is in range of your WiFi network." and "If your network is using password enter it below." Dropdown field "Network name (SSID)": amibit, with a teal swap-arrows icon. Field "Password" (highlighted with a teal border, lock icon): mypassword, with a text cursor and a teal selection handle below it. Checkbox "Remember password": ticked. Teal button: "Next". Below it a link-style text "Manual network setup". The bottom of the image shows the phone navigation bar (grey, with a dark rounded home bar) and white space.
3.4 Set the IP address

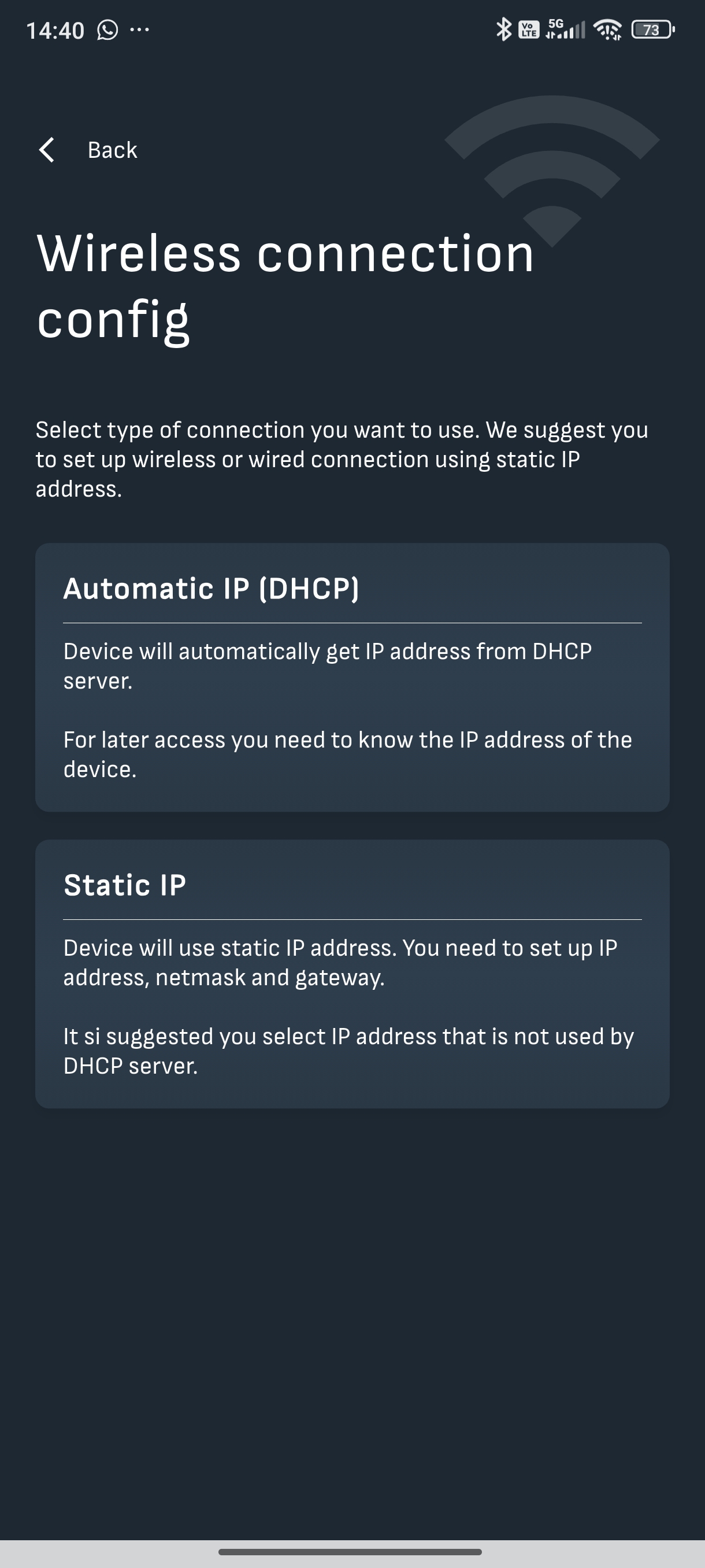

After you connect to Wi‑Fi or select Ethernet, choose whether the IP address comes from your network router (DHCP) or is static.
Text description of this image
Screenshot of the Wireless connection config screen of a mobile app, dark blue background. Status bar: time 14:40, WhatsApp icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 73. Top: Back with a left arrow; heading Wireless connection config; a faint Wi-Fi symbol in the background. Text: Select type of connection you want to use. We suggest you to set up wireless or wired connection using static IP address. Card 1, heading Automatic IP (DHCP): Device will automatically get IP address from DHCP server. For later access you need to know the IP address of the device. Card 2, heading Static IP: Device will use static IP address. You need to set up IP address, netmask and gateway. It si suggested you select IP address that is not used by DHCP server. The rest of the screen is empty. A grey gesture bar is at the bottom.

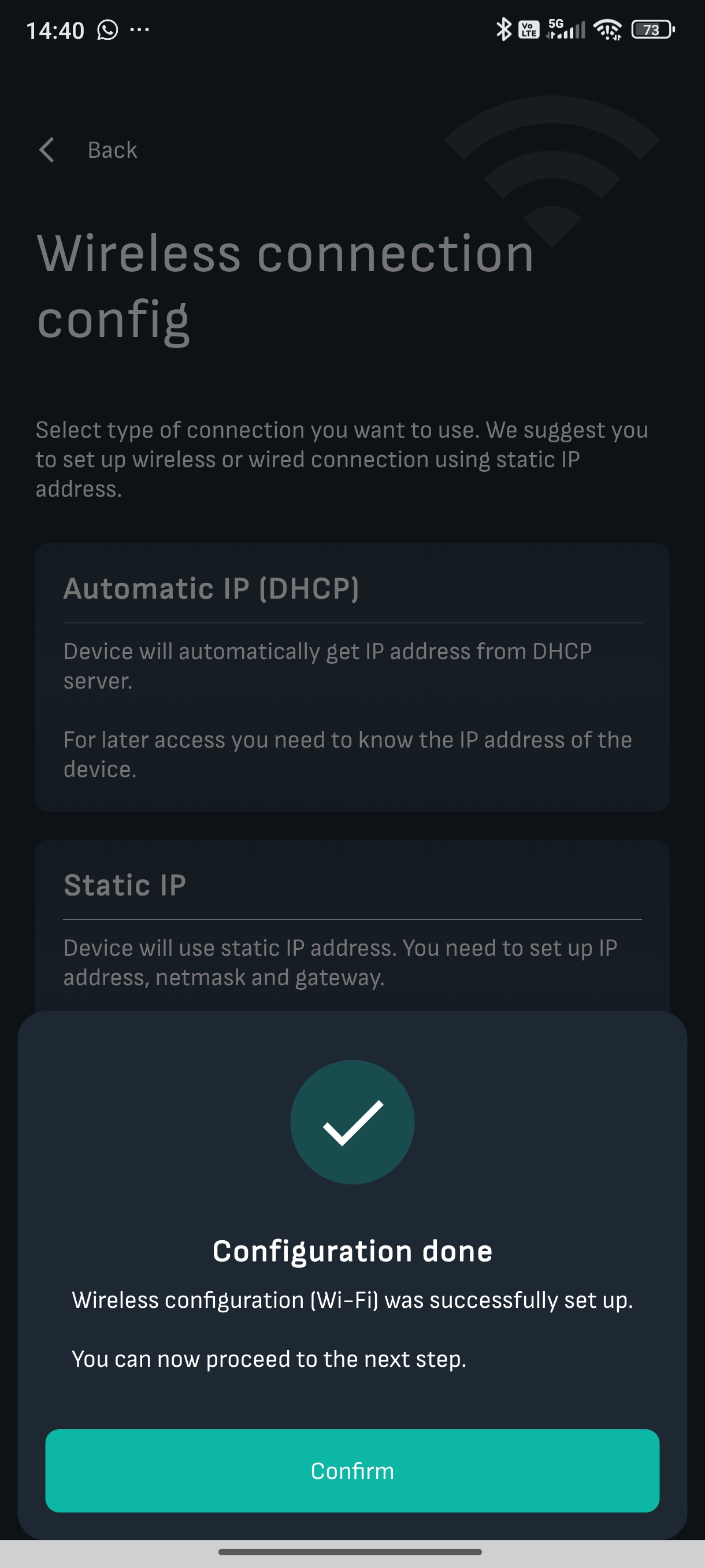

Text description of this image
Screenshot of the Wireless connection config screen of a mobile app with a dialog over the dimmed screen. Status bar: time 14:40, WhatsApp icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 73. Dimmed background: Back, heading Wireless connection config, text Select type of connection you want to use. We suggest you to set up wireless or wired connection using static IP address., card Automatic IP (DHCP) with the text Device will automatically get IP address from DHCP server. For later access you need to know the IP address of the device., card Static IP with the text Device will use static IP address. You need to set up IP address, netmask and gateway. Dialog in front: a dark teal circle with a white check mark, heading Configuration done, text Wireless configuration (Wi-Fi) was successfully set up. You can now proceed to the next step., solid green button Confirm. A grey gesture bar is at the bottom.

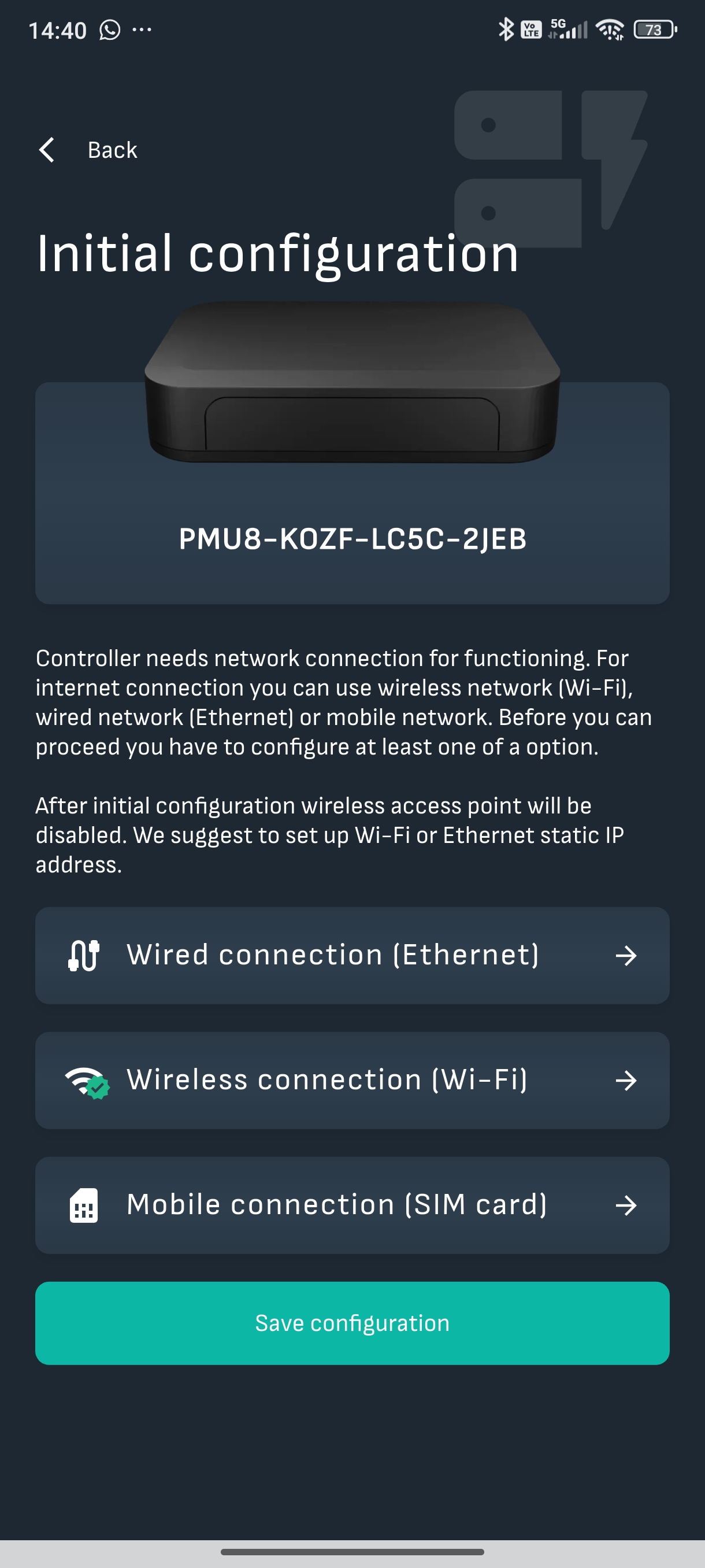

Select Save configuration.
Text description of this image
Screenshot of the Initial configuration screen of a mobile app, dark blue background. Status bar: time 14:40, WhatsApp icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 73. Top: Back with a left arrow; large heading Initial configuration; a faint server and lightning icon in the background. Card with a picture of a dark grey controller (seen from the top) and the identifier PMU8-KOZF-LC5C-2JEB below it. Text: Controller needs network connection for functioning. For internet connection you can use wireless network (Wi-Fi), wired network (Ethernet) or mobile network. Before you can proceed you have to configure at least one of a option. After initial configuration wireless access point will be disabled. We suggest to set up Wi-Fi or Ethernet static IP address. Three buttons with right arrows: Wired connection (Ethernet) with a cable icon; Wireless connection (Wi-Fi) with a Wi-Fi icon with a green check mark; Mobile connection (SIM card) with a SIM card icon. Below them a solid green button: Save configuration. A grey gesture bar is at the bottom.

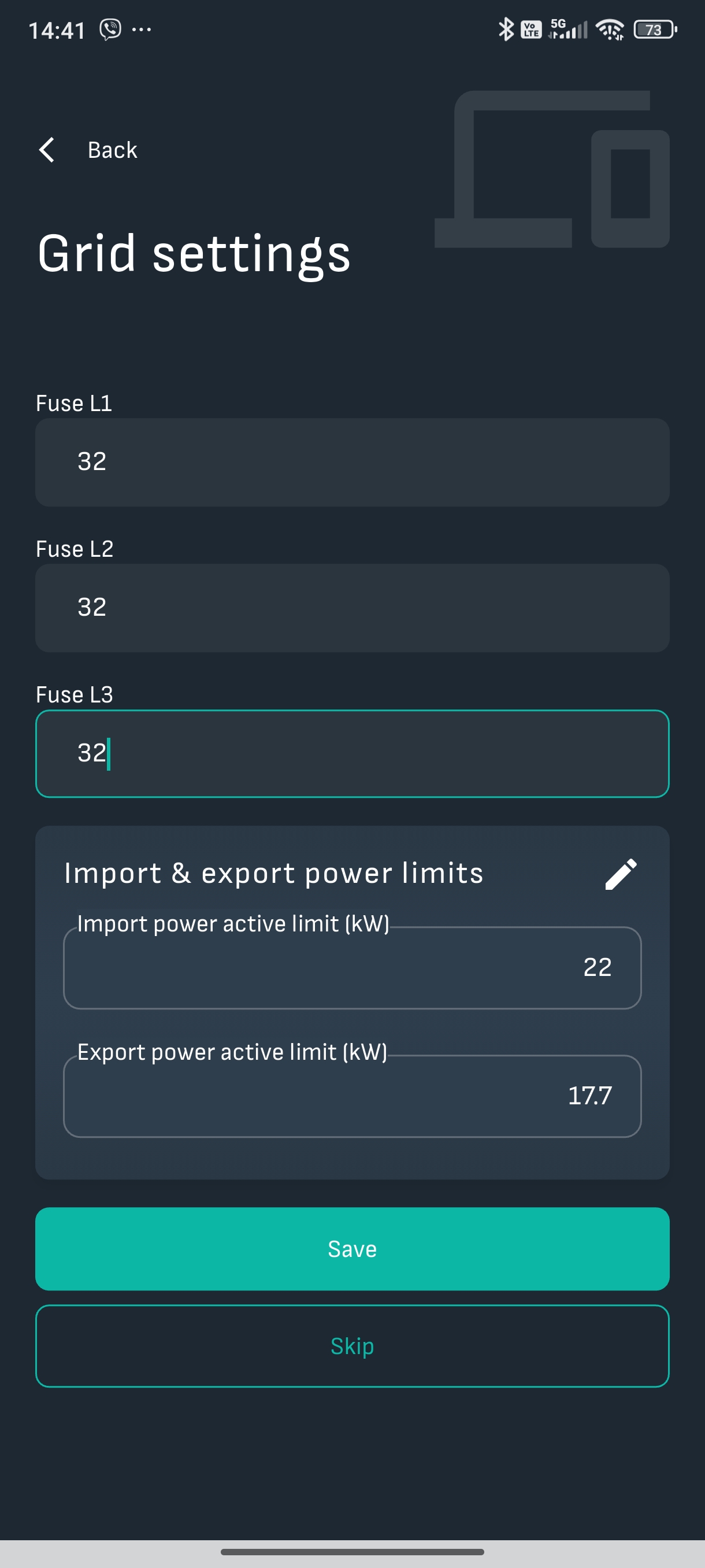

4 Enter the data of your grid connection
Enter the basic data about your electric grid connection:
- Grid circuit breakers in A. This is the physical maximum you can draw from the grid without tripping the circuit breakers.
- Grid import and export limit in kW. These are the limits you were assigned by your grid operator in your grid connection permit.
Text description of this image
Screenshot of the Grid settings screen of a mobile app, dark blue background. Status bar: time 14:41, Viber icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 73. Top: Back with a left arrow; heading Grid settings; a faint icon of a laptop and a phone in the background. Fields: Fuse L1: 32; Fuse L2: 32; Fuse L3: 32 (focused, green outline and text cursor). Card Import & export power limits with a pencil (edit) icon: Import power active limit (kW): 22; Export power active limit (kW): 17.7. Below the card: a solid green button Save and a green-outline button Skip. A grey gesture bar is at the bottom.

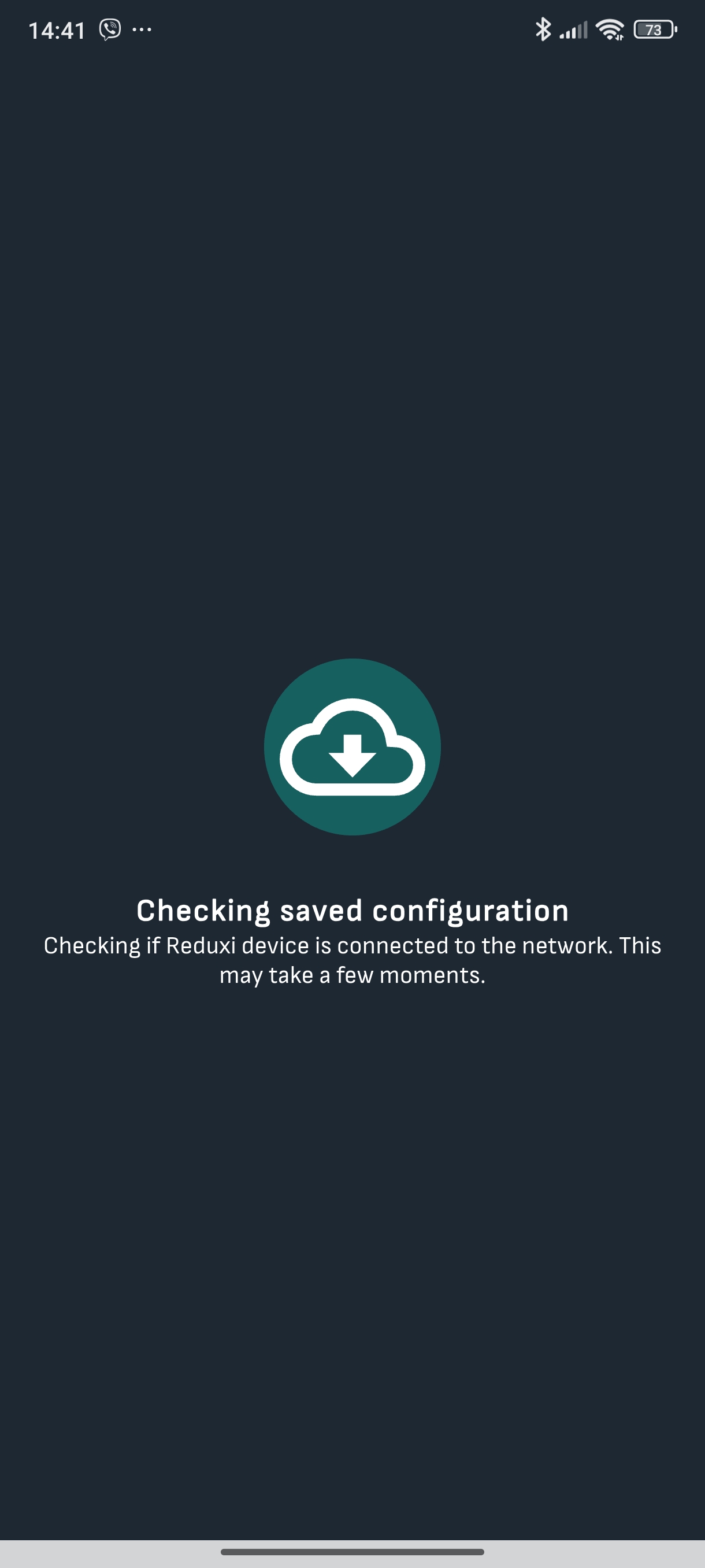

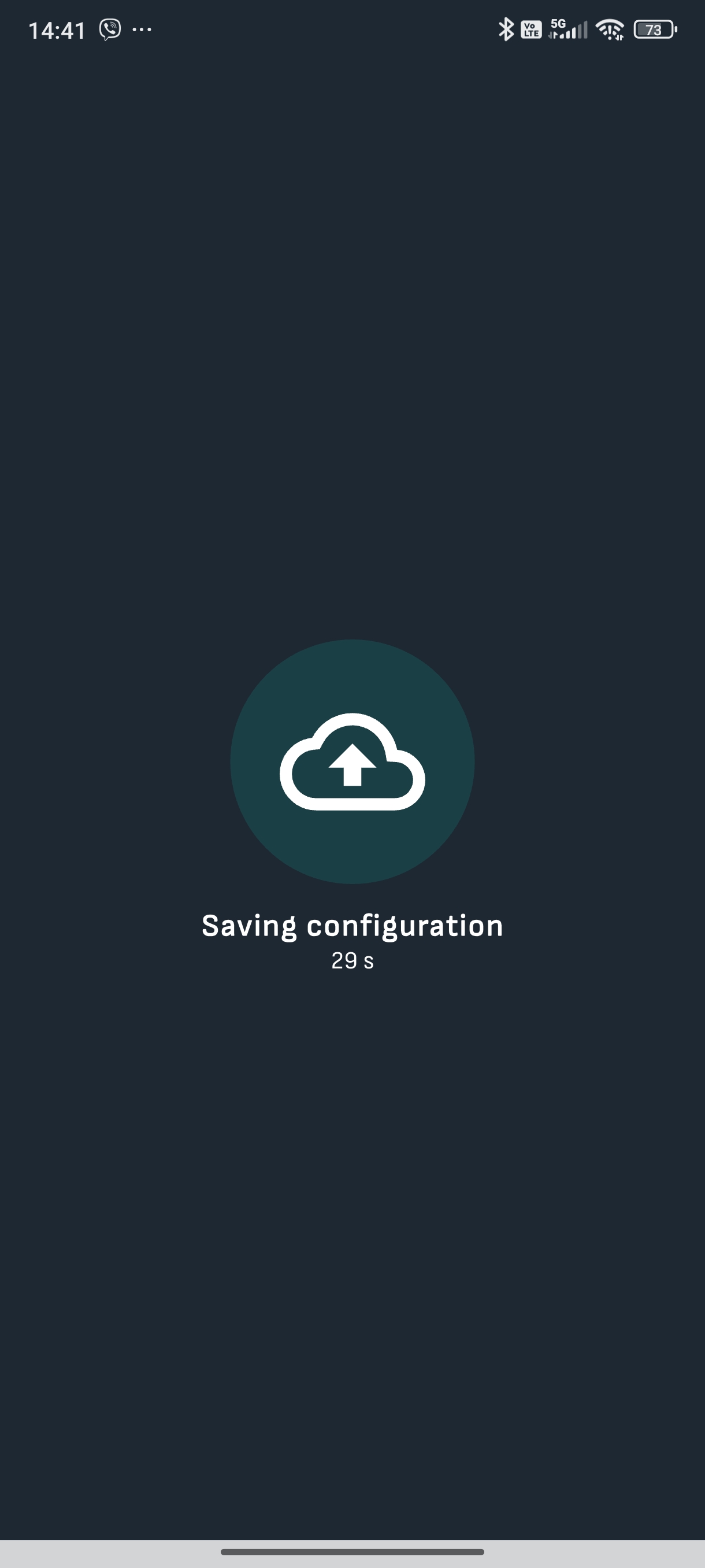

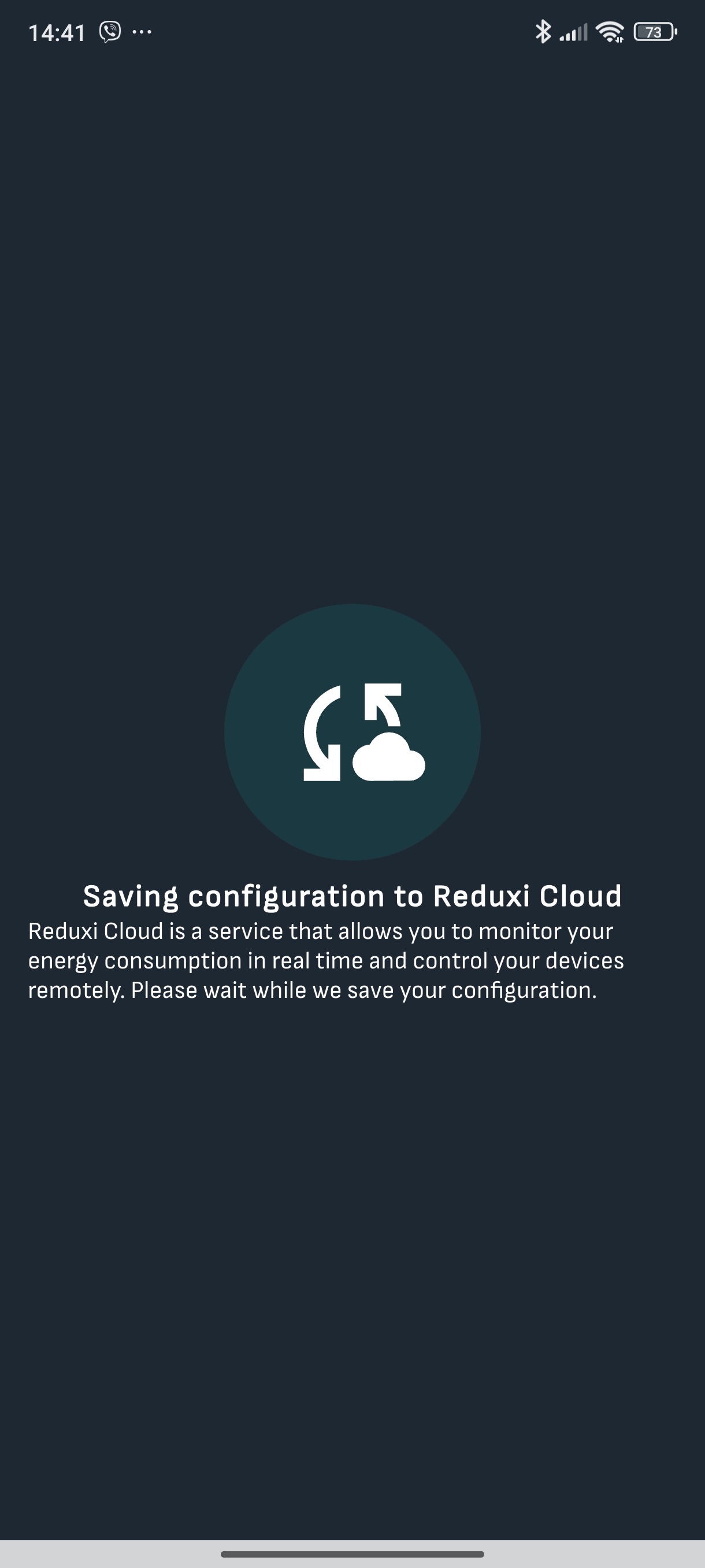

Tap Save and wait until the configuration is saved to your controller and to your cloud account.
Text description of this image
Screenshot of a mobile phone screen of an app, dark blue background. Status bar: time 14:41, Viber icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 73. In the middle of the screen: a large dark teal circle with a white cloud icon with an upward arrow. Below it, the text Saving configuration and a countdown 29 s. The rest of the screen is empty. A light grey bar with a dark grey rounded handle at the bottom is the phone gesture bar.
Text description of this image
Screenshot of a mobile phone screen of an app, dark blue background. Status bar: time 14:41, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 73. In the middle: a large dark teal circle with a white cloud icon with a downward arrow. Below it, the heading Checking saved configuration and the text: Checking if Reduxi device is connected to the network. This may take a few moments. The rest of the screen is empty. A light grey bar with a dark grey handle at the bottom is the phone gesture bar.
Text description of this image
Screenshot of a mobile phone screen of an app, dark blue background. Status bar: time 14:41, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 73. In the middle: a large dark teal circle with a white icon of a circular arrow and a cloud. Below it, the heading Saving configuration to Reduxi Cloud and the text: Reduxi Cloud is a service that allows you to monitor your energy consumption in real time and control your devices remotely. Please wait while we save your configuration. The rest of the screen is empty. A grey gesture bar is at the bottom.
5 Finish the setup and add your devices

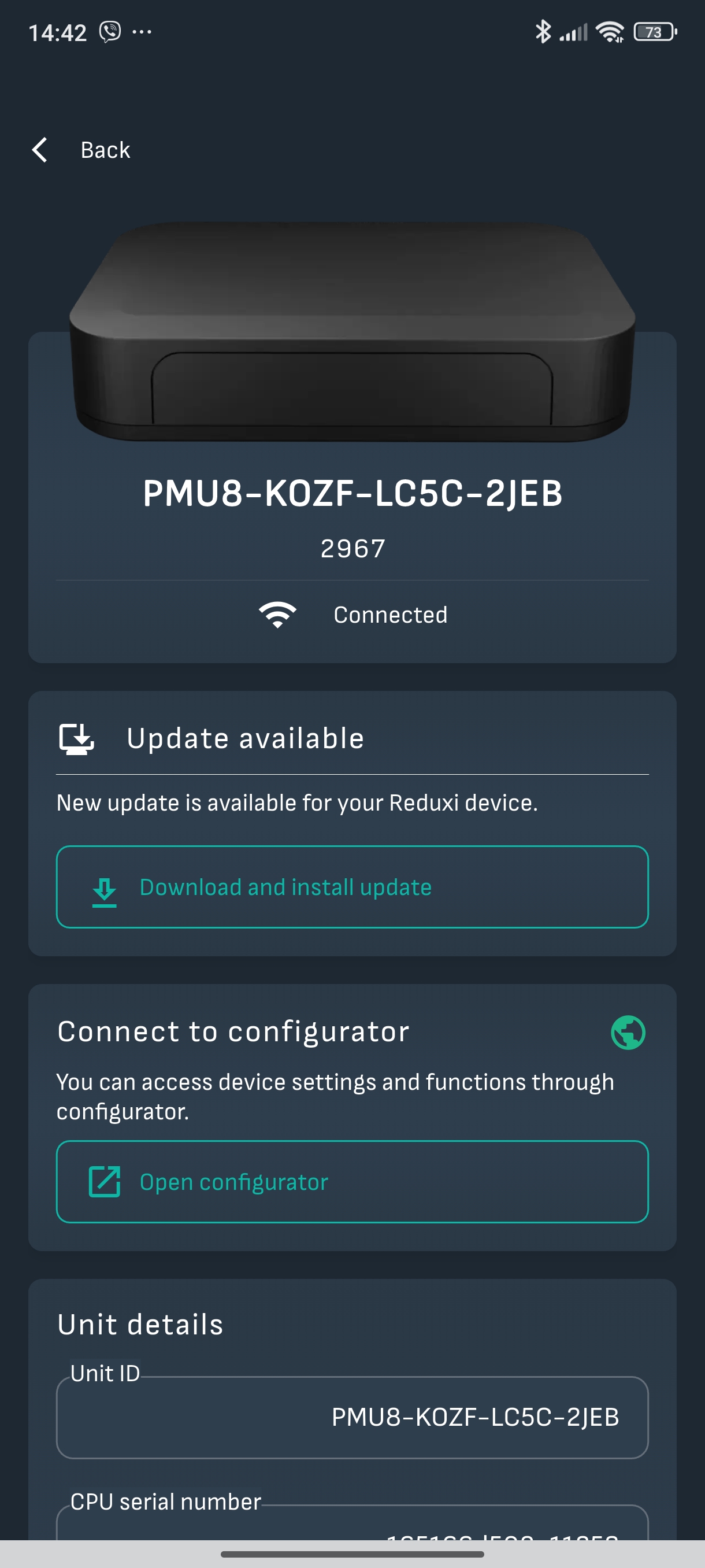

The basic configuration is now finished. On the next screen you can:
- Add your devices (PV, battery, EV charger ...) directly: tap Open configurator.
- Update the controller firmware, if an update is available.
Text description of this image
Screenshot of the device details screen of a mobile app, dark blue background. Status bar: time 14:42, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 73. Top: Back with a left arrow. Card with a picture of a dark grey controller, the identifier PMU8-KOZF-LC5C-2JEB, the number 2967 and a Wi-Fi icon with the status Connected. Card Update available: text New update is available for your Reduxi device; button Download and install update (green outline, download icon). Card Connect to configurator (globe icon): text You can access device settings and functions through configurator; button Open configurator (green outline, icon of a square with an arrow). Card Unit details: field Unit ID: PMU8-KOZF-LC5C-2JEB; field CPU serial number (value cut off by the gesture bar). A grey gesture bar is at the bottom.

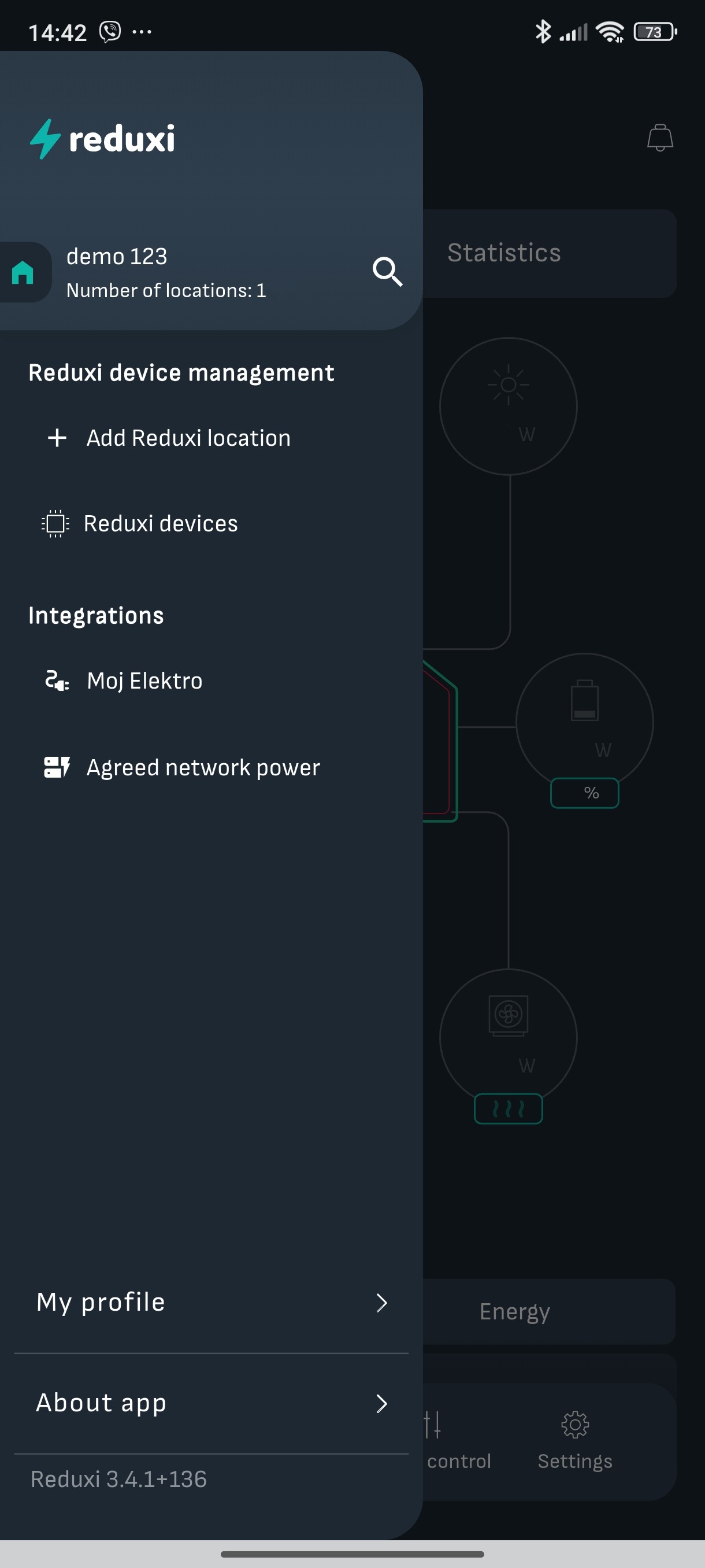

You can also add devices later. Tap the Menu button (top left), choose Reduxi devices and tap Open configurator. In the same menu you can check for firmware updates and install them.
Text description of this image
Screenshot of the side menu of a mobile app, dark theme, open over a dimmed dashboard. Status bar: time 14:42, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 73. Menu header: reduxi logo; location card with a green home icon, name demo 123, text Number of locations: 1, and a magnifying glass icon. Section Reduxi device management: + Add Reduxi location; Reduxi devices (chip icon). Section Integrations: Moj Elektro (plug icon). Further entry with a server and lightning icon: Agreed network power. Lower entries with right arrows: My profile; About app. Version text: Reduxi 3.4.1+136. Dimmed dashboard on the right: a bell icon, tab Statistics, tab Energy, energy-flow nodes, and bottom navigation entries ending with control and Settings. A grey gesture bar is at the bottom.
Text description of this image
Screenshot of the device details screen of a mobile app, dark blue background. Status bar: time 14:42, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 73. Top: Back with a left arrow. Card with a picture of a dark grey controller, the identifier PMU8-KOZF-LC5C-2JEB, the number 2967 and a Wi-Fi icon with the status Connected. Card Update available: text New update is available for your Reduxi device; button Download and install update (green outline, download icon). Card Connect to configurator (globe icon): text You can access device settings and functions through configurator; button Open configurator (green outline, icon of a square with an arrow). Card Unit details: field Unit ID: PMU8-KOZF-LC5C-2JEB; field CPU serial number (value cut off by the gesture bar). A grey gesture bar is at the bottom.
Next step: adding your devices to system (PV, battery, EV charger ...)
✓ Summary
Install and register (Points 1–2): Install the Reduxi app and register a new account. Confirm your e-mail and log in.
Connect the controller (Point 3): Add a location, scan the QR code, select the device and the network, set the IP address and save.
Grid data (Point 4): Enter the grid circuit breakers in A and the import and export limit in kW. Tap Save.
Finish (Point 5): Open the configurator to add your devices, or update the firmware.
→ Common issues
| Issue | Solution |
|---|---|
| More than one Reduxi device is offered | Check the S/N on the device label and select the matching device. |
| Wi‑Fi network is not listed | Wait until the app finishes scanning, then select the network and enter the password. |
| Unsure how to set a static IP address | Consult your router’s manual. Reduxi recommends a static IP for the Reduxi device and all connected devices. |
