How to connect SolaX X1/X3 hybrid inverter G4/Pro/Ultra with Reduxi controller
Cut energy costs by up to 70%: connect SolaX Power X1/X3 hybrid inverters G4, Pro and Ultra to the Reduxi Controller via Modbus TCP/IP or RTU.
Text description of this image

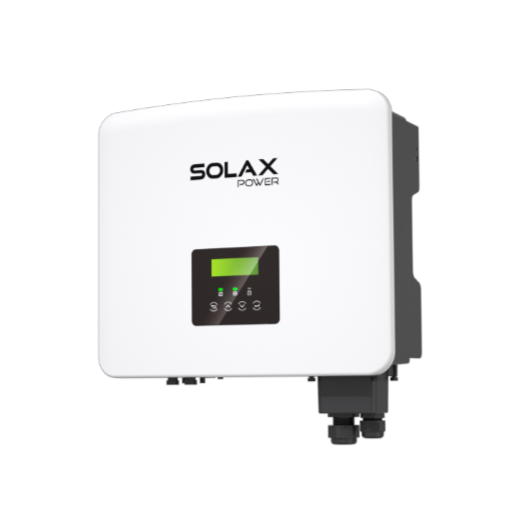

Photo (product render) of a white wall-mounted inverter seen from a slight angle on a white background. SOLAX POWER is printed on the front. Below the logo a small black display with a green screen, three small indicator lights and four round buttons. On the right side a dark grey side part; underneath, a dark grey connection block with two cable glands, and small connectors on the lower edge.
1 Prepare the SolaX inverter
1.1 Technical documentation
- SolaX X1-Hybrid G4 – Product page
- SolaX downloads – Manuals and datasheets
1.2 Required equipment
- SolaX Power X1 or X3 Hybrid Inverter (G4, Pro or Ultra)
- For Modbus TCP: WiFi 3.0 dongle or WiFi & LAN 3.0 dongle
- For Modbus RTU: RS485 connection to the Reduxi Controller (see wiring diagrams in Point 2)
- Reduxi Controller
- Laptop or tablet with internet access to configure the device in Reduxi
1.3 Install the latest firmware
The inverter must have the latest firmware. To update it, contact SolaX Power support: service.global@solaxpower.com
The table shows the firmware versions by device:
Text description of this image
Table of devices with hardware and firmware versions. Columns: Device, Hardware, Firmware. Energy Storage Inverters, Singlephase: X1-IES, ARM V1.23. Threephase: X3-HybridG4, ARM V1.20; X3-Hybrid G4 Pro(Need LAN), ARM V4; X3-IES, ARM V13; X3-Ultra, ARM V4.04. On-grid Inverters, Singlephase: X1-MINIG3, ARM V1.46; X1-MINIG4, ARM V1.0; X1-MINI G4 Plus, ARM V1.0; X1-SMART G2, ARM V2.05; X1-BOOSTG3, ARM V1.46; X1-BOOSTG4, ARM V1.0. Threephase: X3-MICG2, ARM V1.17; X3-PROG2, ARM V1.17; X3-MEGAG2, ARM V008.02; X3-FORTH, ARM V015.01; X3-FORTH Plus, ARM V002.01; X3-GROUND, ARM V1.00. Wi-Fi dongle: Pocket WiFi2.0/Plus(Transition)(SX/SJ), V3.005.01; Pocket WiFi 3.0(SV/SR), V3.005.01; Pocket WiFi 3.0(SS), V3.031.02; Pocket WiFi+LAN(SN), V1.001.20(WiFi, LAN all support); Pocket WiFi+4GM(SM), V1.001.23(Only WiFi); Pocket WiFi+LAN 2.0(XW), V001.31(WiFi, LAN all support).
2 Physical connection
2.1 Modbus TCP/IP
The picture shows the entire connection from the Reduxi Controller to the inverter.
Text description of this image
Diagram of a Modbus TCP/IP connection on a white background. Top left: black rounded box labelled Controller, with the reduxi logo. Top centre: white box labelled Hybrid Inverter with SOLAX POWER printed on it and a small green display. Middle left: a white router with antennas and a Wi-Fi symbol, labelled Router. Bottom left: a globe with the letters WWW. Lines: a cyan solid line labelled Ethernet from the Controller down to the Router; a cyan solid line labelled Ethernet from the Router to the underside of the inverter; a cyan dashed line from the Router to the WWW globe. A cyan line from the inverter's underside leads to a cyan-framed box with two black dongles, a red exclamation mark beside it, and red text: Dongle WiFi 2.0 or Dongle WiFi & LAN 3.0.
2.2 Modbus RTU
The picture shows the entire connection from the Reduxi Controller to the inverter.
Text description of this image
Diagram of a Modbus RTU connection on a white background. Centre: black rounded box labelled Controller with the reduxi logo. Right: white box labelled Hybrid Inverter with SOLAX POWER printed on it. Left: a white router with antennas labelled Router, and below it a globe with the letters WWW. Lines: a cyan solid line labelled Ethernet from the Router to the Controller; a cyan solid line labelled RS 485 A/B from the Controller to the underside of the inverter; a cyan dashed line from the Router to the WWW globe.
2.2.1 Wiring diagrams
Connect terminals A and B of the RS485 port of the Reduxi Controller to the COM port of the inverter, as shown for your series.
Text description of this image
Wiring diagram titled X1/X3 G4 Series. Left: line drawing of the underside of a SolaX inverter with round connectors and fans; one connector is marked by a red box. A cyan line leads to a cyan-outlined area on the right. At its top a plug/connector strip labelled SolaX Inverter COM with one position marked by a red box, joined by a black line down to the terminals. Below: a block labelled Reduxi Controller with a 4-pin terminal labelled RS485; beside it a strip of four terminals labelled GND, A, B, 5VDC. The terminals A and B are inside a red box and are joined by a black line to the inverter COM connection.
Text description of this image
Wiring diagram titled X1/X3 Ultra Series. Left: line drawing of the underside of a SolaX inverter with several connectors and fans; one connector block is marked by a red box. A cyan line leads to a drawing of a cover with four sockets, one socket marked by a red box. Right: a large cyan-outlined area. At its top a table labelled SolaX Inverter COM 1, connected by a black line from the cover. Below: a block labelled Reduxi Controller with a 4-pin terminal labelled RS485; beside it a strip of four terminals labelled GND, A, B, 5VDC. The terminals A and B are inside a red box and are joined by a black line to the connection from the inverter.
Text description of this image
Wiring diagram titled X1/X3 PRO Series. Left: line drawing of the underside of a SolaX inverter; at its right end a cyan-outlined area with four labelled RJ45 sockets, one of them marked by a red box. A cyan line leads to a cyan-outlined area on the right. At its top an RJ45 plug with coloured wires and a pin table labelled Solax Inverter Com 1 / RS485 (columns Pin No. and Definition; pins 1 and 2 Not assigned; pin 3 a +12V line; pins 4 and 5 in a red box, reading REMOTE_485A and REMOTE_485B; pin 6 GND2_COM; pins 7 and 8 Not assigned). Below: a block labelled Reduxi Controller with a 4-pin terminal labelled RS485; beside it a strip of four terminals labelled GND, A, B, 5VDC. The terminals A and B are inside a red box and are joined by a black line to the RJ45 plug.
3 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
4 Add the SolaX inverter to Reduxi
After you connect the Reduxi Controller and the SolaX hybrid inverter, register it as a new device.
4.1 Basic settings
Log in to the local Reduxi Configurator (see Point 3) and click + Add device.
Text description of this image
Screenshot of the Reduxi Configurator sidebar. Header: reduxi Configurator logo. Section Devices (with a minus icon) lists: Iskraemeco AM550 (electricity pylon icon) and two entries with sun icons and no visible names. At the bottom is an Add device button with a plus sign, marked with a cyan rectangle.
In the first step, select the basic settings. For a single-phase inverter select X1. For a three-phase inverter select X3.
- Device type:
Hybrid Inverter - Type:
SolaX Power X1 HybridorSolaX Power X3 Hybrid - Name: a name of your choice, for example Solax Power X3 Hybrid G4
Text description of this image
Screenshot of the Reduxi Configurator wizard, step 1 Basic settings (step 2 is Communication channel, greyed). Heading: Basic settings. Fields: Device type *: Hybrid inverter (dropdown); Type *: Solax Power X3 Hybrid G4 (dropdown); Name *: Solax Power X3 Hybrid G4 (text field). Buttons: Back (left), Next (right, dark).
Click Next.
4.2 Communication settings
The second step sets up the communication channel for Modbus between the Reduxi Controller and the SolaX inverter. Choose TCP/IP or RTU, depending on your connection.
4.2.1 Modbus TCP
| Parameter | Value |
|---|---|
| Connection | TCP/IP |
| IP | The IP address of the SolaX inverter |
| Port | 502 |
| Modbus unit ID | The same ID as set on the inverter. Default: 1
|
| User password | The same PIN code as for the display of the inverter, for example 2014
|
| PV | Is a PV installed: Yes or No
|
| Battery | Is a battery installed: Yes or No
|
Text description of this image
Screenshot of the Reduxi Configurator wizard, step 2 Communication channel (step 1 is Basic settings). Heading: Communication channel and device configuration. Fields: Connection *: TCP/IP (dropdown); IP *: empty; Port *: 502; Modbus unit ID *: 1; User password *: a value is entered (the field shows a password; value left out here); PV *: Yes (dropdown, hint: Is PV installed on the inverter?); Battery *: Yes (dropdown, hint: Is battery installed on the inverter?). Buttons: Back (left), Test communication and Done (right).
4.2.2 Modbus RTU
| Parameter | Value |
|---|---|
| Connection | Local Port |
| Port | 1 |
| Baudrate | 9600 |
| Data Bits | 1 |
| Stop Bits | 1 |
| Parity | None |
| Modbus unit ID |
1 (same ID as on the inverter) |
| User password | The same PIN code as for the display of the inverter, for example 2014
|
| PV | Is a PV installed: Yes or No
|
| Battery | Is a battery installed: Yes or No
|
Text description of this image
Screenshot of the Reduxi Configurator wizard, step 2 Communication channel (step 1 is Basic settings). Heading: Communication channel and device configuration. Fields: Connection *: Local serial port; Port *: Port 1; Baud rate *: 9600 bits/s; Data bits *: 8; Stop bits *: 1; Parity *: None; Modbus unit ID *: 1; User password *: a value is entered (the field shows a password; value left out here); Phase *: L1 (hint: To what phase is the inverter connected to.); PV *: Yes (hint: Is PV installed on the inverter?); Battery *: Yes (hint: Is battery installed on the inverter?). Buttons: Back (left), Test communication and Done (right).
4.3 Test communication
Click Test communication at the bottom of the wizard. It reads the SolaX inverter once and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the bottom button bar of a Reduxi Configurator page. Left: button 'Back'. Right: button 'Test communication' (marked with a cyan box) and dark button 'Done'.
Text description of this image
Screenshot of the Reduxi Configurator page 'Communication channel and device configuration'. Connection *: TCP/IP (dropdown). IP *: 192.168.50.243, with button 'Scan for IP'. Port *: 502, with button 'Test port'. Modbus unit ID *: 1. Buttons at the bottom: Back (left), Test communication and Done (right). The Done button is marked with a cyan box.
Examples of the result for this device:
Text description of this image
Screenshot of a Test communication dialog in the Reduxi Configurator (close X at top right, dark Close button at bottom right). Green text in a white box: Successful readout from device. Battery active power: 330.0 W; Battery current: 0.9952 A; Battery export active energy: 740760.0 Wh; Battery import active energy: 765890.0 Wh; Battery max. active power: 8210.0 W; Battery max. state of charge: 100 %; Battery min. active power: -9131.0 W; Battery min. state of charge: 0.0 %; Battery state name: CHARGING null; Battery state of charge: 33.8 %; Battery state of health: 100.0 %; Battery temperature: 23.1 °C; Battery voltage: 331.6 V; Error: false null; Grid active power: 5.0 W; Grid export active energy: 1588740.0 Wh; Grid frequency: 50.01 Hz; Grid import active energy: 0.0 Wh; Grid state name: METER_ONLINE null; Inverter active power: -441.0 W; Inverter max. power: 10000.0 W; Inverter min. power: -10000.0 W; Load active power: 446.0 W; Load import active energy: 0.0 Wh; Model name: SigenStorEC100TP null; PV active power: -963.0 W; PV current: -1.99 A; PV export active energy: 0.0 Wh; PV min. active power: -10000.0 W; PV state name: CONNECTED null; PV voltage: 322.3 V; State name: RUNNING null. Additional parameters: BATTERY_CAPACITY_MAX_WH: 16120.0; BATTERY_CAPACITY_WH: 5448.56; GRID_EXPORT_POWER_ACTIVE: 0.0; GRID_IMPORT_POWER_ACTIVE: 5.0; GRID_POWER_ACTIVE_L1: 0.0; GRID_POWER_ACTIVE_L2: 5.0; GRID_POWER_ACTIVE_L3: 5.0 (partly cut off in the image); PV_POWER_ACTIVE_MAX: 0.
Text description of this image
Screenshot of a dialog titled Test communication with a close x at the top right. Message in red text: Unable to communicate with device. Dark button at the bottom right: Close.
If the test fails, check the settings and the wiring and try again.
5 Check the readings
5.1 Last measurements
Check the measured values and the communication under Devices – SolaX Power Inverter – Last Measurement in the Reduxi Configurator.
Text description of this image
Screenshot of the Reduxi Configurator 'Last measurements' page of a device. Tabs: Last measurements (active), Analyze, Archive. Top right: refresh dropdown 'Without refreshing' and a refresh button. Card 'Control type': buttons Auto (light green) and Manual (dark, selected); timestamp 14. 03. 2025 12:49:13. All values below have timestamp 14. 03. 2025 12:49:01 unless noted. Card PV: PV active power -1.0 kW; PV current -1.98 A; PV voltage 327.63 V; PV export active energy 587.0 kWh; PV min. active power -10.0 kW; PV export active power limit: empty (unit kW); enumeration.PV_STATE_NAME: CONNECTED. Card Load: Load active power 0.4 kW; Load import active energy 1,109.2 kWh. Card Battery: Battery active power 0.4 kW; Battery current 1.09 A; Battery voltage 331.60 V; Battery state name CHARGING; Battery state of charge 33.80 %; Battery min. state of charge 0.00 %; Battery max. state of charge 100.00 %; Battery import active energy 765.9 kWh; Battery export active energy 740.8 kWh; Battery min. active power -9.1 kW; Battery max. active power 8.2 kW; Battery active power setpoint 1.0 kW. Card Inverter: Inverter active power -0.4 kW; Inverter max. active power 10.0 kW; Inverter min. active power -10.0 kW; State name RUNNING; Error OFF. Card Grid: Grid frequency 49.990 Hz; Grid active power 0.0 kW; Grid import active power limit: empty (kW); Grid export active power limit: empty (kW); enumeration.GRID_STATE_NAME METER_ONLINE; Grid export active energy 1,588.7 kWh; Grid import active energy 0.0 kWh. Card Other: Battery state of health 100.00 %; Battery temperature 23.10 °C; Model name SigenStorEC100TP; Communication error OFF (timestamp 12:48:56); Control type MANUAL; Mode name setpoint SELF_CONSUMPTION.
5.2 Enable control by Reduxi
For advanced control, integrate the device into the optimization modes of the Reduxi system. Under Devices – SolaX Power Inverter in the Reduxi Configurator, set the control type to AUTO. Only then do strategy commands affect the battery.
To achieve maximum flexibility and energy cost reduction with dynamic prices and dynamic tariffs, define a strategy as described in Strategies for Reduxi controller.
After you add the device, you can monitor and control it via the Reduxi application.
✓ Summary
Preparation (Point 1): Install the latest firmware. For Modbus TCP get the WiFi 3.0 or WiFi & LAN 3.0 dongle.
SolaX connection (Point 2): Connect the inverter to the Reduxi Controller via Modbus TCP/IP or wire RS485 for Modbus RTU.
Add to Reduxi (Points 3–4): Log in to the Reduxi web interface, click + Add device, choose X1 or X3 and enter the communication settings. Click Test communication, then Done.
Go live (Point 5): Check the last measurements. Set the control type to AUTO and define a strategy.
→ Common issues
| Issue | Solution |
|---|---|
| Modbus does not work | Install the latest firmware. Contact service.global@solaxpower.com for the update. |
| No Modbus TCP connection | Modbus TCP needs the WiFi 3.0 dongle or the WiFi & LAN 3.0 dongle. |
| Test communication fails | Check the settings and the wiring. Check the Modbus unit ID (default 1) and the user password. It is the PIN code of the inverter display. |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
