How to connect Easee chargers with Reduxi controller
Integrate Easee chargers with Reduxi via Wi‑Fi and the Easee platform using the OCPP protocol. Possible cost reductions of up to 30%.
Text description of this image

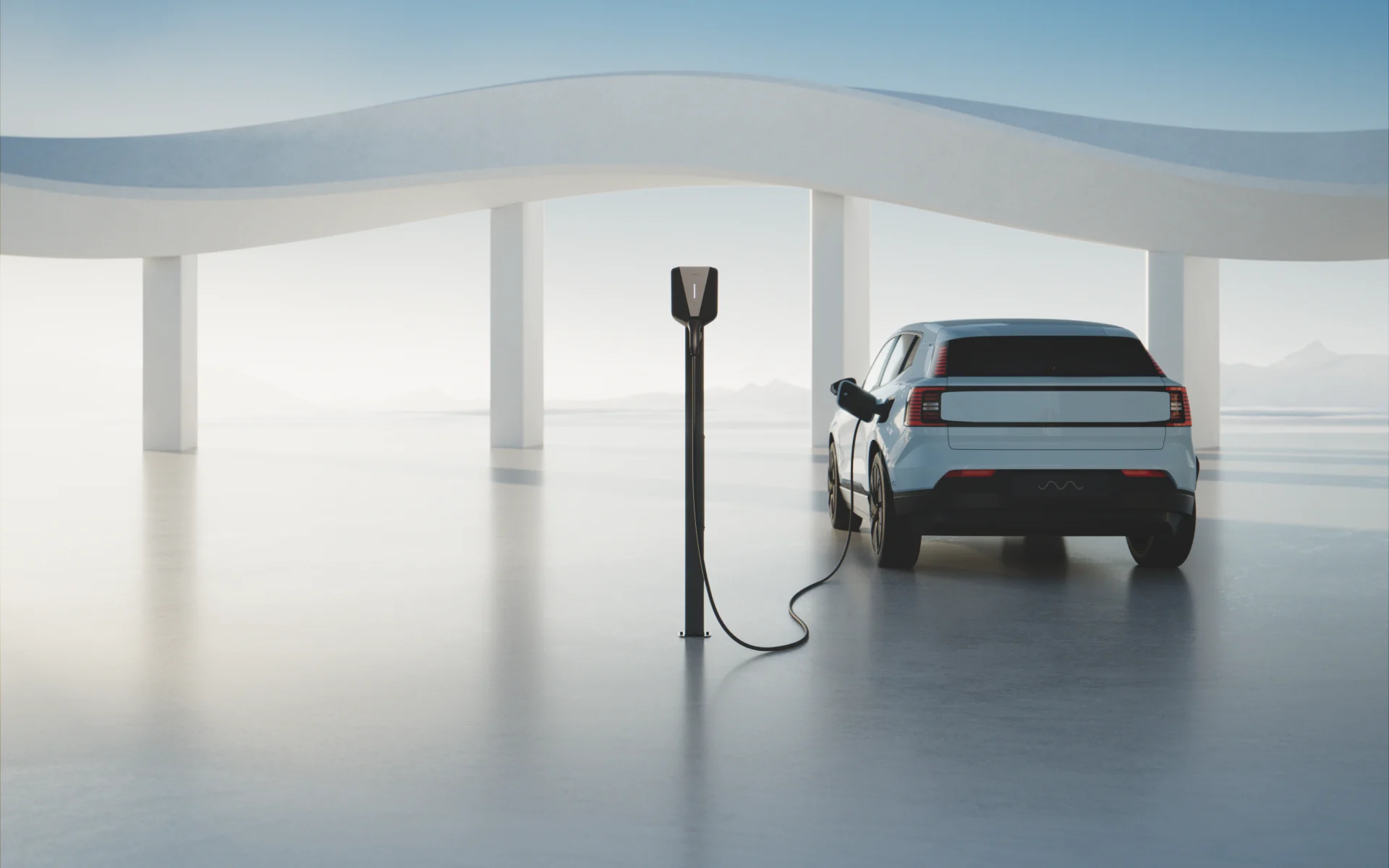

Photo (rendered scene) of a white electric car seen from behind, parked in a bright, empty hall with a wavy white roof held by white pillars and a pale reflective floor. At the left of the car a slim black charging post (Easee charger, per the caption) with a dark head stands on the floor; a black charging cable runs from the post in a curve to the car's charging port at the rear left side. No text is visible.
1 Technical documentation
Documents and apps from Easee:
- Easee app (Google Play) – App for Android.
- Easee app (App Store) – App for iOS.
- Find the Pin and Charger ID – Easee support article (Swedish).
- Getting started with Easee chargers – Easee support article with the basics.
2 Required equipment
You need:
- Reduxi Controller
- Easee charger connected to the Easee platform via Wi‑Fi
- Charger ID and Charger PIN of the charger (see Point 3)
- Easee app (optional, to read the Charger ID and PIN)
- Laptop or tablet with internet access to configure the device in Reduxi
3 Find the Charger ID and PIN
Reduxi needs two values to communicate with the Easee charger: the Charger ID and the Charger PIN. You find them in the Easee app or on the device itself.
3.1 Easee app
Log in to the Easee app and go to Charger Settings. The serial number is displayed on the About line. Tap the serial number for more information, including the PIN code of your charger.
Text description of this image
Screenshot of the Easee app screen 'About' with subtitle 'DRIVEWAY' and a back arrow at top left. A red rectangle highlights the first two rows. Rows (label: value): Serial number: EH004333 (with arrow); PIN code: eye icon and four masked dots, PIN not shown (with arrow); Product: Easee Home; Unit type: Master; Firmware version: v300; User role: Owner; WiFi signal: Good (-52 dBm); Cellular signal: -; Bluetooth signal: Excellent (0 dBm).
If the charger is not listed in the app yet, add it:
Text description of this image

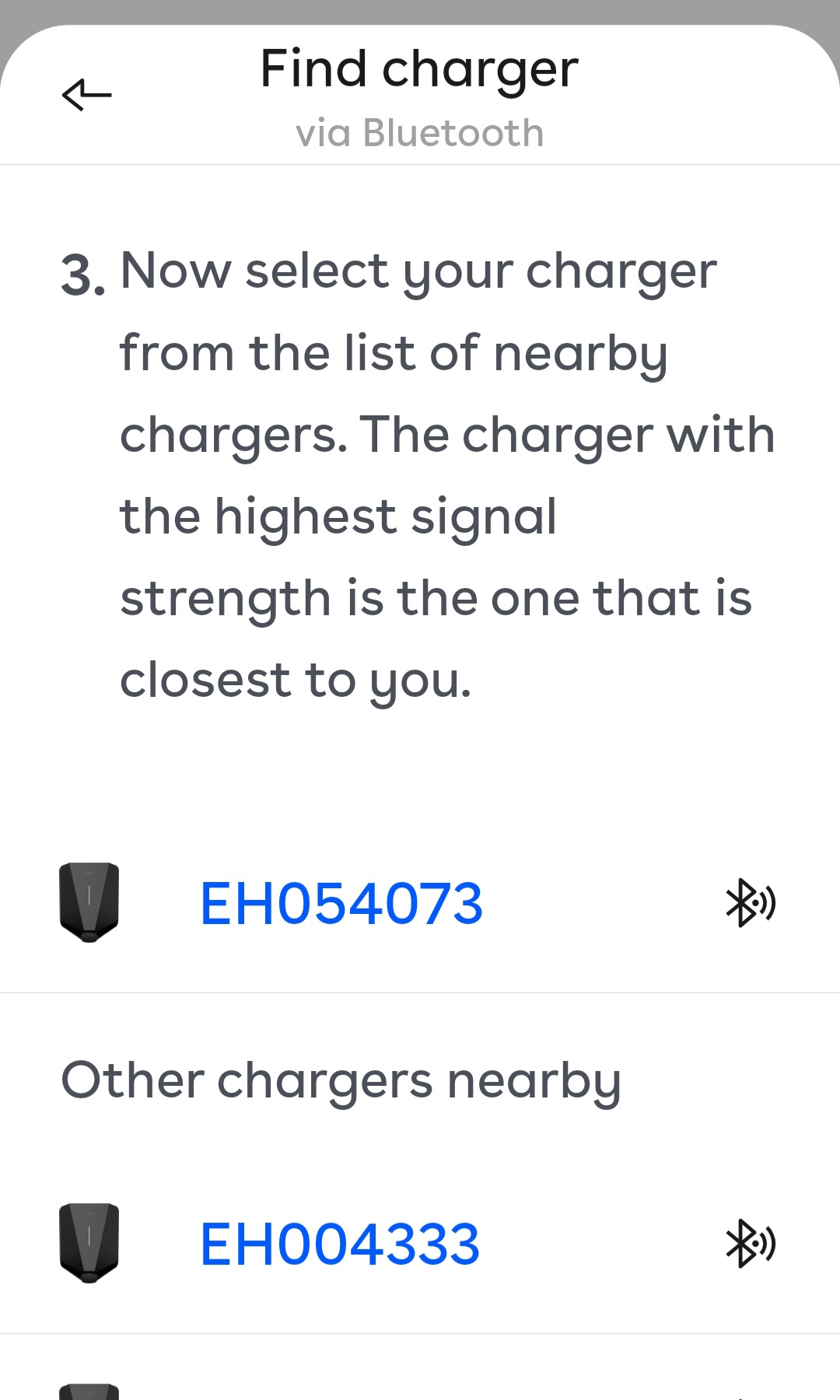

Tall phone screenshot of the Easee app screen 'Find charger via Bluetooth' with a back arrow at top left. Instruction text: '3. Now select your charger from the list of nearby chargers. The charger with the highest signal strength is the one that is closest to you.' Below it a charger list entry with a small black charger icon on the left and a Bluetooth signal icon on the right: serial number EH054073 (blue text). Section heading 'Other chargers nearby'. Next entry: serial number EH004333 (blue text) with charger icon and Bluetooth icon. A further entry starts below it but is cut off at the bottom of the image.
3.2 Find the values on the device or in the manual
If the charger is not added to the app, you find the serial number and the PIN on the device or in the printed manual.
- On the device: remove the front cover to access the Chargeberry. The serial number is located above the Type 2 connector.
- In the manual: the serial number and the PIN code are on a sticker on the back of the manual.
- The installer may have placed the sticker inside the fuse box door or directly on the charger.
Text description of this image
Diagram with two drawings and two blue arrows. Left: line drawing of the charger with its cover removed, seen from the front, showing the housing, a vertical slot and the cable socket at the bottom; a blue arrow points up from the label Serialnumber to the inside of the unit. Right: drawing of a closed booklet or card with the easee logo at the top and a dashed square frame in the middle; a blue arrow points up from the label Serialnumber & PIN to that frame.
4 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image

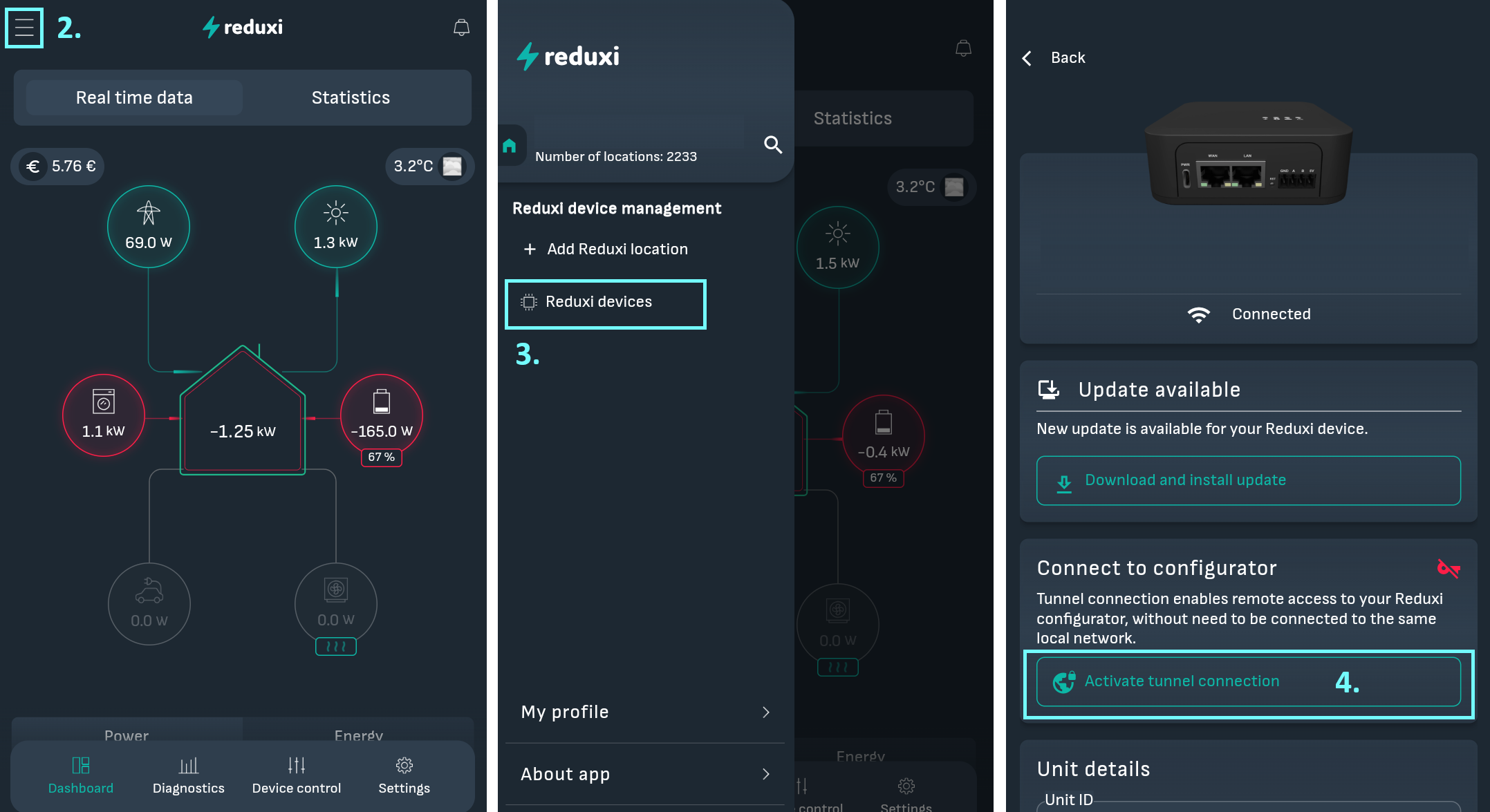

Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image

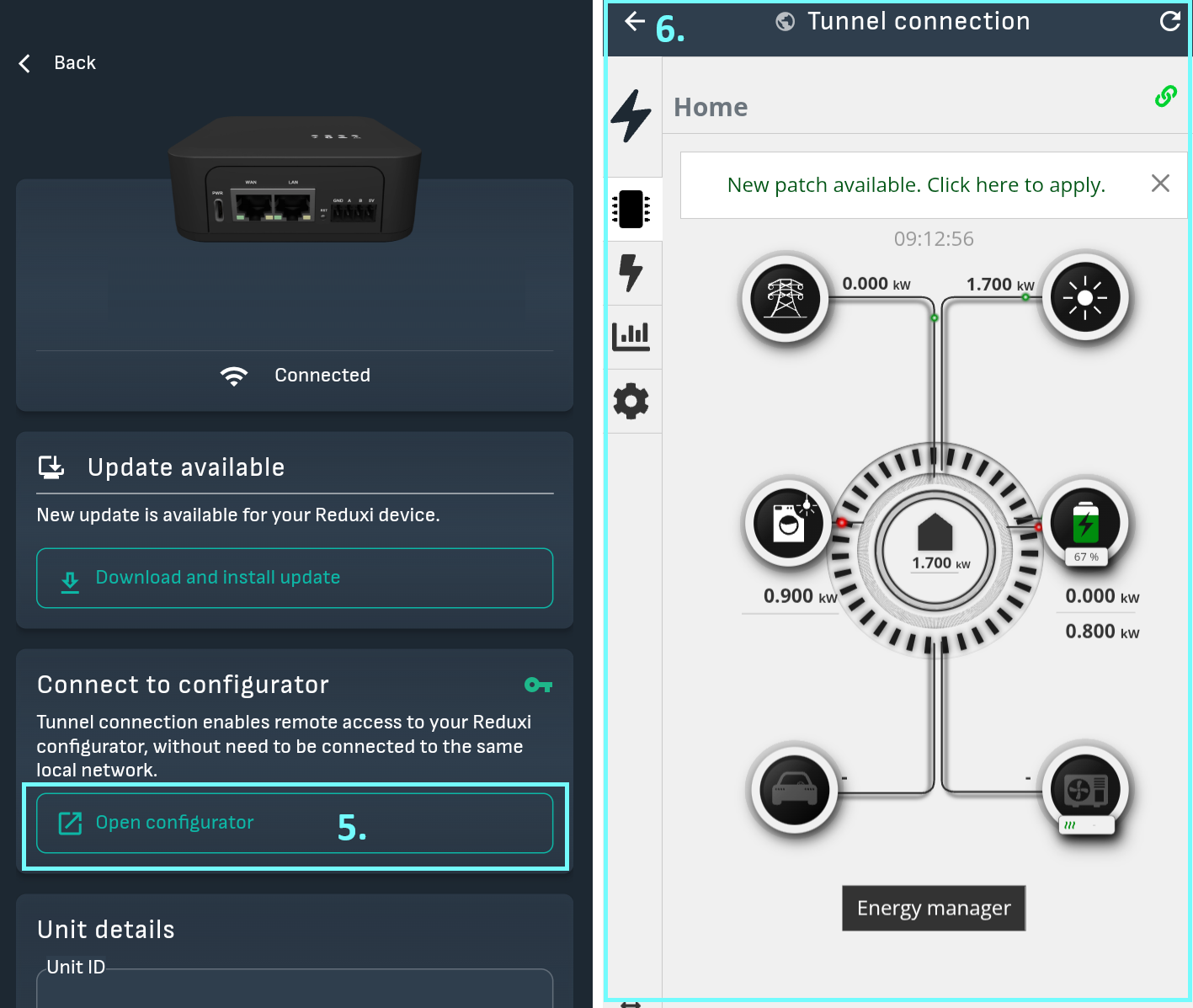

Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image

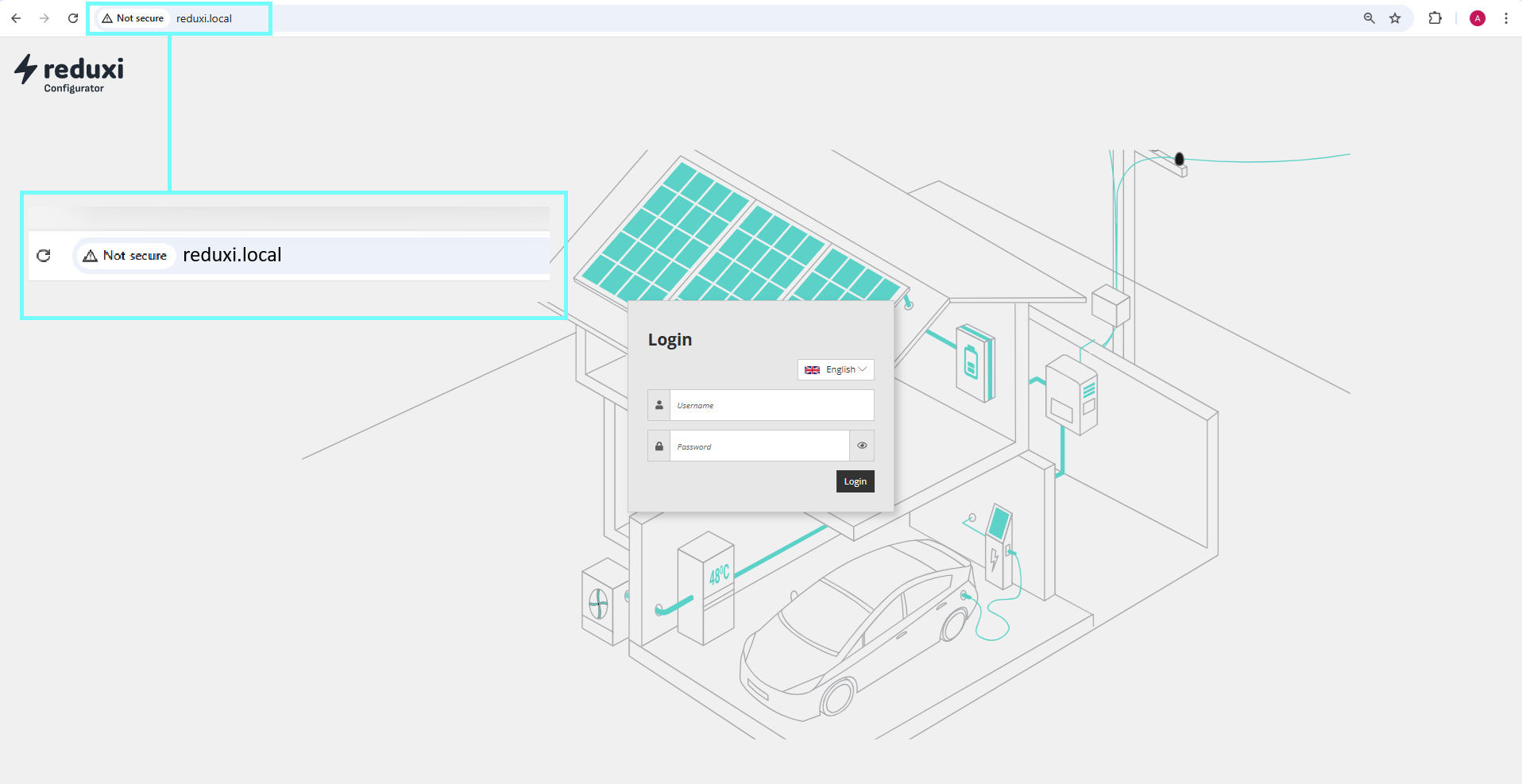

Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image

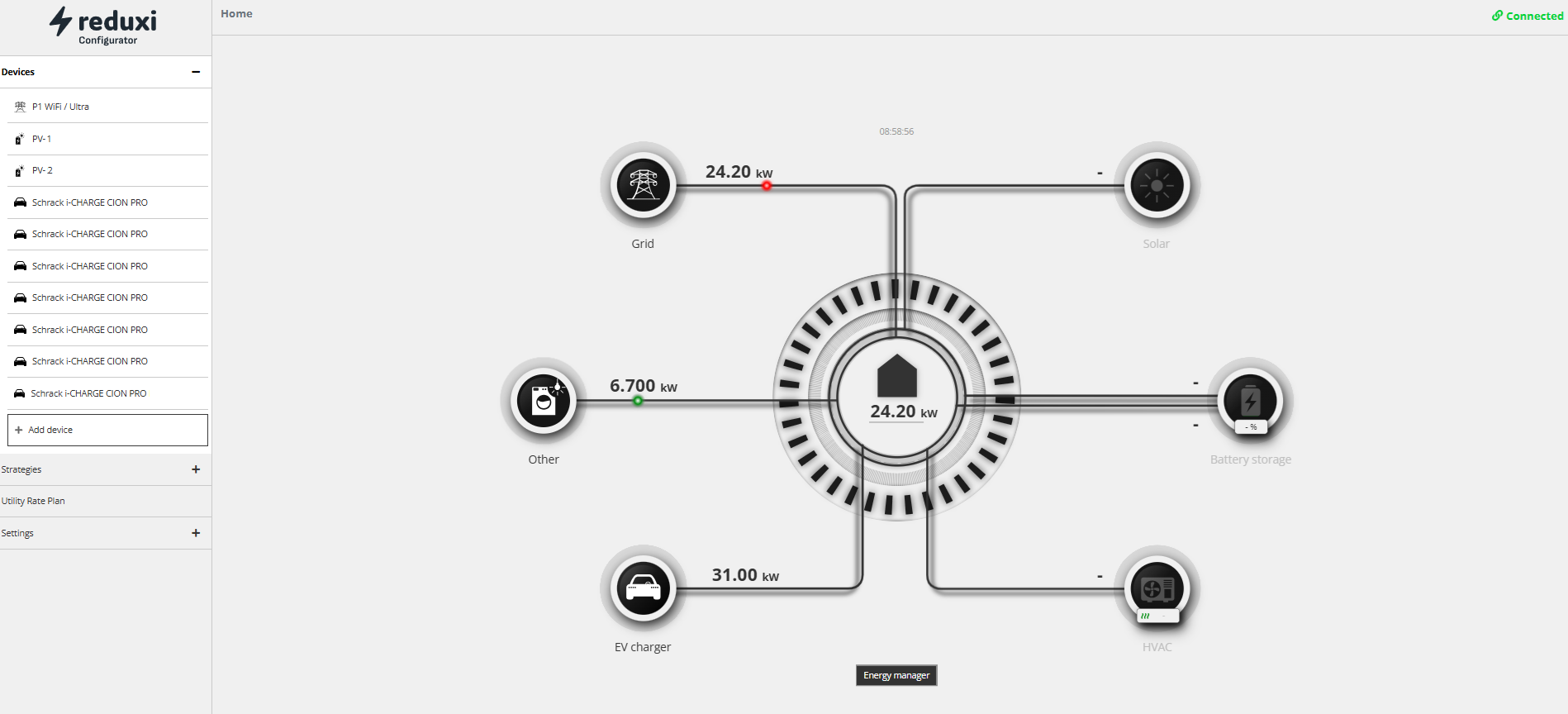

Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
5 Add the Easee charger to Reduxi
5.1 Basic settings
Log in to the local Reduxi Configurator (see Point 4) and click + Add device.
Text description of this image
Screenshot of the left sidebar of the Reduxi Configurator. Top: reduxi logo with the text CONFIGURATOR. Collapsed sections: Devices (plus icon) and Strategies (plus icon). Below, two buttons side by side: Add device (plus icon, marked with a blue highlight box) and Add strategy (plus icon). Below them two entries: Settings and Profile. The area to the right of the sidebar is empty white.
In the first step, select the basic settings:
- Device type:
EV charger - Type:
Easee - Name: the model of the charger
Text description of this image
Screenshot of the Reduxi Configurator wizard, step 1 Basic settings (step 2 is Communication channel, greyed). Heading: Basic settings. Fields: Device type *: EV charger (dropdown); Type *: Easee (dropdown); Name *: Easee (text field). Buttons: Back (left), Next (right, dark).
5.2 Communication settings
Enter the Charger ID and the Charger PIN from Point 3, then click Done.
| Parameter | Value |
|---|---|
| Charger ID | Serial number of the Easee charger |
| Charger PIN | PIN code of the Easee charger |
Text description of this image
Screenshot of the Reduxi Configurator wizard, step 2 Communication channel (step 1 is Basic settings). Heading: Communication channel and device configuration. Grey text: There are no available connections. Fields: Charger ID *: empty (hint: Charger ID or serial obtained on https://portal.easee.com/ under Sites -> Products -> Info -> Serial number); Charger PIN *: empty. Buttons: Back (left), Done (right, dark).
5.3 Test communication
Text description of this image
Screenshot of the Reduxi Configurator, Devices view. Left panel: reduxi Configurator logo; section Devices (expanded, minus sign) with the entry Easee (car icon, marked by a red box); further entries below it are faded; button + Add device; collapsed sections Strategies (+), Utility Rate Plan, Settings (+). Right panel titled Devices with a card for the device Easee (car icon, trash icon at the top right): Type: Easee; Categories: EV charger.
Text description of this image
Screenshot of the Reduxi Configurator device page. Breadcrumb: Devices / Easee. Top right: green status Connected. Tabs: Last measurements, Analyze, Archive, Details (selected, marked by a red box). Left card General configuration: Name: Easee; Type: Easee (dropdown); Category: 2 (dropdown with clear x); Location: Sub (dropdown); Energy direction: Consumption (dropdown). Right card Advanced configuration (optional) with four toggles, all set to No: Do you want to set data saving interval? (Default: 1 min); Do you want to set reading delay? (Default: 1000 ms); Do you want to set writing delay? (Default: 3000 ms); Do you want to set power generation limits and capabilities? (no default shown).
Text description of this image
Screenshot of the lower part of the Reduxi Configurator device Details tab (cut off at the top). At the top right three dropdowns, partly visible: L1 is connected to main feed: L1; L2 is connected to main feed: L2; L3 is connected to main feed: L3. Card Device configuration: Charger ID *: empty (hint: Charger ID or serial obtained on https://portal.easee.com/ under Sites -> Products -> Info -> Serial number); Charger PIN *: empty. Buttons: Delete device (bottom left), Test communication (bottom right, marked by a red box) and Save (dark).
The test returns one of two results:
Text description of this image
Screenshot of a dialog titled Test communication (close X at the top right). Green text: Successful readout from device. Lines: Active power: 0.0 W; Current L1: 0.008 A; Current L2: 0.007 A; Current L3: 0.008 A; Import active energy - session: 0.0 Wh; Max. active power: 22080.0 W; Max. current per phase: 32 A; Min. active power: 4140.0 W; State name: AVAILABLE null. Button at the bottom right: Close (dark).
Text description of this image
Screenshot of a dialog titled Test communication with a close X at the top right. Message in red text in a white field: Unable to communicate with device. Button at the bottom right: Close (dark).
If the readout is unsuccessful, check that the correct Charger ID and Charger PIN are entered. If the problem remains, contact the Reduxi Support Team.
6 Check the readings
6.1 Last measurements
After communication is established, check the values under Devices – Easee in the Reduxi Configurator as an additional test.
Text description of this image
Screenshot of the Reduxi Configurator device page 'Devices / Easee', tab 'Last measurements' selected (other tabs: Analyze, Archive, Details). Top right: green 'Connected' status. Card 'Control type': buttons Auto (selected, highlighted), Manual, Off, Boost; timestamp 30. 09. 2025 10:25:02. Card 'Current': Current L1 0.01 A; Current L2 0.01 A; Current L3 0.01 A; Max. current per phase 32.00 A; Per phase current setpoint 6.00 A (each at 30. 09. 2025 10:25:14). Card 'Power': Active power 0.0 kW; Max. active power 22.1 kW; Min. active power 4.1 kW (each 30. 09. 2025 10:25:14). Card 'Energy': Import active energy 29.7 kWh; Import active energy - session 29.7 kWh (each 30. 09. 2025 10:25:14). Card 'Other': Communication error OFF (10:25:11); Control type AUTO (10:25:14); State name AVAILABLE (10:25:14).
6.2 Enable control by Reduxi
For advanced charger control, integrate the device into the Reduxi strategy. Under Devices – Easee or Home in the Reduxi Configurator, set the control type to AUTO. Only then do strategy commands affect the charger.
To use dynamic prices and dynamic tariffs, define a strategy as described in Strategies for Reduxi controller.
✓ Summary
Preparation (Points 1–3): Collect the apps and documents, then read the Charger ID and the Charger PIN from the Easee app, the device or the manual.
Easee charger (Point 3): The charger must be connected to the Easee platform. The Charger ID and PIN identify it.
Add to Reduxi (Points 4–5): Log in, add an EV charger of type Easee, enter Charger ID and PIN, click Done and run Test communication.
Go live (Point 6): Check the last measurements and set the control type to AUTO.
→ Common issues
| Issue | Solution |
|---|---|
| Test communication: unsuccessful readout | Check that the correct Charger ID and Charger PIN are entered (Point 5.2). |
| Charger is not in the Easee app | Add it as a Charging Robot and activate Bluetooth with the touch button, 5 seconds (Point 3.1). |
| Slow reaction to commands | The response time is 10 seconds and the API allows 20 write requests per minute (Point 6.2). |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
