How to connect an AC-coupled solar inverter (Deye hybrid inverter, additional PV on GEN port) with Reduxi controller
Settings for a Deye hybrid inverter with an additional AC-coupled PV inverter on the GEN port.

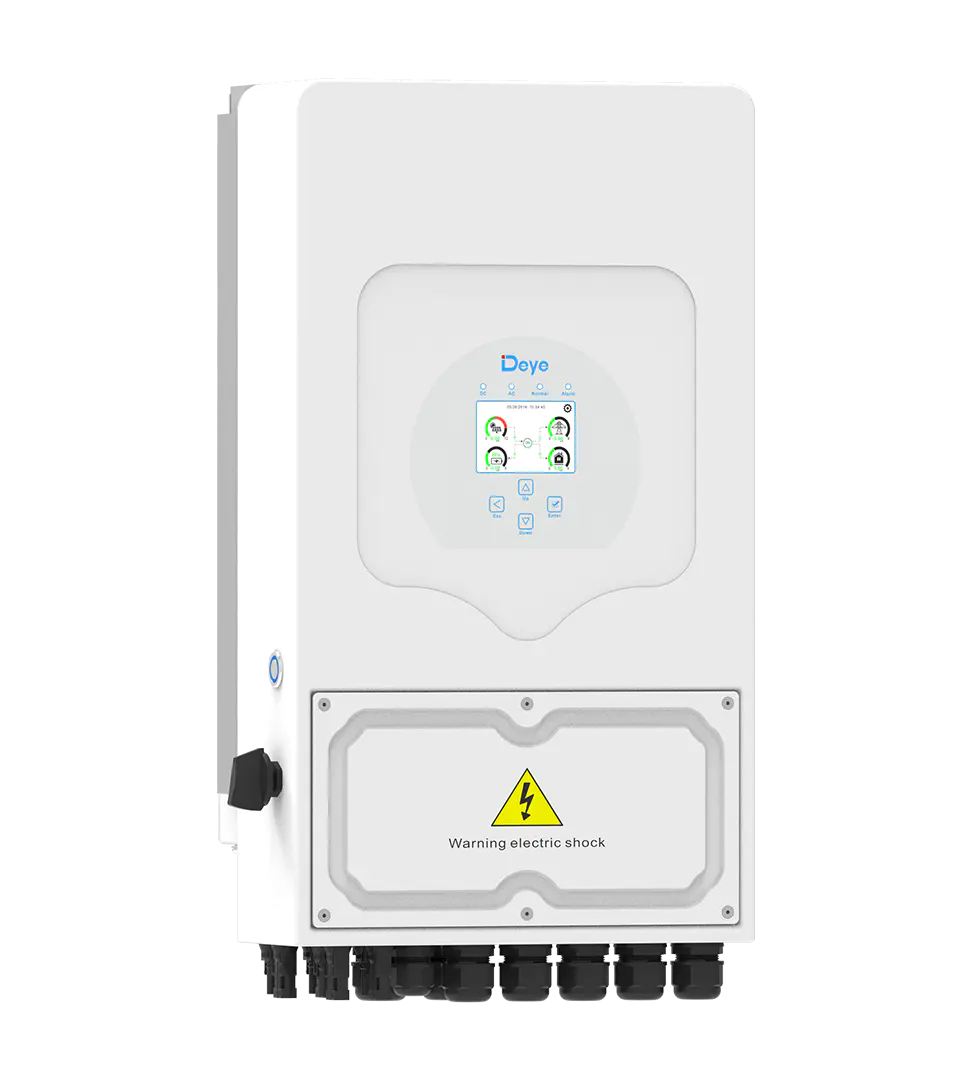

Text description of this image
Photo of a white wall-mounted hybrid inverter with the 'Deye' logo on the front. It has a round display panel with a small colour screen and touch buttons below the logo, and a rounded-rectangle cover at the bottom with a yellow warning triangle labelled 'Warning electric shock'. Cable glands are on the bottom edge.
1 Required equipment
You need the following components:
- Deye hybrid inverter with the additional PV inverter connected to the GEN port
- Additional Grid Tie meter (Grid_Tie_meter2), or the Reduxi RS485 emulator if the meter cannot be connected to the Deye hybrid inverter (see Point 4)
- Reduxi Controller
- Laptop or tablet with internet access to configure the device in Reduxi
2 System overview and wiring
2.1 Scheme
The scheme shows the AC-coupled solar inverter and the Deye hybrid inverter with the additional PV connected to the GEN port.
Text description of this image
Diagram titled 'On-Grid+AC couple' with a legend: red line 'AC cable', blue line 'DC cable'. Components with labels: hybrid inverter (top centre); Backup Load (computer icon); Solar (panel icon); Battery; Smart Load (kettle icon); On-Grid Inverter (small inverter box); Meter; On-Grid Home Load (house icon); CT; Grid (pylon). Solar and Battery connect to the hybrid inverter with blue DC lines. Red AC lines connect the inverter to Backup Load, Smart Load, the On-Grid Inverter and the Meter, and run to the CT and Grid on the right; the On-Grid Inverter and Meter feed the On-Grid Home Load.
2.2 PIN definition
- PINs 1 and 2:
EX_meter_for_CT - PINs 4 and 5:
Grid_Tie_meter2
Text description of this image
Screenshot from a manual titled 'Definition of RJ45 Port Pin for Meter-485'. Table with columns No. and Meter-485 Pin: 1 METER-485-B; 2 METER-485-A; 3 COM-GND; 4 METER-485-B; 5 METER-485-A; 6 COM-GND; 7 METER-485-A; 8 METER-485-B. Right: a drawing of the 'Meter-485 Port' as an RJ45 socket with pins numbered 1 2 3 4 5 6 7 8, and a circled close-up of an RJ45 plug with a cable.
3 Device configuration (Deye hybrid inverter)
3.1 Advanced settings
Under Advanced Settings, set both options to TRUE and choose your meter.
Text description of this image
Screenshot of the Deye inverter screen 'Advanced Function' (blue panel) next to a help text. Left side: checkbox Parallel (not ticked); radio buttons Master (not selected) and Slave (selected); Modbus SN: 00; Baud Rate: 9600; checkbox EX_Meter For CT with a blue arrow pointing at it; checkbox Grid Tie Meter2 with a blue arrow pointing at it; checkbox CT check; checkbox MPPT Scan; Meter Select dropdown showing 'No Meter' with list entries CHNT and Eastron. In this image the two arrowed checkboxes look empty (no tick visible), which differs from the caption 'both options set to TRUE'. Side buttons: Paral Set3, down arrow, X, tick. Right side: help text (cut off at the right edge) describing Parallel, Master, Slave, Modbus SN, Baud Rate, Ex_Meter For CT, Grid Tie Meter2, CT Check and MPPT Scan.
3.2 Modbus settings for Grid_Tie_meter2
| Parameter | Value |
|---|---|
| Baudrate | 9600 |
| Slave | 2 |
3.3 Additional PV on the GEN port
The additional PV is connected to the GEN port.
Text description of this image
Small screenshot of a settings panel titled 'SmartLoad Setting' (Deye inverter web interface). Two rows of fields: first row: a SmartLoad setup dropdown, OFF % with value 100 and unit %, ON % with value 95 and unit %; second row: 'AC Couple Settings' dropdown showing 'Please select', 'MI export to Grid cut-off' dropdown showing 'Disable', and a field with a value of about 55 and a unit. Top right: a green status message 'Read Successfully' with a timestamp and a 'Collapse' link. Two blue buttons at the bottom right: 'Read' and 'Setup'.
4 Emulator for the additional Grid Tie meter
Use the emulator when the additional Grid Tie meter cannot be connected to the Deye hybrid inverter. In this case, the RS485 interface of the Reduxi Controller emulates the meter data for the Deye hybrid inverter.
Wiring schematic:
Text description of this image
Wiring schematic of the emulator. Boxes: 'SolarEdge' at the top; large box 'Reduxi – Contoller' [spelled so in the image] containing a small box 'Reduxi Emulator (SW)' and two port boxes 'RS485 – 1' and 'RS485 – 2'; box 'Deye Hybrid Inverter' with a sub-box 'RS485 Meter Port'. A blue line labelled 'TCP/IP' runs from the SolarEdge box to the Reduxi Emulator (SW) box inside the controller, with an arrow pointing to RS485 – 2. From RS485 – 2 two lines go to the Deye RS485 Meter Port: a red line A+ to A+ and a green line B- to B-.
5 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
6 Add the device to Reduxi
6.1 Basic settings
Add the Deye hybrid inverter in the Reduxi Configurator as described in Connect Hybrid Invetrer Deye to Reduxi. Log in locally to the Reduxi Configurator (see Point 5) and click + Add device.
6.2 Test communication
Click Test communication at the bottom of the wizard. It reads the Deye hybrid inverter once and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the bottom button bar of a Reduxi Configurator page. Left: button 'Back'. Right: button 'Test communication' (marked with a cyan box) and dark button 'Done'.
Text description of this image
Screenshot of the Reduxi Configurator page 'Communication channel and device configuration'. Connection *: TCP/IP (dropdown). IP *: 192.168.50.243, with button 'Scan for IP'. Port *: 502, with button 'Test port'. Modbus unit ID *: 1. Buttons at the bottom: Back (left), Test communication and Done (right). The Done button is marked with a cyan box.
7 Check the readings
7.1 Last measurements
After communication is established, check the values of the devices in the Reduxi Configurator under Devices.
7.2 Enable control by Reduxi
Set the control type to AUTO. Only then do strategy commands affect the device. To define a strategy, see Strategies for Reduxi controller.
✓ Summary
Preparation (Points 1–2): Prepare the Deye hybrid inverter, the additional Grid Tie meter or the Reduxi RS485 emulator, and the wiring.
Deye hybrid inverter (Points 3–4): Set both advanced settings to TRUE, set Grid_Tie_meter2 to 9600 baud and slave 2, and disable MI export to Grid.
Add to Reduxi (Points 5–6): Log in to the Reduxi Configurator, add the device and test communication.
Go live (Point 7): Check the readings and set the control type to AUTO.
→ Common issues
| Issue | Solution |
|---|---|
| Grid_Tie_meter2 does not respond | Check the PIN connection (PINs 4 and 5), baudrate 9600 and slave address 2. |
| Additional PV exports to the grid | Check that MI export to Grid is Disabled (Point 3.3). |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
