How to connect Sunwoda Energy SW12KH3UT all-in-one (RJ45-RS485) with Reduxi controller
Connect the Sunwoda Energy SW12KH3UT ALL IN ONE to the Reduxi Controller via RS485 (RJ45) and Modbus RTU.
Text description of this image

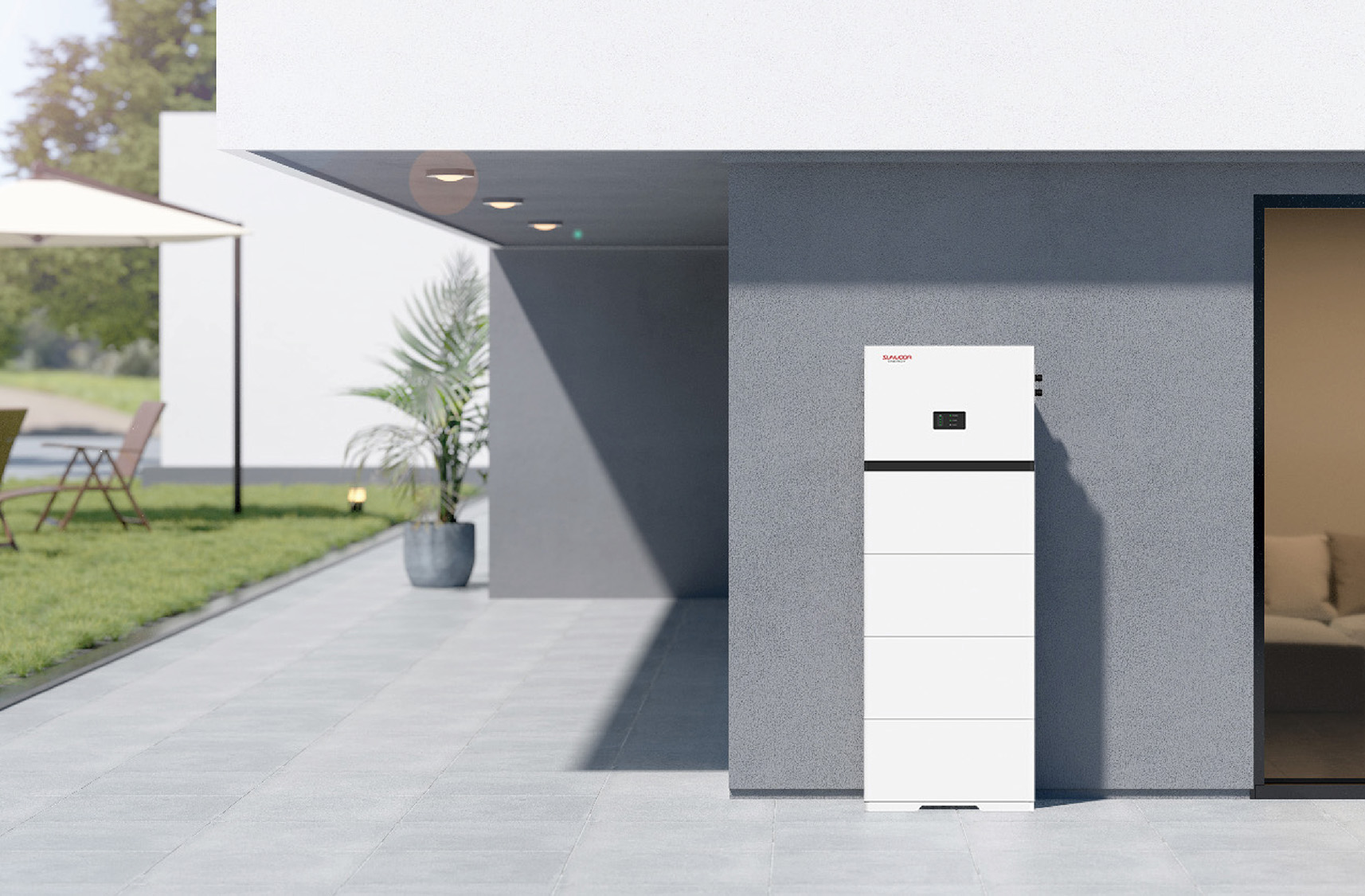

Product photo (manufacturer image) of a tall white floor-standing home energy storage system with a small display near the top, a stack of white battery modules and a small logo on the top module. It stands outdoors on a grey paved terrace against a grey house wall, with a lawn with a garden chair and a plant on the left and an open glass door on the right.
1 Technical documentation
Sunwoda publishes the SunESS Power documents on the product page.
- SunESS Power product page – Sunwoda Energy product page with downloads
- SunESS Power user manual (PDF) – User manual V1.4
- Quick Installation Guide (PDF) – Short installation guide
- SunESS Power brochure (PDF) – Product overview
2 Required equipment
You need these components:
- Reduxi Controller
- Sunwoda Energy SW12KH3UT ALL IN ONE
- Standard network cable (RJ45), prepared as described in Point 3
- Laptop or tablet with internet access to configure the device in Reduxi
3 Connect the Reduxi Controller to the Sunwoda ALL IN ONE
3.1 Prepare the communication cable
Use a standard network cable (RJ45). The wire colors follow this pinout:
| Pin | Wire color | Function |
|---|---|---|
| 1 | white–orange | |
| 2 | orange | |
| 3 | white–green | |
| 4 | blue | |
| 5 | white–blue | |
| 6 | green | |
| 7 | white–brown | RS485 A |
| 8 | brown | RS485 B |
Text description of this image
Technical line drawing of an RJ45 connector in four views from left to right: the socket front view with the pin numbers '1' at the top and '8' at the bottom, a plug front view, a plug top view, and a plug with a cable with a boot and latch. No colours or other labels.
3.2 Access the connector
On the ALL IN ONE device, open the protective cover (maintenance port).
Text description of this image
Photo of the connection side of a white Sunwoda all-in-one unit. A white label with red text 'Open the maintenance port' points at a small rectangular cover plate with two screws, marked by a red rectangle, located in the lower middle of the housing. Other visible parts: PV connectors on the left side, two black rotary switches at the top, a blue round connector at the top right, two black cable glands and a cable on the right, and a perforated vent strip along the bottom.
3.3 RS485 connection
Connect the LAN (RJ45) port of the ALL IN ONE device to the Reduxi Controller with the prepared network cable.
Text description of this image
Photo of the connection area of a white Sunwoda all-in-one unit with red text labels on white boxes. Label 'Connect the network cable to theLAN port' [as printed] points at a LAN port socket (red outline) where a blue network cable is plugged in. A second label 'Brown and white Brown' [as printed] points at a red-outlined area where the other end of the blue cable is connected with its wires to a green screw terminal block of a blue USB-to-serial adapter with a red LED lit. Also visible: a round black connector, a blue round connector at the top right, cable glands, a silver round button on the left, a yellow object at the bottom right and a perforated vent strip along the bottom.
RS485 pinout:
- Pin 7 (white–brown): RS485 A
- Pin 8 (brown): RS485 B
4 Configure the Sunwoda ALL IN ONE
4.1 Set the DEBUG switch
Next to the RJ45 port on the inverter, find the DEBUG switch. Set it to position 2 (ON).
Text description of this image
Close-up photo of a green circuit board with a white USB-A socket on the left (printed label 'USB' and 'U4' next to it) and a small slide switch next to it. The board print shows 'SW3' beside the switch, the word 'debug', the numbers '1' and '2' near the switch positions and 'M3' next to a screw at the bottom right. A green terminal part is visible at the top. The switch position is a small black slider between the two positions.
4.2 RS485 communication parameters
| Parameter | Value |
|---|---|
| Baud rate | 57600 |
| Data format | 1 start bit, 8 data bits, no parity, 1 stop bit |
4.3 Modbus RTU settings
| Parameter | Value |
|---|---|
| Communication address |
1 to 247 (default: 1) |
| Supported functions |
03H, 04H, 10H
|
| Read-only register range |
0 to 1500
|
| Read/write register range |
0 to 1000
|
5 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
6 Add the Sunwoda ALL IN ONE to Reduxi
Use these steps to add a new device or to edit an existing one.
6.1 Basic settings
Log in locally to the Reduxi Configurator on the controller (see Point 5) and press the Add device button. Then select the device you want to add under Basic settings.
Text description of this image
Screenshot of the left menu of the Reduxi Configurator under the reduxi Configurator logo. Menu entries: Devices (expanded, with a minus sign) containing the button '+ Add device' (outlined); Strategies (plus sign); Utility Rate Plan; Settings (plus sign). The right side is blank white.
In the first step, configure the basic parameters of the device:
- Device type: choose the device type
- Type: choose the type
- Name: a name of your choice
Text description of this image
Screenshot of the Reduxi Configurator wizard step 1 'Basic settings' (step 2 'Communication channel' greyed). Form with all fields empty: Device type *: empty drop-down; Type *: empty drop-down (greyed); Name *: empty. Buttons: Back, Next.
Press Next.
6.2 Communication settings
Enter the communication parameters of the device. Use the values from Point 4:
| Parameter | Value |
|---|---|
| Connection | Local serial port |
| Port | The port of the Reduxi Controller you connected the cable to |
| Baud rate | 57600 bits/s |
| Data bits | 8 |
| Stop bits | 1 |
| Parity | None |
| Modbus unit ID | Default 1 (range 1 to 247) |
6.3 Test communication
Click Test communication at the bottom of the wizard. It reads the Sunwoda ALL IN ONE once and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the bottom button bar of a Reduxi Configurator page. Left: button 'Back'. Right: button 'Test communication' (marked with a cyan box) and dark button 'Done'.
Text description of this image
Screenshot of the Reduxi Configurator page 'Communication channel and device configuration'. Connection *: TCP/IP (dropdown). IP *: 192.168.50.243, with button 'Scan for IP'. Port *: 502, with button 'Test port'. Modbus unit ID *: 1. Buttons at the bottom: Back (left), Test communication and Done (right). The Done button is marked with a cyan box.
7 Check the readings
7.1 Last measurements
After communication is established, check the values under Devices – your Sunwoda device – Last measurement in the Reduxi Configurator as an additional test.
✓ Summary
Preparation (Points 1–2): Get the Sunwoda documents. Prepare the Reduxi Controller, the Sunwoda ALL IN ONE and a standard RJ45 network cable.
Sunwoda ALL IN ONE (Points 3–4): Wire RS485 A to pin 7 and RS485 B to pin 8 of the RJ45 cable. Connect it to the LAN port. Set the DEBUG switch to position 2 (ON).
Add to Reduxi (Points 5–6): Log in to the Reduxi Configurator and add the device. Enter 57600 bit/s, 8 data bits, 1 stop bit, no parity and the Modbus address. Test the communication and press Done.
Go live (Point 7): Check the readings under Last measurement.
→ Common issues
| Issue | Solution |
|---|---|
| Test communication fails | Check the wiring of the A/B lines (pin 7 = RS485 A, pin 8 = RS485 B), the position of the DEBUG switch (position 2, ON) and the communication parameters (57600 bit/s, 8N1, address 1 by default). |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
