Add EEBUS compatible device
Add an EEBUS-compatible device to Reduxi.
This article explains how to add an EEBUS-compatible device to Reduxi.
The main advantage of EEBUS is its simple configuration process. Compatible devices can be discovered and added without manually entering an IP address, communication parameters, or other configuration details.
To add an EEBUS-compatible device, go to the device configuration page in Reduxi and click Add EEBUS device.
You will be redirected to the EEBUS Connector page, where you first need to activate the EEBUS connector.
Once the connector is active, Reduxi can discover available EEBUS-compatible devices and guide you through adding them to the system.

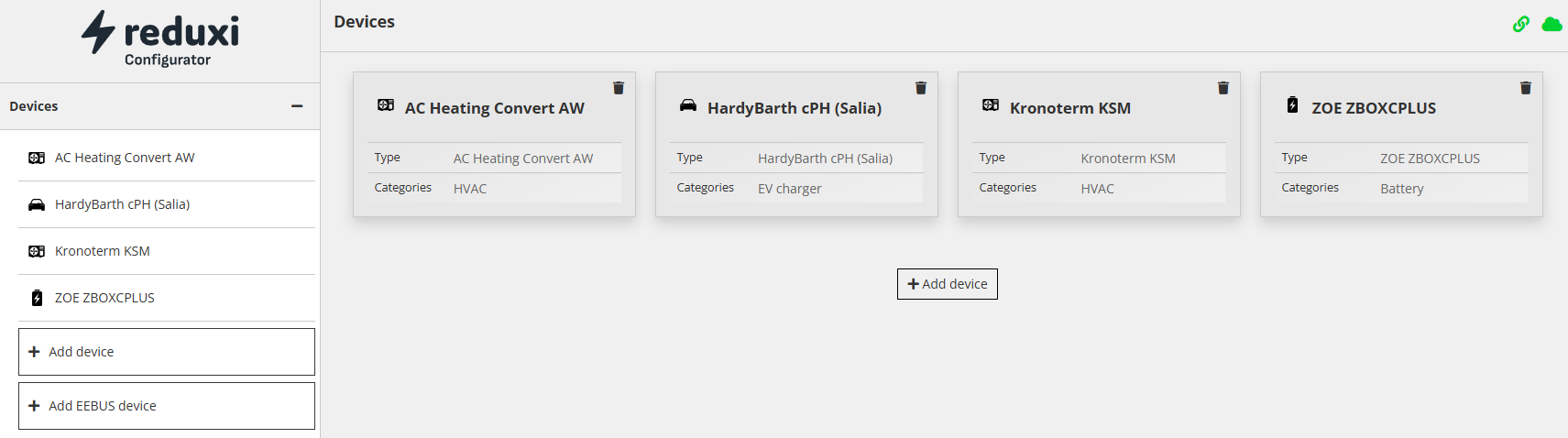

Click "Add EEBUS device"
Text description of this image
Screenshot of the Reduxi Configurator, page Devices. Left menu: Devices (open) with entries AC Heating Convert AW, HardyBarth cPH (Salia), Kronoterm KSM, ZOE ZBOXCPLUS, and two outlined buttons "+ Add device" and "+ Add EEBUS device". Main area "Devices" shows four cards, each with a trash icon: AC Heating Convert AW (Type: AC Heating Convert AW; Categories: HVAC); HardyBarth cPH (Salia) (Type: HardyBarth cPH (Salia); Categories: EV charger); Kronoterm KSM (Type: Kronoterm KSM; Categories: HVAC); ZOE ZBOXCPLUS (Type: ZOE ZBOXCPLUS; Categories: Battery). Below the cards an outlined button "+ Add device". Green link and cloud icons at the top right.

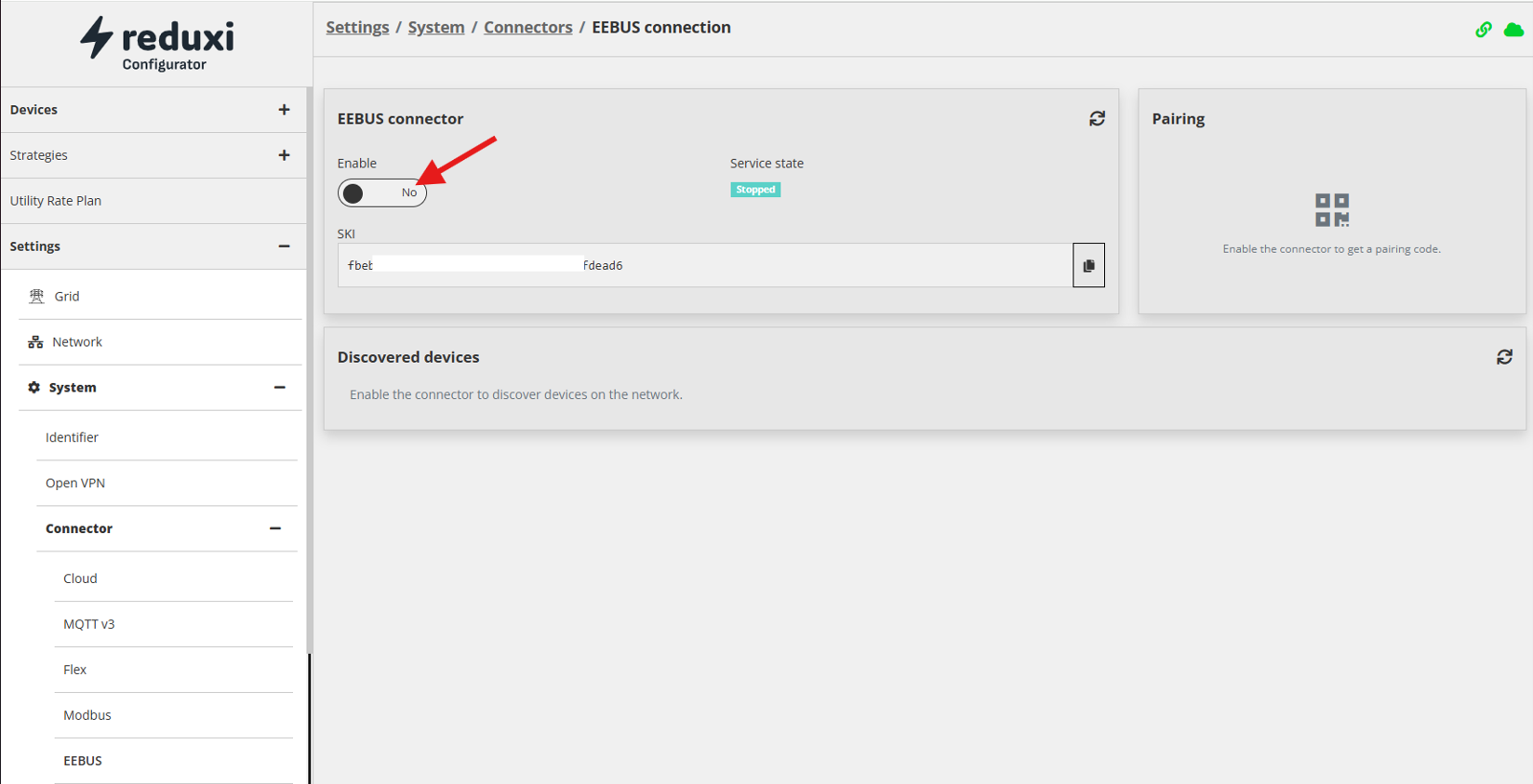

You're redirected to EEBUS connector page where you activate EEBUS connector
Text description of this image
Screenshot of the Reduxi Configurator page Settings / System / Connectors / EEBUS connection with the connector disabled. Left menu: Devices (+), Strategies (+), Utility Rate Plan, Settings (open): Grid, Network, System (open): Identifier, Open VPN, Connector (open): Cloud, MQTT v3, Flex, Modbus, EEBUS (bold, selected). Panel "EEBUS connector": Enable: No (toggle off, marked by a red arrow); Service state: Stopped (teal label); SKI: text field with copy button. Panel "Pairing": a grey QR icon with the text "Enable the connector to get a pairing code." Panel "Discovered devices" (refresh icon): "Enable the connector to discover devices on the network." Green link and cloud icons at the top right.
Once enabled, the SKI code is displayed both as text and as a QR code.
Click Refresh to discover and display all available EEBUS-compatible devices on the network.
To add a device to Reduxi, simply select the desired device and click Pair & Add.
Reduxi will automatically pair with the device and add it to the system, without requiring any manual network or communication configuration.

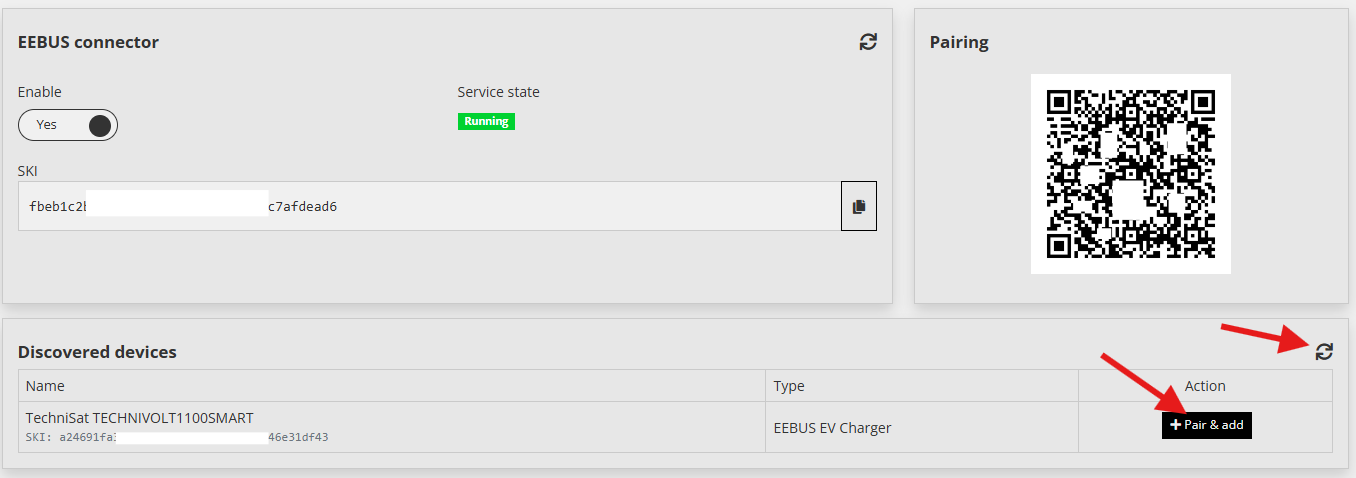

Text description of this image
Screenshot of the Reduxi Configurator EEBUS connection page with the connector enabled. Panel "EEBUS connector" (refresh icon at the top right): Enable: Yes (toggle on); Service state: Running (green label); SKI: a text field with a copy button. Panel "Pairing": a black and white QR code. Panel "Discovered devices" with a refresh icon (marked by a red arrow); table columns Name, Type, Action. One row: Name: TechniSat TECHNIVOLT1100SMART, with SKI line; Type: EEBUS EV Charger; Action: black button "+ Pair & add" (marked by a red arrow).
