Add two-factor authentication 2FA/MFA on Reduxi Controller, cloud webapp and mobile app
Add a second layer of security to your login on the Reduxi Controller, in the cloud web app and in the mobile app.
Text description of this image
Screenshot of the Reduxi Configurator page Settings / Users. Left menu: Devices (+), Strategies (+), Utility Rate Plan, Settings (open): Grid, Network, System (+), Profile (open): Personal information, Logout; Users (bold, selected); About (+). Main area: table with columns Name, Lastname, Username, 2FA, Actions. One row: Name: Administrator (bold); Lastname: empty; Username: admin; 2FA: a grey circle icon with an x (marked by a red arrow); Actions: edit icon. Black button "New user" below the table at the right. Green link and cloud icons at the top right.
1 Where 2FA is available
The Reduxi Controller supports two-factor authentication (2FA). It adds a second layer of security when you log in.
2 Enable 2FA on the Reduxi Controller
Text description of this image
Screenshot of the dialog "Two-Factor Authentication" of the Reduxi Controller (close X at the top right). Left column "Scan Code or Enter Key": text "Scan the code below with your authenticator app to add this account. Some authenticator apps also allow you to type in the text version instead."; a black and white QR code; below it a pink text key. Right column "Enter Code from Authenticator App": text "Enter the code from your authenticator app below to verify and activate two-factor authentication for this account."; an input field with a six-digit code typed in (highlighted blue, marked by a red arrow). Footer buttons: Cancel and Activate (black); a red arrow points to Activate.
3 Enable 2FA in the Reduxi cloud web app
The approach and requirements are similar to the controller. You can enable 2FA in the User settings menu. Follow the instructions in the application.

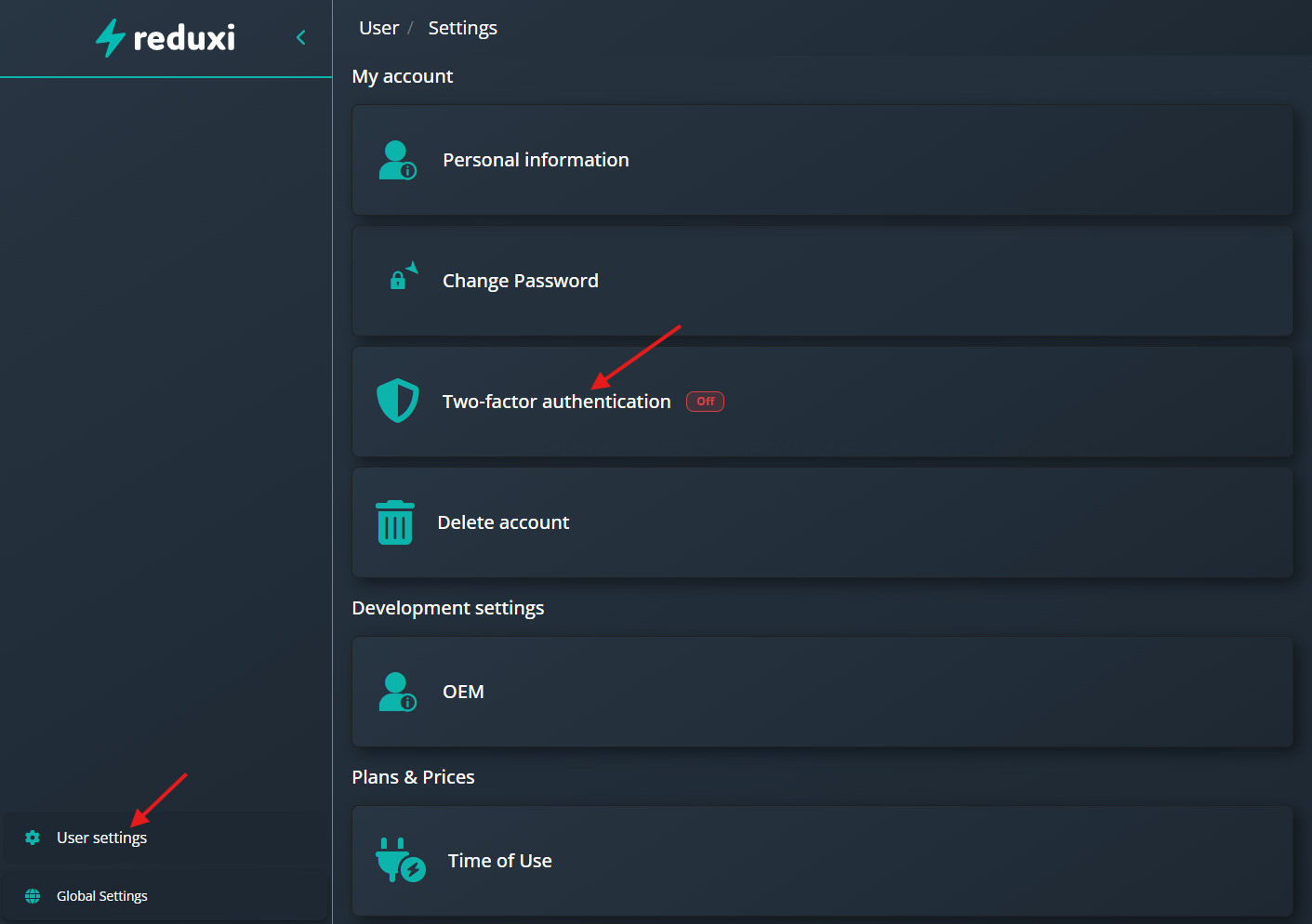

Text description of this image
Screenshot of the Reduxi cloud web app (dark theme), page User / Settings. Left sidebar: Reduxi logo with a collapse arrow; at the bottom entries "User settings" (gear icon, marked by a red arrow) and "Global Settings" (globe icon). Main area, section "My account" with four cards: Personal information (person icon); Change Password (lock icon); Two-factor authentication with a red label "Off" (shield icon, red arrow pointing to it); Delete account (trash icon). Section "Development settings" with a card: OEM (person icon). Section "Plans & Prices" with a card: Time of Use (plug icon).

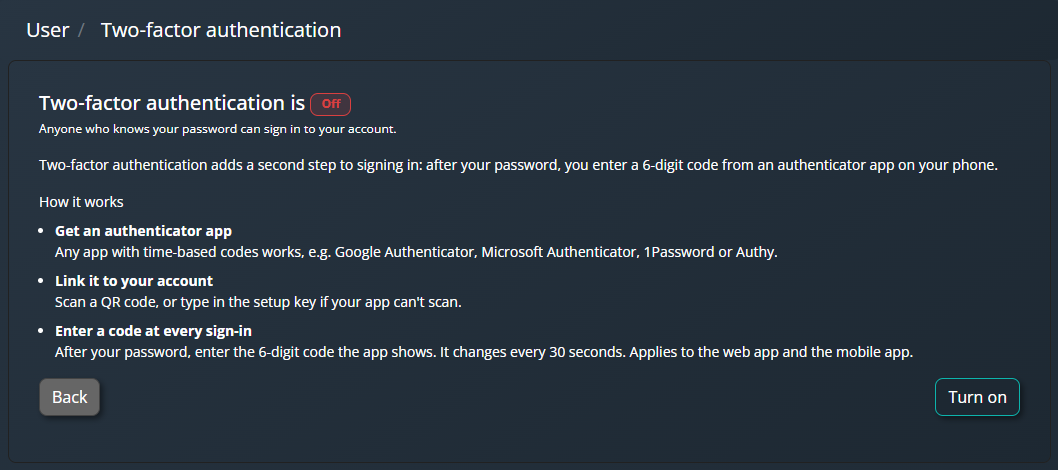

Text description of this image
Screenshot of the Reduxi cloud web app (dark theme), page User / Two-factor authentication. Heading "Two-factor authentication is" with a red label "Off". Small text: "Anyone who knows your password can sign in to your account." Text: "Two-factor authentication adds a second step to signing in: after your password, you enter a 6-digit code from an authenticator app on your phone." "How it works" with three bullets: "Get an authenticator app" (Any app with time-based codes works, e.g. Google Authenticator, Microsoft Authenticator, 1Password or Authy.); "Link it to your account" (Scan a QR code, or type in the setup key if your app can't scan.); "Enter a code at every sign-in" (After your password, enter the 6-digit code the app shows. It changes every 30 seconds. Applies to the web app and the mobile app.). Buttons: Back (grey, left) and Turn on (teal outline, right).

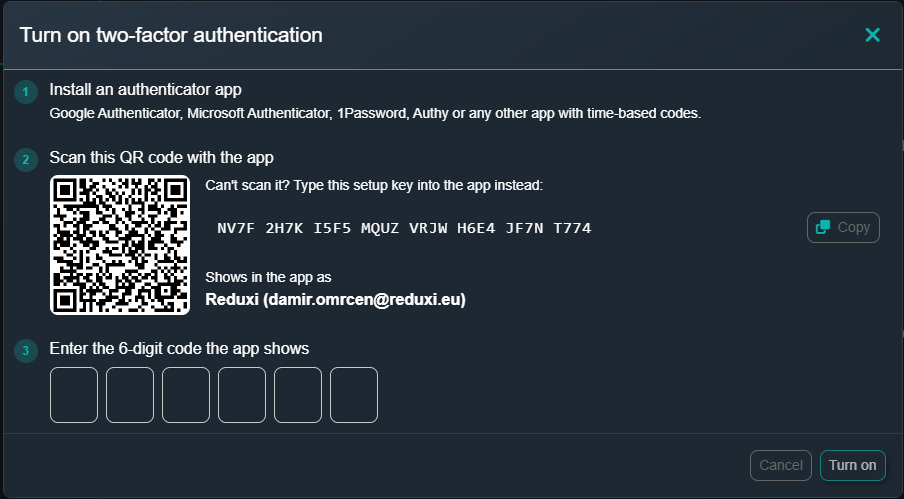

Text description of this image
Screenshot of the dialog "Turn on two-factor authentication" in the Reduxi cloud web app (dark theme, teal close X at the top right). Step 1 "Install an authenticator app": Google Authenticator, Microsoft Authenticator, 1Password, Authy or any other app with time-based codes. Step 2 "Scan this QR code with the app": a QR code on the left; text "Can't scan it? Type this setup key into the app instead:" with the setup key shown in groups (not transcribed) and a Copy button; "Shows in the app as" Reduxi. Step 3 "Enter the 6-digit code the app shows": six empty input boxes. Footer buttons: Cancel and Turn on.
4 Enable 2FA in the Reduxi mobile app
If 2FA is activated in the cloud app, it is also active in the mobile app, and the other way round.
You can enable 2FA via Settings. Follow the instructions in the application.

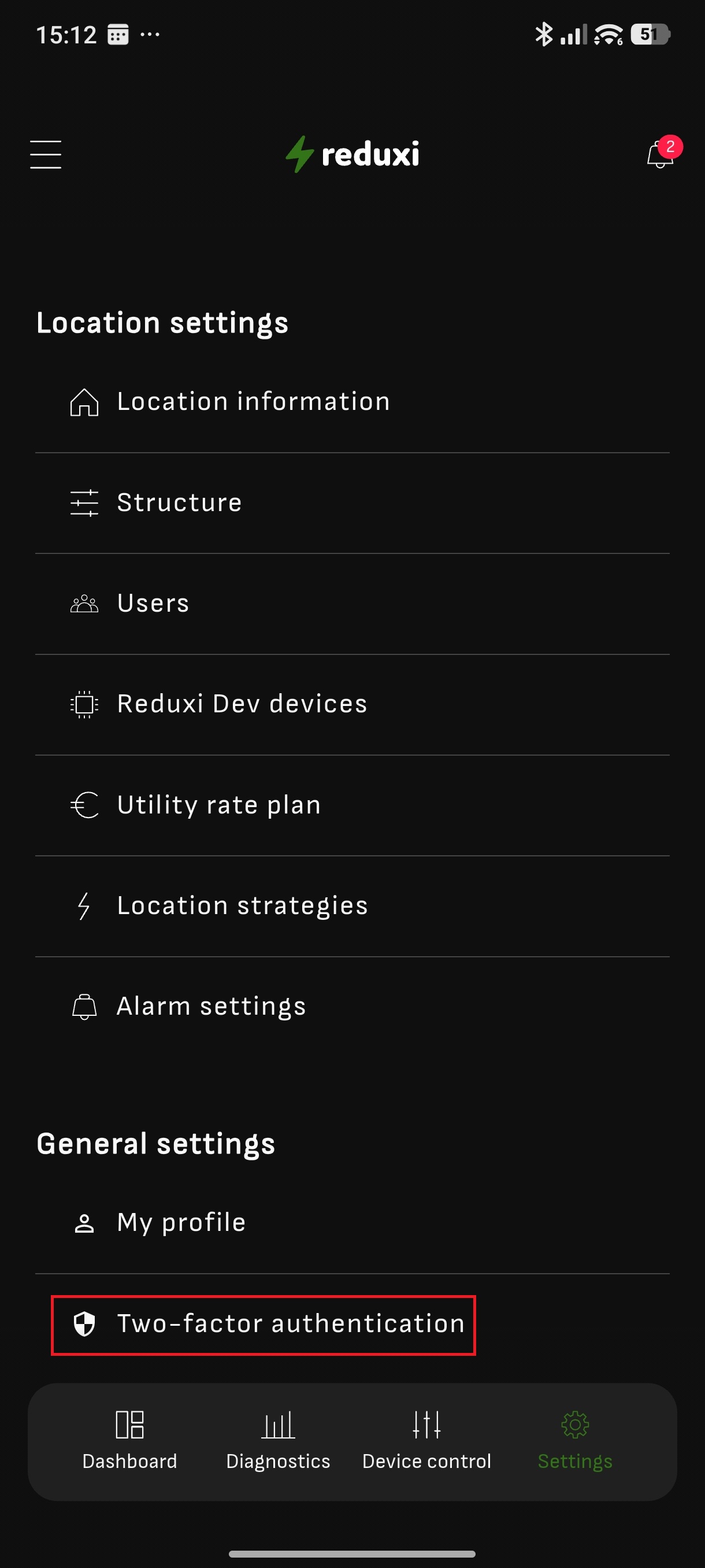

Text description of this image
Screenshot of a phone screen (dark theme) of the Reduxi mobile app, Settings menu. Status bar: time 15:12, Bluetooth, signal, Wi-Fi and battery icons (battery 51). App bar: hamburger menu icon at the left, Reduxi logo in the centre, bell icon with a red badge "2" at the right. Section "Location settings" with entries (icon and name, separated by lines): Location information (house icon), Structure (sliders icon), Users (people icon), Reduxi Dev devices (chip icon), Utility rate plan (euro icon), Location strategies (lightning icon), Alarm settings (bell icon). Section "General settings": My profile (person icon); Two-factor authentication (shield icon), highlighted by a red rectangle. Bottom navigation bar with four items: Dashboard, Diagnostics, Device control, Settings (Settings is green, selected). Phone home bar at the very bottom.

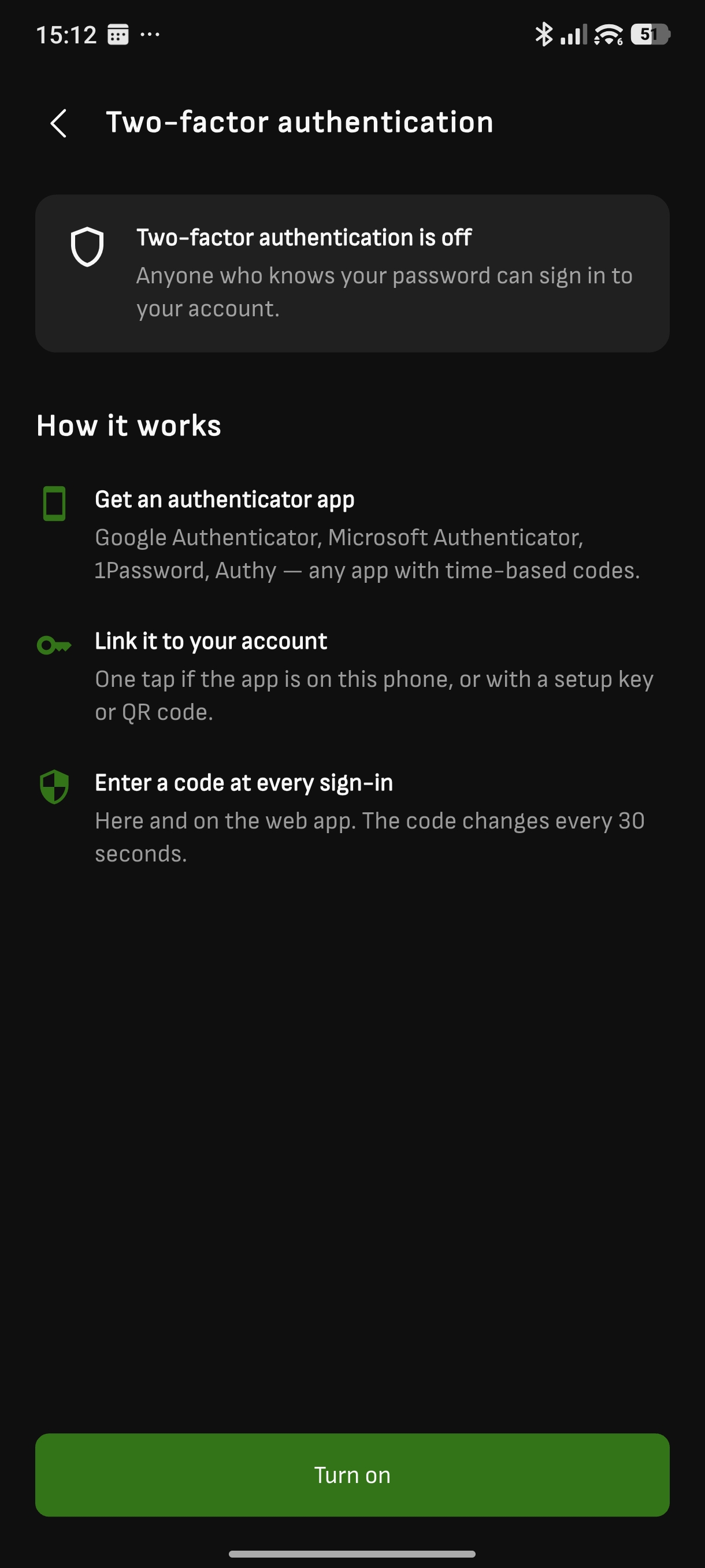

Text description of this image
Screenshot of a phone screen (dark theme) of the Reduxi mobile app: "Two-factor authentication" with a back arrow. Status bar: time 15:12, Bluetooth, signal, Wi-Fi and battery icons (battery 51). A card with a shield icon: "Two-factor authentication is off", grey text "Anyone who knows your password can sign in to your account." Heading "How it works" with three items, each with a green icon: phone icon, "Get an authenticator app" (Google Authenticator, Microsoft Authenticator, 1Password, Authy, any app with time-based codes.); key icon, "Link it to your account" (One tap if the app is on this phone, or with a setup key or QR code.); shield icon, "Enter a code at every sign-in" (Here and on the web app. The code changes every 30 seconds.). At the bottom a green full-width button "Turn on" and the phone home bar.

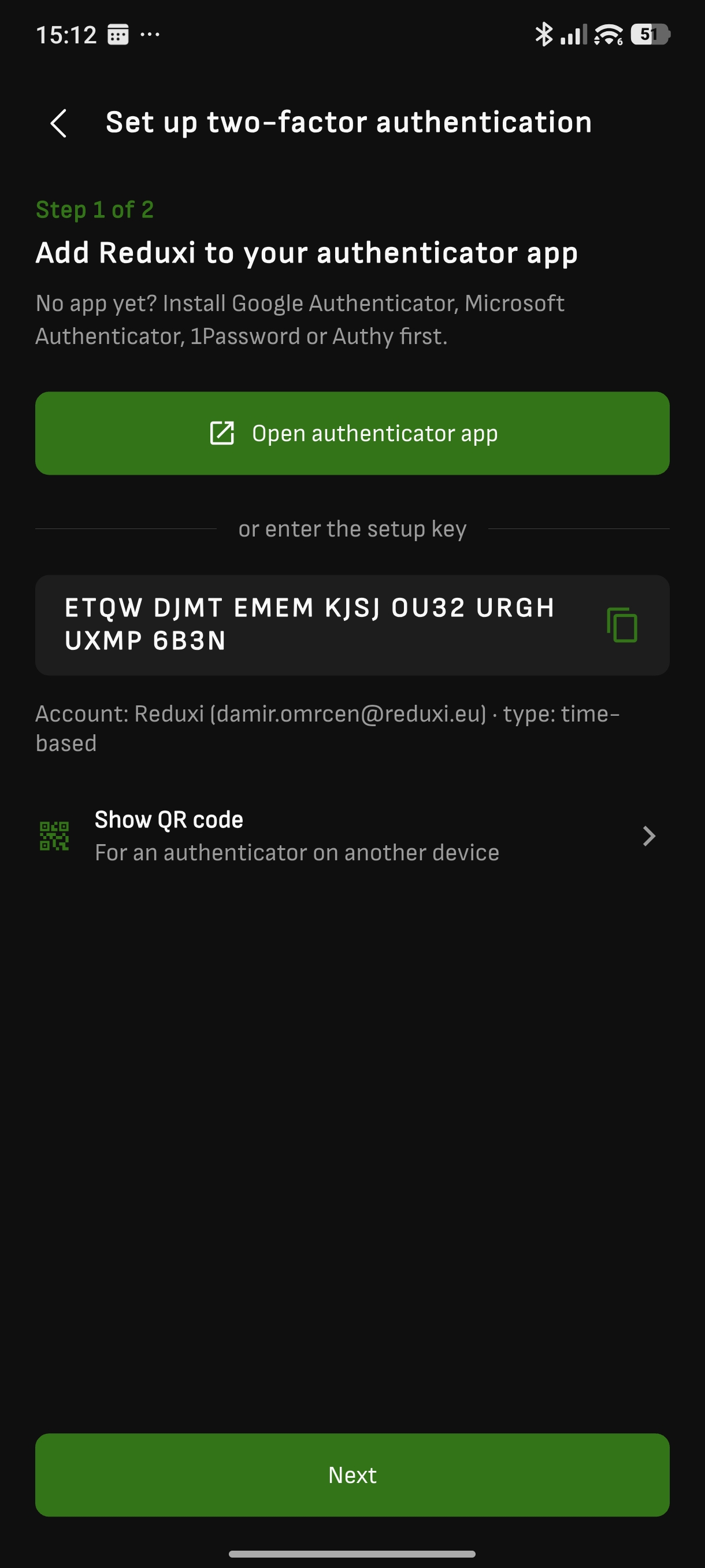

Text description of this image
Screenshot of a phone screen (dark theme) of the Reduxi mobile app: "Set up two-factor authentication" with a back arrow. Status bar at the top: time 15:12, Bluetooth, signal, Wi-Fi and battery icons (battery 51). Green text "Step 1 of 2"; heading "Add Reduxi to your authenticator app"; grey text "No app yet? Install Google Authenticator, Microsoft Authenticator, 1Password or Authy first." Green button "Open authenticator app" (with an open-in-new icon). Divider text "or enter the setup key". Below it a box with the setup key in white letters in groups of four (not transcribed) and a green copy icon. Grey text: "Account: Reduxi (e-mail address at reduxi.eu) · type: time-based". A list item with a green QR icon: "Show QR code", subtitle "For an authenticator on another device", with a right chevron. At the bottom a green full-width button "Next" and the phone home bar.
✓ Summary
Availability (Point 1): Cloud web app, mobile app and controller. Not the Reduxi Gateway or the P1 converter.
Controller (Point 2): Settings > Profile, click the 2FA icon, scan the QR code. Without access to 2FA only a factory reset helps.
Cloud web app (Point 3): Enable 2FA in the User settings. It also applies to the mobile app.
Mobile app (Point 4): Version 240 or newer. Enable 2FA via Settings.
→ Common issues
| Issue | Solution |
|---|---|
| Access to the 2FA method is lost on the controller | The authentication cannot currently be recovered or reset. The only way to regain access is a factory reset. It clears all data and configuration. |
| 2FA is active in the cloud but not on the controller | The controller uses a different account. Configure 2FA on the controller separately (see Point 2). |
| The 2FA option does not appear | 2FA is not available for the Reduxi Gateway and the P1 converter. In the mobile app it requires version 240 or newer. |
