Kako konfigurirati Iskraemeco MT880 u alatu Iskraemeco SEP2W ili Symbiot

Ažurirano
⚡ Reduxi Controller · Baza znanja

Kako konfigurirati Iskraemeco MT880 u alatu Iskraemeco SEP2W ili Symbiot

Konfigurirajte brojilo Iskraemeco MT880 u alatu SEP2W manager ili Symbiot za Reduxi Controller.

🔧 Iskraemeco MT880 · Reduxi Controller
🛠 Iskraemeco SEP2W manager ili alat Symbiot
📡 Jedan telegram (Reduxi standardna struktura)

📄 Preuzmite kao PDF

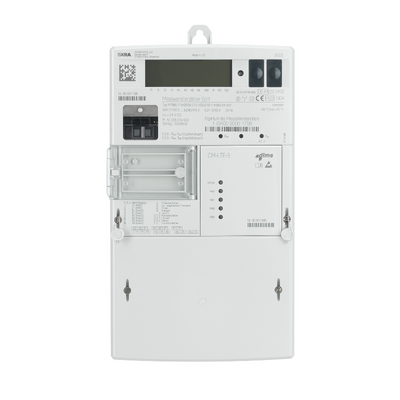

Brojilo električne energije Iskraemeco MT880, pogled sprijeda
Iskraemeco MT880 (slika: Iskraemeco)
Tekstualni opis ove slike

Fotografija brojila električne energije Iskraemeco MT880 na bijeloj pozadini, pogled sprijeda. Svijetlosivo kućište s ušicom za vješanje na vrhu, LCD zaslonom i naljepnicom s barkodom u gornjem dijelu, crnim optičkim modulom ili modulom s tipkama na lijevoj strani, prozirnim poklopcem stezaljki s lijeve strane, nizom malih indikatorskih svjetala i malom plavom oznakom marke na desnoj strani.

📋 U ovom članku
  1. Tehnička dokumentacija
  2. Potrebna oprema
  3. IEC local port setup channel 1
  4. IEC HDLC setup channel 1
  5. General local port readout
  6. Sljedeći korak: dodajte brojilo u Reduxi
  7. Sažetak
  8. Česti problemi
  9. Povezani članci

1 Tehnička dokumentacija

Konfigurirajte brojilo s osnovnom strukturom iz članka Reduxi standardna struktura telegrama za Iskraemeco AM550 DLMS push na P1 sučelju. Koristite Iskraemeco SEP2W manager ili alat Symbiot. Potreban je samo jedan telegram s podacima definiranima u toj strukturi.

2 Potrebna oprema

  • Brojilo Iskraemeco MT880
  • Iskraemeco SEP2W manager ili alat Symbiot
  • Reduxi Controller
  • Prijenosno računalo ili tablet s pristupom internetu za konfiguriranje uređaja u Reduxiju

3 IEC local port setup channel 1

Provedite sljedeće korake u alatu Iskraemeco SEP2W manager. Počnite s korakom 1, IEC local port setup channel 1.

Iskraemeco SEP2 Manager: IEC local port setup channel 1, brzina prijenosa 9600, adresa 72042282
IEC local port setup channel 1
Tekstualni opis ove slike

Snimka zaslona softvera SEP2 Manager (Iskraemeco), prikaz Cosem association za brojilo ISKT880M72042282, stranica IEC local port setup channel 1. Kartice vrpce: General, View, MeterView, Database, Tools; gumbi vrpce Refresh, New Tab, Close Tab, Close All. Lijevo okno navodi brojeve brojila od 72042273 do 72042301 (odabrano 72042282). Srednje okno, stablo: Clock, Common, Communication, s No channel specified, Channel 0, Channel 1 (IEC local port setup channel 1 označeno plavom bojom, IEC HDLC setup channel 1 s crvenom četvrtastom oznakom, ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1), Channel 2, Channel 3, Communication variant configuration; zatim Display, GSM, Holidays, I/O configuration, I/O control, Identifiers, Image transfer; Search (1491 items). Desno okno: IEC local port setup channel 1; Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Polja (potvrdni okviri nisu označeni): Communication mode: 1 - Protocol according to IEC 62056-46 (DLMS UA), Read and write; Default baud rate: 9600, Read and write; Proposed baud rate: 9600, Read and write; Response time: 1 - 200ms, Read and write; Device address: 72042282, Read and write; Settings password: prazno, Write only; Parametrisation password: prazno, Write only; W5 password: prazno, Write only. Donja traka kartica: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktivno).

4 IEC HDLC setup channel 1

Korak 2: postavite IEC HDLC channel 1.

Iskraemeco SEP2 Manager: IEC HDLC setup channel 1, brzina 9600, adresa uređaja 41
IEC HDLC local port setup channel 1
Tekstualni opis ove slike

Snimka zaslona softvera SEP2 Manager (Iskraemeco) sa stranicom IEC HDLC setup channel 1 u prikazu Cosem association. Lijevo okno MeterView: popis brojeva brojila od 90807030 do 91404225 (isti popis kao na drugoj snimci zaslona SEP2 Managera; odabran je zadnji unos 91404225). Srednje okno: brojilo ISKT880M91404225 sa stablom: Actual values, Alarms, Billing, Clock, Common, Communication (No channel specified, Channel 0, Channel 1, Channel 2, Channel 3, Communication variant configuration), Display (Sequences: General local port readout, General display readout). Pod Channel 1: IEC local port setup channel 1, IEC HDLC setup channel 1 (označeno i istaknuto plavom bojom), ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1. Pri dnu Search (1572 items). Naslov desnog okna: IEC HDLC setup channel 1. Logical name: 0-1:22.0.0*255, Class ID: IEC HDLC setup class (23), Version: 1. Polja, sva označena, pristup Read and write: Communication speed: 9600; Window size transmit: 1; Window size receive: 1; Max info field length transmit: 154; Max info field length receive: 154; Inter octet time out: 50; Inactivity time out: 120; Device address: 41.

Iskraemeco SEP2 Manager: IEC local port setup channel 1, brzina prijenosa 9600, adresa 91404225
IEC local port setup channel 1 (drugi dio)
Tekstualni opis ove slike

Snimka zaslona softvera SEP2 Manager (Iskraemeco) sa stranicom IEC local port setup channel 1 u prikazu Cosem association. Lijevo okno MeterView: popis brojeva brojila 90807030, 90807452, 90807459, 90807554, 90807677, 90807680, 90807685, 90807686, 90807687, 90807692, 90807717, 90807798, 90807864, 90807868, 90807875, 90808004, 90808005, 90808008, 90808149, 90808178, 91404137, 91404153, 91404184, 91404188, 91404194, 91404200, 91404201, 91404210, 91404225 (zadnje je odabrano brojilo). Srednje okno: brojilo ISKT880M91404225 sa stablom: Actual values, Alarms, Billing, Clock, Common, Communication (No channel specified, Channel 0, Channel 1, Channel 2, Channel 3, Communication variant configuration), Display (Sequences: General local port readout, General display readout). Pod Channel 1 nalaze se stavke IEC local port setup channel 1 (označeno i istaknuto plavom bojom), IEC HDLC setup channel 1, ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1. Pri dnu Search (1572 items). Naslov desnog okna: IEC local port setup channel 1. Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Polja, sva označena: Communication mode: 1 - Protocol according to IEC 62056-46 (DLMS UA), pristup Read and write; Default baud rate: 9600, Read and write; Proposed baud rate: 9600, Read and write; Response time: 1 - 200ms, Read and write; Device address: 91404225, Read and write; Settings password: prazno, Write only; Parametrisation password: prazno, Write only; W5 password: prazno, Write only.

5 General local port readout

Korak 3: postavite General local port readout. Zbog velikog broja redaka snimke zaslona podijeljene su na dijelove. Zabilježite broj retka i Logical Name kako biste izmijenili ispravne postavke.

Iskraemeco SEP2 Manager: General local port readout, 66 odabranih stavki, retci 1 do 14
General local port readout, dio 1
Tekstualni opis ove slike

Snimka zaslona softvera SEP2 Manager (Iskraemeco), prikaz Cosem association za brojilo ISKT880M72042282, stranica General local port readout. Lijevo okno navodi brojeve brojila od 72042273 do 72042301 (odabrano 72042282). Srednje okno, stablo: Clock, Common, Communication, Display > Sequences (General local port readout označeno plavom bojom, General display readout, Alternate display readout, Grid display readout), zatim Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Desno okno: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects nije označeno; Access mode: Read and write; Filter prazno; Selected items 66 (1512 / 1512). Stupci tablice: Logical Name, Item, Class Id, Attribute. Prikazani retci: 1 0-0:97.97.0 Error register, 1 - Data, 2 - Value (istaknuti redak); 2 1-0:0.0.0 Electricity ID 1, 1 - Data; 3 1-0:0.9.1 Local time, 1 - Data; 4 1-0:0.9.2 Local date, 1 - Data; 5 1-0:0.4.2 Transformer ratio - current (numerator), 1 - Data; 6 1-0:0.4.5 Transformer ratio - current (denominator), 1 - Data; 7 1-0:0.4.3 Transformer ratio - voltage (numerator), 1 - Data; 8 1-0:0.4.6 Transformer ratio - voltage (denominator), 1 - Data; 9 1-0:1.4.0 Demand register - Active energy import (+A), 5 - Demand register, 2 - Curren(t) (odrezano); 10 1-0:2.4.0 Demand register - Active energy export (-A), 5 - Demand register; 11 1-0:1.6.0 Maximum demand register - Active energy import (+A), 4 - Extended register, 2 - Value; 12 1-0:1.6.1 Maximum demand register - Active energy import (+A) Rate 1, 4 - Extended register; 13 1-0:1.6.2 Maximum demand register - Active energy import (+A) Rate 2, 4 - Extended register; 14 1-0:2.6.0 Maximum demand register - Active energy export (-A), 4 - Extended register. Donja traka kartica: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktivno, narančasto).

Iskraemeco SEP2 Manager: General local port readout, 66 odabranih stavki, retci 15 do 28
General local port readout, dio 2
Tekstualni opis ove slike

Snimka zaslona softvera SEP2 Manager (Iskraemeco), prikaz Cosem association, stranica General local port readout, za brojilo ISKT880M72042282. Lijevo okno navodi brojeve brojila od 72042273 do 72042301 (odabrano 72042282). Srednje okno, stablo: Clock, Common, Communication, Display > Sequences: General local port readout (označeno plavom bojom), General display readout, Alternate display readout, Grid display readout, zatim Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time. Search (1491 items). Desno okno: Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects nije označeno; Access mode: Read and write; Selected items 66, 1512 / 1512. Prikazani retci tablice (stupci Logical Name, Item, Class Id, Attribute): 15 1-0:2.6.1 Maximum demand register - Active energy export (-A) Rate 1, 4 - Extended register, 2 - Value; 16 1-0:2.6.2 ... export (-A) Rate 2, 4 - Extended register; 17 1-0:21.6.0 Maximum demand register - Active energy import (+A) L1; 18 1-0:41.6.0 ... import (+A) L2; 19 1-0:61.6.0 ... import (+A) L3; 20 1-0:22.6.0 ... export (-A) L1; 21 1-0:42.6.0 ... export (-A) L2; 22 1-0:62.6.0 ... export (-A) L3 (retci 17 do 22 jesu 4 - Extended register); 23 1-0:1.7.0 Instantaneous active import power (+A), 3 - Register; 24 1-0:2.7.0 Instantaneous active export power (-A), 3 - Register; 25 1-0:13.7.0 Instantaneous power factor (+A/+VA), 3 - Register; 26 1-0:32.7.0 Instantaneous voltage L1; 27 1-0:52.7.0 Instantaneous voltage L2; 28 1-0:72.7.0 Instantaneous voltage L3 (djelomično odrezano). Donji dio prozora: traka kartica s Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282 i aktivnom karticom Cosem association (narančasto). Ispod nje panel Log Viewer s karticom Manager i praznim zaglavljima tablice Time, Source, Category, User, Description; brojač 1000.

Iskraemeco SEP2 Manager: General local port readout, 66 odabranih stavki, retci 29 do 42
General local port readout, dio 3
Tekstualni opis ove slike

Snimka zaslona softvera SEP2 Manager (Iskraemeco), prikaz Cosem association za brojilo ISKT880M72042282, stranica General local port readout. Lijevo okno navodi brojeve brojila od 72042273 do 72042301 (odabrano 72042282). Srednje okno, stablo: Clock, Common, Communication, Display > Sequences (General local port readout označeno plavom bojom, General display readout, Alternate display readout, Grid display readout), zatim Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Desno okno: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects nije označeno; Access mode: Read and write; Filter prazno; Selected items 66 (1512 / 1512). Stupci tablice: Logical Name, Item, Class Id, Attribute. Prikazani retci, svi Class Id 3 - Register, Attribute 2 - Value: 29 1-0:31.7.0 Instantaneous current L1; 30 1-0:51.7.0 Instantaneous current L2; 31 1-0:71.7.0 Instantaneous current L3; 32 1-0:14.7.0 Instantaneous net frequency: any phase; 33 1-0:81.7.1 Angle U(L2) - U(L1); 34 1-0:81.7.2 Angle U(L3) - U(L1); 35 1-0:81.7.12 Angle U(L3) - U(L2); 36 1-0:81.7.40 Angle U(L1) - I(L1); 37 1-0:81.7.51 Angle U(L2) - I(L2); 38 1-0:81.7.62 Angle U(L3) - I(L3); 39 1-0:1.8.0 Active energy import (+A); 40 1-0:1.8.1 Active energy import (+A) Rate 1; 41 1-0:1.8.2 Active energy import (+A) Rate 2; 42 1-0:2.8.0 Active energy export (-A). Donja traka kartica: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktivno, narančasto).

Iskraemeco SEP2 Manager: General local port readout, 66 odabranih stavki, retci 43 do 56
General local port readout, dio 4
Tekstualni opis ove slike

Snimka zaslona softvera SEP2 Manager (Iskraemeco), prikaz Cosem association za brojilo ISKT880M72042282, stranica General local port readout. Lijevo okno navodi brojeve brojila od 72042273 do 72042301 (odabrano 72042282). Srednje okno, stablo: Clock, Common, Communication, Display > Sequences (General local port readout označeno plavom bojom, General display readout, Alternate display readout, Grid display readout), zatim Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Desno okno: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects nije označeno; Access mode: Read and write; Filter prazno; Selected items 66 (1512 / 1512). Stupci tablice: Logical Name, Item, Class Id, Attribute. Prikazani retci, svi Class Id 3 - Register, Attribute 2 - Value: 43 1-0:2.8.1 Active energy export (-A) Rate 1; 44 1-0:2.8.2 Active energy export (-A) Rate 2; 45 1-0:3.8.0 Reactive energy import (+R); 46 1-0:3.8.1 Reactive energy import (+R) Rate 1; 47 1-0:3.8.2 Reactive energy import (+R) Rate 2; 48 1-0:4.8.0 Reactive energy export (-R); 49 1-0:4.8.1 Reactive energy export (-R) Rate 1; 50 1-0:4.8.2 Reactive energy export (-R) Rate 2; 51 1-0:16.8.0 Active energy combined (|+A|-|-A|); 52 1-0:16.8.1 Active energy combined (|+A|-|-A|) Rate 1; 53 1-0:16.8.2 Active energy combined (|+A|-|-A|) Rate 2; 54 1-0:21.8.0 Active energy import (+A) L1; 55 1-0:41.8.0 Active energy import (+A) L2; 56 1-0:61.8.0 Active energy import (+A) L3. Donja traka kartica: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktivno, narančasto).

Iskraemeco SEP2 Manager: General local port readout, 66 odabranih stavki, retci 54 do 66
General local port readout, dio 5
Tekstualni opis ove slike

Snimka zaslona softvera SEP2 Manager (Iskraemeco), prikaz Cosem association, stranica General local port readout, za brojilo ISKT880M72042282. Kartice vrpce: General, View, MeterView, Database, Tools; vrpca General prikazuje Refresh, New Tab, Close Tab, Close All. Lijevo okno navodi brojeve brojila od 72042273 do 72042301 (odabrano 72042282). Srednje okno, stablo: Clock, Common, Communication, Display > Sequences s General local port readout (označeno plavom bojom, okvir nije označen), General display readout, Alternate display readout, Grid display readout; ispod: Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time. Search (1491 items). Naslov desnog okna General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; okvir Capture objects nije označen; Access mode: Read and write; polje Filter prazno; Selected items 66 (1512 / 1512 available). Stupci tablice: Logical Name, Item, Class Id, Attribute. Retci: 54 1-0:21.8.0 Active energy import (+A) L1; 55 1-0:41.8.0 Active energy import (+A) L2; 56 1-0:61.8.0 Active energy import (+A) L3; 57 1-0:22.8.0 Active energy export (-A) L1; 58 1-0:42.8.0 Active energy export (-A) L2; 59 1-0:62.8.0 Active energy export (-A) L3; 60 1-0:31.7.124 Instantaneous current L1 THD; 61 1-0:51.7.124 Instantaneous current L2 THD; 62 1-0:71.7.124 Instantaneous current L3 THD; 63 1-0:32.7.124 Instantaneous voltage L1 THD; 64 1-0:52.7.124 Instantaneous voltage L2 THD; 65 1-0:52.7.124 Instantaneous voltage L2 THD; 66 1-0:72.7.124 Instantaneous voltage L3 THD. Svi retci: Class Id 3 - Register, Attribute 2 - Value.

✓ Sažetak

Priprema (točke 1–2): Koristite Reduxi standardnu strukturu telegrama. Pripremite brojilo MT880 i alat SEP2W manager ili Symbiot.

Postavke brojila (točke 3–5): Postavite IEC local port setup channel 1, IEC HDLC setup channel 1 i general local port readout.

Dodavanje u Reduxi (točka 6): Dodajte brojilo u Reduxi Controller prema uputama za MT880.

Puštanje u rad (točka 6): Nakon dodavanja brojila provjerite očitanja u Reduxi Configuratoru.

→ Česti problemi

Problem Rješenje
Nema podataka s brojila Provjerite postavke telegrama prema Reduxi standardnoj strukturi telegrama. Zabilježite broj retka i Logical Name kada mijenjate očitanje.
Open configurator se ne otvara ili ostaje prazan Tunel još nije aktivan. Pričekajte oko 30 sekundi i provjerite je li kontroler online.
Prijava s admin se odbija Lozinka je promijenjena tijekom instalacije. Pitajte instalatera. Lozinka Reduxi računa ovdje ne radi.
reduxi.local se ne učitava Vaš uređaj nije u istoj mreži kao kontroler. Koristite IP adresu ili tunelsku vezu.
Test komunikacije ne uspijeva, uređaj je offline Provjerite dostupnost, IP adresu / port / unit ID te je li protokol uključen na uređaju.
