Come configurare il contatore Iskraemeco AM550 in Iskraemeco SEP2W o Iskraemeco Symbiot
Configurare il contatore Iskraemeco AM550 nello strumento Iskraemeco SEP2W o Symbiot in modo che invii il telegramma standard Reduxi.
1 Struttura di base e strumento
1.1 Usare la struttura del telegramma standard Reduxi
Configurare il contatore Iskraemeco AM550 secondo la Reduxi standard telegram structure for DLMS push on I1/P1 interface. Eseguire la configurazione con i parametri indicati nelle sezioni seguenti.
Reduxi ha bisogno di un solo telegramma con i dati definiti nella Reduxi standard telegram structure for DLMS push on I1/P1 interface.
1.2 Configurare il contatore nello strumento Iskraemeco
Eseguire la configurazione nello strumento Iskraemeco SEP2W o Iskraemeco Symbiot. Le sezioni seguenti riportano le impostazioni dello strumento, una dopo l'altra.
2 Impostazioni push per Interval 1
2.1 Push action scheduler: Interval 1
Impostare Push action scheduler per Interval 1 come mostrato nello screenshot.
Descrizione testuale di questa immagine
Screenshot dello strumento di configurazione Iskraemeco, pagina Push action scheduler - Interval 1. Logical name: 0-1:15.0.4*255, Class ID: Single action schedule (22), Version: 0. Blocco Executed script (Access mode: Read and write): Logical name: 0.0.10.0.108.255; Selector: 1. Blocco Type (Read and write): 5 - size of execution time = n; time values may be different, wildcards in date are allowed. Blocco Execution time (Read and write): tabella con le colonne Time e Date; riga 1: Every second, Every day; una nuova riga vuota contrassegnata da una stella.

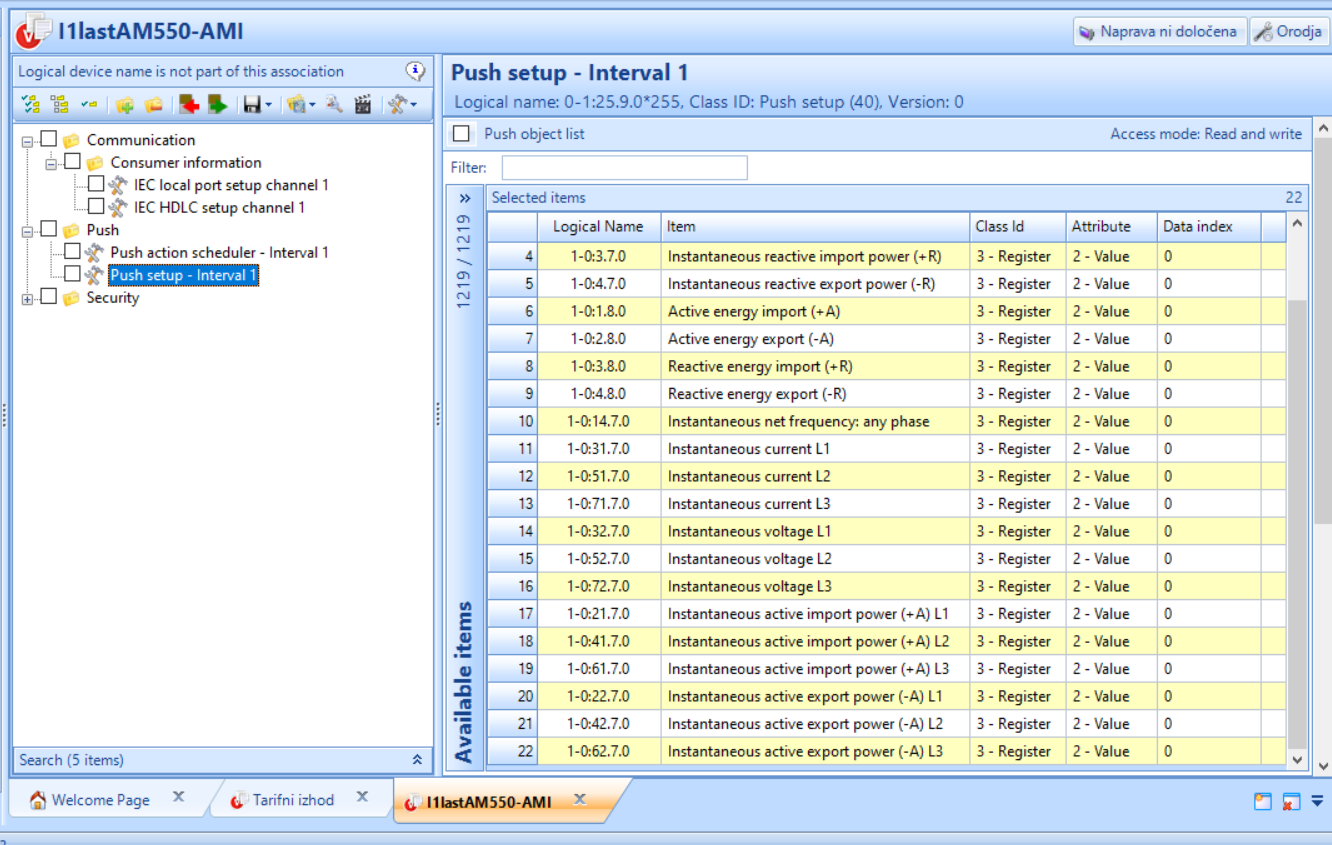

2.2 Push setup: Interval 1
Impostare Push setup per Interval 1 come mostrato nello screenshot.
Descrizione testuale di questa immagine
Screenshot dello strumento di configurazione Iskraemeco, finestra con titolo I1lastAM550-AMI, con i pulsanti Naprava ni določena [Device not specified] e Orodja [Tools] in alto a destra. Albero a sinistra (tutte le caselle non spuntate): Communication > Consumer information > IEC local port setup channel 1, IEC HDLC setup channel 1; Push > Push action scheduler - Interval 1, Push setup - Interval 1 (selezionato, evidenziato); Security (compresso). Testo sopra l'albero: Logical device name is not part of this association. Search (5 items) in basso a sinistra. Titolo del pannello di destra: Push setup - Interval 1; Logical name: 0-1:25.9.0*255, Class ID: Push setup (40), Version: 0. Blocco Push object list (Access mode: Read and write), campo Filter vuoto, elenco Selected items con contatore 22 e a lato l'etichetta 1219 / 1219 Available items. Colonne della tabella: Logical Name, Item, Class Id, Attribute, Data index. Righe (tutte con Class Id 3 - Register, Attribute 2 - Value, Data index 0): 4: 1-0:3.7.0 Instantaneous reactive import power (+R); 5: 1-0:4.7.0 Instantaneous reactive export power (-R); 6: 1-0:1.8.0 Active energy import (+A); 7: 1-0:2.8.0 Active energy export (-A); 8: 1-0:3.8.0 Reactive energy import (+R); 9: 1-0:4.8.0 Reactive energy export (-R); 10: 1-0:14.7.0 Instantaneous net frequency: any phase; 11: 1-0:31.7.0 Instantaneous current L1; 12: 1-0:51.7.0 Instantaneous current L2; 13: 1-0:71.7.0 Instantaneous current L3; 14: 1-0:32.7.0 Instantaneous voltage L1; 15: 1-0:52.7.0 Instantaneous voltage L2; 16: 1-0:72.7.0 Instantaneous voltage L3; 17: 1-0:21.7.0 Instantaneous active import power (+A) L1; 18: 1-0:41.7.0 Instantaneous active import power (+A) L2; altre righe fino a 22 per la potenza attiva in prelievo (+A) L3 e la potenza attiva in immissione (-A) da L1 a L3. Schede in basso: Welcome Page, Tariffi izhod, I1lastAM550-AMI (attiva).
3 Consumer information

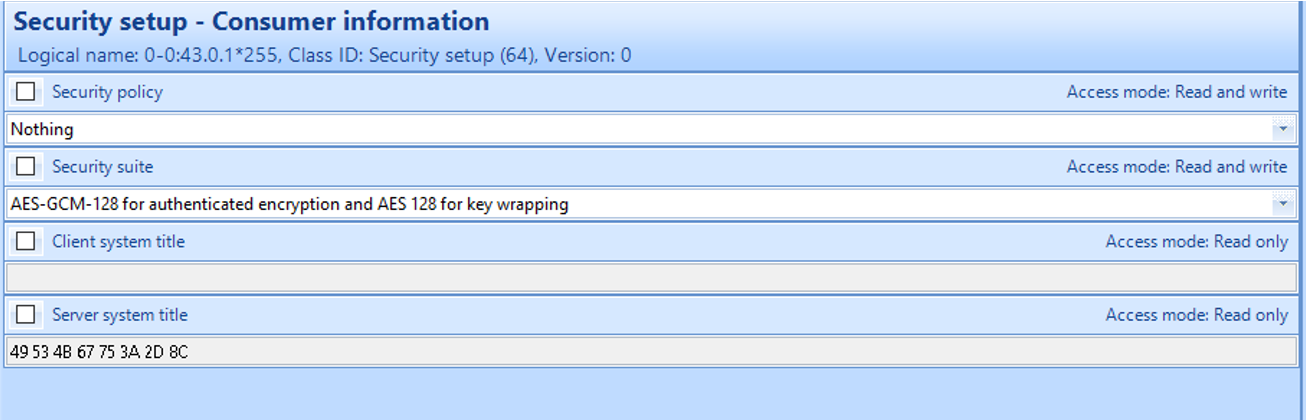

3.1 Security setup: Consumer information
Impostare Security setup per Consumer information come mostrato nello screenshot.
Descrizione testuale di questa immagine
Screenshot dello strumento di configurazione Iskraemeco, pagina Security setup - Consumer information. Logical name: 0-0:43.0.1*255, Class ID: Security setup (64), Version: 0. Campi, ciascuno con una casella non spuntata: Security policy (Access mode: Read and write): Nothing; Security suite (Read and write): AES-GCM-128 for authenticated encryption and AES 128 for key wrapping; Client system title (Access mode: Read only): vuoto; Server system title (Read only): 49 53 4B 67 75 3A 2D 8C.

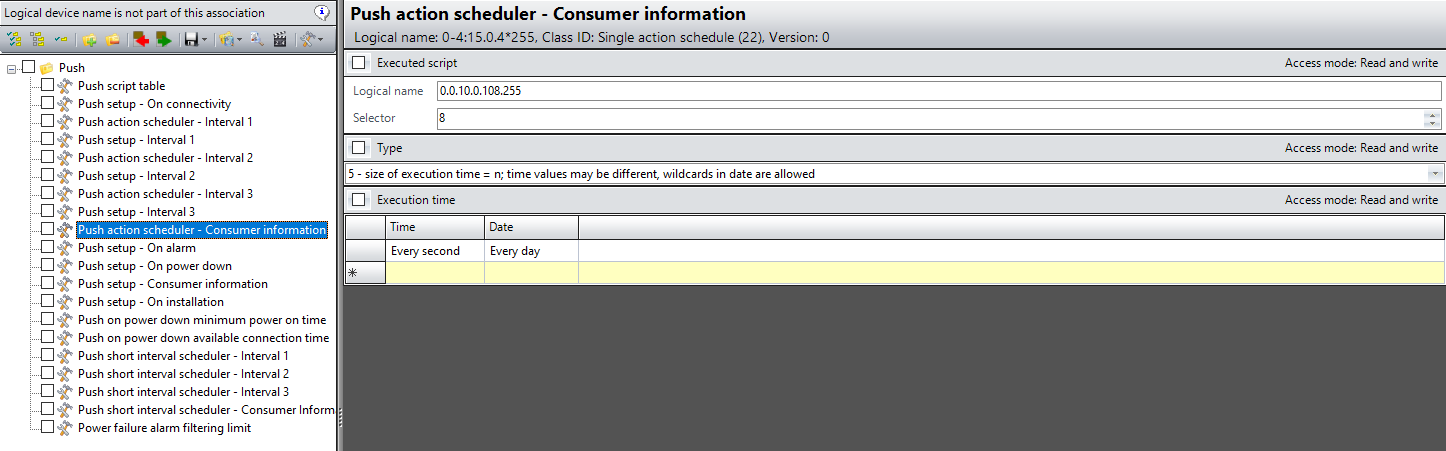

3.2 Push action scheduler: Consumer information
Impostare Push action scheduler per Consumer information come mostrato nello screenshot.
Descrizione testuale di questa immagine
Screenshot dello strumento di configurazione Iskraemeco, pagina Push action scheduler - Consumer information. Albero a sinistra sotto la cartella Push (tutte le voci hanno caselle non spuntate; quella selezionata è evidenziata): Push script table; Push setup - On connectivity; Push action scheduler - Interval 1; Push setup - Interval 1; Push action scheduler - Interval 2; Push setup - Interval 2; Push action scheduler - Interval 3; Push setup - Interval 3; Push action scheduler - Consumer information (selezionata); Push setup - On alarm; Push setup - On power down; Push setup - Consumer information; Push setup - On installation; Push on power down minimum power on time; Push on power down available connection time; Push short interval scheduler - Interval 1; Push short interval scheduler - Interval 2; Push short interval scheduler - Interval 3; Push short interval scheduler - Consumer inform (tagliato); Power failure alarm filtering limit. In cima all'albero: Logical device name is not part of this association, con una barra degli strumenti. Titolo del pannello di destra: Push action scheduler - Consumer information; Logical name: 0-4:15.0.4*255, Class ID: Single action schedule (22), Version: 0. Blocco Executed script (Access mode: Read and write): Logical name: 0.0.10.0.108.255; Selector: 8. Blocco Type (Read and write): 5 - size of execution time = n; time values may be different, wildcards in date are allowed. Blocco Execution time (Read and write): tabella con le colonne Time e Date; riga 1: Every second, Every day; una nuova riga vuota contrassegnata da una stella.
4 Impostazioni IEC per il canale 1

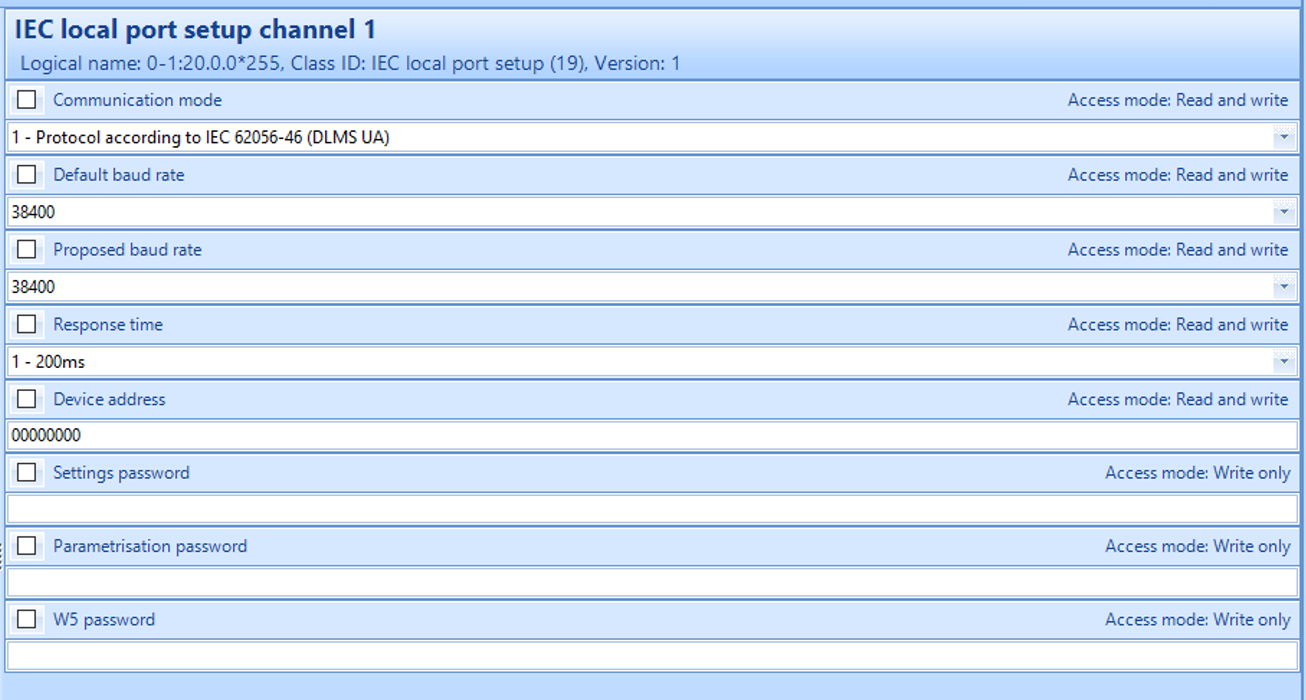

4.1 IEC local port setup: channel 1
Impostare IEC local port setup per il canale 1 come mostrato nello screenshot.
Descrizione testuale di questa immagine
Screenshot dello strumento di configurazione Iskraemeco, pagina IEC local port setup channel 1. Sottotitolo: Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Campi, ciascuno con una casella non spuntata: Communication mode (Access mode: Read and write): 1 - Protocol according to IEC 62056-46 (DLMS UA); Default baud rate (Read and write): 38400; Proposed baud rate (Read and write): 38400; Response time (Read and write): 1 - 200ms; Device address (Read and write): 00000000; Settings password (Access mode: Write only): vuoto; Parametrisation password (Write only): vuoto; W5 password (Write only): vuoto.

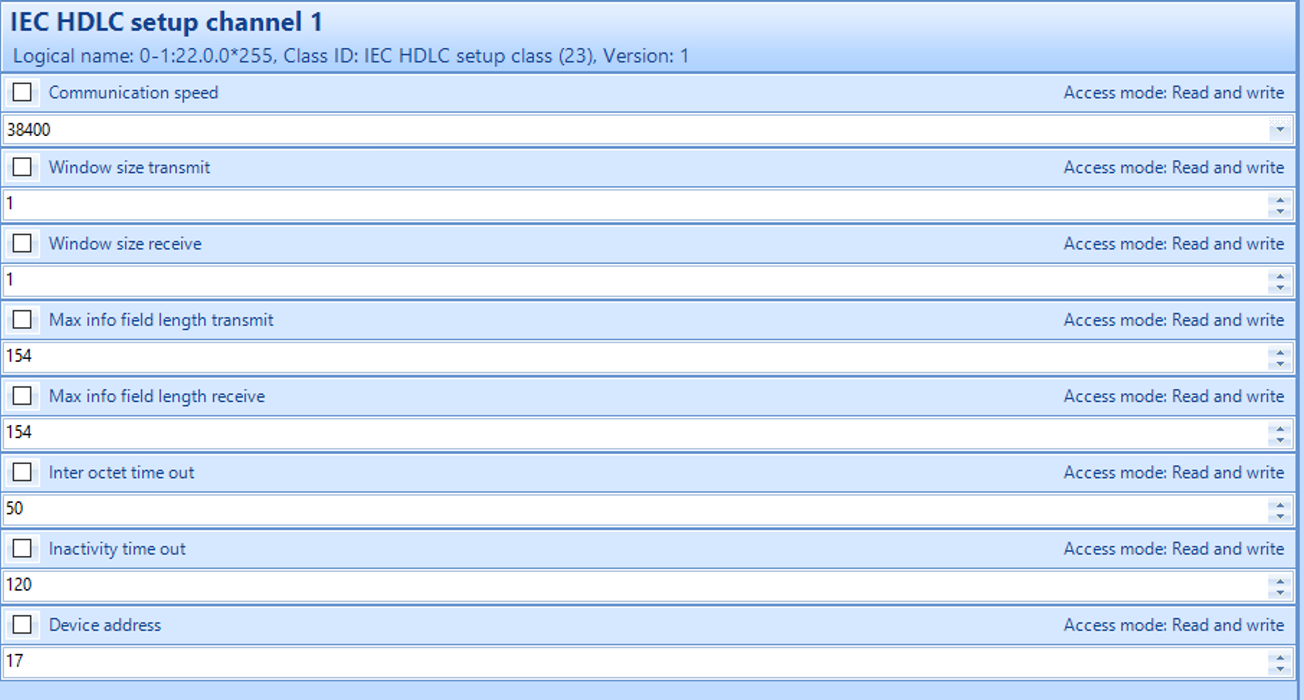

4.2 IEC HDLC setup: channel 1
Impostare IEC HDLC setup per il canale 1 come mostrato nello screenshot.
Descrizione testuale di questa immagine
Screenshot dello strumento di configurazione Iskraemeco, pagina IEC HDLC setup channel 1. Sottotitolo: Logical name: 0-1:22.0.0*255, Class ID: IEC HDLC setup class (23), Version: 1. Campi, ciascuno con una casella non spuntata e Access mode: Read and write: Communication speed: 38400; Window size transmit: 1; Window size receive: 1; Max info field length transmit: 154; Max info field length receive: 154; Inter octet time out: 50; Inactivity time out: 120; Device address: 17.
✓ Riepilogo
Basic structure (Point 1): usare la struttura del telegramma standard Reduxi. Reduxi ha bisogno di un solo telegramma. Configurare il contatore nello strumento Iskraemeco SEP2W o Symbiot.
Interval 1 (Point 2): impostare il push action scheduler e il push setup per Interval 1.
Consumer information (Point 3): impostare il security setup e il push action scheduler per Consumer information.
IEC settings (Point 4): impostare l'IEC local port setup e l'IEC HDLC setup per il canale 1.
→ Problemi comuni
| Problema | Soluzione |
|---|---|
| I dati del contatore non corrispondono al telegramma Reduxi | Verificare che il contatore invii un solo telegramma con i dati della struttura del telegramma standard Reduxi (Point 1). L'immagine di Interval 1 non mostra tutti i dati. |
| Le impostazioni push non vengono accettate | Controllare le impostazioni dei Point da 2 a 4 confrontandole con gli screenshot, una per una. |
