Come configurare Iskraemeco MT880 nello strumento Iskraemeco SEP2W o Symbiot
Configurare il contatore Iskraemeco MT880 nel SEP2W manager o nello strumento Symbiot per il Reduxi Controller.
Descrizione testuale di questa immagine
Foto di un contatore di energia elettrica Iskraemeco MT880 su sfondo bianco, vista frontale. Alloggiamento grigio chiaro con una linguetta di sospensione in alto, un display LCD e un'etichetta con codice a barre nella parte alta, un modulo nero ottico o a pulsanti a sinistra, un coperchio trasparente dei morsetti sul lato sinistro, una fila di piccole spie luminose e un piccolo marchio blu a destra.
1 Documentazione tecnica
Configurare il contatore con la struttura di base descritta in Reduxi standard telegram structure for Iskraemeco AM550 DLMS push on P1 interface. Utilizzare l'Iskraemeco SEP2W manager o lo strumento Symbiot. È sufficiente un solo telegramma, con i dati definiti in tale struttura.
- Struttura standard del telegramma Reduxi – Struttura del telegramma per Iskraemeco DLMS push sull'interfaccia P1 (Reduxi).
- Pagina del prodotto Iskraemeco MT880 – Pagina del produttore del contatore di energia modulare MT880.
- Brochure MT880 – Brochure del contatore modulare ad alta precisione. Per scaricarla occorre compilare un modulo.
- Iskraemeco Symbiot – Piattaforma Symbiot, incluso il MeterConfigurator.
- Centro download della documentazione Iskraemeco – Cataloghi, brochure e schede tecniche del produttore.
2 Attrezzatura necessaria
- Contatore Iskraemeco MT880
- Iskraemeco SEP2W manager o strumento Symbiot
- Reduxi Controller
- Laptop o tablet con accesso a internet per configurare il dispositivo in Reduxi
3 IEC local port setup channel 1
Eseguire i passaggi seguenti nello strumento Iskraemeco SEP2W manager. Iniziare dal passaggio 1, IEC local port setup channel 1.
Descrizione testuale di questa immagine

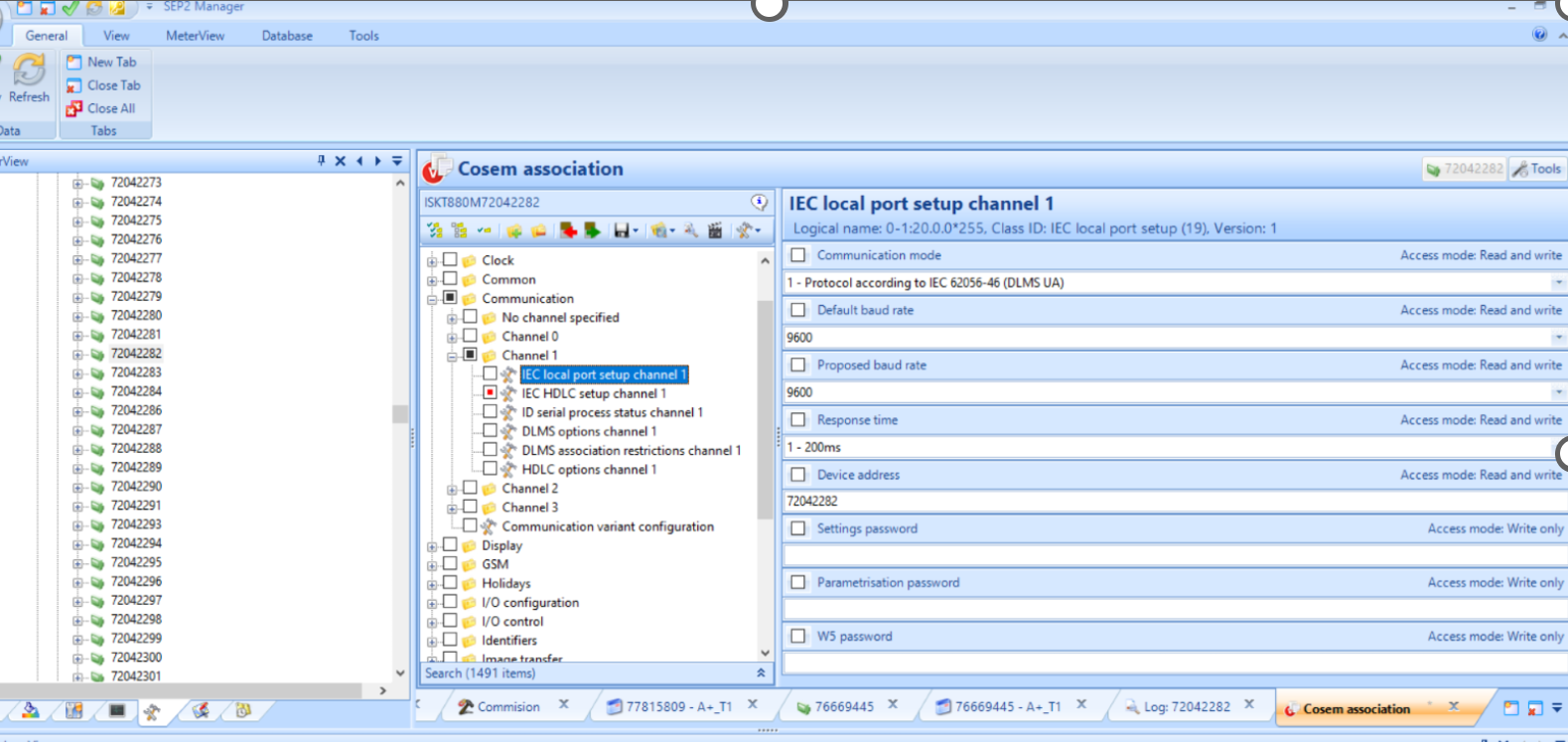

Screenshot del software SEP2 Manager (Iskraemeco), vista Cosem association per il contatore ISKT880M72042282, pagina IEC local port setup channel 1. Schede della barra multifunzione: General, View, MeterView, Database, Tools; pulsanti della barra Refresh, New Tab, Close Tab, Close All. Il riquadro a sinistra elenca i numeri di contatore da 72042273 a 72042301 (72042282 selezionato). Albero nel riquadro centrale: Clock, Common, Communication, con No channel specified, Channel 0, Channel 1 (IEC local port setup channel 1 evidenziato in blu, IEC HDLC setup channel 1 con un segno quadrato rosso, ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1), Channel 2, Channel 3, Communication variant configuration; poi Display, GSM, Holidays, I/O configuration, I/O control, Identifiers, Image transfer; Search (1491 items). Riquadro a destra: IEC local port setup channel 1; Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Campi (caselle non selezionate): Communication mode: 1 - Protocol according to IEC 62056-46 (DLMS UA), Read and write; Default baud rate: 9600, Read and write; Proposed baud rate: 9600, Read and write; Response time: 1 - 200ms, Read and write; Device address: 72042282, Read and write; Settings password: vuoto, Write only; Parametrisation password: vuoto, Write only; W5 password: vuoto, Write only. Barra delle schede in basso: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (attiva).
4 IEC HDLC setup channel 1
Passaggio 2: configurare IEC HDLC channel 1.
Descrizione testuale di questa immagine

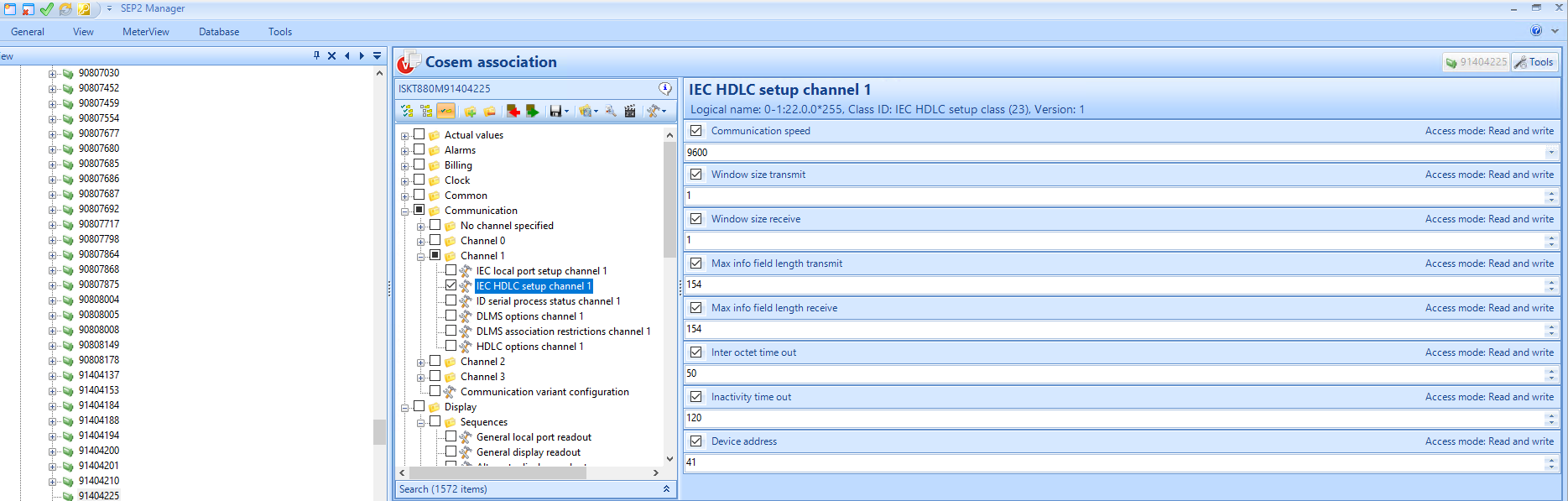

Screenshot del software SEP2 Manager (Iskraemeco) che mostra la pagina IEC HDLC setup channel 1 nella vista Cosem association. Riquadro MeterView a sinistra: elenco dei numeri di contatore da 90807030 a 91404225 (lo stesso elenco dell'altro screenshot di SEP2 Manager; l'ultima voce 91404225 è selezionata). Riquadro centrale: contatore ISKT880M91404225 con un albero: Actual values, Alarms, Billing, Clock, Common, Communication (No channel specified, Channel 0, Channel 1, Channel 2, Channel 3, Communication variant configuration), Display (Sequences: General local port readout, General display readout). Sotto Channel 1: IEC local port setup channel 1, IEC HDLC setup channel 1 (selezionato ed evidenziato in blu), ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1. Search (1572 items) in basso. Titolo del riquadro a destra: IEC HDLC setup channel 1. Logical name: 0-1:22.0.0*255, Class ID: IEC HDLC setup class (23), Version: 1. Campi, tutti selezionati, accesso Read and write: Communication speed: 9600; Window size transmit: 1; Window size receive: 1; Max info field length transmit: 154; Max info field length receive: 154; Inter octet time out: 50; Inactivity time out: 120; Device address: 41.
Descrizione testuale di questa immagine

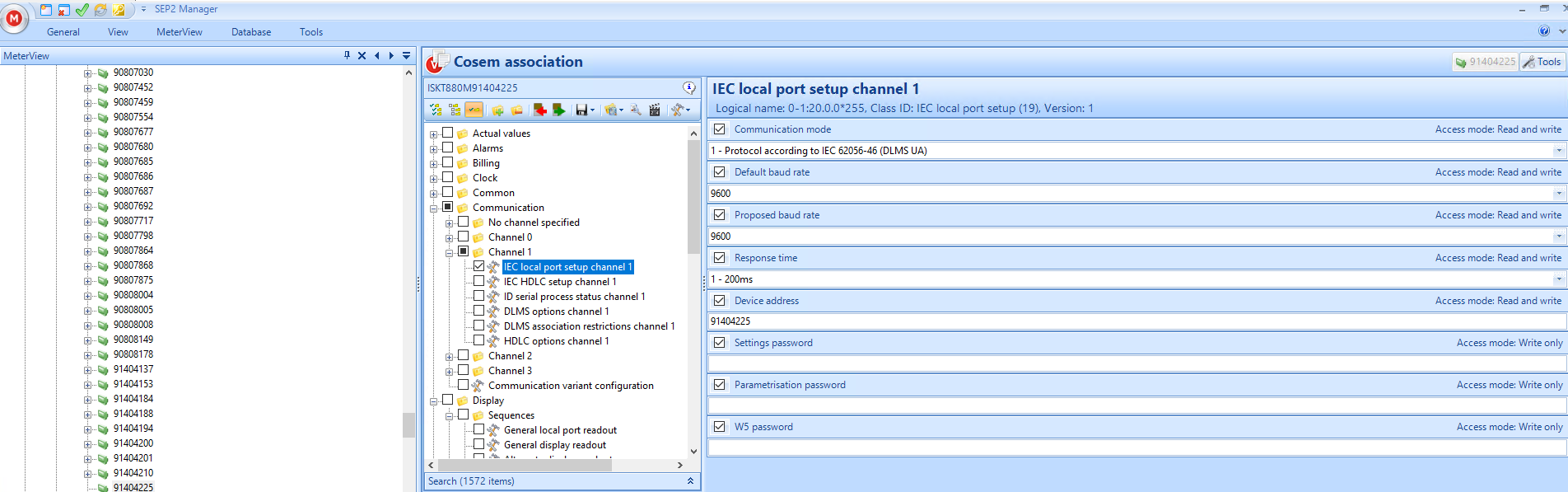

Screenshot del software SEP2 Manager (Iskraemeco) che mostra la pagina IEC local port setup channel 1 nella vista Cosem association. Riquadro MeterView a sinistra: elenco dei numeri di contatore 90807030, 90807452, 90807459, 90807554, 90807677, 90807680, 90807685, 90807686, 90807687, 90807692, 90807717, 90807798, 90807864, 90807868, 90807875, 90808004, 90808005, 90808008, 90808149, 90808178, 91404137, 91404153, 91404184, 91404188, 91404194, 91404200, 91404201, 91404210, 91404225 (l'ultimo è il contatore selezionato). Riquadro centrale: contatore ISKT880M91404225 con un albero: Actual values, Alarms, Billing, Clock, Common, Communication (No channel specified, Channel 0, Channel 1, Channel 2, Channel 3, Communication variant configuration), Display (Sequences: General local port readout, General display readout). Sotto Channel 1 le voci sono IEC local port setup channel 1 (selezionata ed evidenziata in blu), IEC HDLC setup channel 1, ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1. Search (1572 items) in basso. Titolo del riquadro a destra: IEC local port setup channel 1. Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Campi, tutti selezionati: Communication mode: 1 - Protocol according to IEC 62056-46 (DLMS UA), accesso Read and write; Default baud rate: 9600, Read and write; Proposed baud rate: 9600, Read and write; Response time: 1 - 200ms, Read and write; Device address: 91404225, Read and write; Settings password: vuoto, Write only; Parametrisation password: vuoto, Write only; W5 password: vuoto, Write only.
5 General local port readout
Passaggio 3: configurare la General local port readout. A causa del numero elevato di righe, gli screenshot sono divisi in parti. Annotare il numero di riga e il Logical Name per modificare le impostazioni corrette.
Descrizione testuale di questa immagine

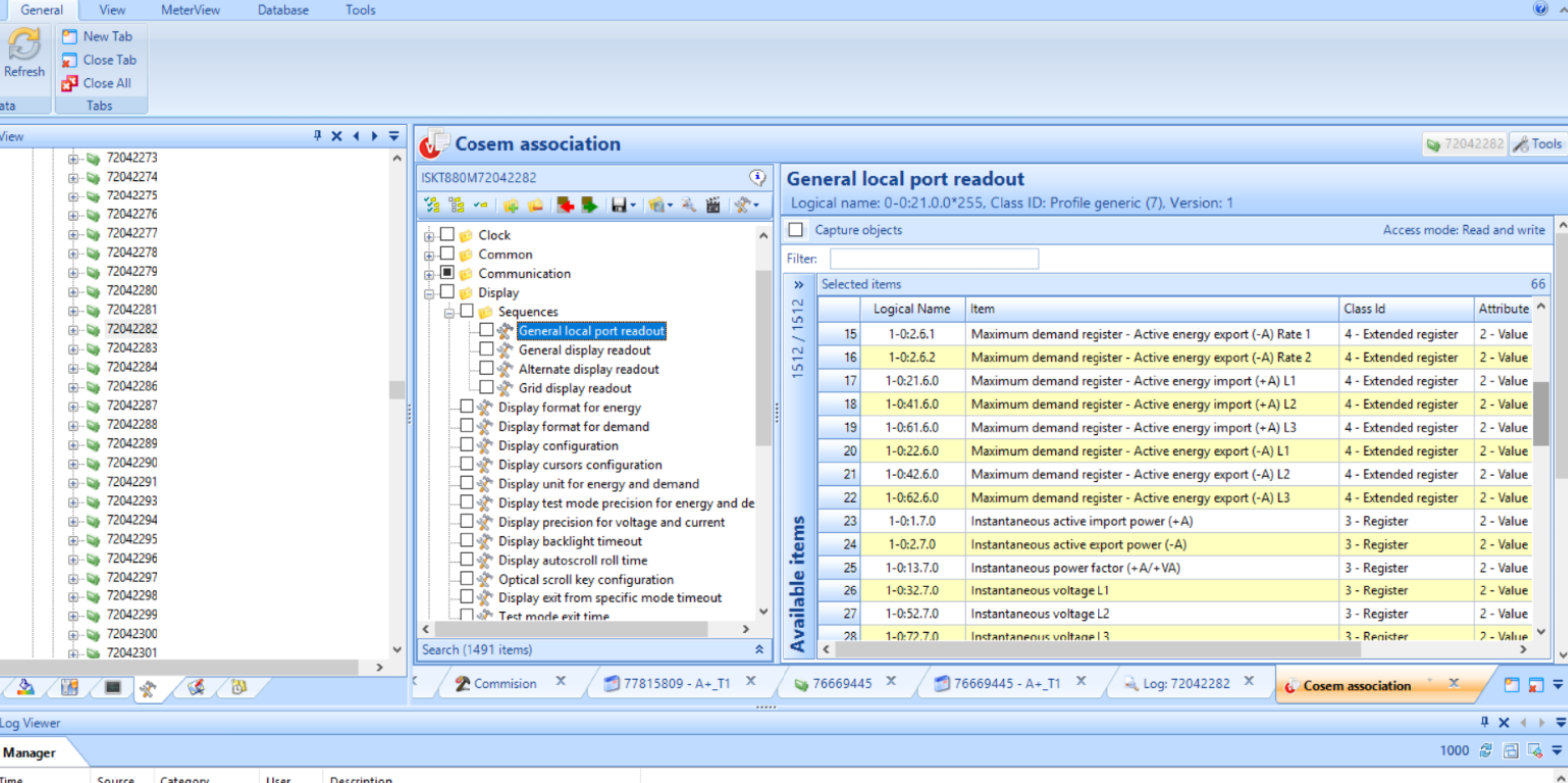

Screenshot del software SEP2 Manager (Iskraemeco), vista Cosem association per il contatore ISKT880M72042282, pagina General local port readout. Il riquadro a sinistra elenca i numeri di contatore da 72042273 a 72042301 (72042282 selezionato). Albero nel riquadro centrale: Clock, Common, Communication, Display > Sequences (General local port readout evidenziato in blu, General display readout, Alternate display readout, Grid display readout), poi Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Riquadro a destra: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects non selezionato; Access mode: Read and write; Filter vuoto; Selected items 66 (1512 / 1512). Colonne della tabella: Logical Name, Item, Class Id, Attribute. Righe mostrate: 1 0-0:97.97.0 Error register, 1 - Data, 2 - Value (riga evidenziata); 2 1-0:0.0.0 Electricity ID 1, 1 - Data; 3 1-0:0.9.1 Local time, 1 - Data; 4 1-0:0.9.2 Local date, 1 - Data; 5 1-0:0.4.2 Transformer ratio - current (numerator), 1 - Data; 6 1-0:0.4.5 Transformer ratio - current (denominator), 1 - Data; 7 1-0:0.4.3 Transformer ratio - voltage (numerator), 1 - Data; 8 1-0:0.4.6 Transformer ratio - voltage (denominator), 1 - Data; 9 1-0:1.4.0 Demand register - Active energy import (+A), 5 - Demand register, 2 - Curren(t) (tagliato); 10 1-0:2.4.0 Demand register - Active energy export (-A), 5 - Demand register; 11 1-0:1.6.0 Maximum demand register - Active energy import (+A), 4 - Extended register, 2 - Value; 12 1-0:1.6.1 Maximum demand register - Active energy import (+A) Rate 1, 4 - Extended register; 13 1-0:1.6.2 Maximum demand register - Active energy import (+A) Rate 2, 4 - Extended register; 14 1-0:2.6.0 Maximum demand register - Active energy export (-A), 4 - Extended register. Barra delle schede in basso: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (attiva, arancione).
Descrizione testuale di questa immagine

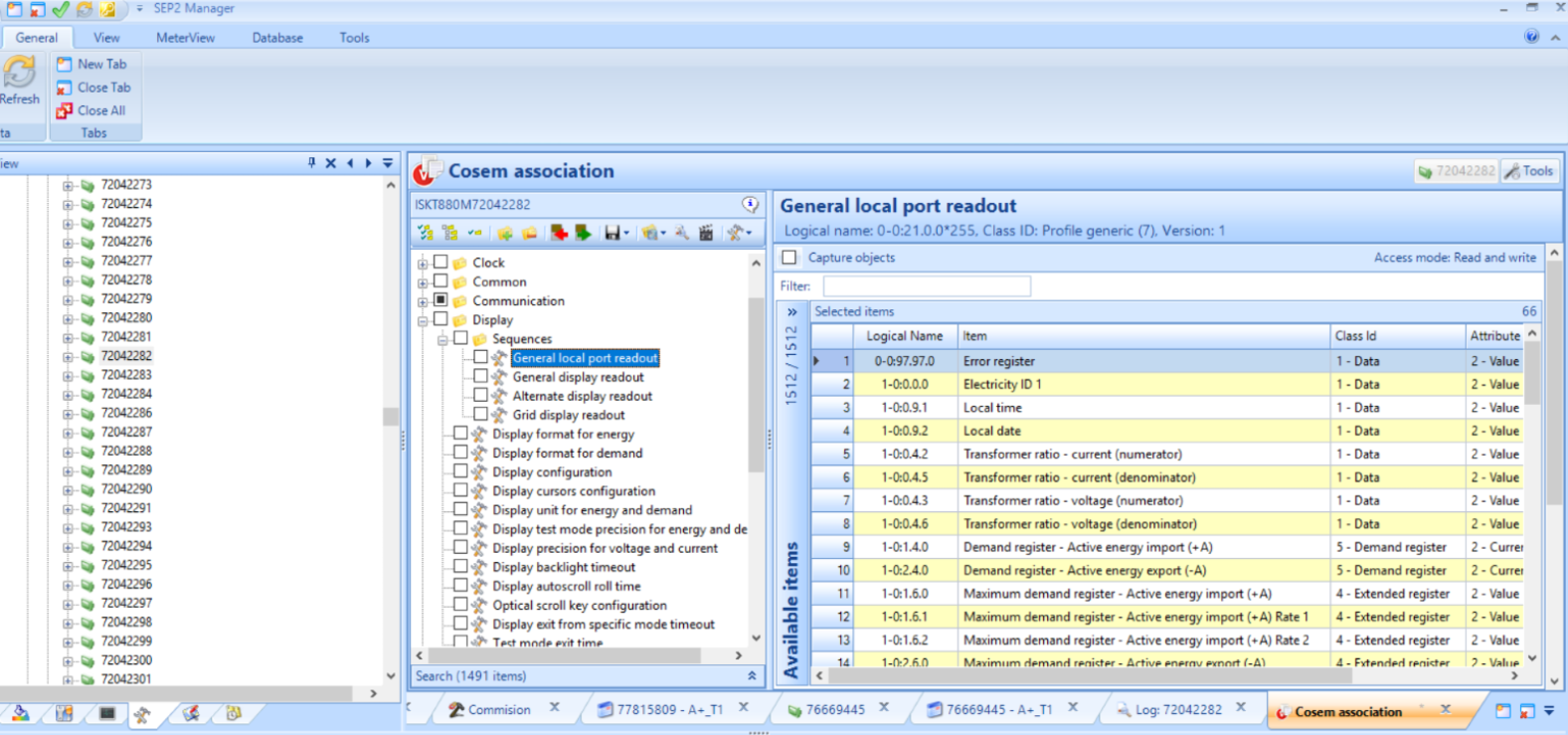

Screenshot del software SEP2 Manager (Iskraemeco), vista Cosem association, pagina General local port readout, per il contatore ISKT880M72042282. Il riquadro a sinistra elenca i numeri di contatore da 72042273 a 72042301 (72042282 selezionato). Albero nel riquadro centrale: Clock, Common, Communication, Display > Sequences: General local port readout (evidenziato in blu), General display readout, Alternate display readout, Grid display readout, poi Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time. Search (1491 items). Riquadro a destra: Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects non selezionato; Access mode: Read and write; Selected items 66, 1512 / 1512. Righe della tabella mostrate (colonne Logical Name, Item, Class Id, Attribute): 15 1-0:2.6.1 Maximum demand register - Active energy export (-A) Rate 1, 4 - Extended register, 2 - Value; 16 1-0:2.6.2 ... export (-A) Rate 2, 4 - Extended register; 17 1-0:21.6.0 Maximum demand register - Active energy import (+A) L1; 18 1-0:41.6.0 ... import (+A) L2; 19 1-0:61.6.0 ... import (+A) L3; 20 1-0:22.6.0 ... export (-A) L1; 21 1-0:42.6.0 ... export (-A) L2; 22 1-0:62.6.0 ... export (-A) L3 (le righe da 17 a 22 sono 4 - Extended register); 23 1-0:1.7.0 Instantaneous active import power (+A), 3 - Register; 24 1-0:2.7.0 Instantaneous active export power (-A), 3 - Register; 25 1-0:13.7.0 Instantaneous power factor (+A/+VA), 3 - Register; 26 1-0:32.7.0 Instantaneous voltage L1; 27 1-0:52.7.0 Instantaneous voltage L2; 28 1-0:72.7.0 Instantaneous voltage L3 (in parte tagliata). Parte inferiore della finestra: barra delle schede con Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282 e la scheda attiva Cosem association (arancione). Sotto, un pannello Log Viewer con una scheda Manager e intestazioni di tabella vuote Time, Source, Category, User, Description; contatore 1000.
Descrizione testuale di questa immagine

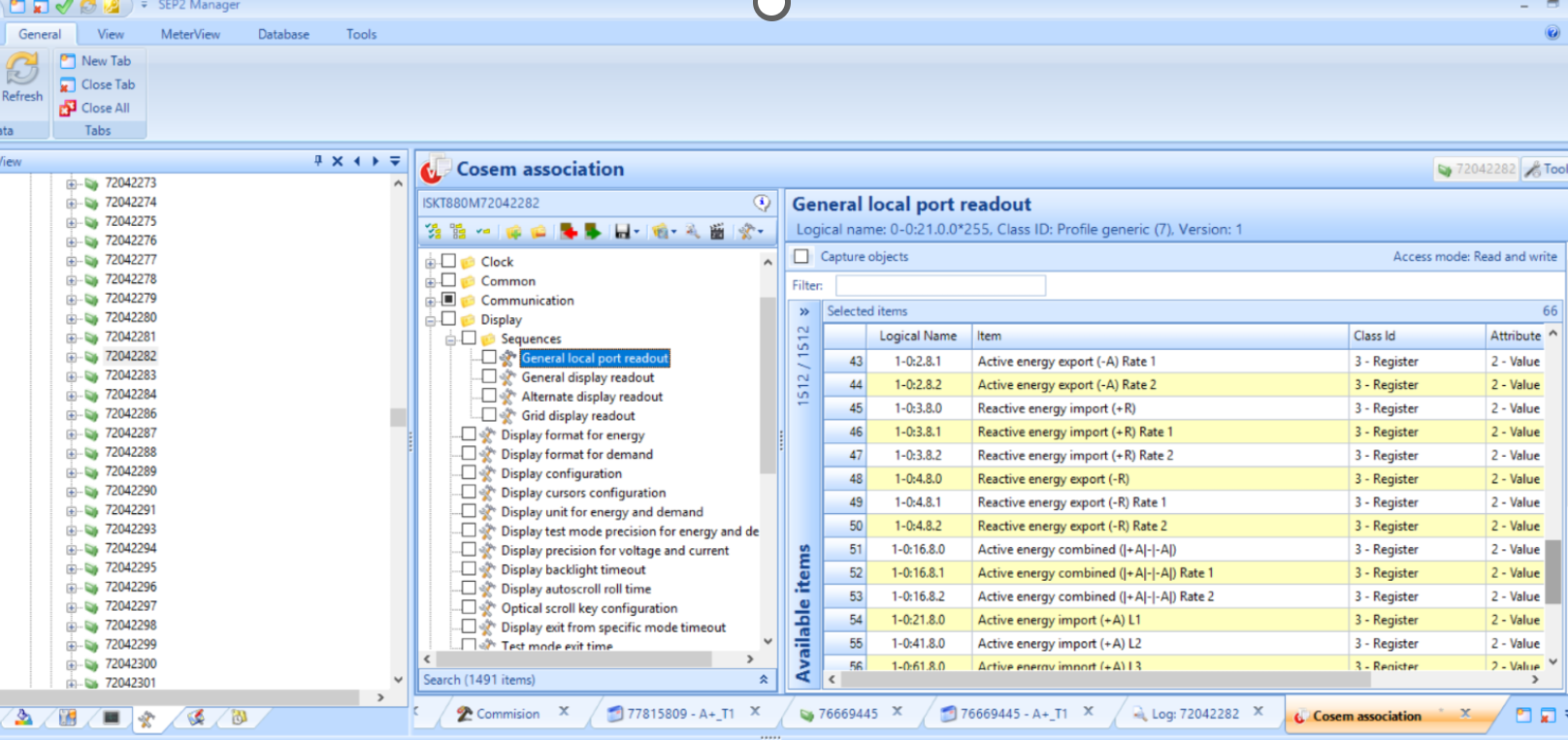

Screenshot del software SEP2 Manager (Iskraemeco), vista Cosem association per il contatore ISKT880M72042282, pagina General local port readout. Il riquadro a sinistra elenca i numeri di contatore da 72042273 a 72042301 (72042282 selezionato). Albero nel riquadro centrale: Clock, Common, Communication, Display > Sequences (General local port readout evidenziato in blu, General display readout, Alternate display readout, Grid display readout), poi Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Riquadro a destra: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects non selezionato; Access mode: Read and write; Filter vuoto; Selected items 66 (1512 / 1512). Colonne della tabella: Logical Name, Item, Class Id, Attribute. Righe mostrate, tutte con Class Id 3 - Register, Attribute 2 - Value: 29 1-0:31.7.0 Instantaneous current L1; 30 1-0:51.7.0 Instantaneous current L2; 31 1-0:71.7.0 Instantaneous current L3; 32 1-0:14.7.0 Instantaneous net frequency: any phase; 33 1-0:81.7.1 Angle U(L2) - U(L1); 34 1-0:81.7.2 Angle U(L3) - U(L1); 35 1-0:81.7.12 Angle U(L3) - U(L2); 36 1-0:81.7.40 Angle U(L1) - I(L1); 37 1-0:81.7.51 Angle U(L2) - I(L2); 38 1-0:81.7.62 Angle U(L3) - I(L3); 39 1-0:1.8.0 Active energy import (+A); 40 1-0:1.8.1 Active energy import (+A) Rate 1; 41 1-0:1.8.2 Active energy import (+A) Rate 2; 42 1-0:2.8.0 Active energy export (-A). Barra delle schede in basso: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (attiva, arancione).
Descrizione testuale di questa immagine

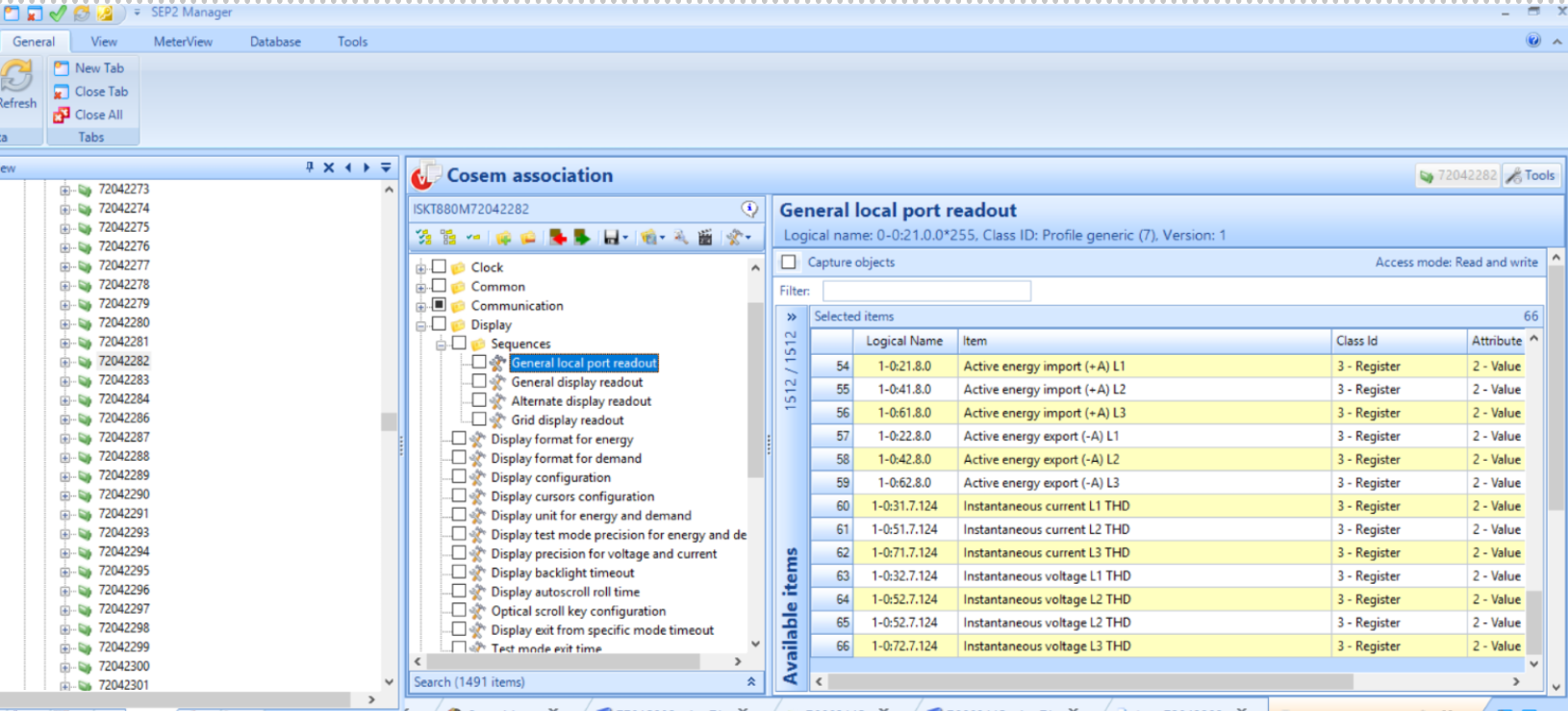

Screenshot del software SEP2 Manager (Iskraemeco), vista Cosem association per il contatore ISKT880M72042282, pagina General local port readout. Il riquadro a sinistra elenca i numeri di contatore da 72042273 a 72042301 (72042282 selezionato). Albero nel riquadro centrale: Clock, Common, Communication, Display > Sequences (General local port readout evidenziato in blu, General display readout, Alternate display readout, Grid display readout), poi Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Riquadro a destra: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects non selezionato; Access mode: Read and write; Filter vuoto; Selected items 66 (1512 / 1512). Colonne della tabella: Logical Name, Item, Class Id, Attribute. Righe mostrate, tutte con Class Id 3 - Register, Attribute 2 - Value: 43 1-0:2.8.1 Active energy export (-A) Rate 1; 44 1-0:2.8.2 Active energy export (-A) Rate 2; 45 1-0:3.8.0 Reactive energy import (+R); 46 1-0:3.8.1 Reactive energy import (+R) Rate 1; 47 1-0:3.8.2 Reactive energy import (+R) Rate 2; 48 1-0:4.8.0 Reactive energy export (-R); 49 1-0:4.8.1 Reactive energy export (-R) Rate 1; 50 1-0:4.8.2 Reactive energy export (-R) Rate 2; 51 1-0:16.8.0 Active energy combined (|+A|-|-A|); 52 1-0:16.8.1 Active energy combined (|+A|-|-A|) Rate 1; 53 1-0:16.8.2 Active energy combined (|+A|-|-A|) Rate 2; 54 1-0:21.8.0 Active energy import (+A) L1; 55 1-0:41.8.0 Active energy import (+A) L2; 56 1-0:61.8.0 Active energy import (+A) L3. Barra delle schede in basso: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (attiva, arancione).
Descrizione testuale di questa immagine

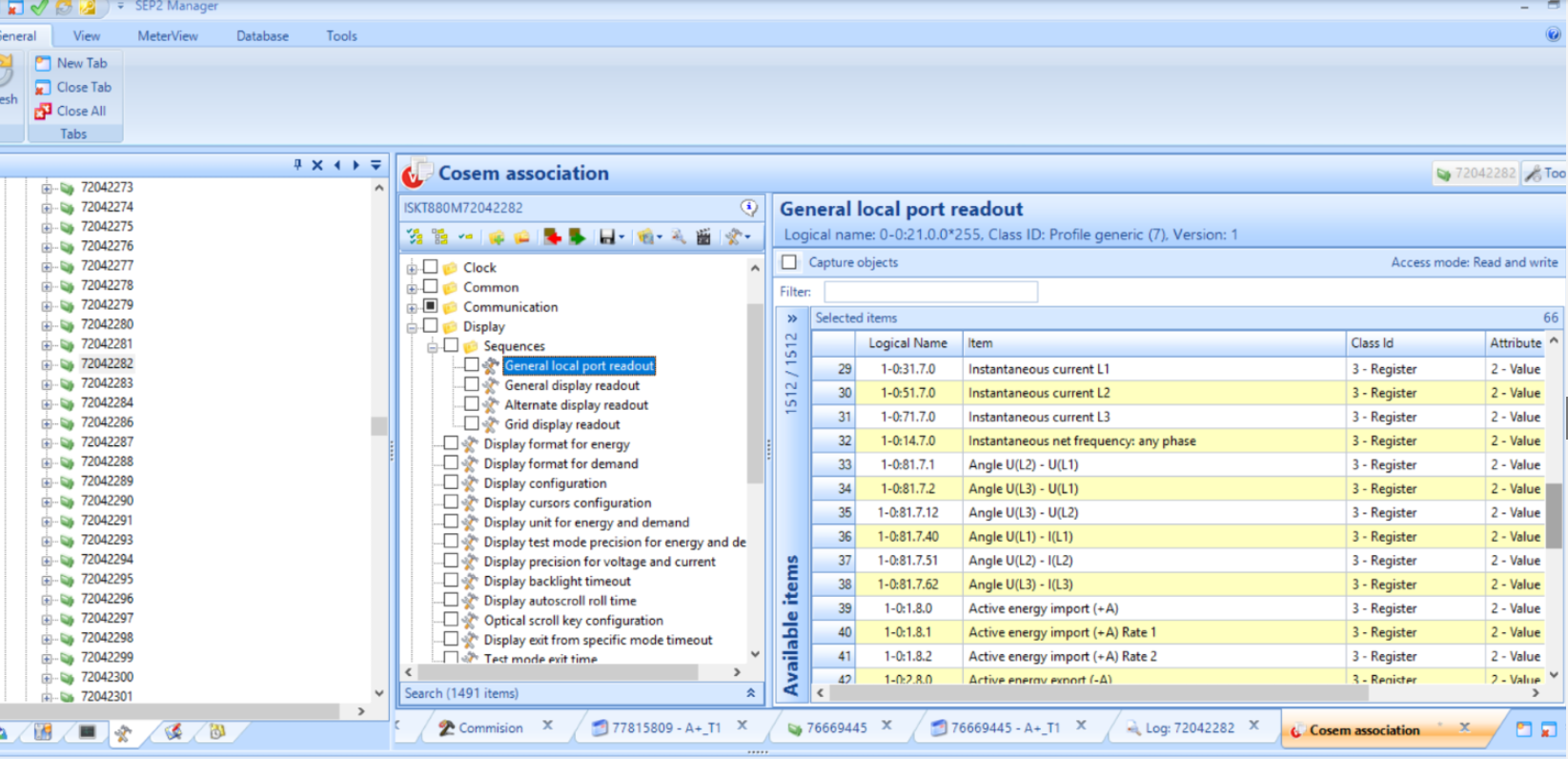

Screenshot del software SEP2 Manager (Iskraemeco), vista Cosem association, pagina General local port readout, per il contatore ISKT880M72042282. Schede della barra multifunzione: General, View, MeterView, Database, Tools; la barra General mostra Refresh, New Tab, Close Tab, Close All. Il riquadro a sinistra elenca i numeri di contatore da 72042273 a 72042301 (72042282 è selezionato). Albero nel riquadro centrale: Clock, Common, Communication, Display > Sequences con General local port readout (evidenziato in blu, casella non selezionata), General display readout, Alternate display readout, Grid display readout; sotto: Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time. Search (1491 items). Titolo del riquadro a destra General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; casella Capture objects non selezionata; Access mode: Read and write; campo Filter vuoto; Selected items 66 (1512 / 1512 available). Colonne della tabella: Logical Name, Item, Class Id, Attribute. Righe: 54 1-0:21.8.0 Active energy import (+A) L1; 55 1-0:41.8.0 Active energy import (+A) L2; 56 1-0:61.8.0 Active energy import (+A) L3; 57 1-0:22.8.0 Active energy export (-A) L1; 58 1-0:42.8.0 Active energy export (-A) L2; 59 1-0:62.8.0 Active energy export (-A) L3; 60 1-0:31.7.124 Instantaneous current L1 THD; 61 1-0:51.7.124 Instantaneous current L2 THD; 62 1-0:71.7.124 Instantaneous current L3 THD; 63 1-0:32.7.124 Instantaneous voltage L1 THD; 64 1-0:52.7.124 Instantaneous voltage L2 THD; 65 1-0:52.7.124 Instantaneous voltage L2 THD; 66 1-0:72.7.124 Instantaneous voltage L3 THD. Tutte le righe: Class Id 3 - Register, Attribute 2 - Value.
6 Passo successivo: aggiungere il contatore a Reduxi
Dopo la configurazione del contatore, aggiungerlo al Reduxi Controller. Seguire Come aggiungere il contatore di energia Iskraemeco MT880.
✓ Riepilogo
Preparazione (punti 1–2): Utilizzare la struttura standard del telegramma Reduxi. Preparare il contatore MT880 e il SEP2W manager o lo strumento Symbiot.
Impostazioni del contatore (punti 3–5): Configurare IEC local port setup channel 1, IEC HDLC setup channel 1 e la general local port readout.
Aggiunta a Reduxi (punto 6): Aggiungere il contatore al Reduxi Controller seguendo la guida per l'MT880.
Messa in servizio (punto 6): Verificare le letture nel Reduxi Configurator dopo aver aggiunto il contatore.
→ Problemi comuni
| Problema | Soluzione |
|---|---|
| Nessun dato dal contatore | Confrontare le impostazioni del telegramma con la struttura standard del telegramma Reduxi. Annotare il numero di riga e il Logical Name quando si modifica la lettura. |
| Open configurator non si apre o rimane vuoto | Il tunnel non è ancora attivo. Attendere circa 30 secondi e verificare che il controller sia online. |
L'accesso con admin viene rifiutato |
La password è stata modificata durante l'installazione. Chiedere all'installatore. La password dell'account Reduxi qui non funziona. |
reduxi.local non si carica |
Il dispositivo non si trova nella stessa rete del controller. Usare l'indirizzo IP o la connessione tunnel. |
| Il test di comunicazione non riesce, il dispositivo risulta offline | Controllare la raggiungibilità, indirizzo IP / porta / unit ID e che il protocollo sia abilitato sul dispositivo. |
