Jak skonfigurować Iskraemeco MT880 w narzędziu Iskraemeco SEP2W lub Symbiot
Skonfiguruj licznik Iskraemeco MT880 w SEP2W manager lub w narzędziu Symbiot dla Reduxi Controller.
Opis tekstowy tego obrazu
Zdjęcie licznika energii elektrycznej Iskraemeco MT880 na białym tle, widok z przodu. Jasnoszara obudowa z uchem do zawieszenia u góry, wyświetlaczem LCD i etykietą z kodem kreskowym w górnej części, czarnym modułem optycznym lub przyciskowym po lewej, przezroczystą osłoną zacisków po lewej stronie, rzędem małych diod sygnalizacyjnych i małym niebieskim znakiem marki po prawej.
1 Dokumentacja techniczna
Skonfiguruj licznik ze strukturą podstawową z Reduxi standard telegram structure for Iskraemeco AM550 DLMS push on P1 interface. Użyj Iskraemeco SEP2W manager lub narzędzia Symbiot. Potrzebny jest tylko jeden telegram z danymi zdefiniowanymi w tej strukturze.
- Standardowa struktura telegramu Reduxi – struktura telegramu dla Iskraemeco DLMS push na interfejsie P1 (Reduxi).
- Strona produktu Iskraemeco MT880 – strona producenta modułowego licznika energii MT880.
- Broszura MT880 – broszura modułowego licznika o wysokiej dokładności. Pobranie wymaga wypełnienia formularza.
- Iskraemeco Symbiot – platforma Symbiot, w tym MeterConfigurator.
- Centrum pobierania dokumentacji Iskraemeco – katalogi, broszury i karty katalogowe producenta.
2 Wymagane wyposażenie
- Licznik Iskraemeco MT880
- Iskraemeco SEP2W manager lub narzędzie Symbiot
- Reduxi Controller
- Laptop lub tablet z dostępem do internetu do konfiguracji urządzenia w Reduxi
3 IEC local port setup channel 1
Wykonaj poniższe kroki w narzędziu Iskraemeco SEP2W manager. Zacznij od kroku 1, IEC local port setup channel 1.
Opis tekstowy tego obrazu

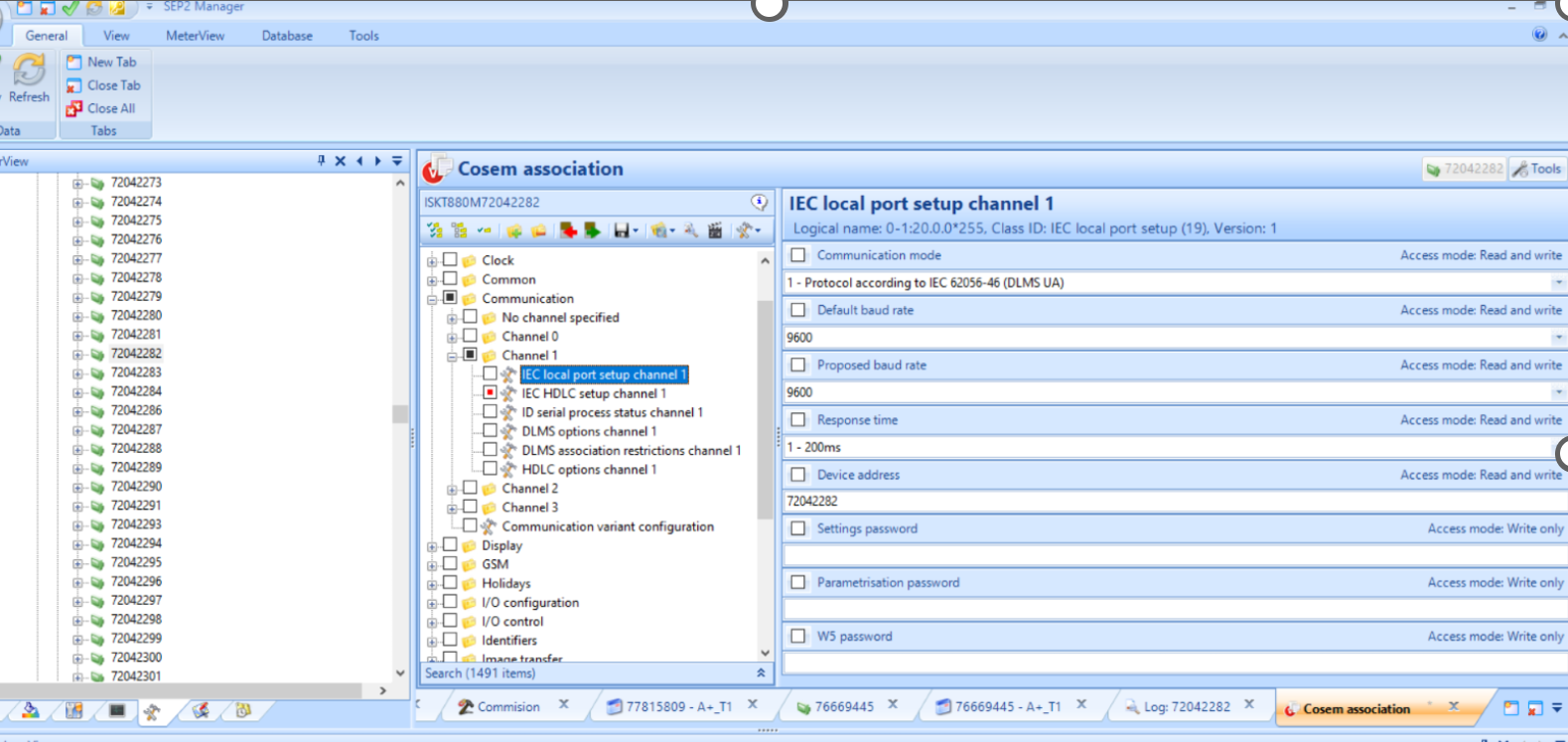

Zrzut ekranu oprogramowania SEP2 Manager (Iskraemeco), widok Cosem association dla licznika ISKT880M72042282, strona IEC local port setup channel 1. Karty wstążki: General, View, MeterView, Database, Tools; przyciski wstążki Refresh, New Tab, Close Tab, Close All. Lewy panel zawiera numery liczników od 72042273 do 72042301 (wybrany 72042282). Środkowy panel z drzewem: Clock, Common, Communication, z No channel specified, Channel 0, Channel 1 (IEC local port setup channel 1 podświetlone na niebiesko, IEC HDLC setup channel 1 z czerwonym kwadratowym znacznikiem, ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1), Channel 2, Channel 3, Communication variant configuration; następnie Display, GSM, Holidays, I/O configuration, I/O control, Identifiers, Image transfer; Search (1491 items). Prawy panel: IEC local port setup channel 1; Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Pola (pola wyboru niezaznaczone): Communication mode: 1 - Protocol according to IEC 62056-46 (DLMS UA), Read and write; Default baud rate: 9600, Read and write; Proposed baud rate: 9600, Read and write; Response time: 1 - 200ms, Read and write; Device address: 72042282, Read and write; Settings password: puste, Write only; Parametrisation password: puste, Write only; W5 password: puste, Write only. Dolny pasek kart: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktywna).
4 IEC HDLC setup channel 1
Krok 2: skonfiguruj IEC HDLC channel 1.
Opis tekstowy tego obrazu

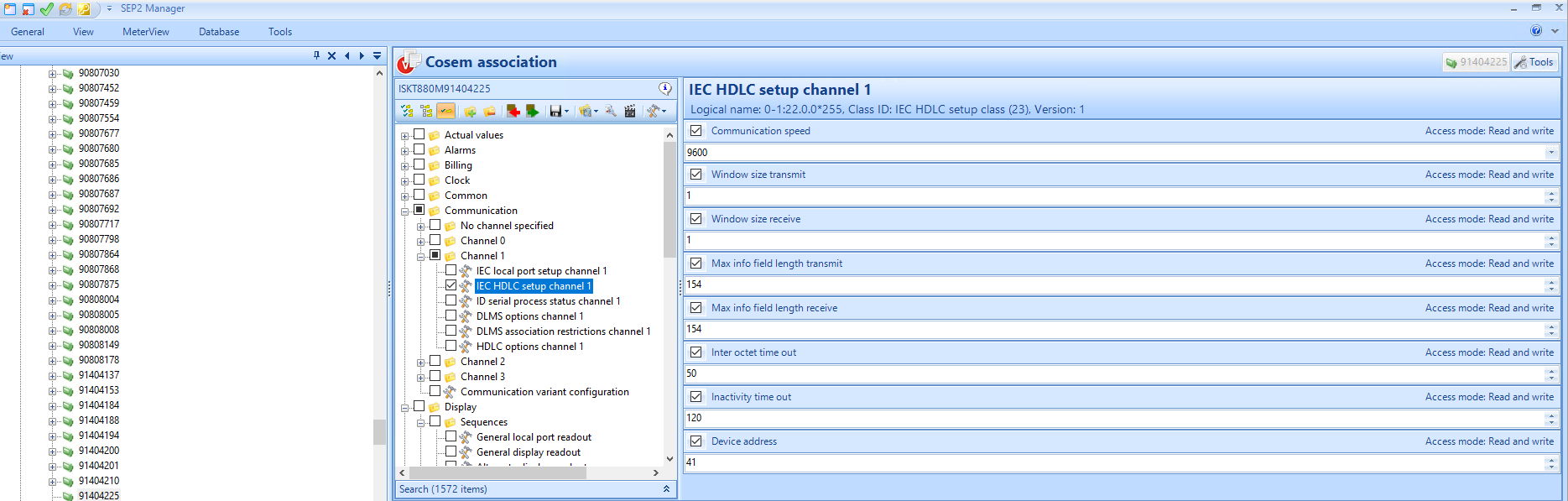

Zrzut ekranu oprogramowania SEP2 Manager (Iskraemeco) ze stroną IEC HDLC setup channel 1 w widoku Cosem association. Lewy panel MeterView: lista numerów liczników od 90807030 do 91404225 (ta sama lista co na drugim zrzucie SEP2 Manager; wybrana ostatnia pozycja 91404225). Środkowy panel: licznik ISKT880M91404225 z drzewem: Actual values, Alarms, Billing, Clock, Common, Communication (No channel specified, Channel 0, Channel 1, Channel 2, Channel 3, Communication variant configuration), Display (Sequences: General local port readout, General display readout). Pod Channel 1: IEC local port setup channel 1, IEC HDLC setup channel 1 (zaznaczone i podświetlone na niebiesko), ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1. Search (1572 items) na dole. Tytuł prawego panelu: IEC HDLC setup channel 1. Logical name: 0-1:22.0.0*255, Class ID: IEC HDLC setup class (23), Version: 1. Pola, każde zaznaczone, dostęp Read and write: Communication speed: 9600; Window size transmit: 1; Window size receive: 1; Max info field length transmit: 154; Max info field length receive: 154; Inter octet time out: 50; Inactivity time out: 120; Device address: 41.
Opis tekstowy tego obrazu

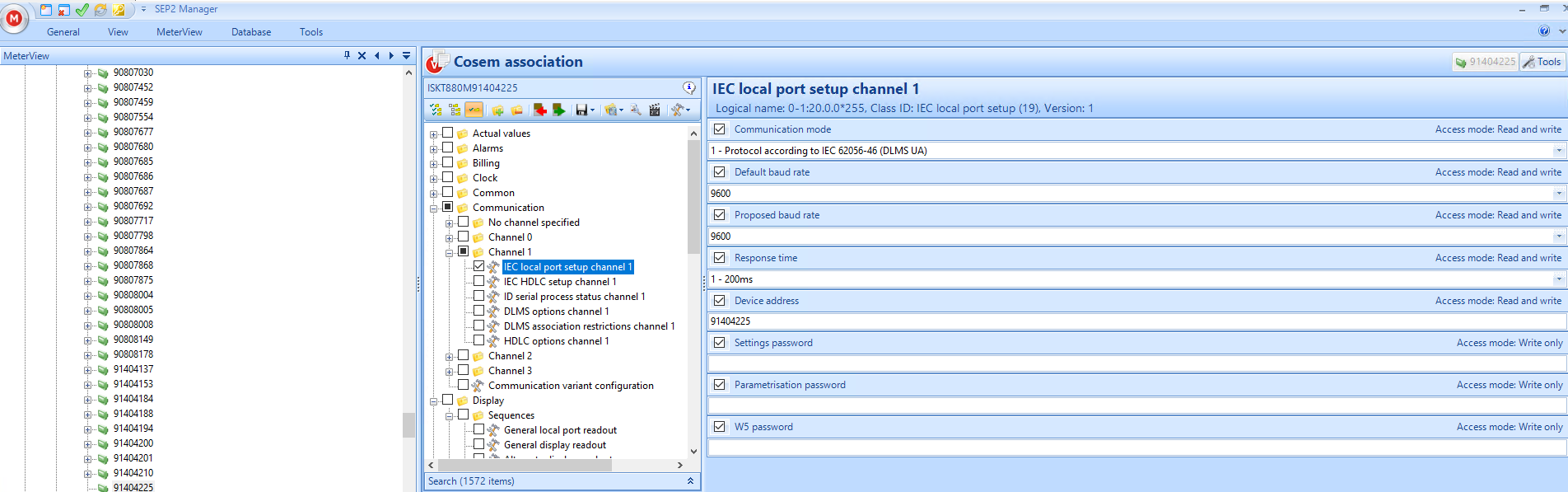

Zrzut ekranu oprogramowania SEP2 Manager (Iskraemeco) ze stroną IEC local port setup channel 1 w widoku Cosem association. Lewy panel MeterView: lista numerów liczników 90807030, 90807452, 90807459, 90807554, 90807677, 90807680, 90807685, 90807686, 90807687, 90807692, 90807717, 90807798, 90807864, 90807868, 90807875, 90808004, 90808005, 90808008, 90808149, 90808178, 91404137, 91404153, 91404184, 91404188, 91404194, 91404200, 91404201, 91404210, 91404225 (ostatni jest wybranym licznikiem). Środkowy panel: licznik ISKT880M91404225 z drzewem: Actual values, Alarms, Billing, Clock, Common, Communication (No channel specified, Channel 0, Channel 1, Channel 2, Channel 3, Communication variant configuration), Display (Sequences: General local port readout, General display readout). Pod Channel 1 znajdują się pozycje IEC local port setup channel 1 (zaznaczona i podświetlona na niebiesko), IEC HDLC setup channel 1, ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1. Search (1572 items) na dole. Tytuł prawego panelu: IEC local port setup channel 1. Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Pola, każde zaznaczone: Communication mode: 1 - Protocol according to IEC 62056-46 (DLMS UA), dostęp Read and write; Default baud rate: 9600, Read and write; Proposed baud rate: 9600, Read and write; Response time: 1 - 200ms, Read and write; Device address: 91404225, Read and write; Settings password: puste, Write only; Parametrisation password: puste, Write only; W5 password: puste, Write only.
5 General local port readout
Krok 3: skonfiguruj General local port readout. Ze względu na dużą liczbę wierszy zrzuty ekranu są podzielone na części. Zanotuj numer wiersza i Logical Name, aby zmienić właściwe ustawienia.
Opis tekstowy tego obrazu

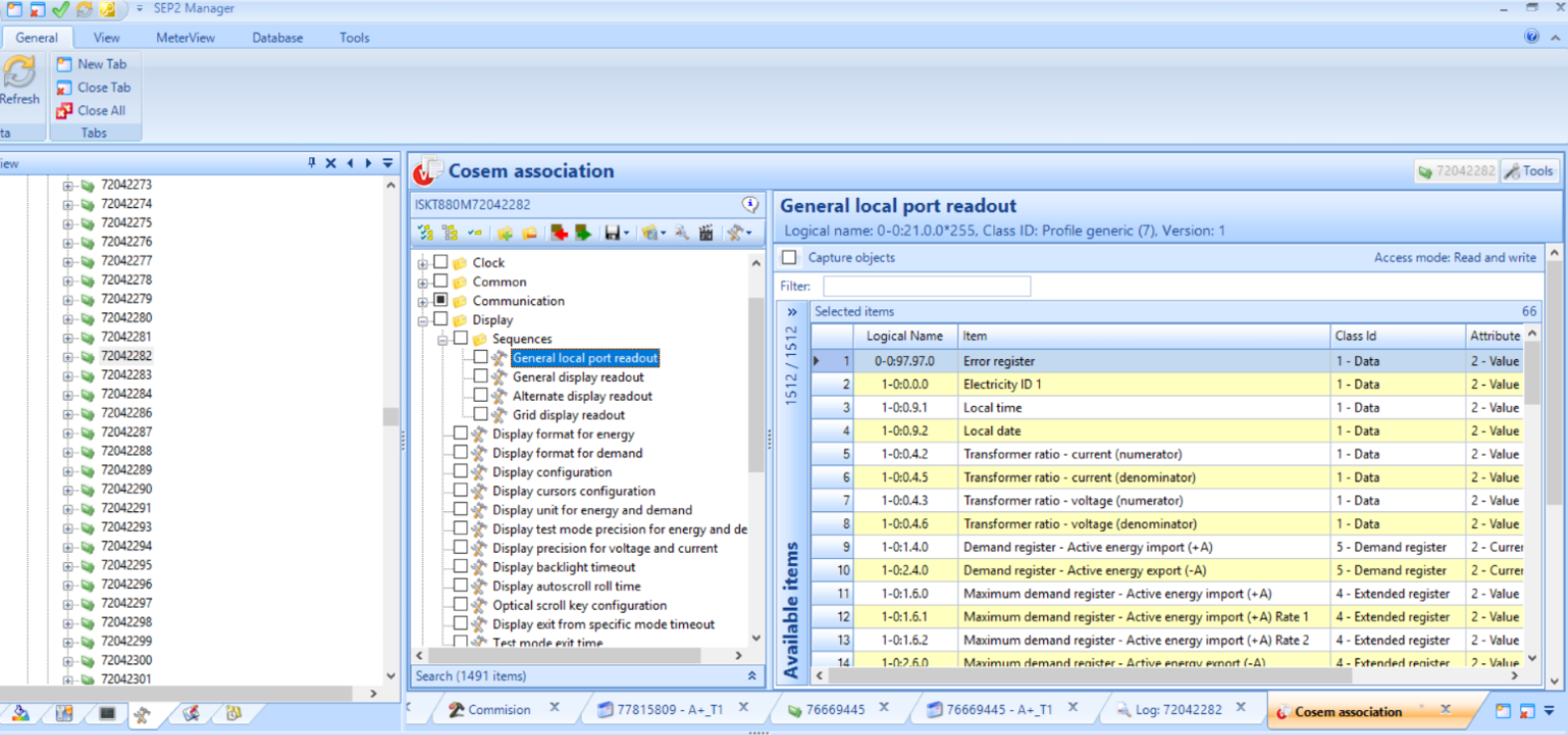

Zrzut ekranu oprogramowania SEP2 Manager (Iskraemeco), widok Cosem association dla licznika ISKT880M72042282, strona General local port readout. Lewy panel zawiera numery liczników od 72042273 do 72042301 (wybrany 72042282). Drzewo w środkowym panelu: Clock, Common, Communication, Display > Sequences (General local port readout podświetlone na niebiesko, General display readout, Alternate display readout, Grid display readout), następnie Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Prawy panel: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects niezaznaczone; Access mode: Read and write; Filter puste; Selected items 66 (1512 / 1512). Kolumny tabeli: Logical Name, Item, Class Id, Attribute. Widoczne wiersze: 1 0-0:97.97.0 Error register, 1 - Data, 2 - Value (wiersz podświetlony); 2 1-0:0.0.0 Electricity ID 1, 1 - Data; 3 1-0:0.9.1 Local time, 1 - Data; 4 1-0:0.9.2 Local date, 1 - Data; 5 1-0:0.4.2 Transformer ratio - current (numerator), 1 - Data; 6 1-0:0.4.5 Transformer ratio - current (denominator), 1 - Data; 7 1-0:0.4.3 Transformer ratio - voltage (numerator), 1 - Data; 8 1-0:0.4.6 Transformer ratio - voltage (denominator), 1 - Data; 9 1-0:1.4.0 Demand register - Active energy import (+A), 5 - Demand register, 2 - Curren(t) (ucięte); 10 1-0:2.4.0 Demand register - Active energy export (-A), 5 - Demand register; 11 1-0:1.6.0 Maximum demand register - Active energy import (+A), 4 - Extended register, 2 - Value; 12 1-0:1.6.1 Maximum demand register - Active energy import (+A) Rate 1, 4 - Extended register; 13 1-0:1.6.2 Maximum demand register - Active energy import (+A) Rate 2, 4 - Extended register; 14 1-0:2.6.0 Maximum demand register - Active energy export (-A), 4 - Extended register. Dolny pasek kart: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktywna, pomarańczowa).
Opis tekstowy tego obrazu

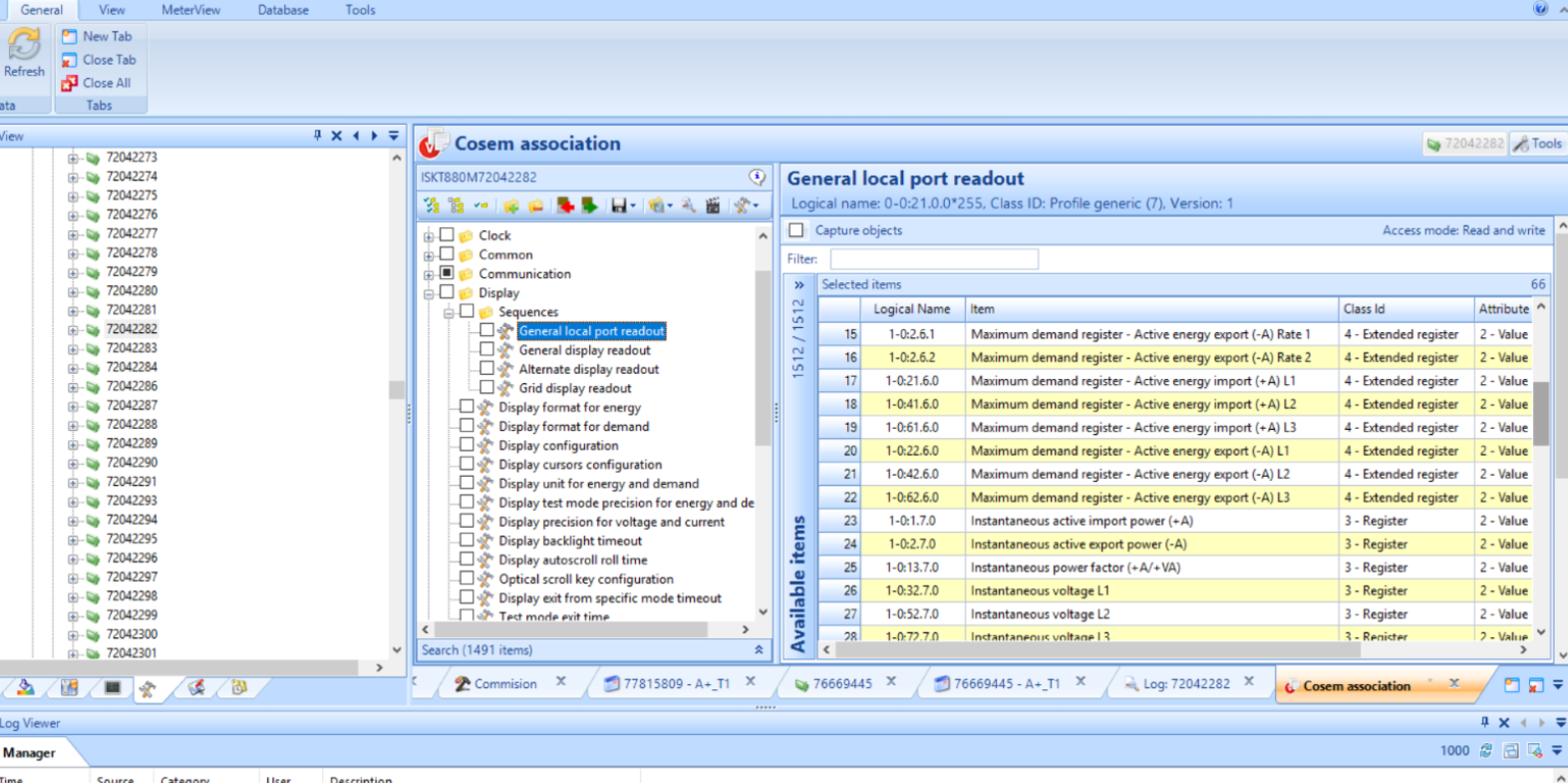

Zrzut ekranu oprogramowania SEP2 Manager (Iskraemeco), widok Cosem association, strona General local port readout, dla licznika ISKT880M72042282. Lewy panel zawiera numery liczników od 72042273 do 72042301 (wybrany 72042282). Drzewo w środkowym panelu: Clock, Common, Communication, Display > Sequences: General local port readout (podświetlone na niebiesko), General display readout, Alternate display readout, Grid display readout, następnie Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time. Search (1491 items). Prawy panel: Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects niezaznaczone; Access mode: Read and write; Selected items 66, 1512 / 1512. Widoczne wiersze tabeli (kolumny Logical Name, Item, Class Id, Attribute): 15 1-0:2.6.1 Maximum demand register - Active energy export (-A) Rate 1, 4 - Extended register, 2 - Value; 16 1-0:2.6.2 ... export (-A) Rate 2, 4 - Extended register; 17 1-0:21.6.0 Maximum demand register - Active energy import (+A) L1; 18 1-0:41.6.0 ... import (+A) L2; 19 1-0:61.6.0 ... import (+A) L3; 20 1-0:22.6.0 ... export (-A) L1; 21 1-0:42.6.0 ... export (-A) L2; 22 1-0:62.6.0 ... export (-A) L3 (wiersze od 17 do 22 to 4 - Extended register); 23 1-0:1.7.0 Instantaneous active import power (+A), 3 - Register; 24 1-0:2.7.0 Instantaneous active export power (-A), 3 - Register; 25 1-0:13.7.0 Instantaneous power factor (+A/+VA), 3 - Register; 26 1-0:32.7.0 Instantaneous voltage L1; 27 1-0:52.7.0 Instantaneous voltage L2; 28 1-0:72.7.0 Instantaneous voltage L3 (częściowo ucięte). Dolna część okna: pasek kart z Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282 i aktywną kartą Cosem association (pomarańczowa). Pod nim panel Log Viewer z kartą Manager i pustymi nagłówkami tabeli Time, Source, Category, User, Description; licznik 1000.
Opis tekstowy tego obrazu

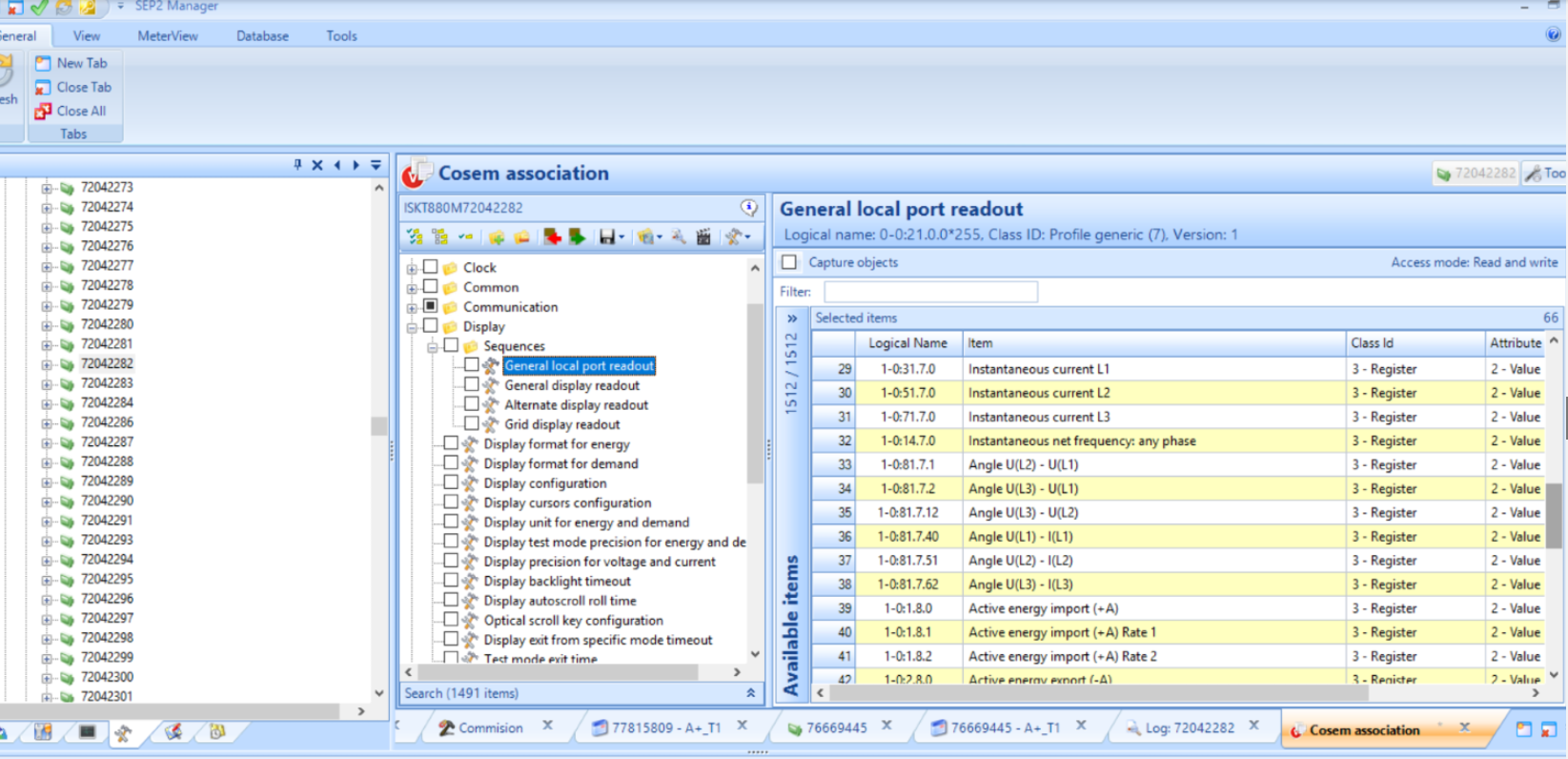

Zrzut ekranu oprogramowania SEP2 Manager (Iskraemeco), widok Cosem association dla licznika ISKT880M72042282, strona General local port readout. Lewy panel zawiera numery liczników od 72042273 do 72042301 (wybrany 72042282). Drzewo w środkowym panelu: Clock, Common, Communication, Display > Sequences (General local port readout podświetlone na niebiesko, General display readout, Alternate display readout, Grid display readout), następnie Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Prawy panel: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects niezaznaczone; Access mode: Read and write; Filter puste; Selected items 66 (1512 / 1512). Kolumny tabeli: Logical Name, Item, Class Id, Attribute. Widoczne wiersze, wszystkie z Class Id 3 - Register, Attribute 2 - Value: 29 1-0:31.7.0 Instantaneous current L1; 30 1-0:51.7.0 Instantaneous current L2; 31 1-0:71.7.0 Instantaneous current L3; 32 1-0:14.7.0 Instantaneous net frequency: any phase; 33 1-0:81.7.1 Angle U(L2) - U(L1); 34 1-0:81.7.2 Angle U(L3) - U(L1); 35 1-0:81.7.12 Angle U(L3) - U(L2); 36 1-0:81.7.40 Angle U(L1) - I(L1); 37 1-0:81.7.51 Angle U(L2) - I(L2); 38 1-0:81.7.62 Angle U(L3) - I(L3); 39 1-0:1.8.0 Active energy import (+A); 40 1-0:1.8.1 Active energy import (+A) Rate 1; 41 1-0:1.8.2 Active energy import (+A) Rate 2; 42 1-0:2.8.0 Active energy export (-A). Dolny pasek kart: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktywna, pomarańczowa).
Opis tekstowy tego obrazu

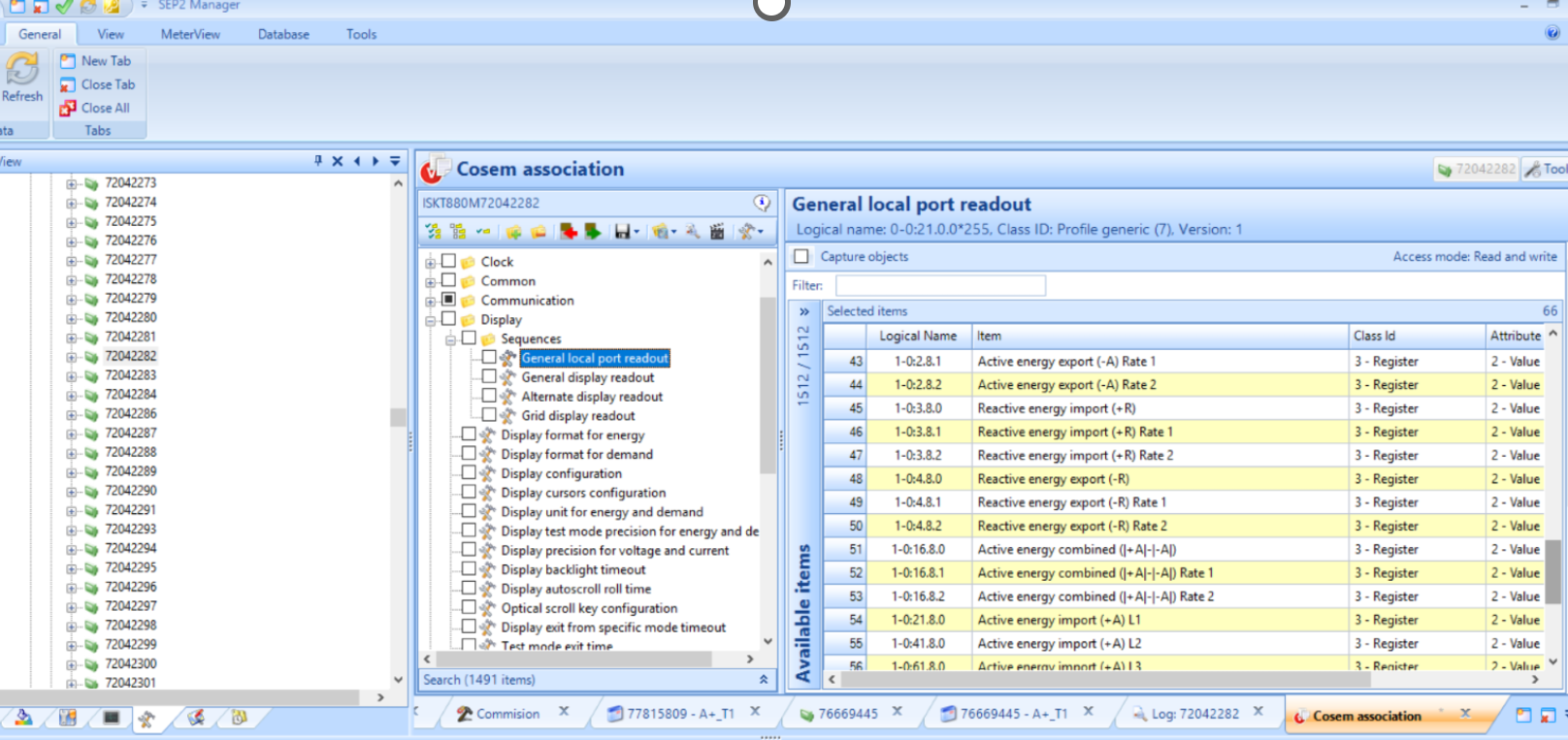

Zrzut ekranu oprogramowania SEP2 Manager (Iskraemeco), widok Cosem association dla licznika ISKT880M72042282, strona General local port readout. Lewy panel zawiera numery liczników od 72042273 do 72042301 (wybrany 72042282). Drzewo w środkowym panelu: Clock, Common, Communication, Display > Sequences (General local port readout podświetlone na niebiesko, General display readout, Alternate display readout, Grid display readout), następnie Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Prawy panel: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects niezaznaczone; Access mode: Read and write; Filter puste; Selected items 66 (1512 / 1512). Kolumny tabeli: Logical Name, Item, Class Id, Attribute. Widoczne wiersze, wszystkie z Class Id 3 - Register, Attribute 2 - Value: 43 1-0:2.8.1 Active energy export (-A) Rate 1; 44 1-0:2.8.2 Active energy export (-A) Rate 2; 45 1-0:3.8.0 Reactive energy import (+R); 46 1-0:3.8.1 Reactive energy import (+R) Rate 1; 47 1-0:3.8.2 Reactive energy import (+R) Rate 2; 48 1-0:4.8.0 Reactive energy export (-R); 49 1-0:4.8.1 Reactive energy export (-R) Rate 1; 50 1-0:4.8.2 Reactive energy export (-R) Rate 2; 51 1-0:16.8.0 Active energy combined (|+A|-|-A|); 52 1-0:16.8.1 Active energy combined (|+A|-|-A|) Rate 1; 53 1-0:16.8.2 Active energy combined (|+A|-|-A|) Rate 2; 54 1-0:21.8.0 Active energy import (+A) L1; 55 1-0:41.8.0 Active energy import (+A) L2; 56 1-0:61.8.0 Active energy import (+A) L3. Dolny pasek kart: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktywna, pomarańczowa).
Opis tekstowy tego obrazu

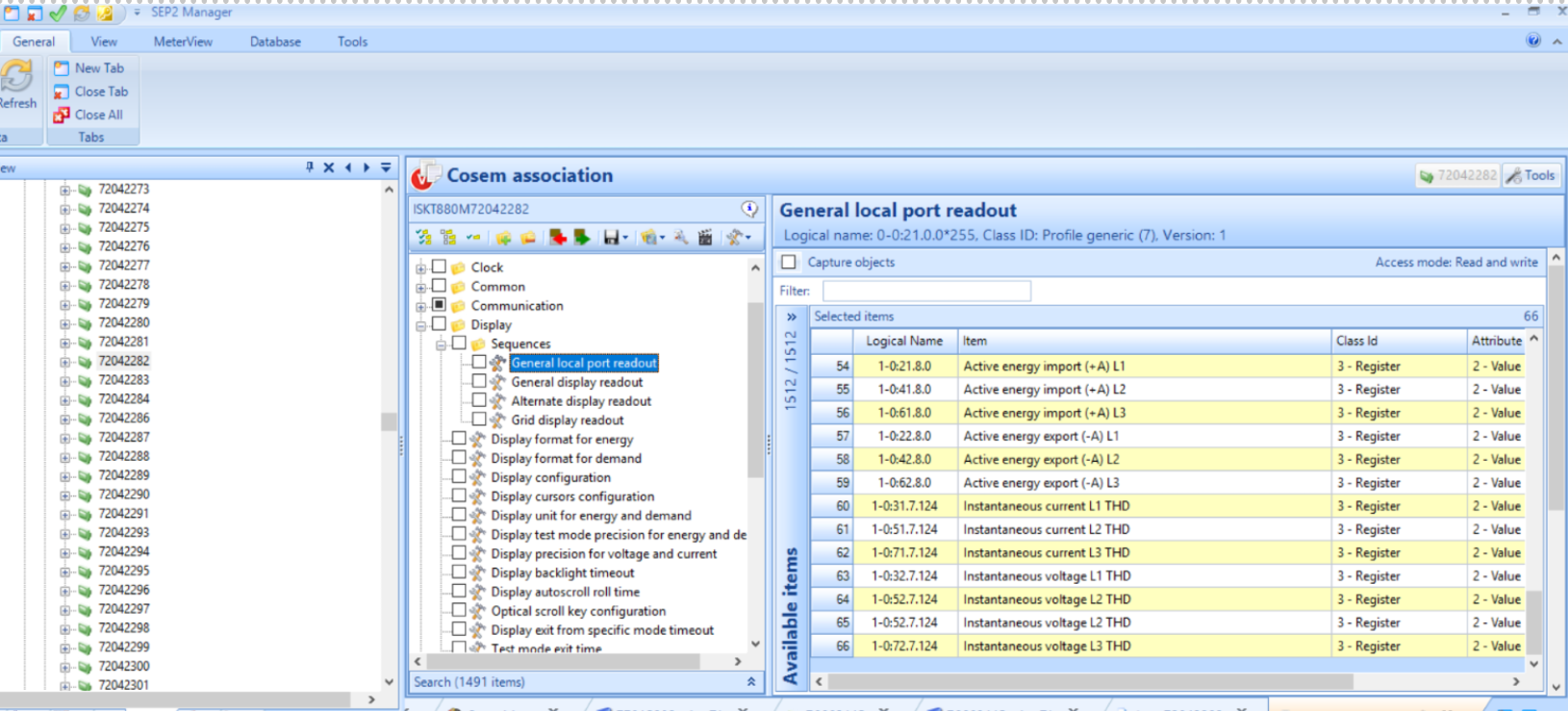

Zrzut ekranu oprogramowania SEP2 Manager (Iskraemeco), widok Cosem association, strona General local port readout, dla licznika ISKT880M72042282. Karty wstążki: General, View, MeterView, Database, Tools; wstążka General pokazuje Refresh, New Tab, Close Tab, Close All. Lewy panel zawiera numery liczników od 72042273 do 72042301 (wybrany 72042282). Drzewo w środkowym panelu: Clock, Common, Communication, Display > Sequences z General local port readout (podświetlone na niebiesko, pole niezaznaczone), General display readout, Alternate display readout, Grid display readout; poniżej: Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time. Search (1491 items). Tytuł prawego panelu General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; pole Capture objects niezaznaczone; Access mode: Read and write; pole Filter puste; Selected items 66 (1512 / 1512 available). Kolumny tabeli: Logical Name, Item, Class Id, Attribute. Wiersze: 54 1-0:21.8.0 Active energy import (+A) L1; 55 1-0:41.8.0 Active energy import (+A) L2; 56 1-0:61.8.0 Active energy import (+A) L3; 57 1-0:22.8.0 Active energy export (-A) L1; 58 1-0:42.8.0 Active energy export (-A) L2; 59 1-0:62.8.0 Active energy export (-A) L3; 60 1-0:31.7.124 Instantaneous current L1 THD; 61 1-0:51.7.124 Instantaneous current L2 THD; 62 1-0:71.7.124 Instantaneous current L3 THD; 63 1-0:32.7.124 Instantaneous voltage L1 THD; 64 1-0:52.7.124 Instantaneous voltage L2 THD; 65 1-0:52.7.124 Instantaneous voltage L2 THD; 66 1-0:72.7.124 Instantaneous voltage L3 THD. Wszystkie wiersze: Class Id 3 - Register, Attribute 2 - Value.
6 Następny krok: dodanie licznika do Reduxi
Po skonfigurowaniu licznika dodaj go do Reduxi Controller. Postępuj zgodnie z How to add energy meter Iskraemeco MT880.
✓ Podsumowanie
Przygotowanie (punkty 1–2): Użyj standardowej struktury telegramu Reduxi. Przygotuj licznik MT880 oraz SEP2W manager lub narzędzie Symbiot.
Ustawienia licznika (punkty 3–5): Ustaw IEC local port setup channel 1, IEC HDLC setup channel 1 oraz General local port readout.
Dodanie do Reduxi (punkt 6): Dodaj licznik do Reduxi Controller według przewodnika dla MT880.
Uruchomienie (punkt 6): Po dodaniu licznika sprawdź odczyty w Reduxi Configurator.
