How to add energy meter Landis+Gyr E350?

Reduxi support
Posodobljen

1. How to set up the M-Bus interface on Landis+Gyr E350 meter?

To configure the energy meter, please follow the article How to configure Landis+Gyr E350 ali E450 in the MAP120 tool.

2. Physical connection

Please connect M-BUS on the energy meter directly to Reduxi Landis Converter RS485-M-BUS. The first four pins at the energy meter are available for M-BUS. The picture below shows you can use the left's first two pins or the left's 3rd and 4th pins.






From Reduxi Landis Converter RS485 side, please connect to Reduxi Controller or Reduxi Gateway, and choose port one or port two:

A->A

B->B

GND->GND



On the interface, there has appeared a green light and a blinking yellow color. If the yellow color is not blinking, the energy meter is not set from electro-distribution and does not send the data.



3. Get the Serial Number of the energy meter

The serial number can be read from the energy meter. Please take a look at the picture below. The red square shows the last four digits of the serial. Another part of the serial is hidden due to security reasons. In your case, please read the whole serial from the energy meter.




4. Get the

The address is the last four numbers of the energy meter's serial number.

For example, above, the serial number above is 3107+1000=4107.



5. Add the device to Reduxi Configurator

First, you can log in to Reduxi Configurator using Reduxi Configurator via the browser.

1. Click Add Device

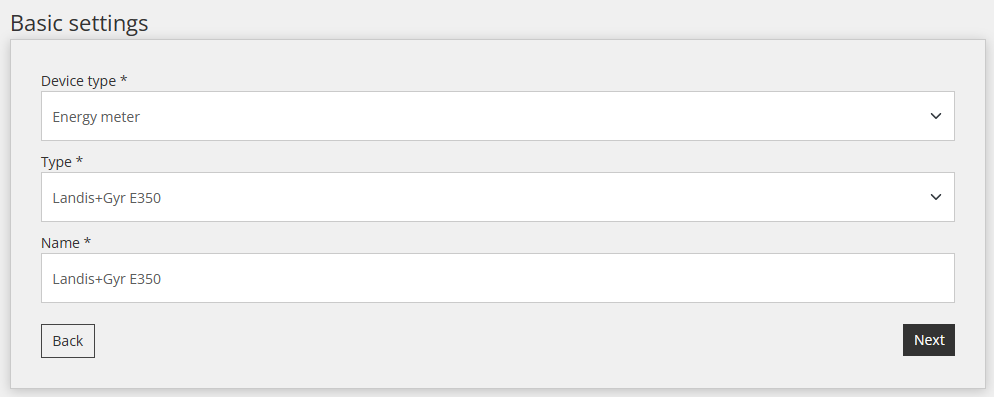

2. Enter Basic Settings


3. Select Communication Channel

4. Choose Device Configuration

5. Test communication

5. Enter and choose Advance settings

Sorodno

Sorodni sklopi

Komentar

2 comments

Date Votes
  • Aleksander

    1. Del verjetno ni dostopen končnemu uporabniku.

    3.korak v 3.delu (tip vmesnika, šifrirni ključ) v zadnji verziji firmware na krmilniku ni dostopen.

    0
  • Reduxi support

    Aleksander najlepša hvala za vaš komentar.

    1. Tako je, del v sklopu poglavja št. 1 se navezuje na del oz. navodila za sistemskega operaterja distribucijskega omrežja (SODO) kako je potrebno nastaviti sistemski števec, da bo le-ta deloval in pošiljal podatke na uporabniški vmesnik.
      1. Ločeno SODO pošljete zahtevo za konfiguracijo sistemskega števca v skladu s pravili Sistemskih obratovalnih navodil za districucijski sistem električne energije (SONDSEE) skupaj s serijsko številko vašega sistemskega števca. Serijsko številko pridobite, kot je prikazano na sliki v poglavju št. 3.
    2. V tretjem delu 5. poglavja v tem trenutku za sistemski števec tip Landis+Gyr enkripcija na sitemskem števcu ni vključena. Parametri so dodani v kolikor bi SODO v prihodnje vključil enkripcijo na tem delu komunikacije. V tem primeru vam bo SODO moral posredovati ključe za dostop do podatkov.



    Lep pozdrav,

    Ekipa Reduxi.
