Kako nastaviti Iskraemeco MT880 v orodju Iskraemeco SEP2W ali Symbiot

Števec Iskraemeco MT880 nastavite v orodju SEP2W manager ali Symbiot za krmilnik Reduxi Controller.

🔧 Iskraemeco MT880 · Reduxi Controller
🛠 Iskraemeco SEP2W manager ali orodje Symbiot
📡 En telegram (standardna struktura Reduxi)

📄 Prenesi kot PDF

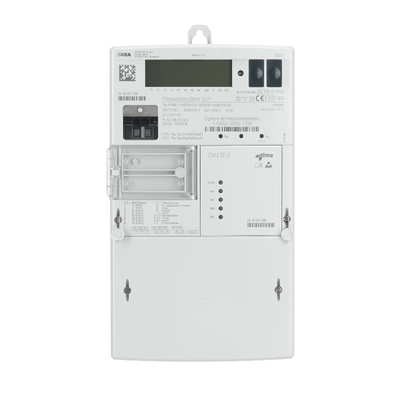

Števec električne energije Iskraemeco MT880, pogled od spredaj
Iskraemeco MT880 (slika: Iskraemeco)
Besedilni opis te slike

Fotografija števca električne energije Iskraemeco MT880 na beli podlagi, pogled od spredaj. Svetlo sivo ohišje z obesnim jezičkom zgoraj, LCD-zaslon in črtna koda v zgornjem delu, črn optični ali tipkalni modul na levi, prozoren pokrov sponk na levi strani, vrsta majhnih indikatorskih lučk in majhna modra znamka na desni.

📋 V tem članku
  1. Tehnična dokumentacija
  2. Potrebna oprema
  3. IEC local port setup channel 1
  4. IEC HDLC setup channel 1
  5. General local port readout
  6. Naslednji korak: dodajanje števca v Reduxi
  7. Povzetek
  8. Pogoste težave
  9. Sorodni članki

1 Tehnična dokumentacija

Števec nastavite z osnovno strukturo iz standardne strukture telegrama Reduxi za Iskraemeco AM550 DLMS push na vmesniku P1. Uporabite Iskraemeco SEP2W manager ali orodje Symbiot. Potreben je samo en telegram s podatki, določenimi v tej strukturi.

2 Potrebna oprema

  • Števec Iskraemeco MT880
  • Iskraemeco SEP2W manager ali orodje Symbiot
  • Reduxi Controller
  • Prenosnik ali tablica z internetno povezavo za nastavitev naprave v Reduxi

3 IEC local port setup channel 1

V orodju Iskraemeco SEP2W manager opravite naslednje korake. Začnite s 1. korakom, IEC local port setup channel 1.

Iskraemeco SEP2 Manager: IEC local port setup channel 1, hitrost prenosa 9600, naslov 72042282
IEC local port setup channel 1
Besedilni opis te slike

Posnetek zaslona programa SEP2 Manager (Iskraemeco), pogled Cosem association za števec ISKT880M72042282, stran IEC local port setup channel 1. Zavihki traku: General, View, MeterView, Database, Tools; gumbi traku Refresh, New Tab, Close Tab, Close All. Levo podokno našteva številke števcev od 72042273 do 72042301 (izbran 72042282). Srednje podokno, drevo: Clock, Common, Communication z No channel specified, Channel 0, Channel 1 (IEC local port setup channel 1 modro označen, IEC HDLC setup channel 1 z rdečim kvadratnim označevalnikom, ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1), Channel 2, Channel 3, Communication variant configuration; nato Display, GSM, Holidays, I/O configuration, I/O control, Identifiers, Image transfer; Search (1491 items). Desno podokno: IEC local port setup channel 1; Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Polja (potrditvena polja niso označena): Communication mode: 1 - Protocol according to IEC 62056-46 (DLMS UA), Read and write; Default baud rate: 9600, Read and write; Proposed baud rate: 9600, Read and write; Response time: 1 - 200ms, Read and write; Device address: 72042282, Read and write; Settings password: prazno, Write only; Parametrisation password: prazno, Write only; W5 password: prazno, Write only. Spodnja vrstica zavihkov: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktivno).

4 IEC HDLC setup channel 1

2. korak: nastavite IEC HDLC channel 1.

Iskraemeco SEP2 Manager: IEC HDLC setup channel 1, hitrost 9600, naslov naprave 41
IEC HDLC local port setup channel 1
Besedilni opis te slike

Posnetek zaslona programa SEP2 Manager (Iskraemeco), ki prikazuje stran IEC HDLC setup channel 1 v pogledu Cosem association. Levo podokno MeterView: seznam številk števcev od 90807030 do 91404225 (isti seznam kot na drugem posnetku zaslona SEP2 Manager; izbran je zadnji vnos 91404225). Srednje podokno: števec ISKT880M91404225 z drevesom: Actual values, Alarms, Billing, Clock, Common, Communication (No channel specified, Channel 0, Channel 1, Channel 2, Channel 3, Communication variant configuration), Display (Sequences: General local port readout, General display readout). Pod Channel 1: IEC local port setup channel 1, IEC HDLC setup channel 1 (označeno in modro poudarjeno), ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1. Spodaj Search (1572 items). Naslov desnega podokna: IEC HDLC setup channel 1. Logical name: 0-1:22.0.0*255, Class ID: IEC HDLC setup class (23), Version: 1. Polja, vsa označena, dostop Read and write: Communication speed: 9600; Window size transmit: 1; Window size receive: 1; Max info field length transmit: 154; Max info field length receive: 154; Inter octet time out: 50; Inactivity time out: 120; Device address: 41.

Iskraemeco SEP2 Manager: IEC local port setup channel 1, hitrost prenosa 9600, naslov 91404225
IEC local port setup channel 1 (drugi del)
Besedilni opis te slike

Posnetek zaslona programa SEP2 Manager (Iskraemeco), ki prikazuje stran IEC local port setup channel 1 v pogledu Cosem association. Levo podokno MeterView: seznam številk števcev 90807030, 90807452, 90807459, 90807554, 90807677, 90807680, 90807685, 90807686, 90807687, 90807692, 90807717, 90807798, 90807864, 90807868, 90807875, 90808004, 90808005, 90808008, 90808149, 90808178, 91404137, 91404153, 91404184, 91404188, 91404194, 91404200, 91404201, 91404210, 91404225 (zadnji je izbrani števec). Srednje podokno: števec ISKT880M91404225 z drevesom: Actual values, Alarms, Billing, Clock, Common, Communication (No channel specified, Channel 0, Channel 1, Channel 2, Channel 3, Communication variant configuration), Display (Sequences: General local port readout, General display readout). Pod Channel 1 so vnosi IEC local port setup channel 1 (označeno in modro poudarjeno), IEC HDLC setup channel 1, ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1. Spodaj Search (1572 items). Naslov desnega podokna: IEC local port setup channel 1. Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Polja, vsa označena: Communication mode: 1 - Protocol according to IEC 62056-46 (DLMS UA), dostop Read and write; Default baud rate: 9600, Read and write; Proposed baud rate: 9600, Read and write; Response time: 1 - 200ms, Read and write; Device address: 91404225, Read and write; Settings password: prazno, Write only; Parametrisation password: prazno, Write only; W5 password: prazno, Write only.

5 General local port readout

3. korak: nastavite splošno odčitavanje lokalnih vrat. Zaradi velikega števila vrstic so posnetki zaslona razdeljeni na dele. Zapišite si številko vrstice in Logical Name, da spremenite pravilne nastavitve.

Iskraemeco SEP2 Manager: General local port readout, 66 izbranih elementov, vrstice od 1 do 14
General local port readout, 1. del
Besedilni opis te slike

Posnetek zaslona programa SEP2 Manager (Iskraemeco), pogled Cosem association za števec ISKT880M72042282, stran General local port readout. Levo podokno našteva številke števcev od 72042273 do 72042301 (izbran 72042282). Drevo srednjega podokna: Clock, Common, Communication, Display > Sequences (General local port readout modro označen, General display readout, Alternate display readout, Grid display readout), nato Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Desno podokno: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects ni označeno; Access mode: Read and write; Filter prazen; Selected items 66 (1512 / 1512). Stolpci tabele: Logical Name, Item, Class Id, Attribute. Prikazane vrstice: 1 0-0:97.97.0 Error register, 1 - Data, 2 - Value (vrstica označena); 2 1-0:0.0.0 Electricity ID 1, 1 - Data; 3 1-0:0.9.1 Local time, 1 - Data; 4 1-0:0.9.2 Local date, 1 - Data; 5 1-0:0.4.2 Transformer ratio - current (numerator), 1 - Data; 6 1-0:0.4.5 Transformer ratio - current (denominator), 1 - Data; 7 1-0:0.4.3 Transformer ratio - voltage (numerator), 1 - Data; 8 1-0:0.4.6 Transformer ratio - voltage (denominator), 1 - Data; 9 1-0:1.4.0 Demand register - Active energy import (+A), 5 - Demand register, 2 - Curren(t) (odrezano); 10 1-0:2.4.0 Demand register - Active energy export (-A), 5 - Demand register; 11 1-0:1.6.0 Maximum demand register - Active energy import (+A), 4 - Extended register, 2 - Value; 12 1-0:1.6.1 Maximum demand register - Active energy import (+A) Rate 1, 4 - Extended register; 13 1-0:1.6.2 Maximum demand register - Active energy import (+A) Rate 2, 4 - Extended register; 14 1-0:2.6.0 Maximum demand register - Active energy export (-A), 4 - Extended register. Spodnja vrstica zavihkov: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktivno, oranžno).

Iskraemeco SEP2 Manager: General local port readout, 66 izbranih elementov, vrstice od 15 do 28
General local port readout, 2. del
Besedilni opis te slike

Posnetek zaslona programa SEP2 Manager (Iskraemeco), pogled Cosem association, stran General local port readout, za števec ISKT880M72042282. Levo podokno našteva številke števcev od 72042273 do 72042301 (izbran 72042282). Drevo srednjega podokna: Clock, Common, Communication, Display > Sequences: General local port readout (modro označen), General display readout, Alternate display readout, Grid display readout, nato Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time. Search (1491 items). Desno podokno: Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects ni označeno; Access mode: Read and write; Selected items 66, 1512 / 1512. Prikazane vrstice tabele (stolpci Logical Name, Item, Class Id, Attribute): 15 1-0:2.6.1 Maximum demand register - Active energy export (-A) Rate 1, 4 - Extended register, 2 - Value; 16 1-0:2.6.2 ... export (-A) Rate 2, 4 - Extended register; 17 1-0:21.6.0 Maximum demand register - Active energy import (+A) L1; 18 1-0:41.6.0 ... import (+A) L2; 19 1-0:61.6.0 ... import (+A) L3; 20 1-0:22.6.0 ... export (-A) L1; 21 1-0:42.6.0 ... export (-A) L2; 22 1-0:62.6.0 ... export (-A) L3 (vrstice od 17 do 22 so 4 - Extended register); 23 1-0:1.7.0 Instantaneous active import power (+A), 3 - Register; 24 1-0:2.7.0 Instantaneous active export power (-A), 3 - Register; 25 1-0:13.7.0 Instantaneous power factor (+A/+VA), 3 - Register; 26 1-0:32.7.0 Instantaneous voltage L1; 27 1-0:52.7.0 Instantaneous voltage L2; 28 1-0:72.7.0 Instantaneous voltage L3 (delno odrezano). Spodnji del okna: vrstica zavihkov s Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282 in aktivnim zavihkom Cosem association (oranžen). Pod njo je podokno Log Viewer z zavihkom Manager in praznimi glavami tabele Time, Source, Category, User, Description; števec 1000.

Iskraemeco SEP2 Manager: General local port readout, 66 izbranih elementov, vrstice od 29 do 42
General local port readout, 3. del
Besedilni opis te slike

Posnetek zaslona programa SEP2 Manager (Iskraemeco), pogled Cosem association za števec ISKT880M72042282, stran General local port readout. Levo podokno našteva številke števcev od 72042273 do 72042301 (izbran 72042282). Drevo srednjega podokna: Clock, Common, Communication, Display > Sequences (General local port readout modro označen, General display readout, Alternate display readout, Grid display readout), nato Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Desno podokno: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects ni označeno; Access mode: Read and write; Filter prazen; Selected items 66 (1512 / 1512). Stolpci tabele: Logical Name, Item, Class Id, Attribute. Prikazane vrstice, vse Class Id 3 - Register, Attribute 2 - Value: 29 1-0:31.7.0 Instantaneous current L1; 30 1-0:51.7.0 Instantaneous current L2; 31 1-0:71.7.0 Instantaneous current L3; 32 1-0:14.7.0 Instantaneous net frequency: any phase; 33 1-0:81.7.1 Angle U(L2) - U(L1); 34 1-0:81.7.2 Angle U(L3) - U(L1); 35 1-0:81.7.12 Angle U(L3) - U(L2); 36 1-0:81.7.40 Angle U(L1) - I(L1); 37 1-0:81.7.51 Angle U(L2) - I(L2); 38 1-0:81.7.62 Angle U(L3) - I(L3); 39 1-0:1.8.0 Active energy import (+A); 40 1-0:1.8.1 Active energy import (+A) Rate 1; 41 1-0:1.8.2 Active energy import (+A) Rate 2; 42 1-0:2.8.0 Active energy export (-A). Spodnja vrstica zavihkov: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktivno, oranžno).

Iskraemeco SEP2 Manager: General local port readout, 66 izbranih elementov, vrstice od 43 do 56
General local port readout, 4. del
Besedilni opis te slike

Posnetek zaslona programa SEP2 Manager (Iskraemeco), pogled Cosem association za števec ISKT880M72042282, stran General local port readout. Levo podokno našteva številke števcev od 72042273 do 72042301 (izbran 72042282). Drevo srednjega podokna: Clock, Common, Communication, Display > Sequences (General local port readout modro označen, General display readout, Alternate display readout, Grid display readout), nato Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 items). Desno podokno: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects ni označeno; Access mode: Read and write; Filter prazen; Selected items 66 (1512 / 1512). Stolpci tabele: Logical Name, Item, Class Id, Attribute. Prikazane vrstice, vse Class Id 3 - Register, Attribute 2 - Value: 43 1-0:2.8.1 Active energy export (-A) Rate 1; 44 1-0:2.8.2 Active energy export (-A) Rate 2; 45 1-0:3.8.0 Reactive energy import (+R); 46 1-0:3.8.1 Reactive energy import (+R) Rate 1; 47 1-0:3.8.2 Reactive energy import (+R) Rate 2; 48 1-0:4.8.0 Reactive energy export (-R); 49 1-0:4.8.1 Reactive energy export (-R) Rate 1; 50 1-0:4.8.2 Reactive energy export (-R) Rate 2; 51 1-0:16.8.0 Active energy combined (|+A|-|-A|); 52 1-0:16.8.1 Active energy combined (|+A|-|-A|) Rate 1; 53 1-0:16.8.2 Active energy combined (|+A|-|-A|) Rate 2; 54 1-0:21.8.0 Active energy import (+A) L1; 55 1-0:41.8.0 Active energy import (+A) L2; 56 1-0:61.8.0 Active energy import (+A) L3. Spodnja vrstica zavihkov: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktivno, oranžno).

Iskraemeco SEP2 Manager: General local port readout, 66 izbranih elementov, vrstice od 54 do 66
General local port readout, 5. del
Besedilni opis te slike

Posnetek zaslona programa SEP2 Manager (Iskraemeco), pogled Cosem association, stran General local port readout, za števec ISKT880M72042282. Zavihki traku: General, View, MeterView, Database, Tools; trak General prikazuje Refresh, New Tab, Close Tab, Close All. Levo podokno našteva številke števcev od 72042273 do 72042301 (izbran 72042282). Drevo srednjega podokna: Clock, Common, Communication, Display > Sequences z General local port readout (modro označen, polje ni označeno), General display readout, Alternate display readout, Grid display readout; spodaj: Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time. Search (1491 items). Naslov desnega podokna General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; polje Capture objects ni označeno; Access mode: Read and write; polje Filter prazno; Selected items 66 (1512 / 1512 available). Stolpci tabele: Logical Name, Item, Class Id, Attribute. Vrstice: 54 1-0:21.8.0 Active energy import (+A) L1; 55 1-0:41.8.0 Active energy import (+A) L2; 56 1-0:61.8.0 Active energy import (+A) L3; 57 1-0:22.8.0 Active energy export (-A) L1; 58 1-0:42.8.0 Active energy export (-A) L2; 59 1-0:62.8.0 Active energy export (-A) L3; 60 1-0:31.7.124 Instantaneous current L1 THD; 61 1-0:51.7.124 Instantaneous current L2 THD; 62 1-0:71.7.124 Instantaneous current L3 THD; 63 1-0:32.7.124 Instantaneous voltage L1 THD; 64 1-0:52.7.124 Instantaneous voltage L2 THD; 65 1-0:52.7.124 Instantaneous voltage L2 THD; 66 1-0:72.7.124 Instantaneous voltage L3 THD. Vse vrstice: Class Id 3 - Register, Attribute 2 - Value.

✓ Povzetek

Priprava (točki 1–2): Uporabite standardno strukturo telegrama Reduxi. Pripravite števec MT880 in orodje SEP2W manager ali Symbiot.

Nastavitve števca (točke 3–5): Nastavite IEC local port setup channel 1, IEC HDLC setup channel 1 in splošno odčitavanje lokalnih vrat.

Dodajanje v Reduxi (točka 6): Števec dodajte v krmilnik Reduxi Controller po navodilih za MT880.

Zagon (točka 6): Po dodajanju števca preverite odčitke v Reduxi Configurator.

→ Pogoste težave

Težava Rešitev
Ni podatkov iz števca Nastavitve telegrama primerjajte s standardno strukturo telegrama Reduxi. Pri spreminjanju odčitavanja si zapišite številko vrstice in Logical Name.
Open configurator se ne odpre ali ostane prazen Tunel še ni aktiven. Počakajte približno 30 sekund in preverite, ali je krmilnik na spletu.
Prijava z admin je zavrnjena Geslo je bilo spremenjeno med namestitvijo. Vprašajte monterja. Geslo računa Reduxi tu ne deluje.
reduxi.local se ne naloži Vaša naprava ni v istem omrežju kot krmilnik. Uporabite naslov IP ali tunelsko povezavo.
Test komunikacije ne uspe, naprava je videti brez povezave Preverite dosegljivost, naslov IP / vrata / unit ID in ali je protokol na napravi omogočen.
