Kako podesiti Iskraemeco MT880 u alatu Iskraemeco SEP2W ili Symbiot

Podesite brojilo Iskraemeco MT880 u SEP2W manageru ili alatu Symbiot za Reduxi Controller.

🔧 Iskraemeco MT880 · Reduxi Controller
🛠 Iskraemeco SEP2W manager ili alat Symbiot
📡 Jedan telegram (Reduxi standardna struktura)

📄 Preuzmite kao PDF

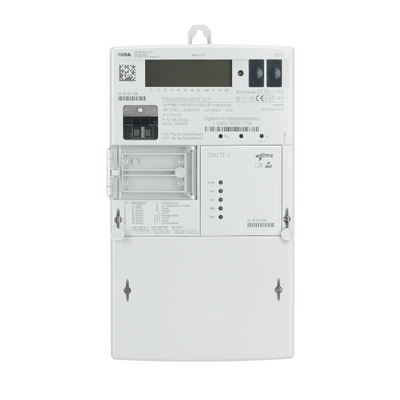

Brojilo električne energije Iskraemeco MT880, pogled sa prednje strane
Iskraemeco MT880 (slika: Iskraemeco)
Tekstualni opis ove slike

Fotografija brojila električne energije Iskraemeco MT880 na beloj pozadini, pogled sa prednje strane. Svetlosivo kućište sa kukom za kačenje na vrhu, LCD displejom i etiketom sa bar-kodom u gornjem delu, crnim optičkim ili tasterskim modulom levo, providnim poklopcem priključaka na levoj strani, redom malih indikatorskih lampica i malom plavom oznakom proizvođača desno.

📋 U ovom članku
  1. Tehnička dokumentacija
  2. Potrebna oprema
  3. IEC local port setup channel 1
  4. IEC HDLC setup channel 1
  5. General local port readout
  6. Sledeći korak: dodajte brojilo u Reduxi
  7. Rezime
  8. Česti problemi
  9. Povezani članci

1 Tehnička dokumentacija

Podesite brojilo osnovnom strukturom iz članka Reduxi standard telegram structure for Iskraemeco AM550 DLMS push on P1 interface. Koristite Iskraemeco SEP2W manager ili alat Symbiot. Potreban je samo jedan telegram sa podacima definisanim u toj strukturi.

2 Potrebna oprema

  • Brojilo Iskraemeco MT880
  • Iskraemeco SEP2W manager ili alat Symbiot
  • Reduxi Controller
  • Laptop ili tablet sa pristupom internetu za podešavanje uređaja u Reduxi

3 IEC local port setup channel 1

Izvršite sledeće korake u alatu Iskraemeco SEP2W manager. Počnite od koraka 1, IEC local port setup channel 1.

Iskraemeco SEP2 Manager: IEC local port setup channel 1, baud rate 9600, adresa 72042282
IEC local port setup channel 1
Tekstualni opis ove slike

Snimak ekrana softvera SEP2 Manager (Iskraemeco), prikaz Cosem association za brojilo ISKT880M72042282, stranica IEC local port setup channel 1. Kartice trake: General, View, MeterView, Database, Tools; dugmad trake Refresh, New Tab, Close Tab, Close All. Levo okno navodi brojeve brojila od 72042273 do 72042301 (izabrano 72042282). Srednje okno, stablo: Clock, Common, Communication, sa No channel specified, Channel 0, Channel 1 (IEC local port setup channel 1 istaknuto plavo, IEC HDLC setup channel 1 sa crvenim kvadratnim markerom, ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1), Channel 2, Channel 3, Communication variant configuration; zatim Display, GSM, Holidays, I/O configuration, I/O control, Identifiers, Image transfer; Search (1491 stavki). Desno okno: IEC local port setup channel 1; Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Polja (polja za potvrdu nisu označena): Communication mode: 1 - Protocol according to IEC 62056-46 (DLMS UA), Read and write; Default baud rate: 9600, Read and write; Proposed baud rate: 9600, Read and write; Response time: 1 - 200ms, Read and write; Device address: 72042282, Read and write; Settings password: prazno, Write only; Parametrisation password: prazno, Write only; W5 password: prazno, Write only. Donja traka sa karticama: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktivno).

4 IEC HDLC setup channel 1

Korak 2: podesite IEC HDLC channel 1.

Iskraemeco SEP2 Manager: IEC HDLC setup channel 1, brzina 9600, adresa uređaja 41
IEC HDLC local port setup channel 1
Tekstualni opis ove slike

Snimak ekrana softvera SEP2 Manager (Iskraemeco) sa stranicom IEC HDLC setup channel 1 u prikazu Cosem association. Levo okno MeterView: lista brojeva brojila od 90807030 do 91404225 (ista lista kao na drugom snimku ekrana SEP2 Manager-a; poslednja stavka 91404225 je izabrana). Srednje okno: brojilo ISKT880M91404225 sa stablom: Actual values, Alarms, Billing, Clock, Common, Communication (No channel specified, Channel 0, Channel 1, Channel 2, Channel 3, Communication variant configuration), Display (Sequences: General local port readout, General display readout). Pod Channel 1: IEC local port setup channel 1, IEC HDLC setup channel 1 (označeno i istaknuto plavo), ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1. Dole Search (1572 stavke). Naslov desnog okna: IEC HDLC setup channel 1. Logical name: 0-1:22.0.0*255, Class ID: IEC HDLC setup class (23), Version: 1. Polja, sva označena, pristup Read and write: Communication speed: 9600; Window size transmit: 1; Window size receive: 1; Max info field length transmit: 154; Max info field length receive: 154; Inter octet time out: 50; Inactivity time out: 120; Device address: 41.

Iskraemeco SEP2 Manager: IEC local port setup channel 1, baud rate 9600, adresa 91404225
IEC local port setup channel 1 (drugi deo)
Tekstualni opis ove slike

Snimak ekrana softvera SEP2 Manager (Iskraemeco) sa stranicom IEC local port setup channel 1 u prikazu Cosem association. Levo okno MeterView: lista brojeva brojila 90807030, 90807452, 90807459, 90807554, 90807677, 90807680, 90807685, 90807686, 90807687, 90807692, 90807717, 90807798, 90807864, 90807868, 90807875, 90808004, 90808005, 90808008, 90808149, 90808178, 91404137, 91404153, 91404184, 91404188, 91404194, 91404200, 91404201, 91404210, 91404225 (poslednje je izabrano brojilo). Srednje okno: brojilo ISKT880M91404225 sa stablom: Actual values, Alarms, Billing, Clock, Common, Communication (No channel specified, Channel 0, Channel 1, Channel 2, Channel 3, Communication variant configuration), Display (Sequences: General local port readout, General display readout). Pod Channel 1 nalaze se stavke IEC local port setup channel 1 (označeno i istaknuto plavo), IEC HDLC setup channel 1, ID serial process status channel 1, DLMS options channel 1, DLMS association restrictions channel 1, HDLC options channel 1. Dole Search (1572 stavke). Naslov desnog okna: IEC local port setup channel 1. Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Polja, sva označena: Communication mode: 1 - Protocol according to IEC 62056-46 (DLMS UA), pristup Read and write; Default baud rate: 9600, Read and write; Proposed baud rate: 9600, Read and write; Response time: 1 - 200ms, Read and write; Device address: 91404225, Read and write; Settings password: prazno, Write only; Parametrisation password: prazno, Write only; W5 password: prazno, Write only.

5 General local port readout

Korak 3: podesite general local port readout. Zbog velikog broja redova snimci ekrana su podeljeni na delove. Zabeležite broj reda i Logical Name da biste izmenili ispravna podešavanja.

Iskraemeco SEP2 Manager: General local port readout, 66 izabranih stavki, redovi 1 do 14
General local port readout, deo 1
Tekstualni opis ove slike

Snimak ekrana softvera SEP2 Manager (Iskraemeco), prikaz Cosem association za brojilo ISKT880M72042282, stranica General local port readout. Levo okno navodi brojeve brojila od 72042273 do 72042301 (izabrano 72042282). Srednje okno, stablo: Clock, Common, Communication, Display > Sequences (General local port readout istaknuto plavo, General display readout, Alternate display readout, Grid display readout), zatim Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 stavki). Desno okno: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects nije označeno; Access mode: Read and write; Filter prazno; Selected items 66 (1512 / 1512). Kolone tabele: Logical Name, Item, Class Id, Attribute. Prikazani redovi: 1 0-0:97.97.0 Error register, 1 - Data, 2 - Value (red istaknut); 2 1-0:0.0.0 Electricity ID 1, 1 - Data; 3 1-0:0.9.1 Local time, 1 - Data; 4 1-0:0.9.2 Local date, 1 - Data; 5 1-0:0.4.2 Transformer ratio - current (numerator), 1 - Data; 6 1-0:0.4.5 Transformer ratio - current (denominator), 1 - Data; 7 1-0:0.4.3 Transformer ratio - voltage (numerator), 1 - Data; 8 1-0:0.4.6 Transformer ratio - voltage (denominator), 1 - Data; 9 1-0:1.4.0 Demand register - Active energy import (+A), 5 - Demand register, 2 - Curren(t) (odsečeno); 10 1-0:2.4.0 Demand register - Active energy export (-A), 5 - Demand register; 11 1-0:1.6.0 Maximum demand register - Active energy import (+A), 4 - Extended register, 2 - Value; 12 1-0:1.6.1 Maximum demand register - Active energy import (+A) Rate 1, 4 - Extended register; 13 1-0:1.6.2 Maximum demand register - Active energy import (+A) Rate 2, 4 - Extended register; 14 1-0:2.6.0 Maximum demand register - Active energy export (-A), 4 - Extended register. Donja traka sa karticama: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktivno, narandžasto).

Iskraemeco SEP2 Manager: General local port readout, 66 izabranih stavki, redovi 15 do 28
General local port readout, deo 2
Tekstualni opis ove slike

Snimak ekrana softvera SEP2 Manager (Iskraemeco), prikaz Cosem association, stranica General local port readout, za brojilo ISKT880M72042282. Levo okno navodi brojeve brojila od 72042273 do 72042301 (izabrano 72042282). Srednje okno, stablo: Clock, Common, Communication, Display > Sequences: General local port readout (istaknuto plavo), General display readout, Alternate display readout, Grid display readout, zatim Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time. Search (1491 stavki). Desno okno: Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects nije označeno; Access mode: Read and write; Selected items 66, 1512 / 1512. Prikazani redovi tabele (kolone Logical Name, Item, Class Id, Attribute): 15 1-0:2.6.1 Maximum demand register - Active energy export (-A) Rate 1, 4 - Extended register, 2 - Value; 16 1-0:2.6.2 ... export (-A) Rate 2, 4 - Extended register; 17 1-0:21.6.0 Maximum demand register - Active energy import (+A) L1; 18 1-0:41.6.0 ... import (+A) L2; 19 1-0:61.6.0 ... import (+A) L3; 20 1-0:22.6.0 ... export (-A) L1; 21 1-0:42.6.0 ... export (-A) L2; 22 1-0:62.6.0 ... export (-A) L3 (redovi 17 do 22 su 4 - Extended register); 23 1-0:1.7.0 Instantaneous active import power (+A), 3 - Register; 24 1-0:2.7.0 Instantaneous active export power (-A), 3 - Register; 25 1-0:13.7.0 Instantaneous power factor (+A/+VA), 3 - Register; 26 1-0:32.7.0 Instantaneous voltage L1; 27 1-0:52.7.0 Instantaneous voltage L2; 28 1-0:72.7.0 Instantaneous voltage L3 (delimično odsečeno). Donji deo prozora: traka sa karticama Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282 i aktivna kartica Cosem association (narandžasto). Ispod nje panel Log Viewer sa karticom Manager i praznim zaglavljima tabele Time, Source, Category, User, Description; brojač 1000.

Iskraemeco SEP2 Manager: General local port readout, 66 izabranih stavki, redovi 29 do 42
General local port readout, deo 3
Tekstualni opis ove slike

Snimak ekrana softvera SEP2 Manager (Iskraemeco), prikaz Cosem association za brojilo ISKT880M72042282, stranica General local port readout. Levo okno navodi brojeve brojila od 72042273 do 72042301 (izabrano 72042282). Srednje okno, stablo: Clock, Common, Communication, Display > Sequences (General local port readout istaknuto plavo, General display readout, Alternate display readout, Grid display readout), zatim Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 stavki). Desno okno: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects nije označeno; Access mode: Read and write; Filter prazno; Selected items 66 (1512 / 1512). Kolone tabele: Logical Name, Item, Class Id, Attribute. Prikazani redovi, svi sa Class Id 3 - Register, Attribute 2 - Value: 29 1-0:31.7.0 Instantaneous current L1; 30 1-0:51.7.0 Instantaneous current L2; 31 1-0:71.7.0 Instantaneous current L3; 32 1-0:14.7.0 Instantaneous net frequency: any phase; 33 1-0:81.7.1 Angle U(L2) - U(L1); 34 1-0:81.7.2 Angle U(L3) - U(L1); 35 1-0:81.7.12 Angle U(L3) - U(L2); 36 1-0:81.7.40 Angle U(L1) - I(L1); 37 1-0:81.7.51 Angle U(L2) - I(L2); 38 1-0:81.7.62 Angle U(L3) - I(L3); 39 1-0:1.8.0 Active energy import (+A); 40 1-0:1.8.1 Active energy import (+A) Rate 1; 41 1-0:1.8.2 Active energy import (+A) Rate 2; 42 1-0:2.8.0 Active energy export (-A). Donja traka sa karticama: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktivno, narandžasto).

Iskraemeco SEP2 Manager: General local port readout, 66 izabranih stavki, redovi 43 do 56
General local port readout, deo 4
Tekstualni opis ove slike

Snimak ekrana softvera SEP2 Manager (Iskraemeco), prikaz Cosem association za brojilo ISKT880M72042282, stranica General local port readout. Levo okno navodi brojeve brojila od 72042273 do 72042301 (izabrano 72042282). Srednje okno, stablo: Clock, Common, Communication, Display > Sequences (General local port readout istaknuto plavo, General display readout, Alternate display readout, Grid display readout), zatim Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time; Search (1491 stavki). Desno okno: General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; Capture objects nije označeno; Access mode: Read and write; Filter prazno; Selected items 66 (1512 / 1512). Kolone tabele: Logical Name, Item, Class Id, Attribute. Prikazani redovi, svi sa Class Id 3 - Register, Attribute 2 - Value: 43 1-0:2.8.1 Active energy export (-A) Rate 1; 44 1-0:2.8.2 Active energy export (-A) Rate 2; 45 1-0:3.8.0 Reactive energy import (+R); 46 1-0:3.8.1 Reactive energy import (+R) Rate 1; 47 1-0:3.8.2 Reactive energy import (+R) Rate 2; 48 1-0:4.8.0 Reactive energy export (-R); 49 1-0:4.8.1 Reactive energy export (-R) Rate 1; 50 1-0:4.8.2 Reactive energy export (-R) Rate 2; 51 1-0:16.8.0 Active energy combined (|+A|-|-A|); 52 1-0:16.8.1 Active energy combined (|+A|-|-A|) Rate 1; 53 1-0:16.8.2 Active energy combined (|+A|-|-A|) Rate 2; 54 1-0:21.8.0 Active energy import (+A) L1; 55 1-0:41.8.0 Active energy import (+A) L2; 56 1-0:61.8.0 Active energy import (+A) L3. Donja traka sa karticama: Commision, 77815809 - A+_T1, 76669445, 76669445 - A+_T1, Log: 72042282, Cosem association (aktivno, narandžasto).

Iskraemeco SEP2 Manager: General local port readout, 66 izabranih stavki, redovi 54 do 66
General local port readout, deo 5
Tekstualni opis ove slike

Snimak ekrana softvera SEP2 Manager (Iskraemeco), prikaz Cosem association, stranica General local port readout, za brojilo ISKT880M72042282. Kartice trake: General, View, MeterView, Database, Tools; traka General prikazuje Refresh, New Tab, Close Tab, Close All. Levo okno navodi brojeve brojila od 72042273 do 72042301 (izabrano 72042282). Srednje okno, stablo: Clock, Common, Communication, Display > Sequences sa General local port readout (istaknuto plavo, polje nije označeno), General display readout, Alternate display readout, Grid display readout; ispod: Display format for energy, Display format for demand, Display configuration, Display cursors configuration, Display unit for energy and demand, Display test mode precision for energy and demand, Display precision for voltage and current, Display backlight timeout, Display autoscroll roll time, Optical scroll key configuration, Display exit from specific mode timeout, Test mode exit time. Search (1491 stavki). Naslov desnog okna General local port readout; Logical name: 0-0:21.0.0*255, Class ID: Profile generic (7), Version: 1; polje Capture objects nije označeno; Access mode: Read and write; polje Filter prazno; Selected items 66 (1512 / 1512 dostupno). Kolone tabele: Logical Name, Item, Class Id, Attribute. Redovi: 54 1-0:21.8.0 Active energy import (+A) L1; 55 1-0:41.8.0 Active energy import (+A) L2; 56 1-0:61.8.0 Active energy import (+A) L3; 57 1-0:22.8.0 Active energy export (-A) L1; 58 1-0:42.8.0 Active energy export (-A) L2; 59 1-0:62.8.0 Active energy export (-A) L3; 60 1-0:31.7.124 Instantaneous current L1 THD; 61 1-0:51.7.124 Instantaneous current L2 THD; 62 1-0:71.7.124 Instantaneous current L3 THD; 63 1-0:32.7.124 Instantaneous voltage L1 THD; 64 1-0:52.7.124 Instantaneous voltage L2 THD; 65 1-0:52.7.124 Instantaneous voltage L2 THD; 66 1-0:72.7.124 Instantaneous voltage L3 THD. Svi redovi: Class Id 3 - Register, Attribute 2 - Value.

✓ Rezime

Priprema (tačke 1–2): Koristite Reduxi standardnu strukturu telegrama. Pripremite brojilo MT880 i SEP2W manager ili alat Symbiot.

Podešavanja brojila (tačke 3–5): Podesite IEC local port setup channel 1, IEC HDLC setup channel 1 i general local port readout.

Dodavanje u Reduxi (tačka 6): Dodajte brojilo u Reduxi Controller prema vodiču za MT880.

Puštanje u rad (tačka 6): Proverite očitavanja u aplikaciji Reduxi Configurator nakon dodavanja brojila.

→ Česti problemi

Problem Rešenje
Nema podataka sa brojila Uporedite podešavanja telegrama sa Reduxi standardnom strukturom telegrama. Zabeležite broj reda i Logical Name kada menjate readout.
Open configurator se ne otvara ili ostaje prazan Tunel još nije aktivan. Sačekajte oko 30 sekundi i proverite da li je kontroler na mreži.
Prijava sa admin se odbija Lozinka je promenjena tokom instalacije. Pitajte instalatera. Lozinka za Reduxi nalog ovde ne radi.
reduxi.local se ne učitava Vaš uređaj nije u istoj mreži kao kontroler. Koristite IP adresu ili tunelsku vezu.
Test komunikacije ne uspeva, uređaj je offline Proverite dostupnost, IP adresu / port / unit ID i da li je protokol omogućen na uređaju.
